    ALPHA-7053 Awg26 PVC, Irradiated 150V MIL-W-16878E TYPE B, UL 1429 電子線
    看原圖

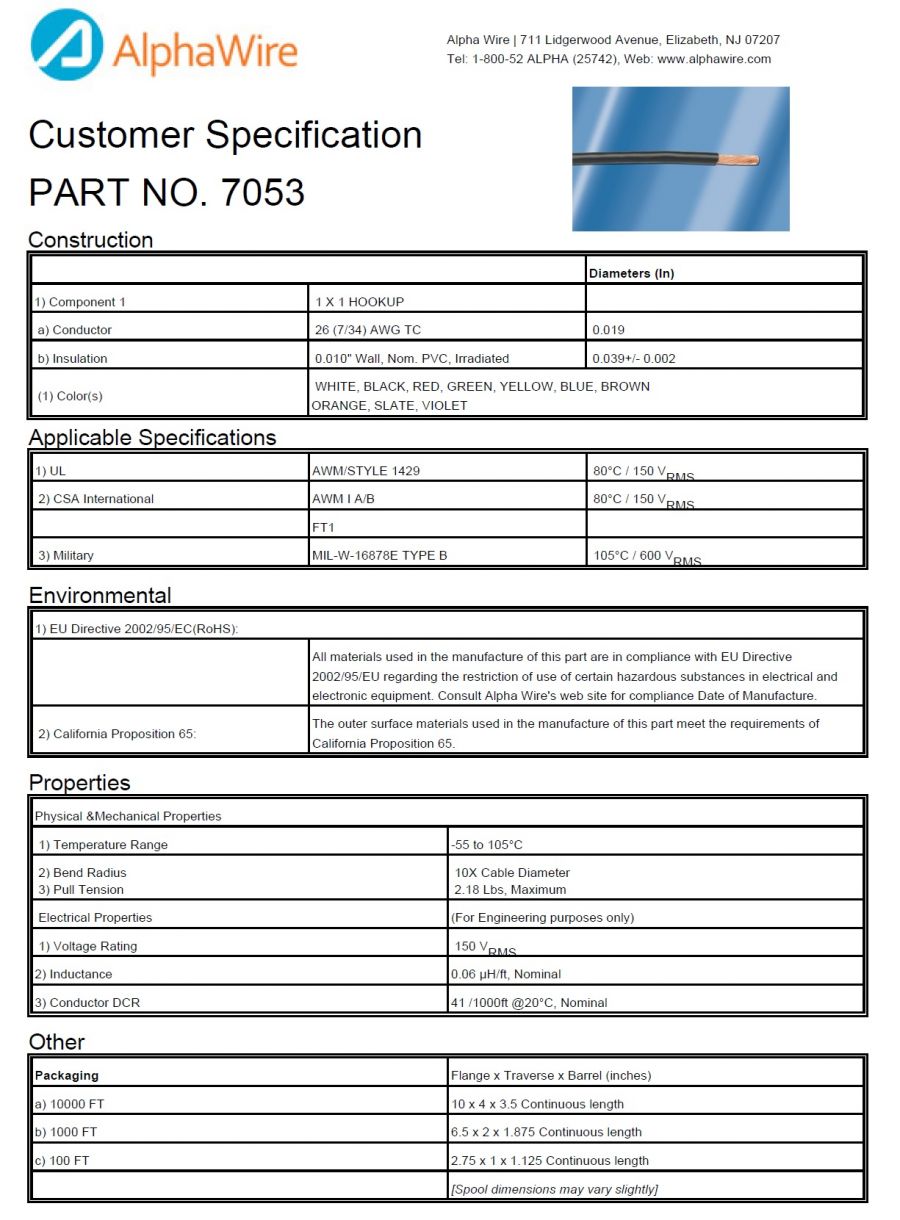

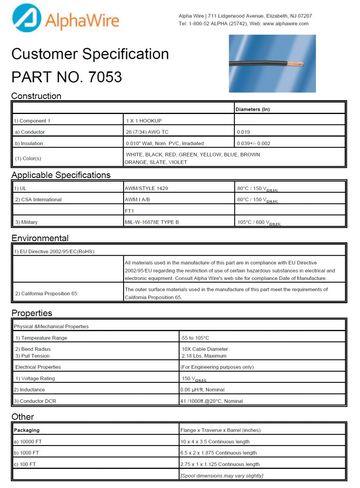

    		ALPHA-7053



    商品編號: ALPHA-7053

    ALPHA-7053 Awg26 PVC, Irradiated 150V MIL-W-16878E TYPE B, UL 1429 電子線

    Part # Voltage AWG Stranding Insulation Thickness Insulation Diameter Insulation Material Applicable Specifications
    7053 150 26 7/34 0.01 0.039 IRRPVC CA Prop 65, CSA AWM I A/B, CSA FT1, MIL-W-16878E TYPE B, UL AWM 1429
    Construction
    　 Diameters (In)
    1) Component 1 1 X 1 HOOKUP 　
    a) Conductor 26 (7/34) AWG TC 0.019
    b) Insulation 0.010" Wall, Nom. PVC, Irradiated 0.039+/- 0.002
    (1) Color(s) WHITE, BLACK, RED, GREEN, YELLOW, BLUE, BROWN
    ORANGE, SLATE, VIOLET
    Applicable Specifications
    1) UL AWM/STYLE 1429 80°C / 150 VRMS
    2) CSA International AWM I A/B 80°C / 150 VRMS
    　 FT1 　
    3) Military MIL-W-16878E TYPE B 105°C / 600 VRMS
    Environmental
    1) EU Directive 2002/95/EC(RoHS):
    　 All materials used in the manufacture of this part are in compliance with EU Directive 2002/95/EU regarding the restriction of use of certain hazardous substances in electrical and electronic equipment. Consult Alpha Wire's web site for compliance Date of Manufacture.
    2) California Proposition 65: The outer surface materials used in the manufacture of this part meet the requirements of California Proposition 65.
    Properties
    Physical & Mechanical Properties
    1) Temperature Range -55 to 105°C
    2) Bend Radius 10X Cable Diameter
    3) Pull Tension 2.18 Lbs, Maximum
    Electrical Properties (For Engineering purposes only)
    1) Voltage Rating 150 VRMS
    2) Inductance 0.06 µH/ft, Nominal
    3) Conductor DCR 41 Ω/1000ft @20°C, Nominal
    Other
    Packaging Flange x Traverse x Barrel (inches)
    a) 10000 FT 10 x 4 x 3.5 Continuous length
    b) 1000 FT 6.5 x 2 x 1.875 Continuous length
    c) 100 FT 2.75 x 1 x 1.125 Continuous length
    　 [Spool dimensions may vary slightly]

    The broad range of hook-up wire from Alpha means you will find the product exactly suited to your application— whether it’s as straightforward as a control cabinet in a protected environment or as specialized as a machine tool on the factory floor, a high-temperature oven, or off-road construction equipment.

    Our hook-up wire is available in a variety of insulations to meet your needs for temperature, ability to withstand wear and abrasion, electrical performance, or resistance to oil, solvents, and chemicals.

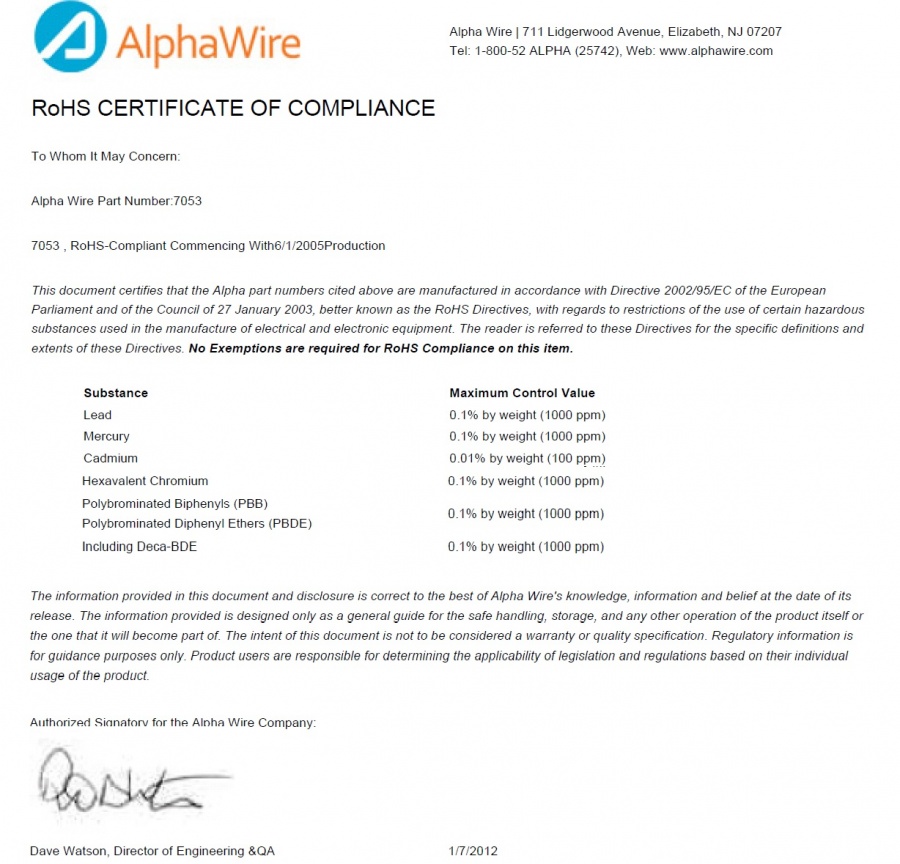

    EU/China ROHS CERTIFICATE OF COMPLIANCE
    To Whom It May Concern:
    Alpha Wire Part Number: 7053
    7053 , RoHS-Compliant Commencing With 6/1/2005 Production
    This document certifies that the Alpha part number cited above are manufactured in accordance with Directive 2002/95/EC of the European Parliament and of the Council of 27 January 2003, better known as the RoHS Directives, with regards to restrictions of the use of certain hazardous substances used in the manufacture of electrical and electronic equipment. The reader is referred to these Directives for the specific definitions and extents of these Directives. No Exemptions are required for RoHS Compliance on this item. Additionally, Alpha certifies that the listed part number is in compliance with the European Union’s Restriction of Hazardous Substances (RoHS) Directive, 2002/95/EC and all subsequent revisions and China RoHS “Marking for Control of Pollution by Electronic Information Products” standard SJ/T 11364-2006.
    Substance Maximum Control Value
    Lead 0.1% by weight (1000 ppm)
    Mercury 0.1% by weight (1000 ppm)
    Cadmium 0.01% by weight (100 ppm)
    Hexavalent Chromium 0.1% by weight (1000 ppm )
    Polybrominated Biphenyls (PBB) 0.1% by weight (1000 ppm)
    Polybrominated Diphenyl Ethers (PBDE) , 　
    Including Deca-BDE 0.1% by weight (1000 ppm)
    The information provided in this document and disclosure is correct to the best of Alpha Wire's knowledge, information and belief at the date of its release. The information provided is designed only as a general guide for the safe handling, storage, and any other operation of the product itself or the one that it will become part of. The intent of this document is not to be considered a warranty or quality specification. Regulatory information is for guidance purposes only. Product users are responsible for determining the applicability of legislation and regulations based on their individual usage of the product.
    Authorized Signatory for the Alpha Wire Company:
    Dave Watson, Director of Engineering & QA 1/7/2012

    Part # Voltage AWG Stranding Insulation Thickness Insulation Diameter Insulation Material Applicable Specifications
    6120 600 4/0 2052/30 0.08 0.725 Rubber 　
    631419 50 14 19/.0142 0.023 0.113 XLPE CA Prop 65, SAE J1128 Type GXL
    631619 50 16 19/.0113 0.023 0.102 XLPE CA Prop 65, SAE J1128 Type GXL
    631816 50 18 16/.0100 0.023 0.093 XLPE CA Prop 65, SAE J1128 Type GXL
    7012 150 22 19/34 0.011 0.054 XLPE CA Prop 65, CSA AWM I A/B, CSA FT1, MIL-W-16878E TYPE B, UL AWM 3265
    7013 150 20 19/32 0.011 0.06 XLPE CA Prop 65, CSA AWM I A/B, CSA FT1, MIL-W-16878E TYPE B, UL AWM 3265
    7014 150 18 19/30 0.011 0.07 XLPE CA Prop 65, CSA AWM I A/B, CSA FT1, MIL-W-16878E TYPE B, UL AWM 3265
    7024 300 22 19/34 0.016 0.064 XLPE CA Prop 65, CSA CL1252 XLPE, MIL-W-16878E Type C, UL AWM 3266
    7025 300 20 19/32 0.016 0.072 XLPE CA Prop 65, CSA CL1252 XLPE, MIL-W-16878E Type C, UL AWM 3266
    7026 300 18 19/30 0.016 0.08 XLPE CA Prop 65, CSA CL1252 XLPE, MIL-W-16878E Type C, UL AWM 3266
    7035 300 14 19/27 0.016 0.103 IRRPVC CA Prop 65, CSA FT1, CSA REW XLPVC, MIL-W-16878E Type C, UL AWM 3317
    7036 300 12 19/25 0.016 0.122 IRRPVC CA Prop 65, CSA FT1, CSA REW XLPVC, MIL-W-16878E Type C, UL AWM 3317
    7044 600 18 16/30 0.032 0.111 XLPE CA Prop 65, CSA CL1251 XLPE, MIL-W-16878E Type D, UL AWM 3271
    7045 600 16 26/30 0.032 0.119 XLPE CA Prop 65, CSA CL1251 XLPE, MIL-W-16878E Type D, UL AWM 3271
    7046 600 14 41/30 0.032 0.138 XLPE CA Prop 65, CSA CL1251 XLPE, MIL-W-16878E Type D, UL AWM 3271
    7047 600 12 65/30 0.032 0.155 XLPE CA Prop 65, CSA CL1251 XLPE, MIL-W-16878E Type D, UL AWM 3271
    7048 600 10 105/30 0.032 0.184 XLPE CA Prop 65, CSA CL1251 XLPE, MIL-W-16878E Type D, UL AWM 3271
    7053 150 26 7/34 0.01 0.039 IRRPVC CA Prop 65, CSA AWM I A/B, CSA FT1, MIL-W-16878E TYPE B, UL AWM 1429
    7054 150 24 7/32 0.01 0.044 IRRPVC CA Prop 65, CSA AWM I A/B, CSA FT1, MIL-W-16878E TYPE B, UL AWM 1429
    7054/19 150 24 19/36 0.01 0.045 IRRPVC CA Prop 65, CSA AWM I A/B, CSA FT1, MIL-W-16878E TYPE B, UL AWM 1429
