    首頁 > > ALPHA-MIL-W-16878 軍規電子線(pvc)

    ALPHA-7132 Awg20 PVC, Irradiated 300V CSA REW XLPVC, MIL-W-16878E Type C, UL AWM 1430 電子線
    看原圖
    		ALPHA-7132


    商品編號: ALPHA-7132

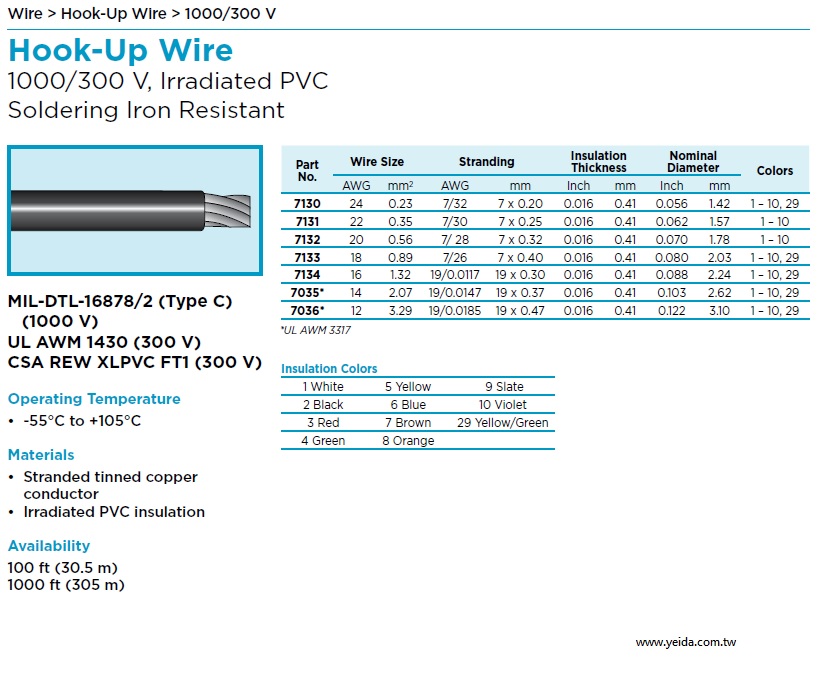

    ALPHA7132 Awg20 , MIL-DTL-16878/2 (TypeC) (1000V) Irradiated PVC UL 1430 (300V) CSA REW XLPVC,     SOLDERING IRON RESISTANT UL及軍規耐烙鐵焊接電子線

    ALPHA7035, ALPHA7036, ALPHA7130 , ALPHA7131, ALPHA7132, ALPHA7133, ALPHA7134

    MIL-DTL-16878/2 (Type C)
    (1000 V)
    UL AWM 1430 (300 V)
    CSA REW XLPVC FT1 (300 V)
    Operating Temperature
    • -55°C to +105°C
    Materials
    • Stranded tinned copper
    conductor
    • Irradiated PVC insulation
    Availability
    100 ft (30.5 m)
    1000 ft (305 m)

    Part # Voltage AWG Stranding Insulation Thickness Insulation Diameter Insulation Material Applicable Specifications
    7132 300 20 7/28 0.016 0.07 IRRPVC CA Prop 65, CSA FT1, CSA REW XLPVC, MIL-W-16878E Type C, UL AWM 1430

    Diameters (In)

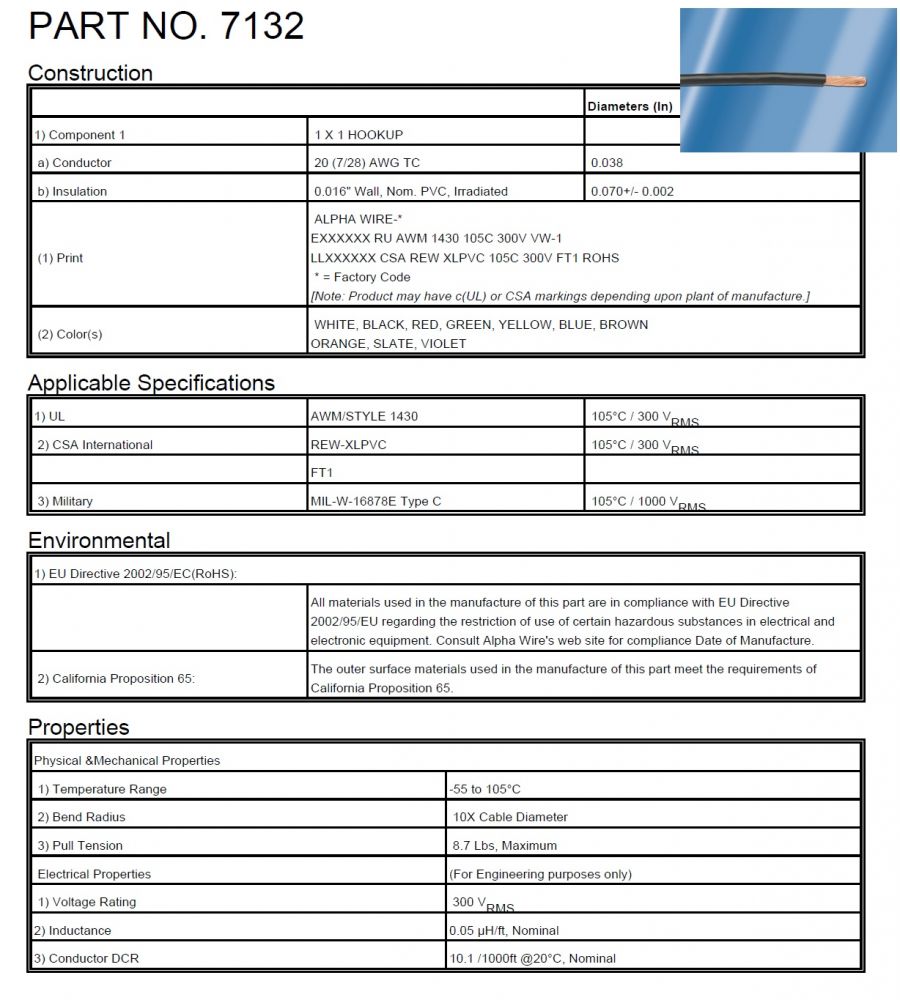

    1) Component 1 1 X 1 HOOKUP 　
    a) Conductor 20 (7/28) AWG TC 0.038
    b) Insulation 0.016" Wall, Nom. PVC, Irradiated 0.070+/- 0.002
    (1) Print ALPHA WIRE-*
    EXXXXXX RU AWM 1430 105C 300V VW-1
    LLXXXXXX CSA REW XLPVC 105C 300V FT1 ROHS
    * = Factory Code
    [Note: Product may have c(UL) or CSA markings depending upon plant of manufacture.]
    (2) Color(s) WHITE, BLACK, RED, GREEN, YELLOW, BLUE, BROWN
    ORANGE, SLATE, VIOLET
    Applicable Specifications
    1) UL AWM/STYLE 1430 105°C / 300 VRMS
    2) CSA International REW-XLPVC 105°C / 300 VRMS
    　 FT1 　
    3) Military MIL-W-16878E Type C 105°C / 1000 VRMS
    Environmental
    1) EU Directive 2002/95/EC(RoHS):
    　 All materials used in the manufacture of this part are in compliance with EU Directive 2002/95/EU regarding the restriction of use of certain hazardous substances in electrical and electronic equipment. Consult Alpha Wire's web site for compliance Date of Manufacture.
    2) California Proposition 65: The outer surface materials used in the manufacture of this part meet the requirements of California Proposition 65.
    Properties
    Physical & Mechanical Properties
    1) Temperature Range -55 to 105°C
    2) Bend Radius 10X Cable Diameter
    3) Pull Tension 8.7 Lbs, Maximum
    Electrical Properties (For Engineering purposes only)
    1) Voltage Rating 300 VRMS
    2) Inductance 0.05 µH/ft, Nominal
    3) Conductor DCR 10.1 Ω/1000ft @20°C, Nominal

    EU/China ROHS CERTIFICATE OF COMPLIANCE
    To Whom It May Concern:
    Alpha Wire Part Number: 7132
    7132 , RoHS-Compliant Commencing With 6/1/2005 Production
    This document certifies that the Alpha part number cited above are manufactured in accordance with Directive 2002/95/EC of the European Parliament and of the Council of 27 January 2003, better known as the RoHS Directives, with regards to restrictions of the use of certain hazardous substances used in the manufacture of electrical and electronic equipment. The reader is referred to these Directives for the specific definitions and extents of these Directives. No Exemptions are required for RoHS Compliance on this item. Additionally, Alpha certifies that the listed part number is in compliance with the European Union’s Restriction of Hazardous Substances (RoHS) Directive, 2002/95/EC and all subsequent revisions and China RoHS “Marking for Control of Pollution by Electronic Information Products” standard SJ/T 11364-2006.
    Substance Maximum Control Value
    Lead 0.1% by weight (1000 ppm)
    Mercury 0.1% by weight (1000 ppm)
    Cadmium 0.01% by weight (100 ppm)
    Hexavalent Chromium 0.1% by weight (1000 ppm )
    Polybrominated Biphenyls (PBB) 0.1% by weight (1000 ppm)
    Polybrominated Diphenyl Ethers (PBDE) , 　
    Including Deca-BDE 0.1% by weight (1000 ppm)
      Part # Voltage AWG Stranding Insulation Thickness Nominal Diameter Insulation Material Applicable Specifications
    ALPHA7035 300  14  19/27  0.016  0.103  IRRPVC  CA Prop 65, CSA FT1, CSA REW XLPVC, MIL-W-16878E Type C, UL AWM 3317
    ALPHA7036 300  12  19/25  0.016  0.122  IRRPVC  CA Prop 65, CSA FT1, CSA REW XLPVC, MIL-W-16878E Type C, UL AWM 3317
    ALPHA7130 300  24  7/32  0.016  0.056  IRRPVC  CA Prop 65, CSA FT1, CSA REW XLPVC, MIL-W-16878E Type C, UL AWM 1430
    ALPHA7131 300  22  7/30  0.016  0.062  IRRPVC  CA Prop 65, CSA FT1, CSA REW XLPVC, MIL-W-16878E Type C, UL AWM 1430
    ALPHA7132 300  20  7/28  0.016  0.07  IRRPVC  CA Prop 65, CSA FT1, CSA REW XLPVC, MIL-W-16878E Type C, UL AWM 1430
    ALPHA7133 300  18  7/26  0.016  0.08  IRRPVC  CA Prop 65, CSA FT1, CSA REW XLPVC, MIL-W-16878E Type C, UL AWM 1430
    ALPHA7134 300  16  19/29  0.016  0.088  IRRPVC  CA Prop 65, CSA FT1, CSA REW XLPVC, MIL-W-16878E Type C, UL AWM 1430
