    首頁 > > ALPHA-UL Hook-Up Wire (300V) 電子連接線

    ALPHA3051 Awg 22 CA Prop 65, CSA FT1, CSA TR 64, UL AWM 1007, UL AWM 1569, UL VW-1 電子線
    看原圖

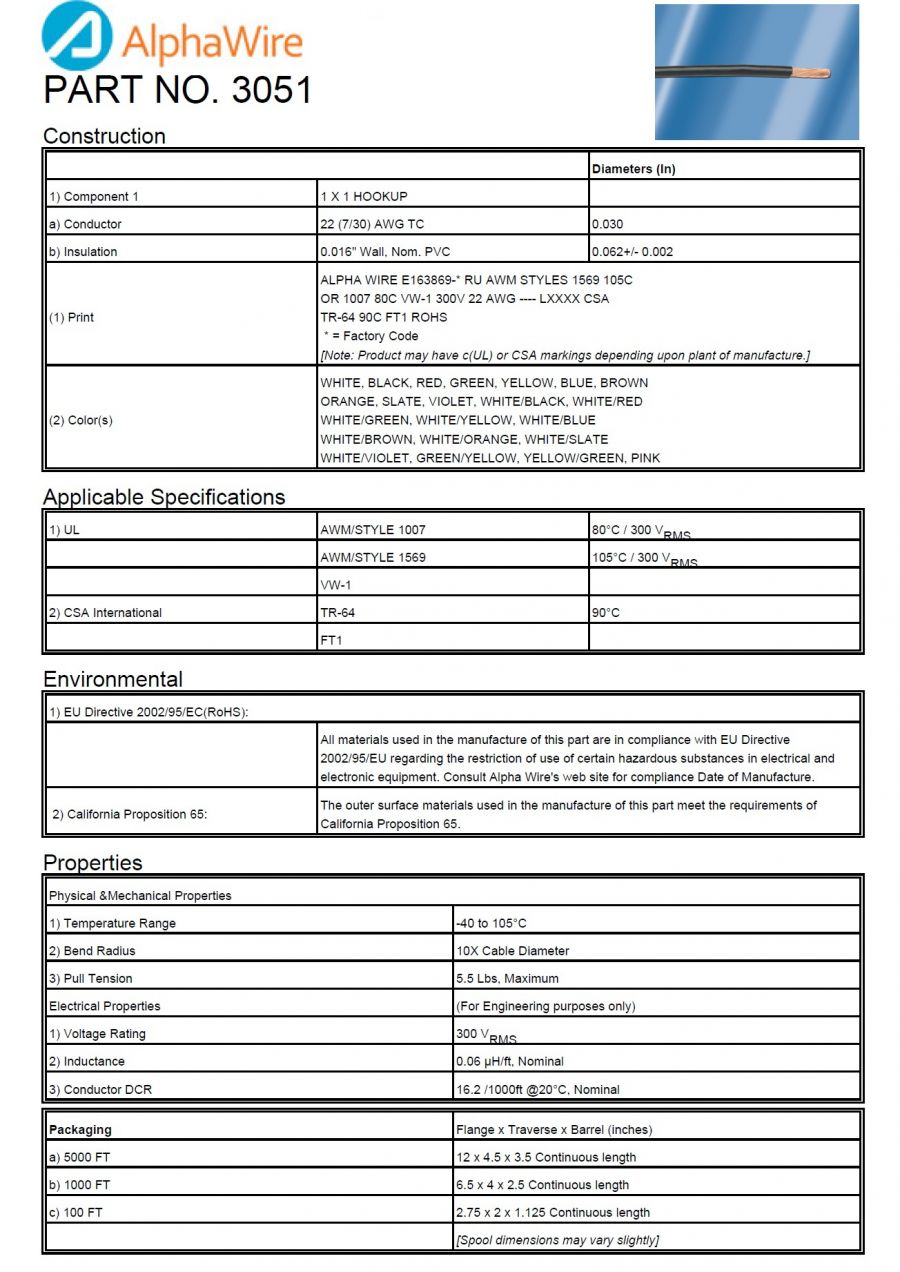

    		ALPHA-3051


    商品編號: ALPHA3051,google,yahoo,

    ALPHA-3051 Awg 22 CA Prop 65, CSA FT1, CSA TR 64, UL AWM 1007, UL AWM 1569, UL VW-1 電子線

    Part # Voltage AWG Stranding Insulation Thickness Insulation Diameter Insulation Material Applicable Specifications
    3051 300 22 7/30 0.016 0.062 PVC CA Prop 65, CSA FT1, CSA TR 64, UL AWM 1007, UL AWM 1569, UL VW-1
    Construction
    　 Diameters (In)
    1) Component 1 1 X 1 HOOKUP 　
    a) Conductor 22 (7/30) AWG TC 0.030
    b) Insulation 0.016" Wall, Nom. PVC 0.062+/- 0.002
    (1) Print ALPHA WIRE E163869-* RU AWM STYLES 1569 105C
    OR 1007 80C VW-1 300V 22 AWG ---- LXXXX CSA
    TR-64 90C FT1 ROHS
    * = Factory Code
    [Note: Product may have c(UL) or CSA markings depending upon plant of manufacture.]
    (2) Color(s) WHITE, BLACK, RED, GREEN, YELLOW, BLUE, BROWN
    ORANGE, SLATE, VIOLET, WHITE/BLACK, WHITE/RED
    WHITE/GREEN, WHITE/YELLOW, WHITE/BLUE
    WHITE/BROWN, WHITE/ORANGE, WHITE/SLATE
    WHITE/VIOLET, GREEN/YELLOW, YELLOW/GREEN, PINK
    Applicable Specifications
    1) UL AWM/STYLE 1007 80°C / 300 VRMS
    　 AWM/STYLE 1569 105°C / 300 VRMS
    　 VW-1 　
    2) CSA International TR-64 90°C
    　 FT1 　
    Environmental
    1) EU Directive 2002/95/EC(RoHS):
    　 All materials used in the manufacture of this part are in compliance with EU Directive 2002/95/EU regarding the restriction of use of certain hazardous substances in electrical and electronic equipment. Consult Alpha Wire's web site for compliance Date of Manufacture.
    2) California Proposition 65: The outer surface materials used in the manufacture of this part meet the requirements of California Proposition 65.
    Properties
    Physical & Mechanical Properties
    1) Temperature Range -40 to 105°C
    2) Bend Radius 10X Cable Diameter
    3) Pull Tension 5.5 Lbs, Maximum
    Electrical Properties (For Engineering purposes only)
    1) Voltage Rating 300 VRMS
    2) Inductance 0.06 µH/ft, Nominal
    3) Conductor DCR 16.2 Ω/1000ft @20°C, Nominal
    Other
    Packaging Flange x Traverse x Barrel (inches)
    a) 5000 FT 12 x 4.5 x 3.5 Continuous length
    b) 1000 FT 6.5 x 4 x 2.5 Continuous length
    c) 100 FT 2.75 x 2 x 1.125 Continuous length
    　 [Spool dimensions may vary slightly]

    The broad range of hook-up wire from Alpha means you will find the product exactly suited to your application— whether it’s as straightforward as a control cabinet in a protected environment or as specialized as a machine tool on the factory floor, a high-temperature oven, or off-road construction equipment.

    Our hook-up wire is available in a variety of insulations to meet your needs for temperature, ability to withstand wear and abrasion, electrical performance, or resistance to oil, solvents, and chemicals.

    EU/China ROHS CERTIFICATE OF COMPLIANCE
    To Whom It May Concern:
    Alpha Wire Part Number: 3051
    3051 , RoHS-Compliant Commencing With 1/1/2005 Production
    This document certifies that the Alpha part number cited above are manufactured in accordance with Directive 2002/95/EC of the European Parliament and of the Council of 27 January 2003, better known as the RoHS Directives, with regards to restrictions of the use of certain hazardous substances used in the manufacture of electrical and electronic equipment. The reader is referred to these Directives for the specific definitions and extents of these Directives. No Exemptions are required for RoHS Compliance on this item. Additionally, Alpha certifies that the listed part number is in compliance with the European Union’s Restriction of Hazardous Substances (RoHS) Directive, 2002/95/EC and all subsequent revisions and China RoHS “Marking for Control of Pollution by Electronic Information Products” standard SJ/T 11364-2006.
    Substance Maximum Control Value
    Lead 0.1% by weight (1000 ppm)
    Mercury 0.1% by weight (1000 ppm)
    Cadmium 0.01% by weight (100 ppm)
    Hexavalent Chromium 0.1% by weight (1000 ppm )
    Polybrominated Biphenyls (PBB) 0.1% by weight (1000 ppm)
    Polybrominated Diphenyl Ethers (PBDE) , 　
    Including Deca-BDE 0.1% by weight (1000 ppm)
    　
    The information provided in this document and disclosure is correct to the best of Alpha Wire's knowledge, information and belief at the date of its release. The information provided is designed only as a general guide for the safe handling, storage, and any other operation of the product itself or the one that it will become part of. The intent of this document is not to be considered a warranty or quality specification. Regulatory information is for guidance purposes only. Product users are responsible for determining the applicability of legislation and regulations based on their individual usage of the product.
    Authorized Signatory for the Alpha Wire Company:
    Dave Watson, Director of Engineering & QA 12/28/2011

    Part # Voltage AWG Stranding Insulation Thickness Insulation Diameter Insulation Material 　
    alpha 2856/1 600 20 Solid 0.01 0.052 PTFE
    alpha 2857/1 600 18 Solid 0.0105 0.061 PTFE
    alpha 301441 1000 14 41/30 0.016 0.106 PVC
    alpha 301619 1000 16 19/29 0.016 0.088 PVC
    alpha 301626 1000 16 26/30 0.016 0.092 PVC
    alpha 301816 1000 18 16/30 0.016 0.079 PVC
    alpha 302010 1000 20 10/30 0.016 0.069 PVC
    alpha 302201 1000 22 Solid 0.016 0.057 PVC
    alpha 302207 1000 22 7/30 0.016 0.064 PVC
    alpha 302407 1000 24 7/32 0.016 0.056 PVC
    alpha 3047 300 30 7/38 0.016 0.044 PVC
    alpha 3048 300 28 7/36 0.016 0.047 PVC
    alpha 3049 300 26 7/34 0.016 0.051 PVC
    alpha 3050 300 24 7/32 0.016 0.056 PVC
    alpha 3050/1 300 24 Solid 0.016 0.052 PVC
    alpha 3051 300 22 7/30 0.016 0.062 PVC
    alpha 3051/1 300 22 Solid 0.016 0.057 PVC
    alpha 3053 300 20 10/30 0.016 0.069 PVC
    alpha 3053/1 300 20 Solid 0.016 0.064 PVC
    alpha 3055 300 18 16/30 0.016 0.079 PVC

    Applicable Specifications

    CA Prop 65, MIL-W-16878E, Type E, NEMA HP3-EXBGA, UL AWM 1213, UL VW-1
