    首頁 > > ALPHA-UL Hook-Up Wire (300V) 電子連接線

    ALPHA-UL1007 UL AWM 1007, 1581, 1569 VW-1 CSA AWM I A/B FT1 CSA TR-64 FT1 電子線

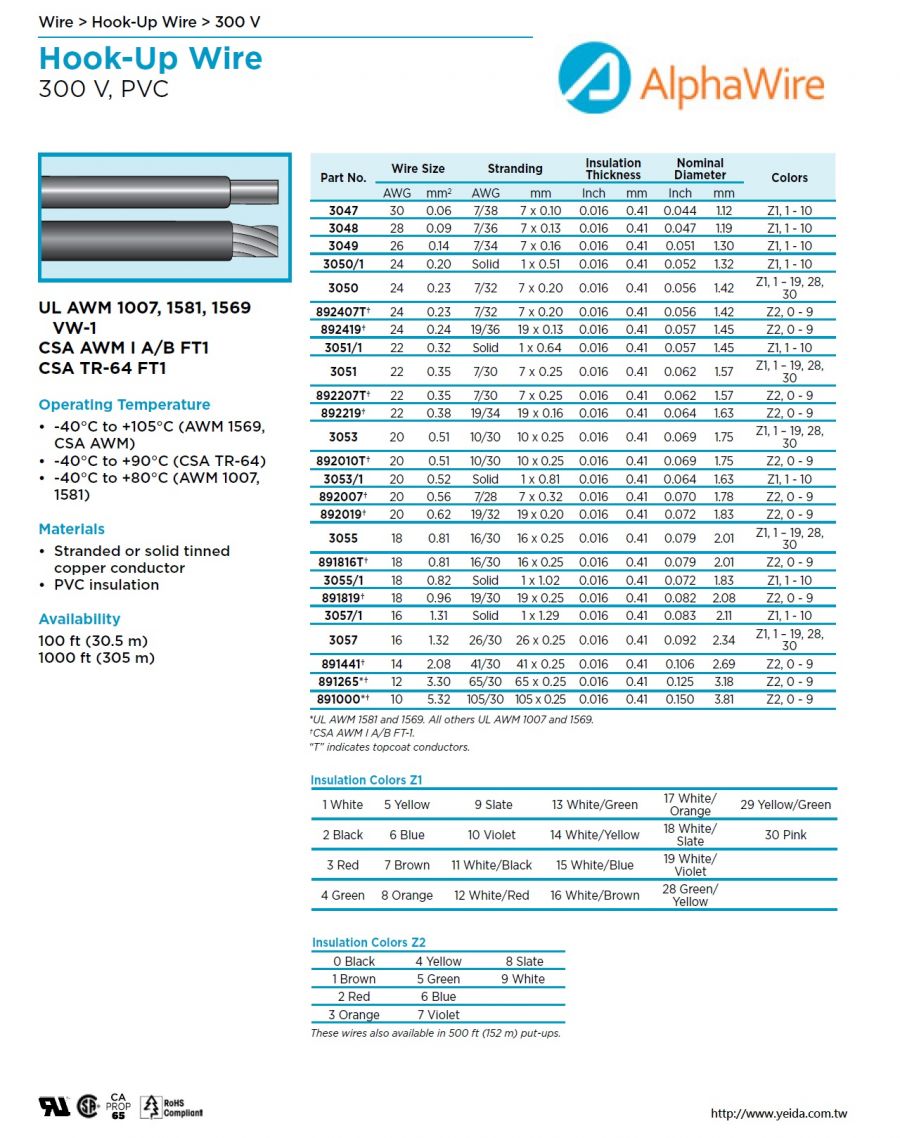

    看原圖
    		ALPHA-UL1007

    商品編號: ALPHA-UL1007

    ALPHA-UL1007 UL AWM 1007, 1581, 1569 VW-1 CSA AWM I A/B FT1 CSA TR-64 FT1 電子線

    Alpha3047 ,Alpha3048, Alpha3049 ,Alpha3050 ,Alpha3050/1 ,Alpha3053, Alpha3053/1, Alpha3055,

    Alpha3055/1, Alpha3057 ,Alpha3057/1, Alpha891000, Alpha891265, Alpha891441, Alpha891819,

    Alpha892007, Alpha892019, Alpha892219

    UL AWM 1007, 1581, 1569
    VW-1
    CSA AWM I A/B FT1
    CSA TR-64 FT1
    　

    Operating Temperature
    • -40°C to +105°C (AWM 1569,
    CSA AWM)
    • -40°C to +90°C (CSA TR-64)
    • -40°C to +80°C (AWM 1007,
    1581)
    　

    Materials
    • Stranded or solid tinned
    copper conductor
    • PVC insulation
    　

    Availability
    100 ft (30.5 m)
    1000 ft (305 m)


    • 电子连接线

      我们的高性能电子连接线系列具有各种不同的绝缘，可以满足您对温度、耐磨性、电气性能、耐油性、耐溶剂性以及防腐性的要求。

    • EcoWire™

      Alpha Wire 的全新 EcoWire 是电子连接线的最新发明。它不含任何卤素，可充分回收利用，并且比标准的聚氯乙烯绝缘具有更好的特性。无论是需要遵守严格的环境法规，还是需要更小、更持久耐用的电线，EcoWire 都是最佳选择。

    • EcoWire™ Plus

      Alpha Wire 的全新 EcoWire Plus 是电子连接线的革新产品。EcoWire Plus不但具有普通EcoWire 全部保护环境的特性，而且拥有抗液体腐蚀的特性。无论你是在寻求满足严格生态环境要求的产品，还是寻求更小更轻、更持久耐用的产品，EcoWire Plus 都将是你的最终解决方案。

    • 光伏线

      作为适用于太阳能发电应用的电子连接线，Alpha Wire 的光伏线适合在各种极端环境中使用。它满足 UL/TÜV 和 UL 线缆要求，方便您使用。

    • Dearborn™ 长距离连接线

      Alpha Wire 的 Dearborn™ 长距离连接线是需要长距离布线应用的理想选择。它们采用聚氯乙烯护套，颜色多样。

    • 带状电缆

      Alpha Wire 提供各种带状电缆，更易于布线和端接，比线束占用更少的空间。

    • 汇流排

      Alpha Wire 的汇流排提供可靠的解决方案，为您的关键电气系统提供连续的电力供应。

    　
      Part # Voltage AWG Stranding Insulation Thickness Nominal Diameter Insulation Material Applicable Specifications
    Alpha3047 300  30  7/38  0.016  0.044  PVC  CA Prop 65, CSA FT1, CSA TR 64, UL AWM 1007, UL AWM 1569, UL VW-1
    Alpha3048 300  28  7/36  0.016  0.047  PVC  CA Prop 65, CSA FT1, CSA TR 64, UL AWM 1007, UL AWM 1569, UL VW-1
    Alpha3049 300  26  7/34  0.016  0.051  PVC  CA Prop 65, CSA FT1, CSA TR 64, UL AWM 1007, UL AWM 1569, UL VW-1
    Alpha3050 300  24  7/32  0.016  0.056  PVC  CA Prop 65, CSA FT1, CSA TR 64, UL AWM 1007, UL AWM 1569, UL VW-1
    Alpha3050/1 300  24  Solid  0.016  0.052  PVC  CA Prop 65, CSA FT1, CSA TR 64, UL AWM 1007, UL AWM 1569, UL VW-1
    Alpha3051 300  22  7/30  0.016  0.062  PVC  CA Prop 65, CSA FT1, CSA TR 64, UL AWM 1007, UL AWM 1569, UL VW-1
    Alpha3051/1 300  22  Solid  0.016  0.057  PVC  CA Prop 65, CSA FT1, CSA TR 64, UL AWM 1007, UL AWM 1569, UL VW-1
    Alpha3053 300  20  10/30  0.016  0.069  PVC  CA Prop 65, CSA FT1, CSA TR 64, UL AWM 1007, UL AWM 1569, UL VW-1
    Alpha3053/1 300  20  Solid  0.016  0.064  PVC  CA Prop 65, CSA FT1, CSA TR 64, UL AWM 1007, UL AWM 1569, UL VW-1
    Alpha3055 300  18  16/30  0.016  0.079  PVC  CA Prop 65, CSA FT1, CSA TR 64, UL AWM 1007, UL AWM 1569, UL VW-1
    Alpha3055/1 300  18  Solid  0.016  0.072  PVC  CA Prop 65, CSA FT1, CSA TR 64, UL AWM 1007, UL AWM 1569, UL VW-1
    Alpha3057 300  16  26/30  0.016  0.092  PVC  CA Prop 65, CSA FT1, CSA TR 64, UL AWM 1007, UL AWM 1569, UL VW-1
    Alpha3057/1 300  16  Solid  0.016  0.083  PVC  CA Prop 65, CSA FT1, CSA TR 64, UL AWM 1007, UL AWM 1569, UL VW-1
    Alpha891000 300  10  105/30  0.017  0.154  PVC  CSA AWM I A/B, CSA FT1, UL AWM 1569, UL AWM 1581, UL VW-1
    Alpha891265 300  12  65/30  0.016  0.125  PVC  CSA AWM I A/B, CSA FT1, UL AWM 1569, UL AWM 1581, UL VW-1
    Alpha891441 300  14  41/30  0.016  0.106  PVC  CSA AWM I A/B, CSA FT1, CSA TR 64, UL AWM 1569, UL AWM 1581, UL VW-1
    Alpha891819 300  18  19/30  0.016  0.082  PVC  CSA AWM I A/B, CSA FT1, CSA TR 64, UL AWM 1007, UL AWM 1569, UL VW-1
    Alpha892007 300  20  7/28  0.016  0.07  PVC  CSA AWM I A/B, CSA FT1, CSA TR 64, UL AWM 1007, UL AWM 1569, UL VW-1
    Alpha892019 300  20  19/32  0.016  0.072  PVC  CSA AWM I A/B, CSA FT1, CSA TR 64, UL AWM 1007, UL AWM 1569, UL VW-1
    Alpha892219 300  22  19/34  0.016  0.064  PVC  CSA AWM I A/B, CSA FT1, CSA TR 64, UL AWM 1007, UL AWM 1569, UL VW-1
    • Hook-Up Wire

      Our broad range of high performance hook-up wire is available in a variety of insulations to meet your needs for temperature, ability to withstand wear and abrasion, electrical performance, or resistance to oil, solvents, and chemicals.

    • EcoWire™

      Alpha Wire's new EcoWire is the latest innovation in hook-up wire. Non-halogenic and fully recyclable, EcoWire also offers improved performance characteristics over standard PVC-based insulation. Whether you need to meet strict environmental regulations or require a smaller, more durable wire, EcoWire is the solution.

    • EcoWire™ Plus

      Alpha Wire's new EcoWire Plus is the latest innovation in hook-up wire. EcoWire Plus offers all of the environments benefits of standard EcoWire, plus additional fluid and chemical resistance. Whether you need to meet strict environmental regulations or require a smaller, more durable wire, EcoWire Plus is the solution.

    • Photovoltaic Wire

      A hook-up wire for Solar Power applications, Alpha Wire's photovoltaic wire thrives in harsh environments. Offered in both UL/TÜV and UL wire requirements for your convenience.

    • Dearborn™ Bulk Hook-Up Wire

      Alpha Wire’s Dearborn™ Bulk hook-up wire is ideal for applications where long runs of hook-up wire are required. They are available with a PVC jacket and in a variety of colors.

    • Ribbon Cable

      Alpha Wire offers a variety of ribbon cabe that facilitate easier routing and termination, taking up less space than wire harness bundles.

    • Bus Bar

      Alpha Wire's Bus Bar wire provides a realiable solution to keep power flowing in your vital electrical systems.
