商品編號: ALPHA-391650

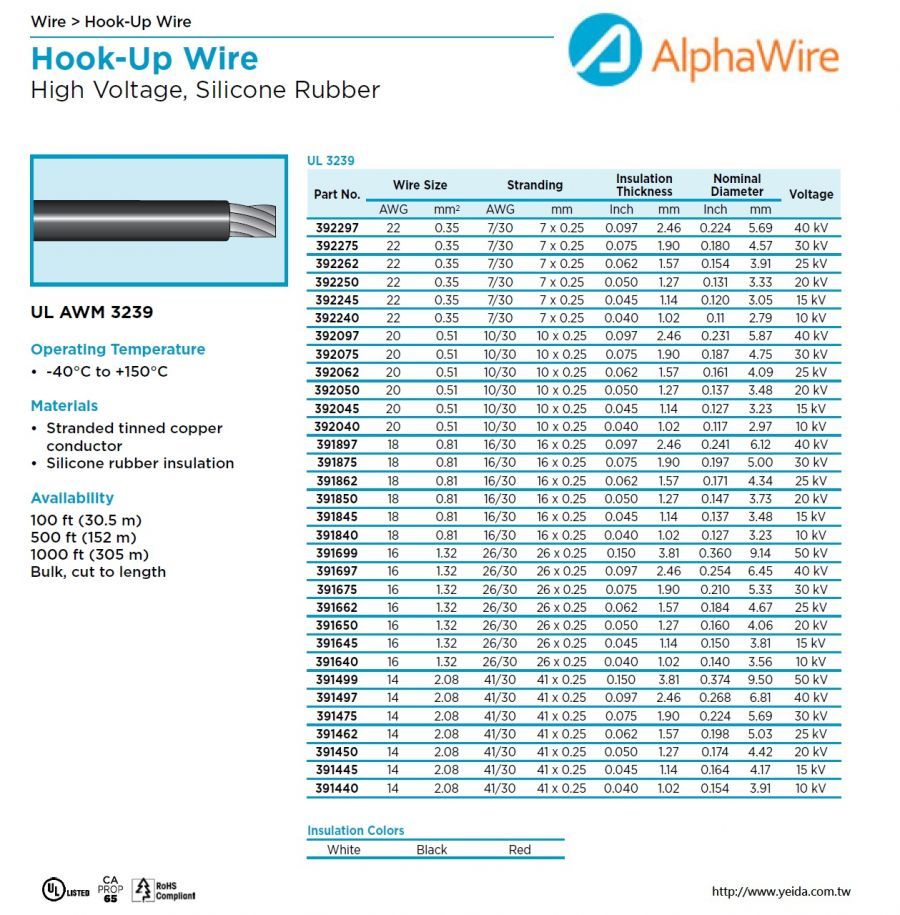

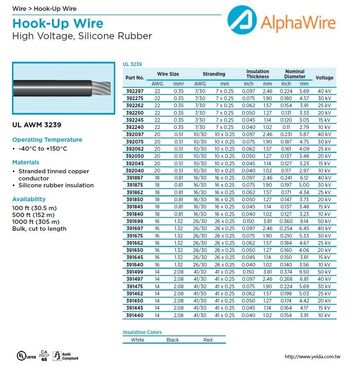

ALPHA-391650 UL AWM 3239 Awg16 20kV Silicone 耐高壓高溫矽橡膠電子線
Part # |
Voltage |
AWG |
Stranding |
Insulation Thickness |
Insulation Diameter |
Insulation Material |
Applicable Specifications |
391650 |
20000 |
16 |
26/30 |
0.05 |
0.16 |
Silicone |
UL AWM 3239 |
|
|
|
|
|
Diameters (In) |
1) Component 1 |
1 X 1 HOOKUP |
|
a) Conductor |
16 (26/30) AWG TC |
0.060 |
b) Insulation |
0.050" Wall, Nom. Silicone Rubber |
0.160+/- 0.006 |
(1) Print |
16 AWG RU AWM STYLE 3239 150C 20KVDC VW-1 EXXXXX
|
(2) Color(s) |
WHITE, BLACK, RED |
Applicable Specifications
1) UL |
AWM/STYLE 3239 |
150°C / 20K VDC |
Environmental
1) EU Directive 2002/95/EC(RoHS): |
|
All materials used in the manufacture of this part are in compliance with EU Directive 2002/95/EU regarding the restriction of use of certain hazardous substances in electrical and electronic equipment. Consult Alpha Wire's web site for compliance Date of Manufacture. |
Properties
Physical & Mechanical Properties |
1) Temperature Range |
-40 to 150°C |
2) Bend Radius |
10X Cable Diameter |
3) Pull Tension |
20.4 Lbs, Maximum |
Electrical Properties |
(For Engineering purposes only) |
1) Voltage Rating |
20000 VDC |
2) Inductance |
0.07 µH/ft, Nominal |
3) Conductor DCR |
4.4 Ω/1000ft @20°C, Nominal |
Other
Packaging |
Flange x Traverse x Barrel (inches) |
a) 1000 FT |
12 x 4.5 x 3.5 Continuous length |
b) 500 FT |
10 x 4 x 3.5 Continuous length |
c) 100 FT |
6.5 x 2 x 1.9 Continuous length |
d) Bulk(Made-to-order) |
|
|
[Spool dimensions may vary slightly] |
The broad range of hook-up wire from Alpha means you will find the product exactly suited to your application— whether it’s as straightforward as a control cabinet in a protected environment or as specialized as a machine tool on the factory floor, a high-temperature oven, or off-road construction equipment.
Our hook-up wire is available in a variety of insulations to meet your needs for temperature, ability to withstand wear and abrasion, electrical performance, or resistance to oil, solvents, and chemicals.
EU/China ROHS CERTIFICATE OF COMPLIANCE |
To Whom It May Concern: |
Alpha Wire Part Number: 391650 |
391650 , RoHS-Compliant Commencing With 2005/7/1 Production |
This document certifies that the Alpha part number cited above are manufactured in accordance with Directive 2002/95/EC of the European Parliament and of the Council of 27 January 2003, better known as the RoHS Directives, with regards to restrictions of the use of certain hazardous substances used in the manufacture of electrical and electronic equipment. The reader is referred to these Directives for the specific definitions and extents of these Directives. No Exemptions are required for RoHS Compliance on this item. Additionally, Alpha certifies that the listed part number is in compliance with the European Union’s Restriction of Hazardous Substances (RoHS) Directive, 2002/95/EC and all subsequent revisions and China RoHS “Marking for Control of Pollution by Electronic Information Products” standard SJ/T 11364-2006. |
Substance |
Maximum Control Value |
Lead |
0.1% by weight (1000 ppm) |
Mercury |
0.1% by weight (1000 ppm) |
Cadmium |
0.01% by weight (100 ppm) |
Hexavalent Chromium |
0.1% by weight (1000 ppm ) |
Polybrominated Biphenyls (PBB) |
0.1% by weight (1000 ppm) |
Polybrominated Diphenyl Ethers (PBDE) , |
|
Including Deca-BDE |
0.1% by weight (1000 ppm) |
|
|
The information provided in this document and disclosure is correct to the best of Alpha Wire's knowledge, information and belief at the date of its release. The information provided is designed only as a general guide for the safe handling, storage, and any other operation of the product itself or the one that it will become part of. The intent of this document is not to be considered a warranty or quality specification. Regulatory information is for guidance purposes only. Product users are responsible for determining the applicability of legislation and regulations based on their individual usage of the product. |
Authorized Signatory for the Alpha Wire Company: |
|
Dave Watson, Director of Engineering & QA |
2012/2/7 |
|
|
