    ALPHA-541019 Awg 10 600V CA Prop 65, UL THHN, UL THWN PVC/NYLON尼龍被覆電線
    看原圖

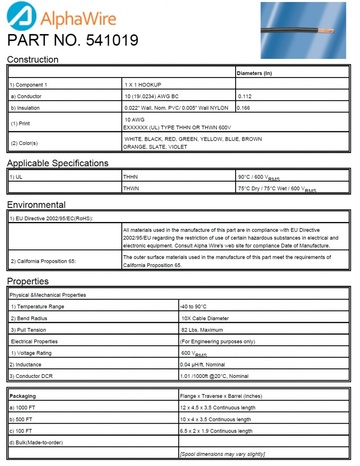

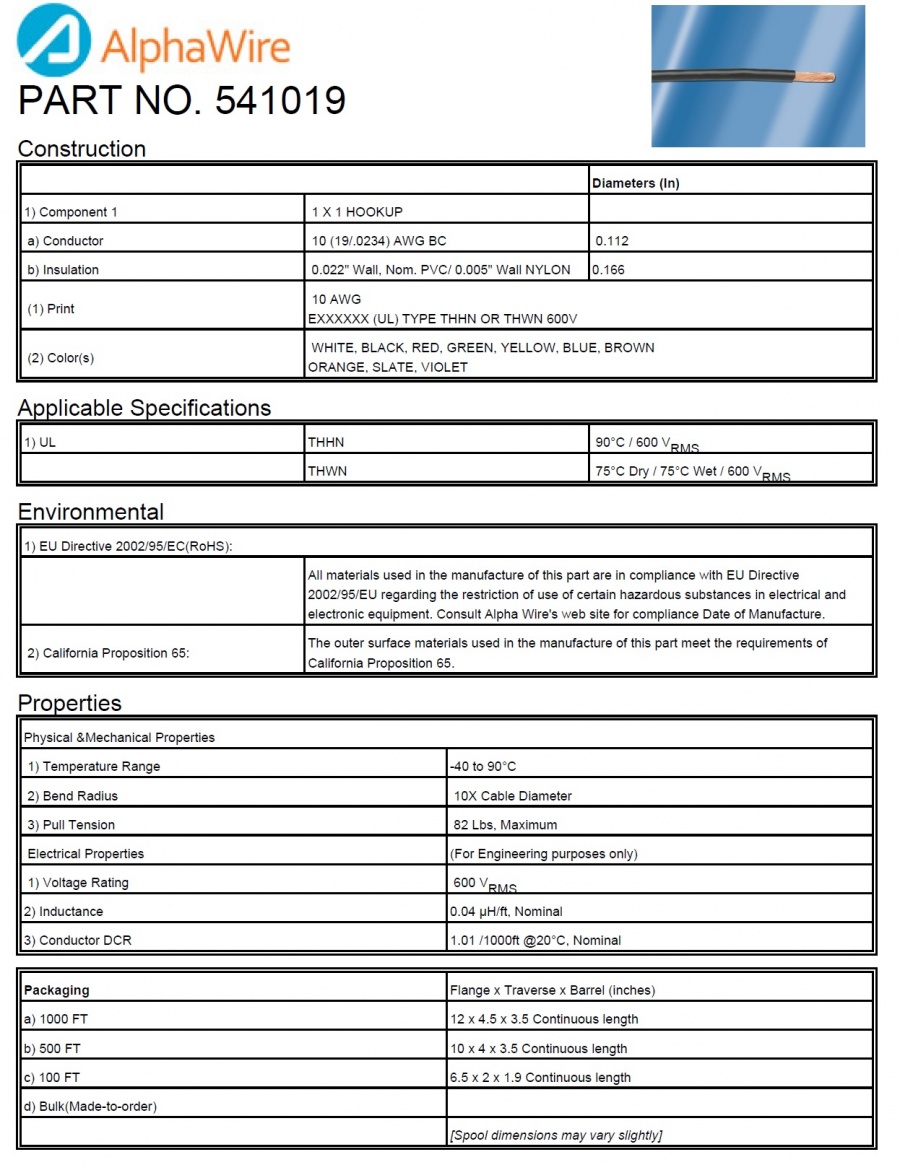

    		ALPHA-541019


    商品編號: ALPHA-541019

    ALPHA-541019 Awg 10 600V CA Prop 65, UL THHN, UL THWN PVC/NYLON尼龍被覆電線

    Part # Voltage AWG Stranding Insulation Thickness Insulation Diameter Insulation Material Applicable Specifications
    541019 600 10 19/.0234 0.02 0.166 PVC/NYLON CA Prop 65, UL THHN, UL THWN
    1) Component 1 1 X 1 HOOKUP 　
    a) Conductor 10 (19/.0234) AWG BC 0.112
    b) Insulation 0.022" Wall, Nom. PVC/ 0.005" Wall NYLON 0.166
    (1) Print 10 AWG
    EXXXXXX (UL) TYPE THHN OR THWN 600V
    　
    (2) Color(s) WHITE, BLACK, RED, GREEN, YELLOW, BLUE, BROWN
    ORANGE, SLATE, VIOLET
    Applicable Specifications
    1) UL THHN 90°C / 600 VRMS
    　 THWN 75°C Dry / 75°C Wet / 600 VRMS
    Environmental
    1) EU Directive 2002/95/EC(RoHS):
    　 All materials used in the manufacture of this part are in compliance with EU Directive 2002/95/EU regarding the restriction of use of certain hazardous substances in electrical and electronic equipment. Consult Alpha Wire's web site for compliance Date of Manufacture.
    2) California Proposition 65: The outer surface materials used in the manufacture of this part meet the requirements of California Proposition 65.
    Properties
    Physical & Mechanical Properties
    1) Temperature Range -40 to 90°C
    2) Bend Radius 10X Cable Diameter
    3) Pull Tension 82 Lbs, Maximum
    Electrical Properties (For Engineering purposes only)
    1) Voltage Rating 600 VRMS
    2) Inductance 0.04 µH/ft, Nominal
    3) Conductor DCR 1.01 Ω/1000ft @20°C, Nominal
    Other
    Packaging Flange x Traverse x Barrel (inches)
    a) 1000 FT 12 x 4.5 x 3.5 Continuous length
    b) 500 FT 10 x 4 x 3.5 Continuous length
    c) 100 FT 6.5 x 2 x 1.9 Continuous length
    d) Bulk(Made-to-order) 　
    　 [Spool dimensions may vary slightly]

    The broad range of hook-up wire from Alpha means you will find the product exactly suited to your application— whether it’s as straightforward as a control cabinet in a protected environment or as specialized as a machine tool on the factory floor, a high-temperature oven, or off-road construction equipment.

    Our hook-up wire is available in a variety of insulations to meet your needs for temperature, ability to withstand wear and abrasion, electrical performance, or resistance to oil, solvents, and chemicals.

    EU/China ROHS CERTIFICATE OF COMPLIANCE
    To Whom It May Concern:
    Alpha Wire Part Number: 541019
    541019 , RoHS-Compliant Commencing With 7/1/2005 Production
    This document certifies that the Alpha part number cited above are manufactured in accordance with Directive 2002/95/EC of the European Parliament and of the Council of 27 January 2003, better known as the RoHS Directives, with regards to restrictions of the use of certain hazardous substances used in the manufacture of electrical and electronic equipment. The reader is referred to these Directives for the specific definitions and extents of these Directives. No Exemptions are required for RoHS Compliance on this item. Additionally, Alpha certifies that the listed part number is in compliance with the European Union’s Restriction of Hazardous Substances (RoHS) Directive, 2002/95/EC and all subsequent revisions and China RoHS “Marking for Control of Pollution by Electronic Information Products” standard SJ/T 11364-2006.
    Substance Maximum Control Value
    Lead 0.1% by weight (1000 ppm)
    Mercury 0.1% by weight (1000 ppm)
    Cadmium 0.01% by weight (100 ppm)
    Hexavalent Chromium 0.1% by weight (1000 ppm )
    Polybrominated Biphenyls (PBB) 0.1% by weight (1000 ppm)
    Polybrominated Diphenyl Ethers (PBDE) , 　
    Including Deca-BDE 0.1% by weight (1000 ppm)
    The information provided in this document and disclosure is correct to the best of Alpha Wire's knowledge, information and belief at the date of its release. The information provided is designed only as a general guide for the safe handling, storage, and any other operation of the product itself or the one that it will become part of. The intent of this document is not to be considered a warranty or quality specification. Regulatory information is for guidance purposes only. Product users are responsible for determining the applicability of legislation and regulations based on their individual usage of the product.
    Authorized Signatory for the Alpha Wire Company:
    Dave Watson, Director of Engineering & QA 12/31/2011
    Part # Voltage AWG Stranding Insulation Thickness Insulation Diameter Insulation Material 　
    460001 600 1/0 19/.0745 0.078 0.529 PVC CSA - TEW-105, CSA AWM I A/B, CSA FT1, UL AWM 1232, UL AWM 1284, UL MTW, UL THW, UL VW-1
    460219 600 2 19/.0591 0.0625 0.421 PVC CSA - TEW-105, CSA AWM I A/B, CSA FT1, UL AWM 1232, UL AWM 1283, UL MTW, UL THW, UL VW-1
    460419 600 4 19/.0469 0.0625 0.36 PVC CSA - TEW-105, CSA AWM I A/B, CSA FT1, UL AWM 1232, UL AWM 1283, UL MTW, UL THW, UL VW-1
    460619 600 6 19/.0372 0.0625 0.311 PVC CSA - TEW-105, CSA AWM I A/B, CSA FT1, UL AWM 1232, UL AWM 1283, UL MTW, UL THW, UL VW-1
    460819 600 8 19/.0295 0.047 0.242 PVC CSA - TEW-105, CSA AWM I A/B, CSA FT1, UL - TW, UL AWM 1028, UL AWM 1231, UL MTW, UL VW-1
    461019 600 10 19/.0234 0.032 0.181 PVC CSA AWM I A/B, CSA FT1, CSA TEW 80, UL AWM 1015, UL AWM 1230, UL MTW, UL TW, UL VW-1
    461219 600 12 19/.0185 0.032 0.157 PVC CSA AWM I A/B, CSA FT1, CSA TEW 80, UL AWM 1015, UL AWM 1230, UL MTW, UL TW, UL VW-1
    461265 600 12 65/.010 0.031 0.153 PVC CSA AWM I A/B, CSA FT1, CSA TEW 80, UL AWM 1015, UL AWM 1230, UL MTW, UL TW, UL VW-1
    461419 600 14 19/.0147 0.032 0.138 PVC CSA AWM I A/B, CSA FT1, CSA TEW 80, UL AWM 1015, UL AWM 1230, UL MTW, UL TW, UL VW-1
    461626 600 16 26/30 0.032 0.124 PVC CSA AWM I A/B, CSA FT1, CSA TEW 80, UL AWM 1015, UL AWM 1230, UL MTW, UL VW-1
    461816 600 18 16/30 0.032 0.111 PVC CSA AWM I A/B, CSA FT1, CSA TEW 80, UL AWM 1015, UL AWM 1230, UL MTW, UL VW-1
    540001 600 1/0 19/.0745 0.05 0.488 PVC/NYLON CA Prop 65, UL THHN, UL THWN
    540219 600 2 19/.0591 0.04 0.39 PVC/NYLON CA Prop 65, UL THHN, UL THWN
    540419 600 4 19/.0469 0.04 0.329 PVC/NYLON CA Prop 65, UL THHN, UL THWN
    540619 600 6 19/.0372 0.03 0.257 PVC/NYLON CA Prop 65, UL THHN, UL THWN
    540819 600 8 19/.0295 0.03 0.219 PVC/NYLON CA Prop 65, UL THHN, UL THWN
    541001 600 10 Solid 0.015 0.141 PVC/NYLON CA Prop 65, UL THHN, UL THWN
    541019 600 10 19/.0234 0.02 0.166 PVC/NYLON CA Prop 65, UL THHN, UL THWN
    541201 600 12 Solid 0.015 0.12 PVC/NYLON CA Prop 65, UL THHN, UL THWN
    541219 600 12 19/.0185 0.015 0.132 PVC/NYLON CA Prop 65, UL THHN, UL THWN
