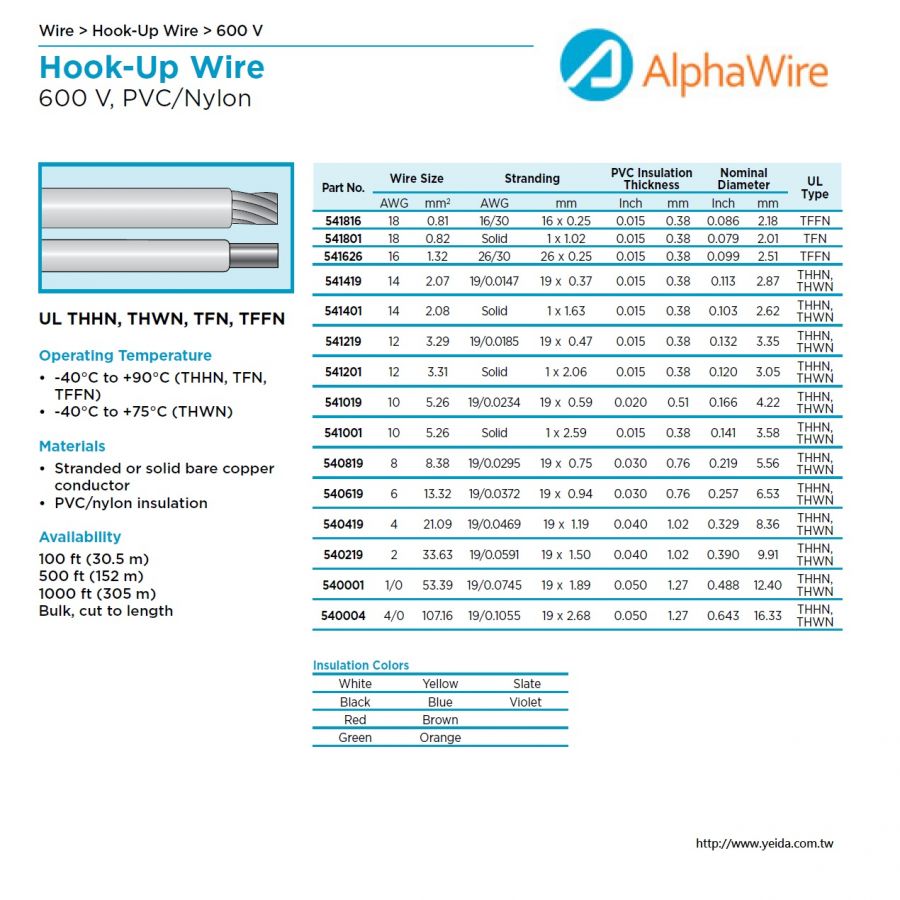

ALPHA-541626 Awg16 600V CA Prop 65, UL TFFN PVC/NYLON PVC尼龍被覆電子線
Part #
Voltage
AWG
Stranding
Insulation Thickness
Insulation Diameter
Insulation Material
Applicable Specifications
541626
600
16
26/30
0.015
0.099
PVC/NYLON
CA Prop 65, UL TFFN
Diameters (In)
1) Component 1
1 X 1 HOOKUP
a) Conductor
16 (26/30) AWG BC
0.060
b) Insulation
0.015" Wall, Nom. PVC/ 0.005" Wall NYLON
0.099
(1) Print
16 AWG
EXXXXXX (UL) TYPE TFFN 600V
(2) Color(s)
WHITE, BLACK, RED, GREEN, YELLOW, BLUE, BROWN
ORANGE, SLATE, VIOLET
Applicable Specifications
1) UL
TFFN
90°C / 600 VRMS
Environmental
1) EU Directive 2002/95/EC(RoHS):
All materials used in the manufacture of this part are in compliance with EU Directive 2002/95/EU regarding the restriction of use of certain hazardous substances in electrical and electronic equipment. Consult Alpha Wire's web site for compliance Date of Manufacture.
2) California Proposition 65:
The outer surface materials used in the manufacture of this part meet the requirements of California Proposition 65.
Properties
Physical & Mechanical Properties
1) Temperature Range
-40 to 90°C
2) Bend Radius
10X Cable Diameter
3) Pull Tension
20.4 Lbs, Maximum
Electrical Properties
(For Engineering purposes only)
1) Voltage Rating
600 VRMS
2) Inductance
0.05 µH/ft, Nominal
3) Conductor DCR
4.1 Ω/1000ft @20°C, Nominal
Other
Packaging
Flange x Traverse x Barrel (inches)
a) 1000 FT
6.5 x 6 x 1.9 Continuous length
b) 500 FT
6.5 x 4 x 2.5 Continuous length
c) 100 FT
3.5 x 3 x 1.125 Continuous length
d) Bulk(Made-to-order)
[Spool dimensions may vary slightly]
The broad range of hook-up wire from Alpha means you will find the product exactly suited to your application— whether it’s as straightforward as a control cabinet in a protected environment or as specialized as a machine tool on the factory floor, a high-temperature oven, or off-road construction equipment.
Our hook-up wire is available in a variety of insulations to meet your needs for temperature, ability to withstand wear and abrasion, electrical performance, or resistance to oil, solvents, and chemicals.
EU/China ROHS CERTIFICATE OF COMPLIANCE
To Whom It May Concern:
Alpha Wire Part Number: 541626
541626 , RoHS-Compliant Commencing With 7/1/2005 Production
This document certifies that the Alpha part number cited above are manufactured in accordance with Directive 2002/95/EC of the European Parliament and of the Council of 27 January 2003, better known as the RoHS Directives, with regards to restrictions of the use of certain hazardous substances used in the manufacture of electrical and electronic equipment. The reader is referred to these Directives for the specific definitions and extents of these Directives. No Exemptions are required for RoHS Compliance on this item. Additionally, Alpha certifies that the listed part number is in compliance with the European Union’s Restriction of Hazardous Substances (RoHS) Directive, 2002/95/EC and all subsequent revisions and China RoHS “Marking for Control of Pollution by Electronic Information Products” standard SJ/T 11364-2006.
