YEIDA, 24-CE250 W X Y Z, 17.5/24kV Deadbreak 250A Elbow Connector

歐式高壓電纜負載不可切彎頭

YEIDA 17.5/24 kV 歐式負載不可切彎頭，產品設計符合HD629.1, EN-
50180, EN-50181 以及IEC 60502 等規範，產品可以與其他符合規範設計的各
廠牌產品互換。

訂購方式

欲訂購YEIDA 歐式不可切彎頭，請按照底下說明填寫訂購號:

24-CE250 W X Y Z

W = 若是需要測試點，請填入T。
X = 請填入電纜線徑代碼，請見底下電纜線徑代碼表。
Y = 請填入導體尺寸代碼，請見底下導體尺寸代碼表。
Z = 如需選用全銅端子，請填入C，空白則為銅鋁壓接端子。

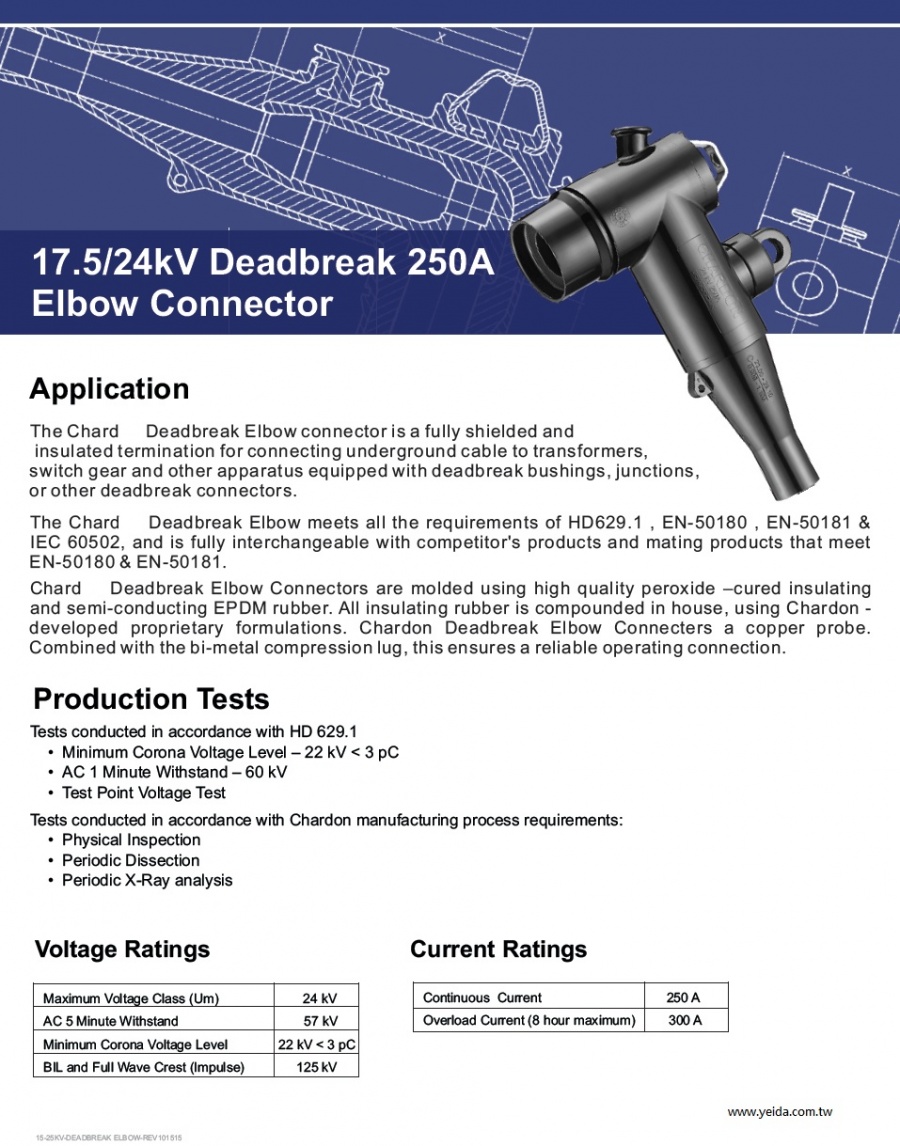

Application

The YEIDA Deadbreak Elbow connector is a fully shielded and insulated termination for connecting underground cable to transformers, switch gear and other apparatus equipped with deadbreak bushings, junctions, or other deadbreak connectors.

The YEIDA Deadbreak Elbow meets all the requirements of HD629.1 , EN-50180 , EN-50181 & IEC 60502, and is fully interchangeable with competitors products and mating products that meet EN-50180 & EN-50181.

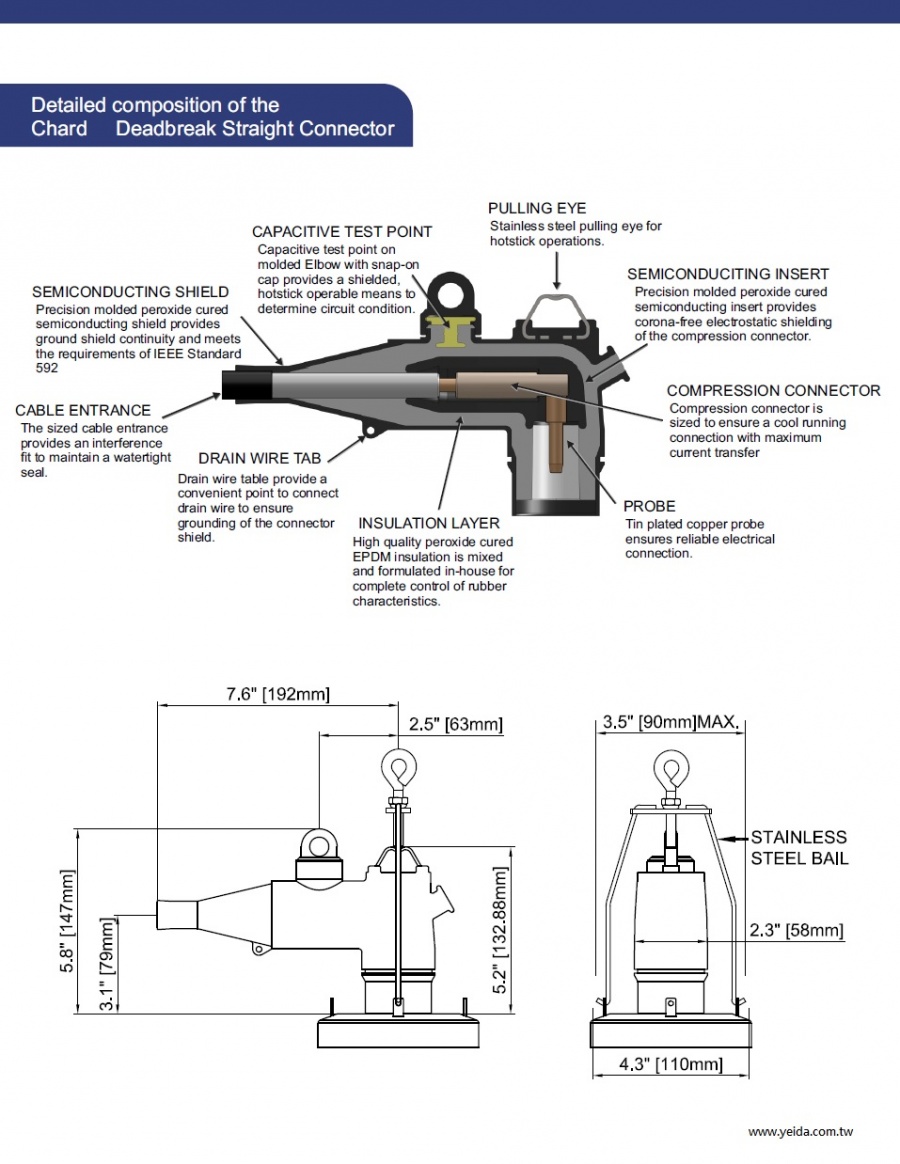

 Deadbreak Elbow Connectors are molded using high quality peroxide –cured insulating and semi-conducting EPDM rubber. All insulating rubber is compounded in house, using Chardon - developed proprietary formulations. Chardon Deadbreak Elbow Connecters a copper probe. Combined with the bi-metal compression lug, this ensures a reliable operating connection.
