    ALPHA-Series F Continuous Flex Awg14, 12, 10, 8 UNSHIELDED MutiConductor 600V UL TC-ER, PLTC, TFFN F系列柔性控制电缆(领先的机械和电气性能 適合連續繞曲控制應用 )
    看原圖
    		ALPHA-F14004RW


     商品編號: ALPHA-F14004RW, google, yahoo, msn,

    ALPHA-Series F Continuous Flex Awg14, 12, 10, 8 UNSHIELDED MutiConductor 600V UL TC-ER, PLTC, TFFN F系列柔性控制电缆(领先的机械和电气性能 適合連續繞曲控制應用 )

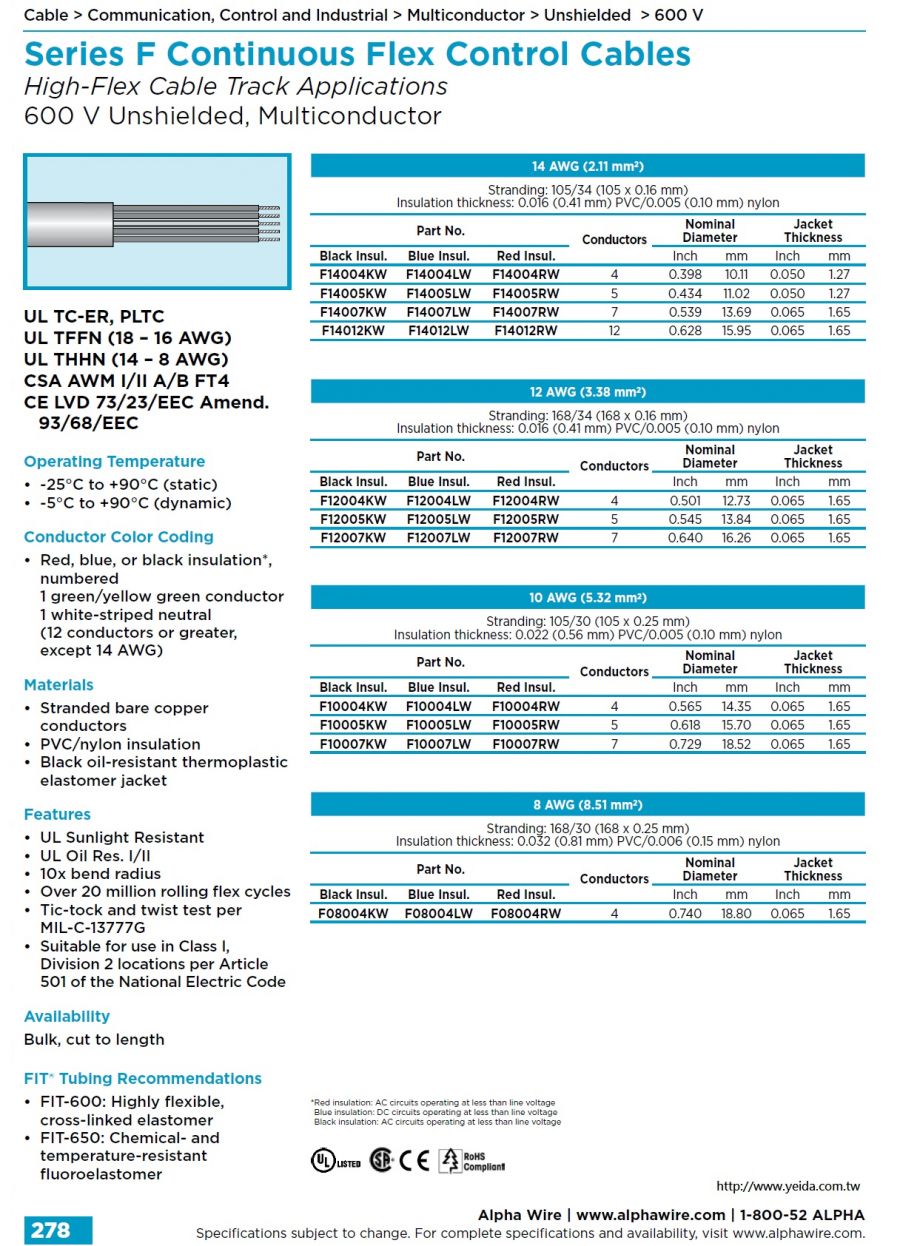

    Series F Continuous Flex Control Cables
    High-Flex Cable Track Applications
    600 V Unshielded, Multiconductor
    UL TC-ER, PLTC
    UL TFFN (18 – 16 AWG)
    UL THHN (14 – 8 AWG)
    CSA AWM I/II A/B FT4
    CE LVD 73/23/EEC Amend.
    93/68/EEC


    Operating Temperature
    • -25°C to +90°C (static)
    • -5°C to +90°C (dynamic)
    Conductor Color Coding
    • Red, blue, or black insulation*, numbered 1 green/yellow green conductor
    1 white-striped neutral (12 conductors or greater)
    Materials
    • Stranded bare copper conductors
    • PVC/nylon insulation
    • Black oil-resistant thermoplastic elastomer jacket Features
    • UL Sunlight Resistant
    • UL Oil Res. I/II
    • 10x bend radius
    • Over 20 million rolling flex cycles
    • Tic-tock and twist test per MIL-C-13777G
    • Suitable for use in Class I, Division 2 locations per Article
    501 of the National Electric Code
    Availability
    Bulk, cut to length
    　

    FIT® Tubing Recommendations
    • FIT-600: Highly flexible, cross-linked elastomer
    • FIT-650: Chemical- and temperature-resistant fluoroelastomer
    　

    * Red insulation: AC circuits operating at less than line voltage
    Blue insulation: DC circuits operating at less than line voltage
    Black insulation: AC circuits operating at less than line voltage

    Industrial Series F

    　

    Alpha Wire's Series F continuous flex control cable offers industry-leading mechanical and electrical performance for high-flex cable track applications.

    Series F Key features:
    　

    • Up to 20 million continuous rolling flex cycles
    • 28 – 8 AWG
    • 3 – 65 conductors
    • PVC/nylon insulation
    • Thermoplastic elastomer jacket
    • UL Type TC-ER (600 V)
    • UL Type PLTC (300 V) (18-12AWG only)
    • Sunlight resistant

    Alpha Wire 的 F 系列连续挠曲控制电缆为高挠曲电缆轨道应用提供行业领先的机械和电气性能。

    F 系列电缆的主要特性 ：

    • 高达 2 千万次的连续滚动挠曲循环
    • 线径为 28 到 8 AWG
    • 导线数量为 3 到 65 根
    • 聚氯乙烯/尼龙绝缘
    • 热塑性橡胶护套
    • UL 类型 TC-ER（600 伏）
    • UL 类型 PLTC（300 伏）（仅限 18 到 12 AWG）
    • 防紫外线


    Industrial Series F

    　

    Alpha Wire's Series F continuous flex control cable offers industry-leading mechanical and electrical performance for high-flex cable track applications.

    Series F Key features:
    　

    • Up to 20 million continuous rolling flex cycles
    • 28 – 8 AWG
    • 3 – 65 conductors
    • PVC/nylon insulation
    • Thermoplastic elastomer jacket
    • UL Type TC-ER (600 V)
    • UL Type PLTC (300 V) (18-12AWG only)
    • Sunlight resistant

    Alpha Wire 的 F 系列连续挠曲控制电缆为高挠曲电缆轨道应用提供行业领先的机械和电气性能。

    F 系列电缆的主要特性 ：

    • 高达 2 千万次的连续滚动挠曲循环
    • 线径为 28 到 8 AWG
    • 导线数量为 3 到 65 根
    • 聚氯乙烯/尼龙绝缘
    • 热塑性橡胶护套
    • UL 类型 TC-ER（600 伏）
    • UL 类型 PLTC（300 伏）（仅限 18 到 12 AWG）
    • 防紫外线



    ★★★★使用操作說明★★★★

    　 Part #

    　

    		 Type　 Shielding Voltage　 AWG # of Elements

    　

    		 Jacket Thickness
    ALPHA
    F12004KW    		 Conductor UNSHIELDED 600 12 4 0.065 CA Prop 65, CE, CSA C(UL) CIC CONTROL, CSA C(UL) TC, CSA AWM I/II A/B, CSA FT4, UL EXPOSED RUN, UL MTW, UL OIL RES I/II, UL PLTC, UL SUN RES, UL TC, UL THHN
    F12004LW Conductor UNSHIELDED 600 12 4 0.065
    F12004RW Conductor UNSHIELDED 600 12 4 0.065
    F12005KW Conductor UNSHIELDED 600 12 5 0.065
    F12005LW Conductor UNSHIELDED 600 12 5 0.065
    F12005RW Conductor UNSHIELDED 600 12 5 0.065
    F12007KW Conductor UNSHIELDED 600 12 7 0.065
    F12007LW Conductor UNSHIELDED 600 12 7 0.065
    F12007RW Conductor UNSHIELDED 600 12 7 0.065
    F14004KW Conductor UNSHIELDED 600 14 4 0.05
    F14004LW Conductor UNSHIELDED 600 14 4 0.05
    F14004RW Conductor UNSHIELDED 600 14 4 0.05
    F14005KW Conductor UNSHIELDED 600 14 5 0.05
    F14005LW Conductor UNSHIELDED 600 14 5 0.05
    F14007KW Conductor UNSHIELDED 600 14 7 0.065
    F14007LW Conductor UNSHIELDED 600 14 7 0.065
    F14007RW Conductor UNSHIELDED 600 14 7 0.065
    F14012KW Conductor UNSHIELDED 600 14 12 0.065
    F14012LW Conductor UNSHIELDED 600 14 12 0.065
    F14012RW Conductor UNSHIELDED 600 14 12 0.065
    Part #

    　

    		 Type　 Shielding Voltage　 AWG # of Elements

    　

    		 Jacket Thickness
    F08004KW Conductor UNSHIELDED 600 8 4 0.065 CA Prop 65, CE, CSA C(UL) CIC CONTROL, CSA C(UL) TC, CSA AWM I/II A/B, CSA FT4, UL EXPOSED RUN, UL MTW, UL OIL RES I/II, UL SUN RES, UL TC, UL THHN
    F08004LW Conductor UNSHIELDED 600 8 4 0.065 CA Prop 65, CE, CSA C(UL) CIC CONTROL, CSA C(UL) TC, CSA AWM I/II A/B, CSA FT4, UL EXPOSED RUN, UL MTW, UL OIL RES I/II, UL SUN RES, UL TC, UL THHN
    F08004RW Conductor UNSHIELDED 600 8 4 0.065 CA Prop 65, CE, CSA C(UL) CIC CONTROL, CSA C(UL) TC, CSA AWM I/II A/B, CSA FT4, UL EXPOSED RUN, UL MTW, UL OIL RES I/II, UL SUN RES, UL TC, UL THHN
    F10004KW Conductor UNSHIELDED 600 10 4 0.065 CA Prop 65, CE, CSA C(UL) CIC CONTROL, CSA C(UL) TC, CSA AWM I/II A/B, CSA FT4, UL EXPOSED RUN, UL MTW, UL OIL RES I/II, UL SUN RES, UL TC, UL THHN
    F10004LW Conductor UNSHIELDED 600 10 4 0.065 CA Prop 65, CE, CSA C(UL) CIC CONTROL, CSA C(UL) TC, CSA AWM I/II A/B, CSA FT4, UL EXPOSED RUN, UL MTW, UL OIL RES I/II, UL SUN RES, UL TC, UL THHN
    F10004RW Conductor UNSHIELDED 600 10 4 0.065 CA Prop 65, CE, CSA C(UL) CIC CONTROL, CSA C(UL) TC, CSA AWM I/II A/B, CSA FT4, UL EXPOSED RUN, UL MTW, UL OIL RES I/II, UL SUN RES, UL TC, UL THHN
    F10005KW Conductor UNSHIELDED 600 10 5 0.065 CA Prop 65, CE, CSA C(UL) CIC CONTROL, CSA C(UL) TC, CSA AWM I/II A/B, CSA FT4, UL EXPOSED RUN, UL MTW, UL OIL RES I/II, UL SUN RES, UL TC, UL THHN
    F10005LW Conductor UNSHIELDED 600 10 5 0.065 CA Prop 65, CE, CSA C(UL) CIC CONTROL, CSA C(UL) TC, CSA AWM I/II A/B, CSA FT4, UL EXPOSED RUN, UL MTW, UL OIL RES I/II, UL SUN RES, UL TC, UL THHN
    F10005RW Conductor UNSHIELDED 600 10 5 0.065 CA Prop 65, CE, CSA C(UL) CIC CONTROL, CSA C(UL) TC, CSA AWM I/II A/B, CSA FT4, UL EXPOSED RUN, UL MTW, UL OIL RES I/II, UL SUN RES, UL TC, UL THHN
    F10007KW Conductor UNSHIELDED 600 10 7 0.065 CA Prop 65, CE, CSA C(UL) CIC CONTROL, CSA C(UL) TC, CSA AWM I/II A/B, CSA FT4, UL EXPOSED RUN, UL MTW, UL OIL RES I/II, UL SUN RES, UL TC, UL THHN
    F10007RW Conductor UNSHIELDED 600 10 7 0.065 CA Prop 65, CE, CSA C(UL) CIC CONTROL, CSA C(UL) TC, CSA AWM I/II A/B, CSA FT4, UL EXPOSED RUN, UL MTW, UL OIL RES I/II, UL SUN RES, UL TC, UL THHN
