    ALPHA669343 Ethernet Cable (Hybrid Data + Power) (Awg24 x 4PR + 4 conductors) Braided Shield TPE CAT-5 + 4C電源線 複合式網路線
    看原圖
    		ALPHA-669343

    商品編號: ALPHA-669343

    ALPHA 669343 Ethernet Cable (Hybrid Data + Power) (Awg24 x 4PR + 4 conductors) Braided Shield TPE 工業級CAT-5 + 4C電源線 複合式網路線

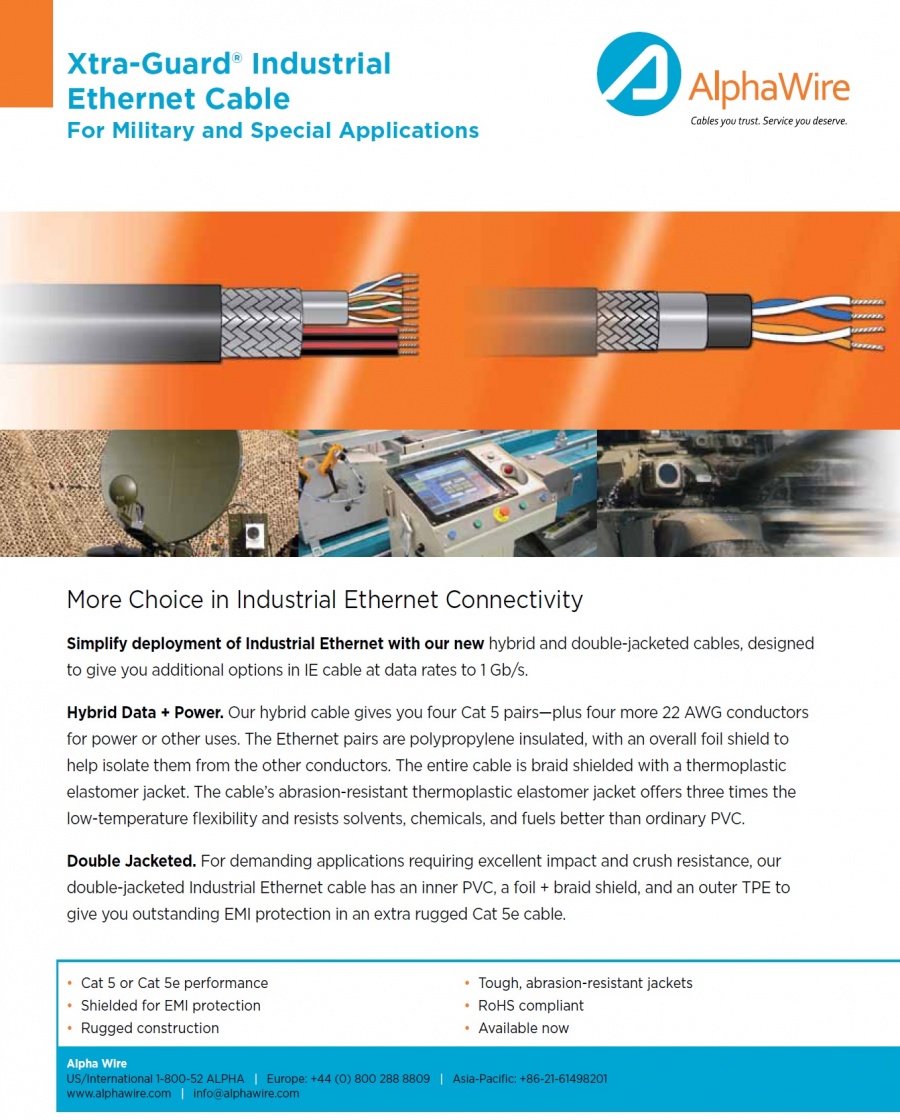

    Simplify deployment of Industrial Ethernet with our new hybrid and double-jacketed cables, designed
    to give you additional options in IE cable at data rates to 1 Gb/s.
    Hybrid Data + Power. Our hybrid cable gives you four Cat 5 pairs—plus four more 22 AWG conductors
    for power or other uses. The Ethernet pairs are polypropylene insulated, with an overall foil shield to
    help isolate them from the other conductors. The entire cable is braid shielded with a thermoplastic
    elastomer jacket. The cable’s abrasion-resistant thermoplastic elastomer jacket offers three times the
    low-temperature flexibility and resists solvents, chemicals, and fuels better than ordinary PVC.

    Part # Type Shielding AWG Stranding # of Elements Insulation Material Jacket Thickness Applicable Specifications
    669343 Pair Foil/Unshielded 24+22 7/32 & 19/34 4PR PP 0.049 ROHS - RoHS Compliance

    Construction
    　 Diameters (In)
    1) Component 1 1 X 4 PAIR 　
    a) Conductor 24 (7/32) AWG TC 0.024
    b) Insulation 0.011" Wall, Nom. Polypropylene(PP) 0.045
    (1) Color(s) 　 　
    Pair Color Pair Color Pair Color
    1 BLU - WHT/BLU 3 GRN - WHT/GRN 　 　
    2 ORG - WHT/ORG 4 BRN - WHT/BRN 　 　
    c) Pair 2/Cond Cabled Together 　
    (1) Twists: 24.0 Twists/foot (approx.) 　
    d) Cabling 4 PAIR Cabled 　
    (1) Twists: 4.4 Twists/foot (min) 　
    (2) Core Wrap Foam Polypropylene Tape, 25% Overlap, Min. 　
    e) Shield: Alum/Mylar Tape, 25% Overlap, Min. 　
    (1) Foil Direction Foil Facing Out 　
    2) Component 2 4 X 1 COND 　
    a) Conductor 22 (19/34) AWG TC 0.032
    b) Insulation 0.010" Wall, Nom. PVC 0.052
    (1) Color(s) 　 　
    Cond Color Cond Color Cond Color
    1 BLACK 3 BLACK 　 　
    2 RED 4 RED 　 　
    3) Cable Assembly 5 Components Cabled 　
    a) Twists: 2.4 Twists/foot (min) 　
    b) Core Wrap Clear Mylar Tape, 25% Overlap, Min. 　
    4) Shield TC BRAID Shield,90% Coverage, Min. 　
    a) Drain Wire 22 (19/34) AWG TC 　
    5) Jacket 0.049" Wall, Nom.,TPE 0.490 (0.516 Max.)
    a) Color(s) BLACK
    b) Print ALPHA WIRE-* P/N 669343 4PR 24 AWG 4C 22 AWG
    75C 600V SHIELDED ROHS
    (SEQUENTIAL #) FT
    * = Factory Code
    　
    Environmental
    1) EU Directive 2002/95/EC(RoHS):
    　 All materials used in the manufacture of this part are in compliance with EU Directive 2002/95/EU regarding the restriction of use of certain hazardous substances in electrical and electronic equipment. Consult Alpha Wire's web site for compliance Date of Manufacture.
    Properties
    Physical & Mechanical Properties
    1) Temperature Range -50 to 75°C
    2) Bend Radius 10X Cable Diameter
    3) Pull Tension 67 Lbs, Maximum
    Electrical Properties (For Engineering purposes only)
    1) Voltage Rating 600 VRMS
    2) Component 1
    a) Characteristic Impedance 100ohms +/- 15
    b) Mutual Capacitance 5.6nF/100m MAX
    c) Velocity of Propagation 70% Nom.
    d) Conductor DCR 9.38 ohms/100m MAX
    e) Shew 45ns/100m MAX
    f) Pair to Ground Unbalance 330 pF/100m MAX
    g) Transfer Impedance 100mohms/m MAX
    h) DC Unbalance of a Pair 5% MAX
    i) Insertion Loss, Max dB/100m 2.4 @ 1 MHz
    　 4.9 @ 4 MHz
    　 6.9 @ 8 MHz
    　 7.8 @ 10 MHz
    　 9.9 @ 16 MHz
    　 11.1 @ 20 MHz
    　 12.5 @ 25 MHz
    　 14.1 @ 31.25 MHz
    　 20.4 @ 62.5 MHz
    　 26.4 @ 100 MHz
    3) Component 2
    a) Capacitance 53 pf/ft @1 kHz, Nominal Conductor to Conductor
    b) Ground Capacitance 95 pf/ft @1 kHz, Nominal
    c) Inductance 0.17 µH/ft, Nominal
    d) Conductor DCR 15.3 Ω/1000ft @20°C, Nominal
    e) OA Shield DCR 2.04 Ω/1000ft @20°C, Nominal
    Other
    Packaging Flange x Traverse x Barrel (inches)
    a) 1000 FT 24 x 14 x 12 Continuous length
    b) Bulk(Made-to-order) 　
    　 [Spool dimensions may vary slightly]
    Notes:
    a) Component 1 meets TIA/EIA-568-B.2 Cat5 requirement.

    Xtra-Guard® Industrial Ethernet - Rugged connectivity for industrial networking Abrasion Low Temperature EMI Noise Flexing High Temperature Oil, Chemicals, Solvents, Fuels

    • -50°C to 105°C (PP core) and 125°C (FEP core)
    • 4 times OD (unshielded) and 8 times OD (shielded) cold bend radius per TIA-568-C.2
    • Meets ANSI/TIA-568-C.2 Cat 5e requirements
    • UL Type CMR and suitable for use in NFPA 79 applications*
    • Sunlight, fluid, and abrasion resistant
    • High-performance TPE jacket provides three times the low temperature flexibility of PVC
    • Unshielded, foil shielded, or Supra-Shield® foil + braid for best EMI protection

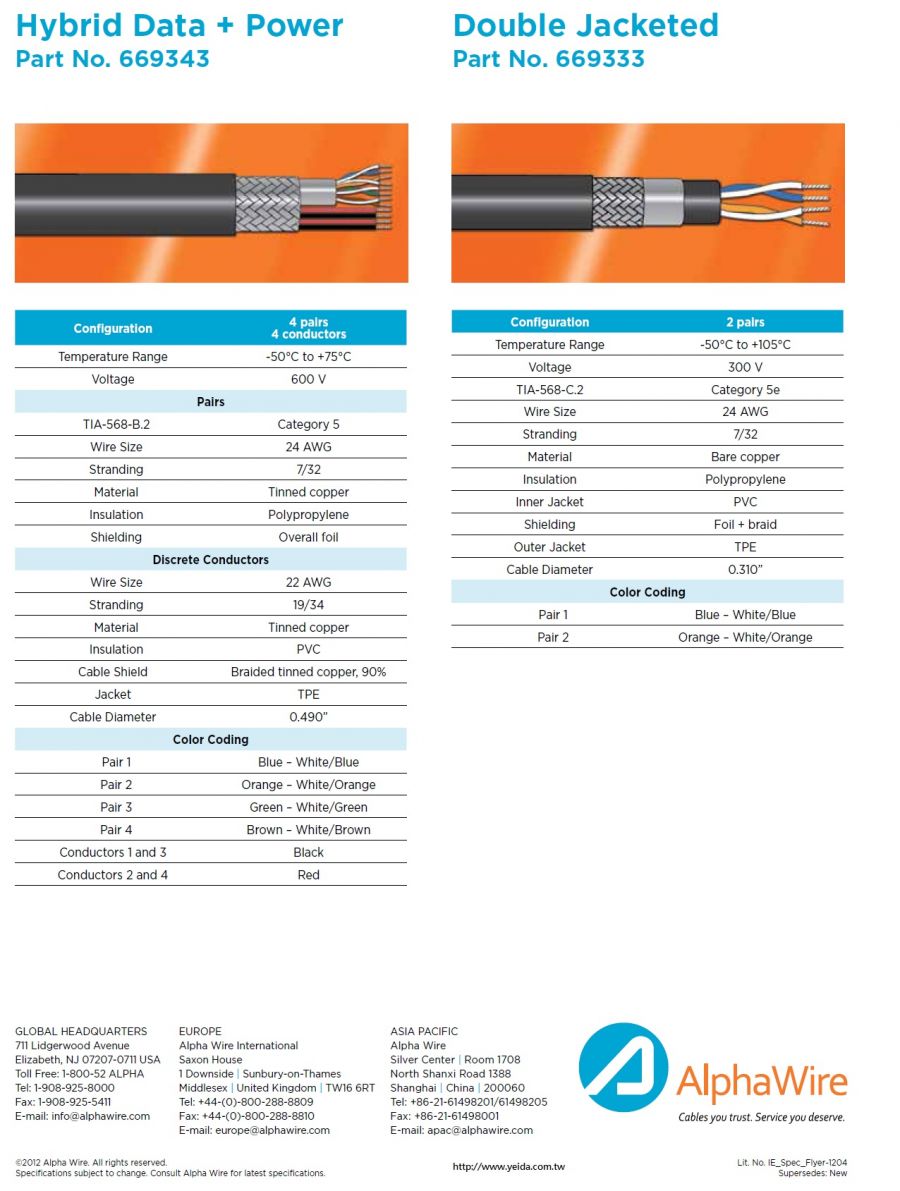

    Xtra-Guard® Industrial Ethernet - For Military and Special Applications (669333 & 669343)

    669333

    • Double-jacketed cable with inner PVC, foil+braid shield, and outer TPE jacket
    • Shielded for EMI protection
    • Excellent impact and crush resistance
    • High performance TPE jacket provides 3x the low temperature flexibility of PVC

    669343

    • Hybrid Data + Power cable
    • Four Cat 5 pairs with 4 more 22 AWG conductors
    • Shielded for EMI protection
    • High performance TPE jacket provides 3x the low temperature flexibility of PVC
    Xtra-Guard®工業以太網-工業網絡的堅固連接

    Alpha Wire的工業以太網Cat5e電纜可提供高質量的以太網通信，並具有Alpha Xtra-Guard 4 TPE護套的耐用性和溫度範圍。此24 AWG電纜有2對和4對結構。
    •-50°C至75°C（PP磁芯）和105°C（FEP磁芯）
    •根據TIA-568-C.2，外徑（非屏蔽）的4倍，冷彎半徑為外徑的8倍（2）
    •滿足ANSI / TIA-568-C.2 Cat 5e要求
    •UL CMR類型，適用於NFPA 79應用*
    •耐陽光和耐磨
    •高性能TPE護套的低溫柔韌性是PVC的三倍
    •非屏蔽，箔屏蔽或Supra-Shield®箔+編織層可提供最佳的EMI保護
    •混合數據+電源線600V
    •4對Cat 5對，另外4條22 AWG導體
    •屏蔽以提供EMI保護（90％鍍錫銅編織線）
    •高性能TPE護套，其低溫柔韌性是PVC的3倍
