商品編號: ALPHA-75020
ALPHA- Industrial Ethernet Cat 5e cables Awg24(7/32 ) x 2PR Unshielded PP-TPE (-50 to +105) 2對多股絞線柔性CAT-5E 工業級網路線
Designed for uncompromising performance to keep the network running anywhere, Alpha Wire’s Industrial
Ethernet cables feature an abrasion-resistant thermoplastic elastomer jacket
with three times the lowtemperature flexibility,
and resists solvents, chemicals, and fuels better
than ordinary PVC.
Part # |
Type |
Shielding |
AWG |
Stranding |
# of Elements |
Insulation Material |
Jacket Thickness |
Applicable Specifications |
75020 |
Pair |
UNSHIELDED |
24 |
7/32 |
2PR |
PP |
0.035 |
CE, CSA - C(UL) TYPE CMR, CSA FT4, ROHS - RoHS Compliance, UL CMR, UL - FT4 |
|
|
|
|
|
Construction
|
Diameters (In) |
1) Component 1 |
2 X 1 PAIR |
|
a) Conductor |
24 (7/32) AWG BC |
0.024 |
b) Insulation |
0.0075" Wall, Nom. Polypropylene (PP) |
0.039 |
(1) Color(s) |
|
|
Pair |
Color |
Pair |
Color |
Pair |
Color |
1 |
BLU - WHT/BLU |
2 |
ORG - WHT/ORG |
|
|
|
c) Pair |
2/Cond Cabled Together |
|
(1) Lay Length: |
Various Lay |
|
2) Cable Assembly |
2 Components Cabled |
|
a) Twists: |
4.0 Twists/foot (min) |
|
b) Core Wrap |
Clear Mylar Tape, 25% Overlap, Min. |
|
3) Jacket |
0.035" Wall, Nom.,TPE |
0.270 (0.280 Max.) |
a) Color(s) |
BLACK |
b) Ripcord |
Nylon |
|
c) Print |
ALPHA WIRE-* P/N 75020 2PR 24 AWG
XTRAGUARD(R) INDUSTRIAL ETHERNET (UL) C(UL) TYPE
CMR 105C FT4 ANSI/TIA-568-C.2 CAT5E VERIFIED
ROHS (SEQUENTIAL FOOTAGE MARKING)
* = Factory Code |
Applicable Specifications
1) UL |
CMR |
105°C |
|
FT4 |
|
2) CSA International |
C(UL) TYPE CMR |
105°C |
|
FT4 |
|
3) CE: |
LVD 73/23/EEC Amendment 93/68/EEC |
Environmental
1) EU Directive 2002/95/EC(RoHS): |
|
All materials used in the manufacture of this part are in compliance with EU Directive 2002/95/EU regarding the restriction of use of certain hazardous substances in electrical and electronic equipment. Consult Alpha Wire's web site for compliance Date of Manufacture. |
Properties
Physical & Mechanical Properties |
1) Temperature Range |
-50 to 105°C |
2) Bend Radius |
4X Cable Diameter |
3) Pull Tension |
14.1 Lbs, Maximum |
4) Sunlight Resistance |
Yes |
Electrical Properties |
(For Engineering purposes only) |
1) Voltage Rating |
300 VRMS |
2) Characteristic Impedance |
100 Ω +/- 15 |
3) Mutual Capacitance |
5.6 nf/100m Max |
4) Velocity of Propagation |
70 % Nom. |
5) Conductor DCR |
9.38 Ω/100m @20°C, Max |
6) Skew |
45 ns/100m, Max |
7) Pair to Ground Unbalance |
330 pf/100m, Max |
8) DC Unbalance of a Pair |
5%, Max |
9) Insertion Loss, Max dB/100m |
2.4 @ 1 MHz |
|
4.9 @ 4 MHz |
|
6.9 @ 8 MHz |
|
7.8 @ 10 MHz |
|
9.9 @ 16 MHz |
|
11.1 @ 20 MHz |
|
12.5 @ 25 MHz |
|
14.1 @ 31.25 MHz |
|
20.4 @ 62.5 MHz |
|
26.4 @ 100 MHz |
Other
Packaging |
Flange x Traverse x Barrel (inches) |
a) 1000 FT |
12 x 12 x 3.5 Continuous length |
b) 500 FT |
12 x 6 x 3.5 Continuous length |
|
[Spool dimensions may vary slightly] |

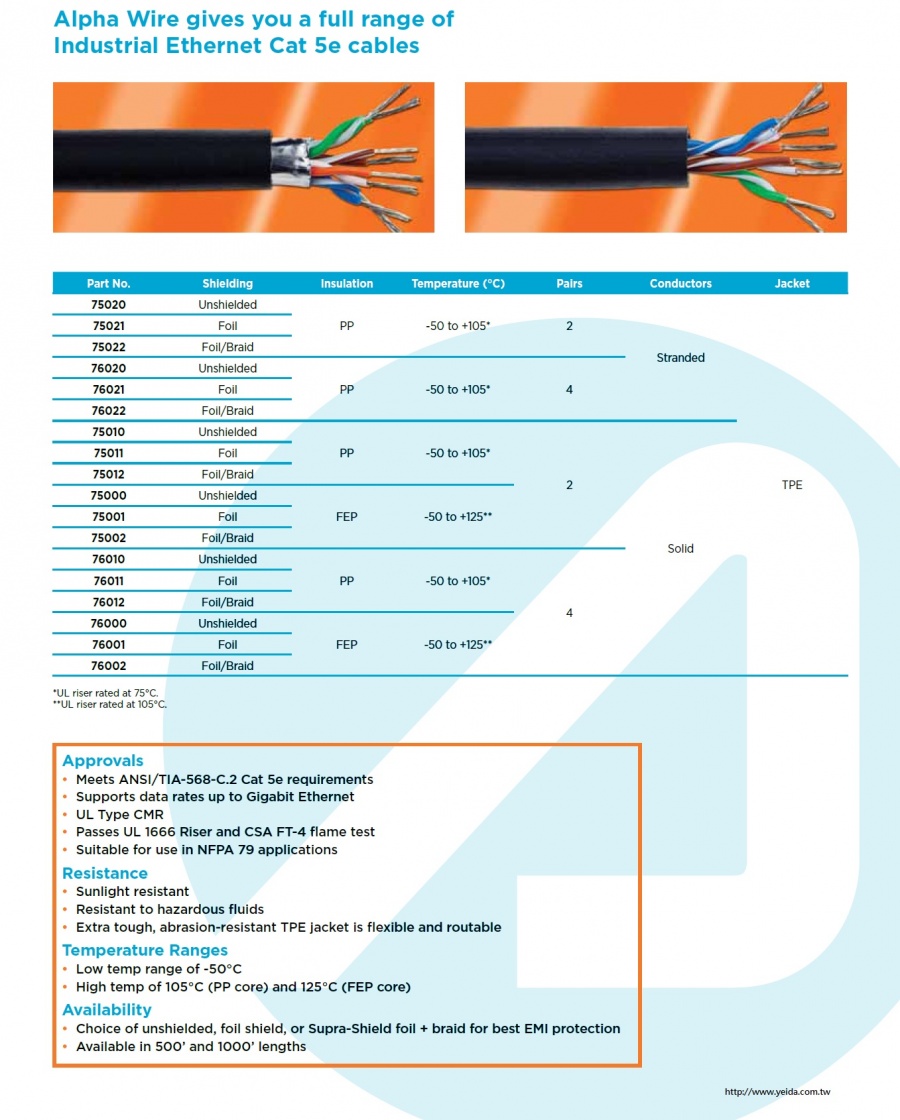

Xtra-Guard® Industrial Ethernet - Rugged connectivity for industrial networking
- -50°C to 105°C (PP core) and 125°C (FEP core)
- 4 times OD (unshielded) and 8 times OD (shielded) cold bend radius per TIA-568-C.2
- Meets ANSI/TIA-568-C.2 Cat 5e requirements
- UL Type CMR and suitable for use in NFPA 79 applications*
- Sunlight, fluid, and abrasion resistant
- High-performance TPE jacket provides three times the low temperature flexibility of PVC
- Unshielded, foil shielded, or Supra-Shield® foil + braid for best EMI protection
Xtra-Guard® Industrial Ethernet - For Military and Special Applications (669333 & 669343)
669333
- Double-jacketed cable with inner PVC, foil+braid shield, and outer TPE jacket
- Shielded for EMI protection
- Excellent impact and crush resistance
- High performance TPE jacket provides 3x the low temperature flexibility of PVC
669343
- Hybrid Data + Power cable
- Four Cat 5 pairs with 4 more 22 AWG conductors
- Shielded for EMI protection
- High performance TPE jacket provides 3x the low temperature flexibility of PVC
EU/China ROHS CERTIFICATE OF COMPLIANCE |
To Whom It May Concern: |
Alpha Wire Part Number: 75020 |
75020, RoHS-Compliant Commencing With 3/21/2012 Production |
This document certifies that the Alpha part number cited above are manufactured in accordance with Directive 2002/95/EC of the European Parliament and of the Council of 27 January 2003, better known as the RoHS Directives, with regards to restrictions of the use of certain hazardous substances used in the manufacture of electrical and electronic equipment. The reader is referred to these Directives for the specific definitions and extents of these Directives. No Exemptions are required for RoHS Compliance on this item. Additionally, Alpha certifies that the listed part number is in compliance with the European Union’s Restriction of Hazardous Substances (RoHS) Directive, 2002/95/EC and all subsequent revisions and China RoHS “Marking for Control of Pollution by Electronic Information Products” standard SJ/T 11364-2006. |
Substance |
Maximum Control Value |
Lead |
0.1% by weight (1000 ppm) |
Mercury |
0.1% by weight (1000 ppm) |
Cadmium |
0.01% by weight (100 ppm) |
Hexavalent Chromium |
0.1% by weight (1000 ppm ) |
Polybrominated Biphenyls (PBB) |
0.1% by weight (1000 ppm) |
Polybrominated Diphenyl Ethers (PBDE) , |
|
Including Deca-BDE |
0.1% by weight (1000 ppm) |
|
|
The information provided in this document and disclosure is correct to the best of Alpha Wire's knowledge, information and belief at the date of its release. The information provided is designed only as a general guide for the safe handling, storage, and any other operation of the product itself or the one that it will become part of. The intent of this document is not to be considered a warranty or quality specification. Regulatory information is for guidance purposes only. Product users are responsible for determining the applicability of legislation and regulations based on their individual usage of the product. |
Authorized Signatory for the Alpha Wire Company: |
|
Dave Watson, Director of Engineering & QA |
4/22/2012 |
|
