ALPHA-Series M (Awg14, 12, 10, 8) UNSHIELDED MutiConductor 600V UL DIRECT BURIAL, UL EXPOSED RUN, MTW, OIL RES I, SUN RES, TC, WTTC M系列可直埋•防紫外线•UL 耐油级别 I 控制电缆(固定电缆桥架应用 )

ALPHA-M14104RW

商品編號: ALPHA-M14104RW

ALPHA-Series M (Awg14, 12, 10, 8) UNSHIELDED MutiConductor 600V UL DIRECT BURIAL, UL EXPOSED RUN, MTW, OIL RES I, SUN RES, TC, WTTC M系列可直埋•防紫外线•UL 耐油级别 I 控制电缆(固定电缆桥架应用 )

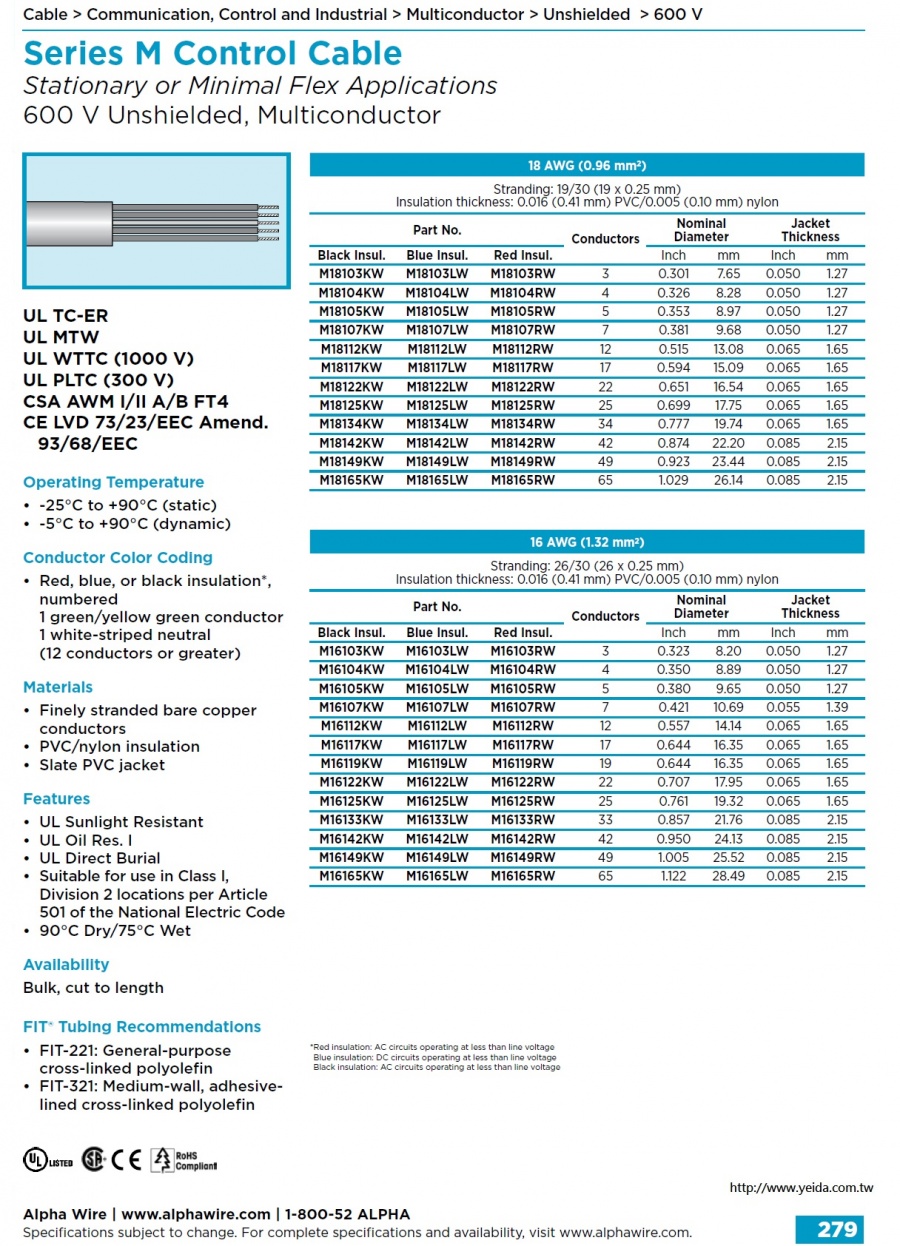

Series M Control Cable
Stationary or Minimal Flex Applications
600 V Unshielded, Multiconductor
UL TC-ER
UL MTW
UL WTTC (1000 V)
UL PLTC (300 V)
CSA AWM I/II A/B FT4
CE LVD 73/23/EEC Amend.
93/68/EEC
　

Operating Temperature
• -25°C to +90°C (static)
• -5°C to +90°C (dynamic)
Conductor Color Coding
• Red, blue, or black insulation*, numbered
     1 green/yellow green conductor
    1 white-striped neutral
    (12 conductors or greater, except 14 AWG)
Materials
• Finely stranded bare copper conductors
• PVC/nylon insulation
• Slate PVC jacket
Features
• UL Sunlight Resistant
• UL Oil Res. I
• UL Direct Burial
• Suitable for use in Class I, Division 2 locations per Article 501 of the National Electric Code
• 90°C Dry/75°C Wet
Availability
Bulk, cut to length
　

FIT® Tubing Recommendations
• FIT-221: General-purpose cross-linked polyolefin
• FIT-321: Medium-wall, adhesivelined cross-linked polyolefin

Type	Shielding	Voltage	AWG	# of Elements	Jacket Diameter
M08104KW	Conductor	UNSHIELDED	600	8	4	0.724	CA Prop 65, CE, CSA AWM I/II A/B, CSA FT4, REACH Regulation (EC 1907/2006), UL DIRECT BURIAL, UL EXPOSED RUN, UL MTW, UL OIL RES I, UL SUN RES, UL TC, UL WTTC
M08104LW	Conductor	UNSHIELDED	600	8	4	0.724
M08104RW	Conductor	UNSHIELDED	600	8	4	0.724
M08105KW	Conductor	UNSHIELDED	600	8	5	0.795
M08105LW	Conductor	UNSHIELDED	600	8	5	0.795
M08105RW	Conductor	UNSHIELDED	600	8	5	0.795
M10104KW	Conductor	UNSHIELDED	600	10	4	0.549
M10104LW	Conductor	UNSHIELDED	600	10	4	0.549
M10104RW	Conductor	UNSHIELDED	600	10	4	0.549
M10105KW	Conductor	UNSHIELDED	600	10	5	0.6
M10105LW	Conductor	UNSHIELDED	600	10	5	0.6
M10105RW	Conductor	UNSHIELDED	600	10	5	0.6
M10107KW	Conductor	UNSHIELDED	600	10	7	0.652
M10107LW	Conductor	UNSHIELDED	600	10	7	0.652
M10107RW	Conductor	UNSHIELDED	600	10	7	0.652
M12104KW	Conductor	UNSHIELDED	600	12	4	0.44
M12104LW	Conductor	UNSHIELDED	600	12	4	0.44
M12104RW	Conductor	UNSHIELDED	600	12	4	0.44
M12105KW	Conductor	UNSHIELDED	600	12	5	0.499
M12105LW	Conductor	UNSHIELDED	600	12	5	0.499

Type	Shielding	Voltage	AWG	# of Elements	Jacket Diameter
M12105RW	Conductor	UNSHIELDED	600	12	5	0.499	CA Prop 65, CE, CSA AWM I/II A/B, CSA FT4, UL DIRECT BURIAL, UL EXPOSED RUN, UL MTW, UL OIL RES I, UL PLTC, UL SUN RES, UL TC, UL WTTC
M12107KW	Conductor	UNSHIELDED	600	12	7	0.54
M12107LW	Conductor	UNSHIELDED	600	12	7	0.54
M12107RW	Conductor	UNSHIELDED	600	12	7	0.54
M14104KW	Conductor	UNSHIELDED	600	14	4	0.384
M14104LW	Conductor	UNSHIELDED	600	14	4	0.384
M14104RW	Conductor	UNSHIELDED	600	14	4	0.384
M14105KW	Conductor	UNSHIELDED	600	14	5	0.428
M14105LW	Conductor	UNSHIELDED	600	14	5	0.428
M14105RW	Conductor	UNSHIELDED	600	14	5	0.428
M14107KW	Conductor	UNSHIELDED	600	14	7	0.483
M14107LW	Conductor	UNSHIELDED	600	14	7	0.483
M14107RW	Conductor	UNSHIELDED	600	14	7	0.483
M14112KW	Conductor	UNSHIELDED	600	14	12	0.615
M14112LW	Conductor	UNSHIELDED	600	14	12	0.615
M14112RW	Conductor	UNSHIELDED	600	14	12	0.615
M14125KW	Conductor	UNSHIELDED	600	14	25	0.887
M14125LW	Conductor	UNSHIELDED	600	14	25	0.887
M14125RW	Conductor	UNSHIELDED	600	14	25	0.887
