ALPHA-Series M Awg16 UNSHIELDED MutiConductor 600V UL DIRECT BURIAL, UL EXPOSED RUN, MTW, OIL RES I, SUN RES, TC, WTTC M系列可直埋•防紫外线•UL 耐油级别 I 控制电缆(固定电缆桥架应用 )

ALPHA-M16103LW

商品編號: ALPHA-M16103LW

ALPHA-Series M Awg16 UNSHIELDED MutiConductor 600V UL DIRECT BURIAL, UL EXPOSED RUN, MTW, OIL RES I, SUN RES, TC, WTTC M系列可直埋•防紫外线•UL 耐油级别 I 控制电缆(固定电缆桥架应用 )

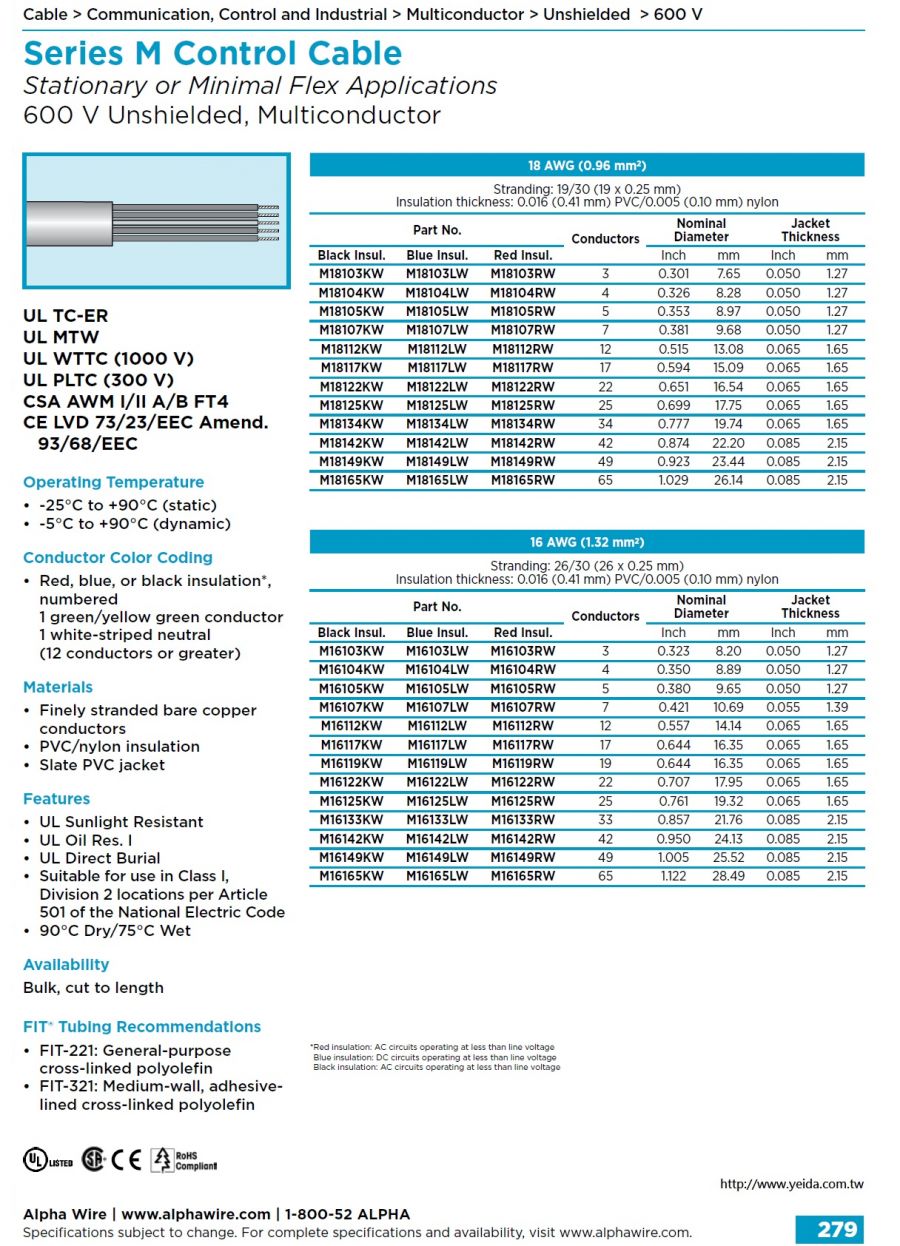

Series M Control Cable
Stationary or Minimal Flex Applications
600 V Unshielded, Multiconductor
UL TC-ER
UL MTW
UL WTTC (1000 V)
UL PLTC (300 V)
CSA AWM I/II A/B FT4
CE LVD 73/23/EEC Amend.
93/68/EEC

Operating Temperature
• -25°C to +90°C (static)
• -5°C to +90°C (dynamic)
Conductor Color Coding
• Red, blue, or black insulation*, numbered
     1 green/yellow green conductor
     1 white-striped neutral
     (12 conductors or greater)
Materials
• Finely stranded bare copper conductors
• PVC/nylon insulation
• Slate PVC jacket Features
• UL Sunlight Resistant
• UL Oil Res. I
• UL Direct Burial
• Suitable for use in Class I, Division 2 locations per Article
     501 of the National Electric Code
• 90°C Dry/75°C Wet
Availability
Bulk, cut to length

FIT® Tubing Recommendations
• FIT-221: General-purpose cross-linked polyolefin
• FIT-321: Medium-wall, adhesivelined cross-linked polyolefin

Alpha Wire 的 M 系列控制电缆为固定电缆桥架应用提供行业领先的机械和电气性能。

M 系列电缆的主要特性 ：

线径为 18 到 8 AWG
导线数量为 3 到 65 根
聚氯乙烯/尼龙绝缘
耐油聚氯乙烯护套
UL 类型 TC-ER（600 伏）
UL 类型 MTW（600 伏）
UL 类型 WTTC（600 伏）
UL 类型 PLTC（300 伏）（仅限 18 到 12 AWG）
直埋
防紫外线
UL 耐油级别 I

Part #	Type	Shielding	Voltage	AWG	# of Elements	Jacket Diameter
M16103KW	Conductor	UNSHIELDED	600	16	3	0.323	CA Prop 65, CE, CSA AWM I/II A/B, CSA FT4, REACH Regulation (EC 1907/2006), UL DIRECT BURIAL, UL EXPOSED RUN, UL MTW, UL OIL RES I, UL PLTC, UL SUN RES, UL TC, UL WTTC
M16103LW	Conductor	UNSHIELDED	600	16	3	0.323
M16103RW	Conductor	UNSHIELDED	600	16	3	0.323
M16104KW	Conductor	UNSHIELDED	600	16	4	0.35
M16104LW	Conductor	UNSHIELDED	600	16	4	0.35
M16104RW	Conductor	UNSHIELDED	600	16	4	0.35
M16105KW	Conductor	UNSHIELDED	600	16	5	0.38
M16105LW	Conductor	UNSHIELDED	600	16	5	0.38
M16105RW	Conductor	UNSHIELDED	600	16	5	0.38
M16107KW	Conductor	UNSHIELDED	600	16	7	0.421
M16107LW	Conductor	UNSHIELDED	600	16	7	0.421
M16107RW	Conductor	UNSHIELDED	600	16	7	0.421
M16112KW	Conductor	UNSHIELDED	600	16	12	0.557
M16112LW	Conductor	UNSHIELDED	600	16	12	0.557
M16112RW	Conductor	UNSHIELDED	600	16	12	0.557
M16117KW	Conductor	UNSHIELDED	600	16	17	0.644
M16117LW	Conductor	UNSHIELDED	600	16	17	0.644
M16117RW	Conductor	UNSHIELDED	600	16	17	0.644
M16119KW	Conductor	UNSHIELDED	600	16	19	0.644
M16119LW	Conductor	UNSHIELDED	600	16	19	0.644

Type	Shielding	Voltage	AWG	# of Elements	Jacket Diameter	Applicable Specifications
M16119RW	Conductor	UNSHIELDED	600	16	19	0.644	CA Prop 65, CE, CSA AWM I/II A/B, CSA FT4, UL DIRECT BURIAL, UL EXPOSED RUN, UL MTW, UL OIL RES I, UL PLTC, UL SUN RES, UL TC, UL WTTC
M16122KW	Conductor	UNSHIELDED	600	16	22	0.707
M16122LW	Conductor	UNSHIELDED	600	16	22	0.707
M16122RW	Conductor	UNSHIELDED	600	16	22	0.707
M16125KW	Conductor	UNSHIELDED	600	16	25	0.761
M16125LW	Conductor	UNSHIELDED	600	16	25	0.761
M16125RW	Conductor	UNSHIELDED	600	16	25	0.761
M16133KW	Conductor	UNSHIELDED	600	16	33	0.857
M16133LW	Conductor	UNSHIELDED	600	16	33	0.857
M16133RW	Conductor	UNSHIELDED	600	16	33	0.857
M16142KW	Conductor	UNSHIELDED	600	16	42	0.95
M16142LW	Conductor	UNSHIELDED	600	16	42	0.95
M16142RW	Conductor	UNSHIELDED	600	16	42	0.95
M16149KW	Conductor	UNSHIELDED	600	16	49	1.005
M16149LW	Conductor	UNSHIELDED	600	16	49	1.005
M16149RW	Conductor	UNSHIELDED	600	16	49	1.005
M16165KW	Conductor	UNSHIELDED	600	16	65	1.122
M16165LW	Conductor	UNSHIELDED	600	16	65	1.122
M16165RW	Conductor	UNSHIELDED	600	16	65	1.122
