    ALPHA-Series P PVC/nylon- thermoplastic elastomer (Awg14, 12, 10, 8) UNSHIELDED MutiConductor 600V UL TC-ER, PLTC, THHN P系列增强型控制电缆(抗油和化学品PVC尼龍/ 熱固熔塑料外被 )
    看原圖
    		ALPHA-MP14104RW

    商品編號: ALPHA-MP14104RW

    ALPHA-Series P PVC/nylon- thermoplastic elastomer (Awg14, 12, 10, 8) UNSHIELDED MutiConductor 600V UL TC-ER, PLTC, THHN P系列增强型控制电缆(抗油和化学品PVC尼龍/ 熱固熔塑料外被 )

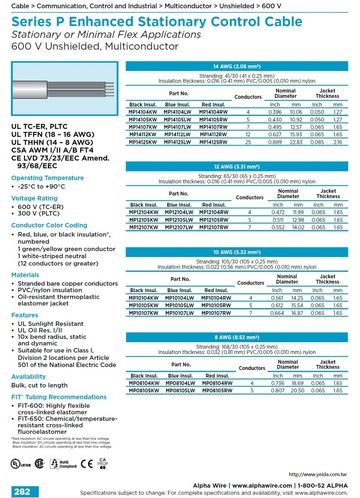

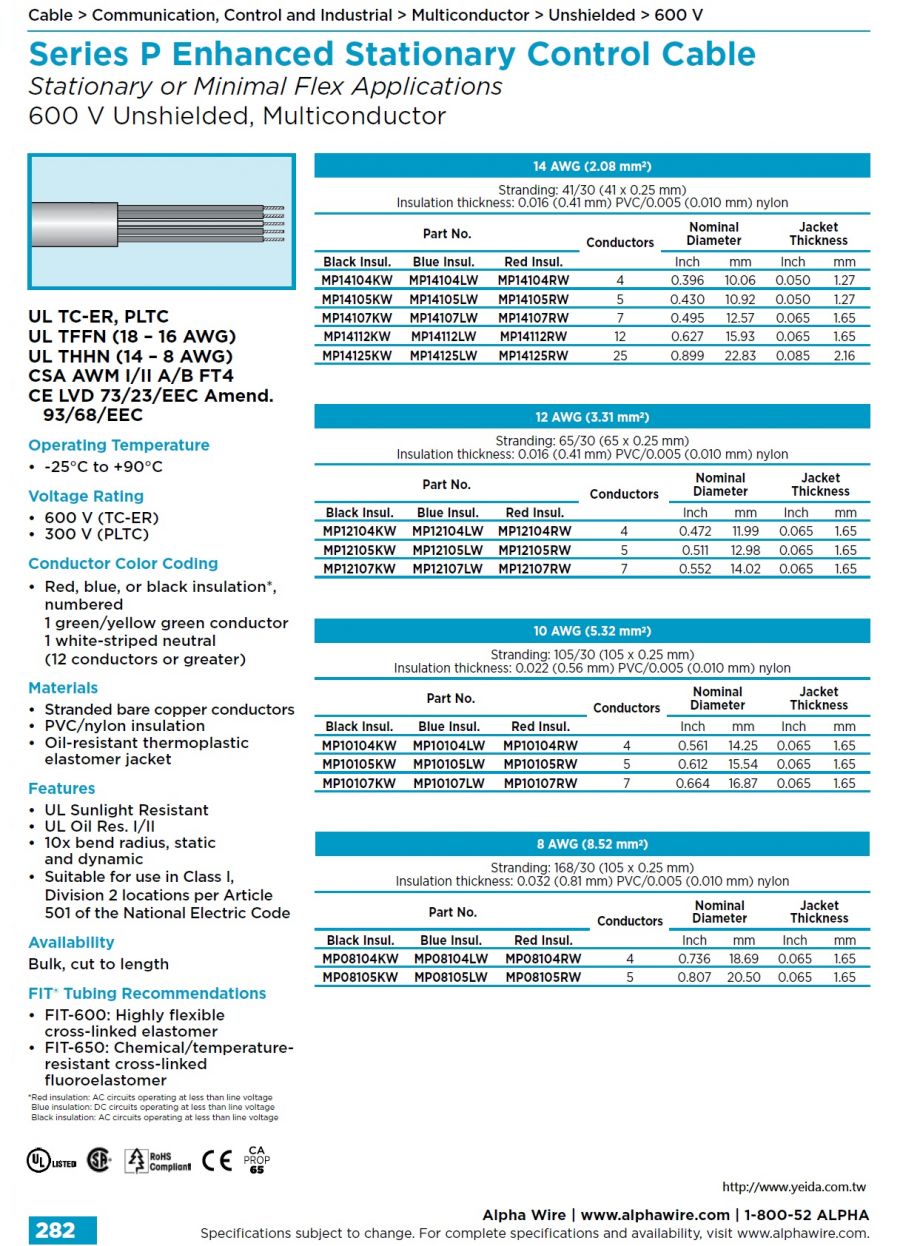

    Series P Enhanced Stationary Control Cable
    Stationary or Minimal Flex Applications
    600 V Unshielded, Multiconductor
    UL TC-ER, PLTC
    UL TFFN (18 – 16 AWG)
    UL THHN (14 – 8 AWG)
    CSA AWM I/II A/B FT4
    CE LVD 73/23/EEC Amend.
    93/68/EEC


    Operating Temperature
    • -25°C to +90°C
    Voltage Rating
    • 600 V (TC-ER)
    • 300 V (PLTC)
    Conductor Color Coding
    • Red, blue, or black insulation*, numbered
         1 green/yellow green conductor
         1 white-striped neutral (12 conductors or greater)
    Materials
    • Stranded bare copper conductors
    • PVC/nylon insulation
    • Oil-resistant thermoplastic elastomer jacket
    Features
    • UL Sunlight Resistant
    • UL Oil Res. I/II
    • 10x bend radius, static and dynamic
    • Suitable for use in Class I, Division 2 locations per Article
         501 of the National Electric Code
    Availability
    Bulk, cut to length


    FIT® Tubing Recommendations
    • FIT-600: Highly flexible cross-linked elastomer
    • FIT-650: Chemical/temperatureresistant cross-linked fluoroelastomer
    　

    * Red insulation: AC circuits operating at less than line voltage
    Blue insulation: DC circuits operating at less than line voltage
    Black insulation: AC circuits operating at less than line voltage




    Industrial Series P

    　

    Alpha Wire's Series P enhanced control cable offers industry-leading mechanical and electrical performance for cable trays where light to moderate flex provide enhanced routability.

    Series P Key features:
    　

    • Improved oil and chemical resistance
    • 18 – 8 AWG
    • 3 – 65 conductors
    • PVC/nylon insulation
    • Oil-resistant thermoplastic elastomer jacket
    • UL Type TC-ER (600 V)
    • UL Type PLTC (300 V) (18-12AWG only)
    • Sunlight resistant
    • UL Oil Res. I/II

    Alpha Wire 的 P 系列增强型控制电缆为中轻型挠曲电缆桥架应用提供了布线灵活性并提供行业领先的机械和电气性能。

    P 系列电缆的主要特性 ：

    • 增强的抗油和化学品性能
    • 线径为 18 到 8 AWG
    • 导线数量为 3 到 65 根
    • 聚氯乙烯/尼龙绝缘
    • 耐油型热塑性橡胶护套
    • UL 类型 TC-ER（600 伏）
    • UL 类型 PLTC（300 伏）（仅限 18 到 12 AWG）
    • 防紫外线
    • UL 耐油级别 I/II
    Part # Type　 Shielding Voltage　 AWG # of Elements

    　

    		 Jacket Diameter
    MP10104KW Conductor UNSHIELDED 600 10 4 0.561 CA Prop 65, CE, CSA C(UL) CIC CONTROL, CSA C(UL) TC, CSA AWM I/II A/B, CSA FT4, UL EXPOSED RUN, UL MTW, UL OIL RES I/II, UL SUN RES, UL TC, UL THHN
    MP10104LW Conductor UNSHIELDED 600 10 4 0.561
    MP10104RW Conductor UNSHIELDED 600 10 4 0.561
    MP10105KW Conductor UNSHIELDED 600 10 5 0.612
    MP10105LW Conductor UNSHIELDED 600 10 5 0.612
    MP10105RW Conductor UNSHIELDED 600 10 5 0.612
    MP10107KW Conductor UNSHIELDED 600 10 7 0.664
    MP10107LW Conductor UNSHIELDED 600 10 7 0.664
    MP10107RW Conductor UNSHIELDED 600 10 7 0.664
    MP12104KW Conductor UNSHIELDED 600 12 4 0.472
    MP12104LW Conductor UNSHIELDED 600 12 4 0.472
    MP12104RW Conductor UNSHIELDED 600 12 4 0.472
    MP12105KW Conductor UNSHIELDED 600 12 5 0.511
    MP12105LW Conductor UNSHIELDED 600 12 5 0.511
    MP12105RW Conductor UNSHIELDED 600 12 5 0.511
    MP12107KW Conductor UNSHIELDED 600 12 7 0.552
    MP12107LW Conductor UNSHIELDED 600 12 7 0.552
    MP12107RW Conductor UNSHIELDED 600 12 7 0.552
    MP14104KW Conductor UNSHIELDED 600 14 4 0.396
    MP14104LW Conductor UNSHIELDED 600 14 4 0.396

    Part # Type　 Shielding Voltage　 AWG # of Elements

    　

    		 Jacket Diameter
    MP14104RW Conductor UNSHIELDED 600 14 4 0.396 CA Prop 65, CE, CSA C(UL) CIC CONTROL, CSA C(UL) TC, CSA AWM I/II A/B, CSA FT4, UL EXPOSED RUN, UL MTW, UL OIL RES I/II, UL PLTC, UL SUN RES, UL TC, UL THHN
    MP14105KW Conductor UNSHIELDED 600 14 5 0.43
    MP14105LW Conductor UNSHIELDED 600 14 5 0.43
    MP14105RW Conductor UNSHIELDED 600 14 5 0.43
    MP14107KW Conductor UNSHIELDED 600 14 7 0.495
    MP14107LW Conductor UNSHIELDED 600 14 7 0.495
    MP14107RW Conductor UNSHIELDED 600 14 7 0.495
    MP14112KW Conductor UNSHIELDED 600 14 12 0.627
    MP14112LW Conductor UNSHIELDED 600 14 12 0.627
    MP14112RW Conductor UNSHIELDED 600 14 12 0.627
    MP14125KW Conductor UNSHIELDED 600 14 25 0.899
    MP14125LW Conductor UNSHIELDED 600 14 25 0.899
    MP14125RW Conductor UNSHIELDED 600 14 25 0.899
    MP08104KW Conductor UNSHIELDED 600 8 4 0.736
    MP08104LW Conductor UNSHIELDED 600 8 4 0.736
    MP08104RW Conductor UNSHIELDED 600 8 4 0.736
    MP08105KW Conductor UNSHIELDED 600 8 5 0.807
    MP08105LW Conductor UNSHIELDED 600 8 5 0.807
    MP08105RW Conductor UNSHIELDED 600 8 5 0.807
