    ALPHA-Series P PVC/nylon- thermoplastic elastomer Awg16 UNSHIELDED MutiConductor 600V UL TC-ER, PLTC, TFFN P系列增强型控制电缆(抗油和化学品PVC尼龍/ 熱固熔塑料外被 )
    看原圖
    		ALPHA-MP16103LW


    商品編號: ALPHA-MP16103LW

    ALPHA-Series P PVC/nylon- thermoplastic elastomer Awg16 UNSHIELDED MutiConductor 600V UL TC-ER, PLTC, TFFN P系列增强型控制电缆(抗油和化学品PVC尼龍/ 熱固熔塑料外被 )

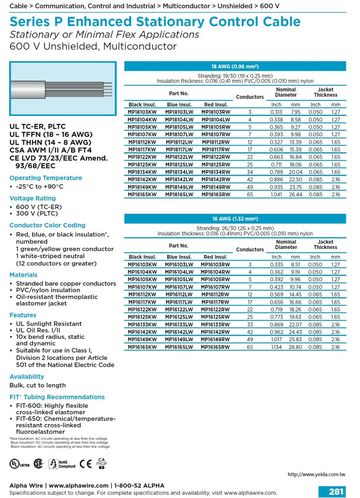

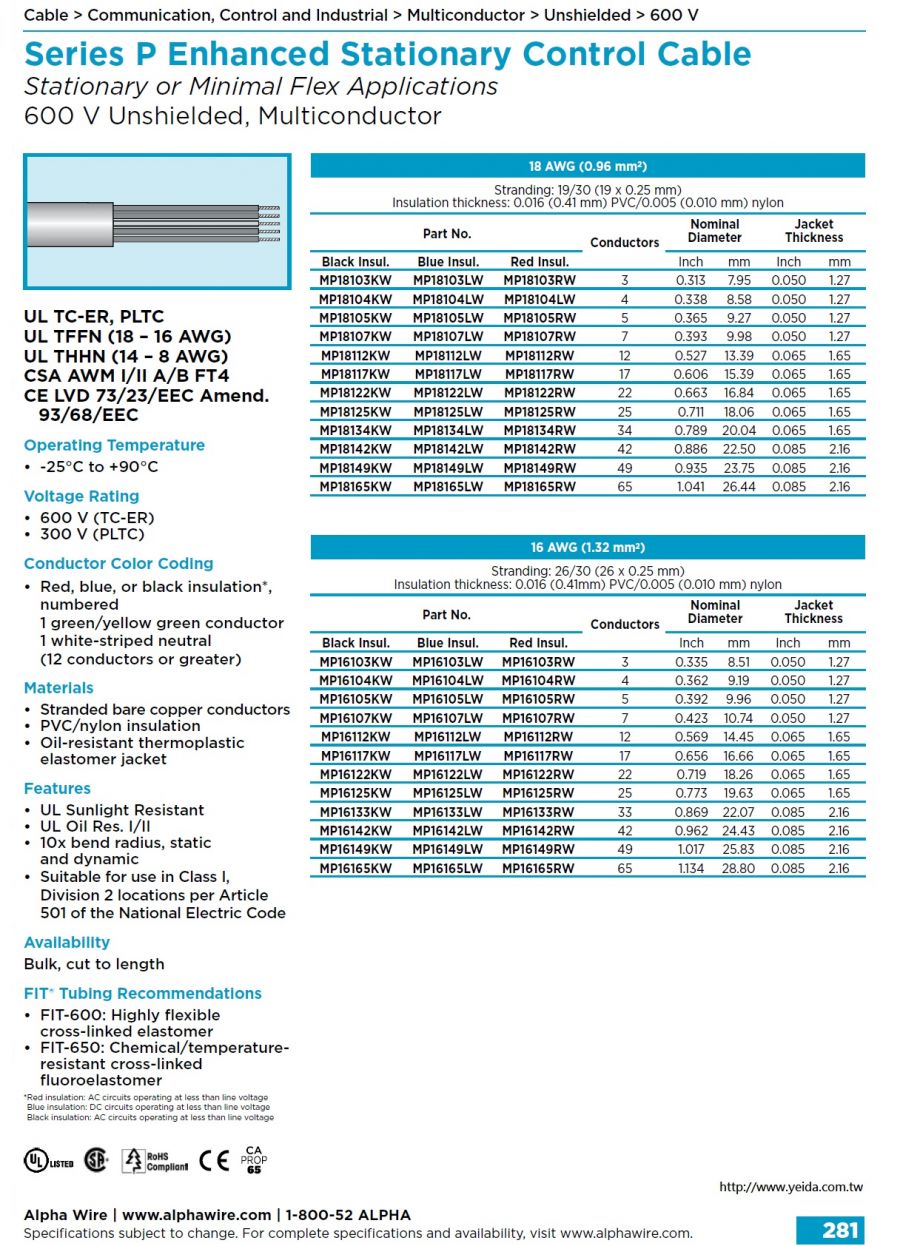

    Series P Enhanced Stationary Control Cable
    Stationary or Minimal Flex Applications
    600 V Unshielded, Multiconductor
    UL TC-ER, PLTC
    UL TFFN (18 – 16 AWG)
    UL THHN (14 – 8 AWG)
    CSA AWM I/II A/B FT4
    CE LVD 73/23/EEC Amend.
    93/68/EEC


    Operating Temperature
    • -25°C to +90°C
    Voltage Rating
    • 600 V (TC-ER)
    • 300 V (PLTC)
    Conductor Color Coding
    • Red, blue, or black insulation*, numbered
         1 green/yellow green conductor
         1 white-striped neutral (12 conductors or greater)
    Materials
    • Stranded bare copper conductors
    • PVC/nylon insulation
    • Oil-resistant thermoplastic elastomer jacket
    Features
    • UL Sunlight Resistant
    • UL Oil Res. I/II
    • 10x bend radius, static and dynamic
    • Suitable for use in Class I, Division 2 locations per Article
         501 of the National Electric Code
    Availability
    Bulk, cut to length


    FIT® Tubing Recommendations
    • FIT-600: Highly flexible cross-linked elastomer
    • FIT-650: Chemical/temperatureresistant cross-linked fluoroelastomer
    　

    * Red insulation: AC circuits operating at less than line voltage
    Blue insulation: DC circuits operating at less than line voltage
    Black insulation: AC circuits operating at less than line voltage

    Industrial Series P

    　

    Alpha Wire's Series P enhanced control cable offers industry-leading mechanical and electrical performance for cable trays where light to moderate flex provide enhanced routability.

    Series P Key features:
    　

    • Improved oil and chemical resistance
    • 18 – 8 AWG
    • 3 – 65 conductors
    • PVC/nylon insulation
    • Oil-resistant thermoplastic elastomer jacket
    • UL Type TC-ER (600 V)
    • UL Type PLTC (300 V) (18-12AWG only)
    • Sunlight resistant
    • UL Oil Res. I/II

    Alpha Wire 的 P 系列增强型控制电缆为中轻型挠曲电缆桥架应用提供了布线灵活性并提供行业领先的机械和电气性能。

    P 系列电缆的主要特性 ：

    • 增强的抗油和化学品性能
    • 线径为 18 到 8 AWG
    • 导线数量为 3 到 65 根
    • 聚氯乙烯/尼龙绝缘
    • 耐油型热塑性橡胶护套
    • UL 类型 TC-ER（600 伏）
    • UL 类型 PLTC（300 伏）（仅限 18 到 12 AWG）
    • 防紫外线
    • UL 耐油级别 I/II
    •
    Part # Type　 Shielding Voltage　 AWG # of Elements

    　

    		 Jacket Diameter
    MP16103KW Conductor UNSHIELDED 600 16 3 0.335 CA Prop 65, CE, CSA C(UL) CIC CONTROL, CSA C(UL) TC, CSA AWM I/II A/B, CSA FT4, UL EXPOSED RUN, UL MTW, UL OIL RES I/II, UL PLTC, UL SUN RES, UL TC, UL TFFN
    MP16103LW Conductor UNSHIELDED 600 16 3 0.335
    MP16103RW Conductor UNSHIELDED 600 16 3 0.335
    MP16104KW Conductor UNSHIELDED 600 16 4 0.362
    MP16104LW Conductor UNSHIELDED 600 16 4 0.362
    MP16104RW Conductor UNSHIELDED 600 16 4 0.362
    MP16105KW Conductor UNSHIELDED 600 16 5 0.392
    MP16105LW Conductor UNSHIELDED 600 16 5 0.392
    MP16105RW Conductor UNSHIELDED 600 16 5 0.392
    MP16107KW Conductor UNSHIELDED 600 16 7 0.423
    MP16107LW Conductor UNSHIELDED 600 16 7 0.423
    MP16107RW Conductor UNSHIELDED 600 16 7 0.423
    MP16112KW Conductor UNSHIELDED 600 16 12 0.569
    MP16112LW Conductor UNSHIELDED 600 16 12 0.569
    MP16112RW Conductor UNSHIELDED 600 16 12 0.569
    MP16117KW Conductor UNSHIELDED 600 16 17 0.656
    MP16117LW Conductor UNSHIELDED 600 16 17 0.656
    MP16117RW Conductor UNSHIELDED 600 16 17 0.656
    MP16122KW Conductor UNSHIELDED 600 16 22 0.719
    MP16122LW Conductor UNSHIELDED 600 16 22 0.719


    Part # Type　 Shielding Voltage　 AWG # of Elements

    　

    		 Jacket Diameter
    MP16122RW Conductor UNSHIELDED 600 16 22 0.719 CA Prop 65, CE, CSA C(UL) CIC CONTROL, CSA C(UL) TC, CSA AWM I/II A/B, CSA FT4, UL EXPOSED RUN, UL MTW, UL OIL RES I/II, UL PLTC, UL SUN RES, UL TC, UL TFFN
    MP16125KW Conductor UNSHIELDED 600 16 25 0.773
    MP16125LW Conductor UNSHIELDED 600 16 25 0.773
    MP16125RW Conductor UNSHIELDED 600 16 25 0.773
    MP16133KW Conductor UNSHIELDED 600 16 33 0.869
    MP16133LW Conductor UNSHIELDED 600 16 33 0.869
    MP16133RW Conductor UNSHIELDED 600 16 33 0.869
    MP16142KW Conductor UNSHIELDED 600 16 42 0.962
    MP16142LW Conductor UNSHIELDED 600 16 42 0.962
    MP16142RW Conductor UNSHIELDED 600 16 42 0.962
    MP16149KW Conductor UNSHIELDED 600 16 49 1.017
    MP16149LW Conductor UNSHIELDED 600 16 49 1.017
    MP16149RW Conductor UNSHIELDED 600 16 49 1.017
    MP16165KW Conductor UNSHIELDED 600 16 65 1.134
    MP16165LW Conductor UNSHIELDED 600 16 65 1.134
    MP16165RW Conductor UNSHIELDED 600 16 65 1.134
