ALPHA-V16008 Awg 8 x 4C 600V FOIL/BRAID Shielding VFD WTTC, UL XHHW-RHW-2Wet/Dry V 系列變頻驅動器電纜
AlphaV16000, AlphaV16001, AlphaV16020, AlphaV16030, AlphaV16040, AlphaV16108, AlphaV16110,
AlphaV16112, AlphaV16114, AlphaV16116, AlphaV16302, AlphaV160304, AlphaV160306, AlphaV160308,
AlphaV160310,AlphaV160312, AlphaV160314, AlphaV160316

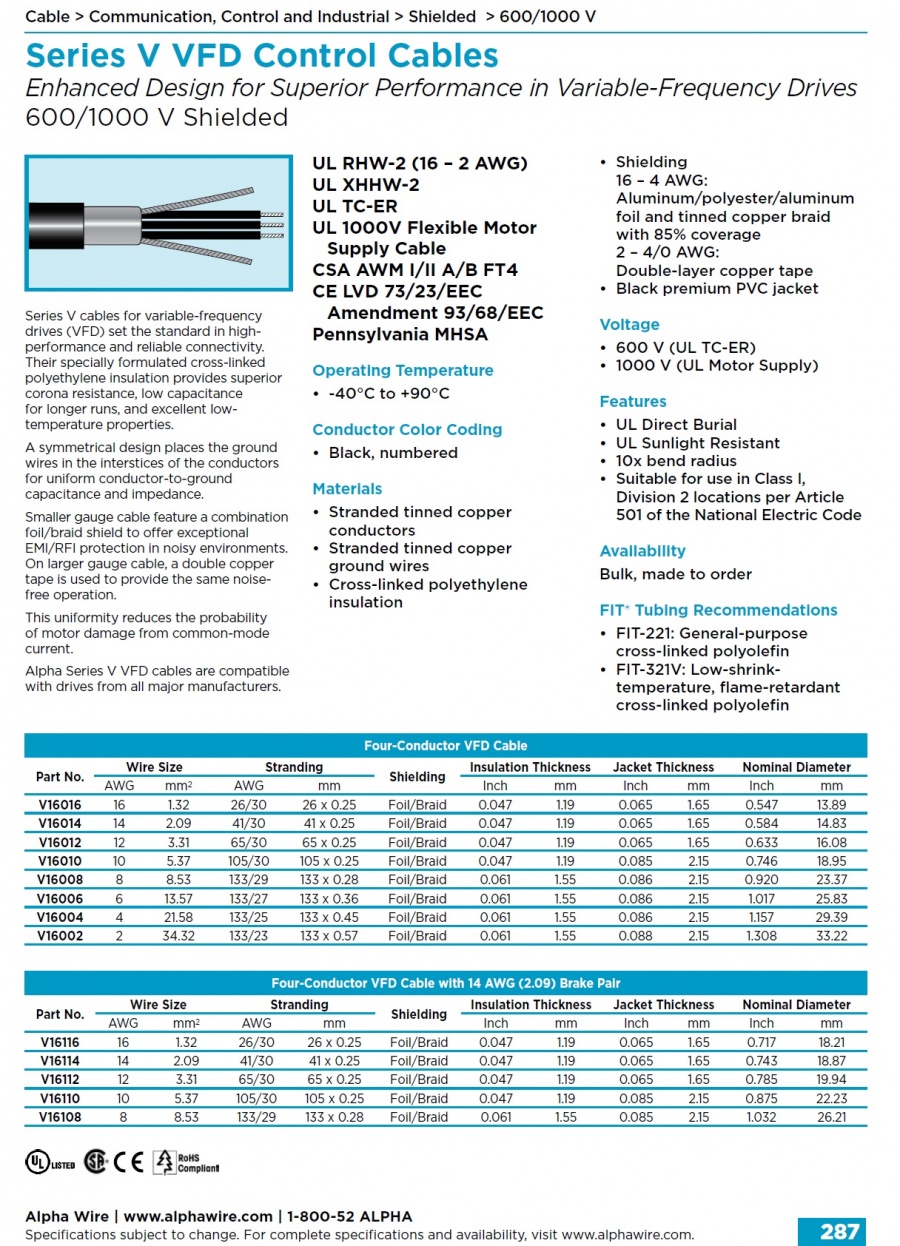

Optimized specifically for variable-frequency drives, Alpha Wires Series V VFD cable offers industry-leading mechanical and electrical performance.
Series V Key features:
- 4-conductor (with and without brake pair) and 3-conductor (NEW!) available
- 16 to 4/0 AWG
- 14-AWG brake pair
- Cross-linked polyethylene insulation
- PVC jacket
- Small diameter
- Low capacitance for improved signal transmission
- UL Type TC-ER (600 V)
- CSA I/II A/B 1000V FT4
- Direct burial
- Sunlight resistant
Alpha Wire 的 V 系列变频驱动器电缆专门针对变频驱动器进行了优化,提供行业领先的机械和电气性能。
Series V Key features: V 系列电缆的主要特性 :
|

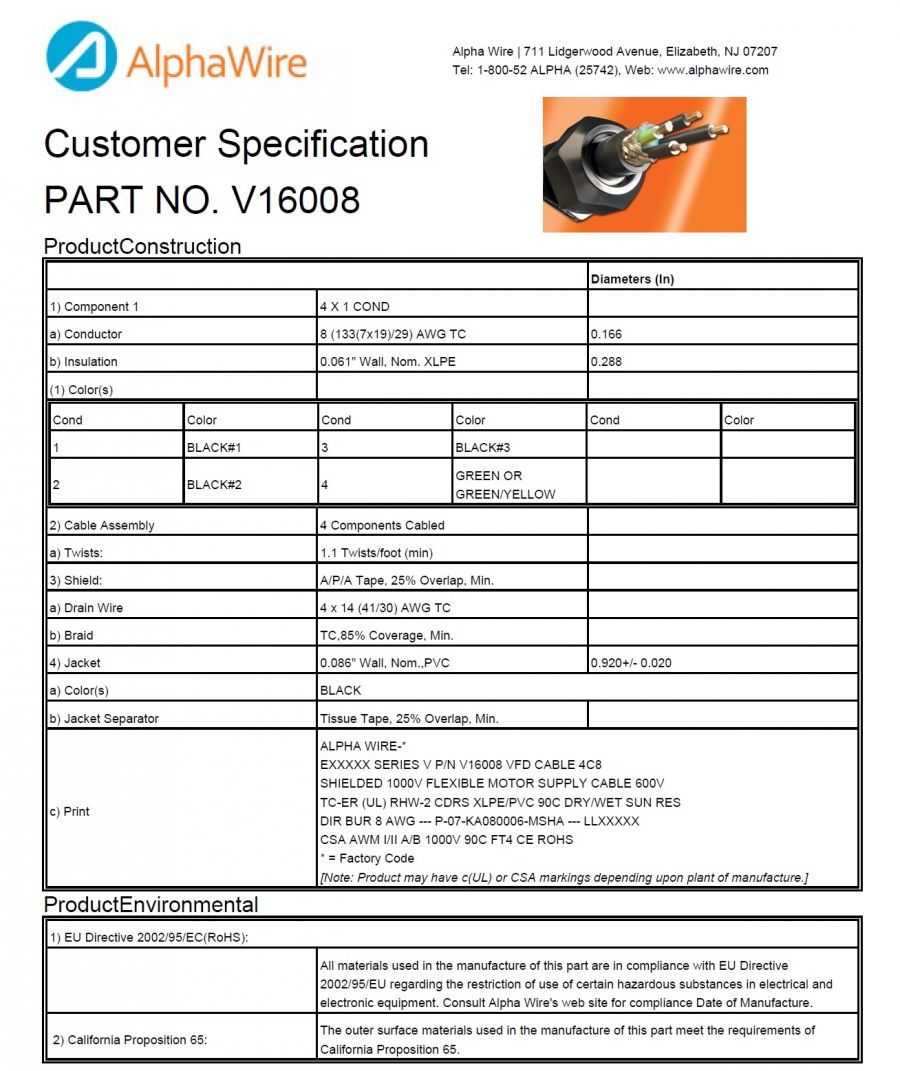

Diameters (In) |
1) Component 1 |
4 X 1 COND |
|
a) Conductor |
8 (133(7x19)/29) AWG TC |
0.166 |
b) Insulation |
0.061" Wall, Nom. XLPE |
0.288 |
(1) Color(s) |
|
|
Cond |
Color |
Cond |
Color |
Cond |
Color |
1 |
BLACK#1 |
3 |
BLACK#3 |
|
|
2 |
BLACK#2 |
4 |
GREEN OR GREEN/YELLOW |
|
|
|
2) Cable Assembly |
4 Components Cabled |
|
a) Twists: |
1.1 Twists/foot (min) |
|
3) Shield: |
A/P/A Tape, 25% Overlap, Min. |
|
a) Drain Wire |
4 x 14 (41/30) AWG TC |
|
b) Braid |
TC,85% Coverage, Min. |
|
4) Jacket |
0.086" Wall, Nom.,PVC |
0.920+/- 0.020 |
a) Color(s) |
BLACK |
b) Jacket Separator |
Tissue Tape, 25% Overlap, Min. |
|
c) Print |
ALPHA WIRE-*
EXXXXX SERIES V P/N V16008 VFD CABLE 4C8
SHIELDED 1000V FLEXIBLE MOTOR SUPPLY CABLE 600V
TC-ER (UL) RHW-2 CDRS XLPE/PVC 90C DRY/WET SUN RES
DIR BUR 8 AWG --- P-07-KA080006-MSHA --- LLXXXXX
CSA AWM I/II A/B 1000V 90C FT4 CE ROHS
* = Factory Code
[Note: Product may have c(UL) or CSA markings depending upon plant of manufacture.] |

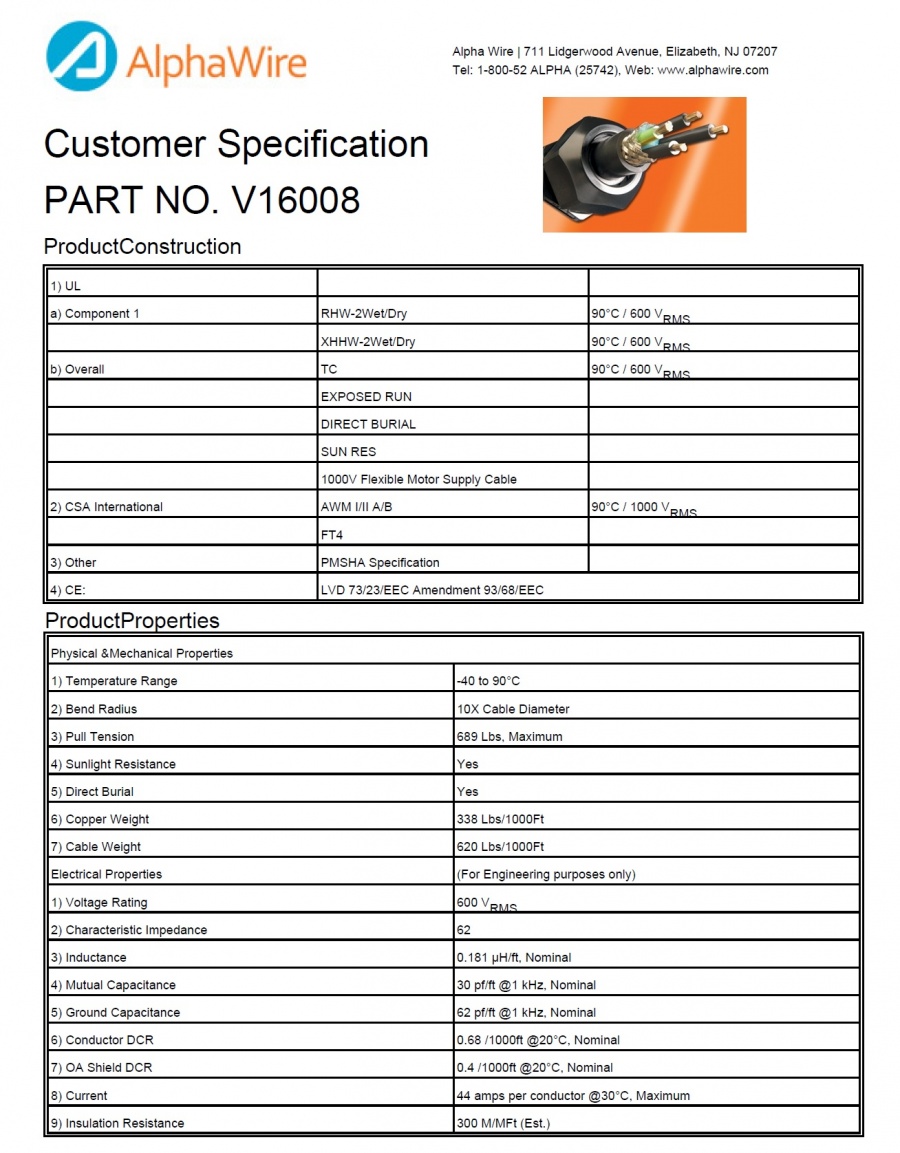

ProductIndustryApprovals
1) UL |
|
|
a) Component 1 |
RHW-2Wet/Dry |
90°C / 600 VRMS |
|
XHHW-2Wet/Dry |
90°C / 600 VRMS |
b) Overall |
TC |
90°C / 600 VRMS |
|
EXPOSED RUN |
|
|
DIRECT BURIAL |
|
|
SUN RES |
|
|
1000V Flexible Motor Supply Cable |
|
2) CSA International |
AWM I/II A/B |
90°C / 1000 VRMS |
|
FT4 |
|
3) Other |
PMSHA Specification |
|
4) CE: |
LVD 73/23/EEC Amendment 93/68/EEC |
ProductEnvironmental
1) EU Directive 2002/95/EC(RoHS): |
|
All materials used in the manufacture of this part are in compliance with EU Directive 2002/95/EU regarding the restriction of use of certain hazardous substances in electrical and electronic equipment. Consult Alpha Wires web site for compliance Date of Manufacture. |
2) California Proposition 65: |
The outer surface materials used in the manufacture of this part meet the requirements of California Proposition 65. |
ProductProperties
Physical & Mechanical Properties |
1) Temperature Range |
-40 to 90°C |
2) Bend Radius |
10X Cable Diameter |
3) Pull Tension |
689 Lbs, Maximum |
4) Sunlight Resistance |
Yes |
5) Direct Burial |
Yes |
6) Copper Weight |
338 Lbs/1000Ft |
7) Cable Weight |
620 Lbs/1000Ft |
Electrical Properties |
(For Engineering purposes only) |
1) Voltage Rating |
600 VRMS |
2) Characteristic Impedance |
62 Ω |
3) Inductance |
0.181 µH/ft, Nominal |
4) Mutual Capacitance |
30 pf/ft @1 kHz, Nominal |
5) Ground Capacitance |
62 pf/ft @1 kHz, Nominal |
6) Conductor DCR |
0.68 Ω/1000ft @20°C, Nominal |
7) OA Shield DCR |
0.4 Ω/1000ft @20°C, Nominal |
8) Current |
44 amps per conductor @30°C, Maximum |
9) Insulation Resistance |
300 MΩ/MFt (Est.) |
ProductOther
1) Packaging |
a) Bulk(Made-to-order) |
|
