ALPHA-V16000 Awg 1/0 x 3C 600V Double Copper Tape Shielding VFD V 系列變頻驅動器電纜

ALPHA-V16000

商品編號: ALPHA-V16000 ,google, yahoo, msn, gmail

ALPHA-V16000 Awg 1/0 x 3C 600V Double Copper Tape Shielding VFD V 系列變頻驅動器電纜

AlphaV16000, AlphaV16001, AlphaV16020, AlphaV16030, AlphaV16040, AlphaV16108, AlphaV16110,

AlphaV16112, AlphaV16114, AlphaV16116, AlphaV16302, AlphaV160304, AlphaV160306, AlphaV160308,

AlphaV160310,AlphaV160312, AlphaV160314, AlphaV160316

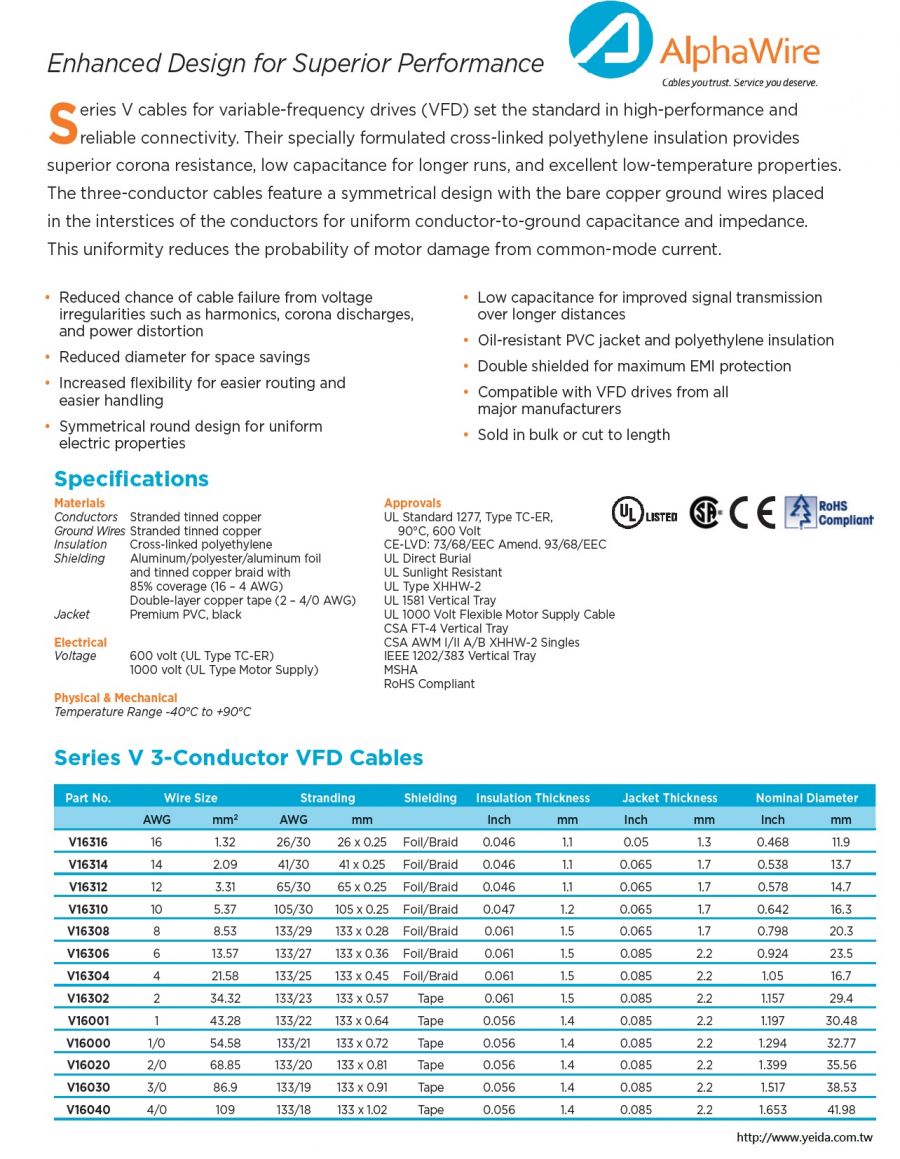

Optimized specifically for variable-frequency drives, Alpha Wire's Series V VFD cable offers industry-leading mechanical and electrical performance.

Series V Key features:
　

4-conductor (with and without brake pair) and 3-conductor (NEW!) available
16 to 4/0 AWG
14-AWG brake pair
Cross-linked polyethylene insulation
PVC jacket
Small diameter
Low capacitance for improved signal transmission
UL Type TC-ER (600 V)
CSA I/II A/B 1000V FT4
Direct burial
Sunlight resistant

Alpha Wire 的 V 系列变频驱动器电缆专门针对变频驱动器进行了优化，提供行业领先的机械和电气性能。

Series V Key features: V 系列电缆的主要特性 ：

可提供 4 芯（带和不带制动线对）和 3 芯（新型！）两种版本
线径为 16 到 4/0 AWG
14 AWG 制动线对
交联聚乙烯绝缘
聚氯乙烯护套
小直径
低电容，更强的信号传输性能
UL 类型 TC-ER（600 伏）
CSA I/II A/B 1000V FT4
直埋
防紫外线

1) Component 1

3 X 1 COND

a) Conductor

1/0 (133(7x19)/21) AWG TC

0.403

b) Insulation

0.056" Wall, Nom. XLPE

0.515

(1) Print

ALPHANUMERIC NUMBERS - 1-ONE ALTERNATING AND
INVERTED
　

(2) Color(s)

Cond	Color	Cond	Color	Cond	Color
1	BLACK#1	2	BLACK#2	3	BLACK#3

2) Cable Assembly

3 Components Cabled

a) Twists:

0.7 Twists/foot (min)

3) Shield:

Double Copper Tape, 25% Overlap, Min.

a) Drain Wire

3 x 4 (133(7X19)25) AWG TC

4) Jacket

0.085" Wall, Nom.,PVC

1.294 (1.321 Max.)

a) Color(s)

BLACK

b) Ripcord

1 End 810 Denier Nylon

c) Print

ALPHA WIRE P/N V16000
EXXXXX SERIES V VFD CABLE 3C1/0 SHIELDED 1000V
FLEXIBLE MOTOR SUPPLY CABLE 600V TYPE TC-ER (UL)
XHHW-2 CDRS XLPE/PVC 90C SUN RES DIR BUR
--- P-07-KA070003-MSHA LLXXXXXX CSA AWM I/II A/B
600V 90C FT4 CANADA ROHS (SEQ FOOTAGE)
* = Factory Code
[Note: Product may have c(UL) or CSA markings depending upon plant of manufacture.]

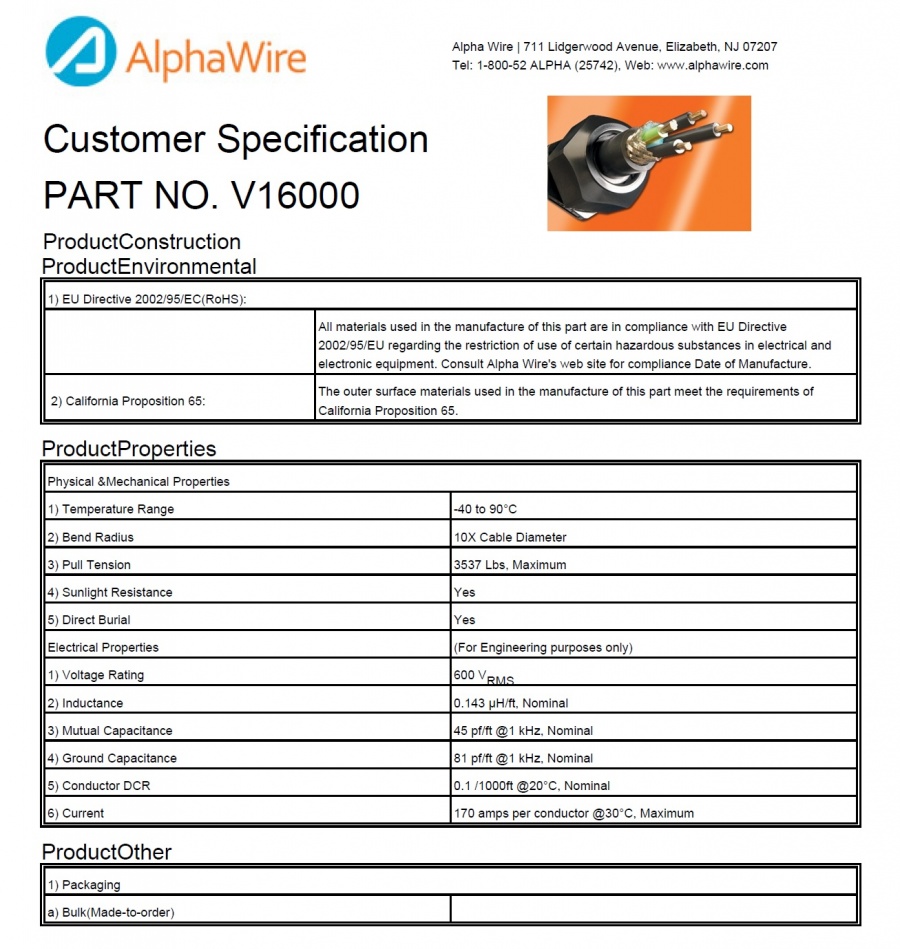

ProductIndustryApprovals

1) UL
a) Component 1	XHHW-2Wet/Dry	90°C / 600 VRMS
b) Overall	TC	90°C / 600 VRMS
	EXPOSED RUN
	DIRECT BURIAL
	SUN RES
	1000V Flexible Motor Supply Cable
2) CSA International	AWM I/II A/B	90°C / 600 VRMS
	FT4
3) Other	PMSHA Specification
4) CE:	LVD 73/23/EEC Amendment 93/68/EEC

ProductEnvironmental

1) EU Directive 2002/95/EC(RoHS):
	All materials used in the manufacture of this part are in compliance with EU Directive 2002/95/EU regarding the restriction of use of certain hazardous substances in electrical and electronic equipment. Consult Alpha Wire's web site for compliance Date of Manufacture.
2) California Proposition 65:	The outer surface materials used in the manufacture of this part meet the requirements of California Proposition 65.

ProductProperties

Physical & Mechanical Properties
1) Temperature Range	-40 to 90°C
2) Bend Radius	10X Cable Diameter
3) Pull Tension	3537 Lbs, Maximum
4) Sunlight Resistance	Yes
5) Direct Burial	Yes
Electrical Properties	(For Engineering purposes only)
1) Voltage Rating	600 VRMS
2) Inductance	0.143 µH/ft, Nominal
3) Mutual Capacitance	45 pf/ft @1 kHz, Nominal
4) Ground Capacitance	81 pf/ft @1 kHz, Nominal
5) Conductor DCR	0.1 Ω/1000ft @20°C, Nominal
6) Current	170 amps per conductor @30°C, Maximum

ProductOther

1) Packaging
a) Bulk(Made-to-order)

Alpha Wire 的 V 系列变频驱动器电缆专门针对变频驱动器进行了优化，提供行业领先的机械和电气性能。

Series V Key features: V 系列电缆的主要特性 ：

可提供 4 芯（带和不带制动线对）和 3 芯（新型！）两种版本
线径为 16 到 4/0 AWG
14 AWG 制动线对
交联聚乙烯绝缘
聚氯乙烯护套
小直径
低电容，更强的信号传输性能
UL 类型 TC-ER（600 伏）
CSA I/II A/B 1000V FT4
直埋
防紫外线

符合性证明

敬启者：

Alpha Wire 部件号：V16000

V16000 ，符合RoHS标准，以 2007/11/1 的生产为开始

兹通过本文件证明上述 Alpha 部件号的产品系根据欧洲议会和欧洲理事会2003年1月27日第2002/95/EC号关于在电气电子设备中限制使用某些有害物质的指令（即RoHS指令）而制造。关于所述指令的具体定义和范围，请参见所述指令。对该产品的RoHS符合性不需任何豁免。

危险物质	最大控制值
铅	按重量计算不得超过0.1% (1000 ppm)
汞	按重量计算不得超过0.1% (1000 ppm)
镉	按重量计算不得超过0.01% (100 ppm)
六价镉	按重量计算不得超过0.1% (1000 ppm)
聚溴联苯 (PBB)	按重量计算不得超过0.1% (1000 ppm)
聚溴二苯醚 (PBDE)
台卡二苯醚	按重量计算不得超过0.1% (1000 ppm)

Alpha Wire 公司已阅读本文件，并谨在此声明本文件所含信息及披露的数据在本文件发布时均准 确无误。本文件所含信息仅作为一般指南，适用于产品本身或产品组成部分的安全处理、贮存及其它操作。本文件不应被视为任何保证或质量规范。法规信息仅供参考。对于法律、法规的适用性，由产品用户根据各自的产品用途自行确定。

Alpha Wire 公司授权代表签字：

技术及质保部总监 Dave Watson

Type	Shielding	Voltage	AWG	# of Conductors	# of Elements	Jacket Diameter	Applicable Specifications
V16000	Conductor	Double Foil	600	1/0	3	3	1.294	CA Prop 65, CE, CSA AWM I/II A/B, CSA FT4, Pennsylvania Burea of Mine Safety Approved, UL DIRECT BURIAL, UL EXPOSED RUN, UL SUN RES, UL TC, UL XHHW-2Wet/Dry
V16001	Conductor	Double Foil	600	1	3	3	1.197
V16002	Conductor	FOIL/BRAID	600	2	4	4	1.308
V16004	Conductor	FOIL/BRAID	600	4	4	4	1.157
V16006	Conductor	FOIL/BRAID	600	6	4	4	1.017
V16008	Conductor	FOIL/BRAID	600	8	4	4	0.92
V16010	Conductor	FOIL/BRAID	600	10	4	4	0.746
V16012	Conductor	FOIL/BRAID	600	12	4	4	0.633
V16014	Conductor	FOIL/BRAID	600	14	4	4	0.584
V16016	Conductor	FOIL/BRAID	600	16	4	4	0.547
V16020	Conductor	Double Foil	600	2/0	3	3	1.399
V16030	Conductor	Double Foil	600	3/0	3	3	1.517
V16040	Conductor	Double Foil	600	4/0	3	3	1.653
V16108	Composite	FOIL/BRAID	600	8+14	4 + 1 Pair	5	1.032
V16110	Composite	FOIL/BRAID	600	10+14	4 + 1 Pair	5	0.875
V16112	Composite	FOIL/BRAID	600	12+14	4 + 1 Pair	5	0.785
V16114	Composite	FOIL/BRAID	600	14+14	4 + 1 Pair	5	0.743
V16116	Composite	FOIL/BRAID	600	16+14	4 + 1 Pair	5	0.717
V16302	Conductor	Double Foil	600	2	3	3	1.157
V16304	Conductor	FOIL/BRAID	600	4	3	3	1.05
