    首頁 > > ALPHA-variable-frequency drives (VFD) 變頻驅動器

    ALPHA-V16012 Awg 12 x 4C 600V FOIL/BRAID Shielding VFD WTTC, UL XHHW-RHW-2Wet/Dry V 系列變頻驅動器電纜
    看原圖
    		ALPHA-V16012

    商品編號: ALPHA-V16012

    ALPHA-V16012 Awg 12 x 4C 600V FOIL/BRAID Shielding VFD WTTC, UL XHHW-RHW-2Wet/Dry V 系列變頻驅動器電纜

    部件号 Type Shielding Voltage AWG # of Conductors # of Elements Jacket Diameter Applicable Specifications
    V16012 Conductor FOIL/BRAID 600 12 4 4 0.633 CA Prop 65, CE, CSA AWM I/II A/B, CSA FT4, UL DIRECT BURIAL, UL EXPOSED RUN, UL RHW-2Wet/Dry, UL SUN RES, UL TC, UL XHHW-2Wet/Dry

    　

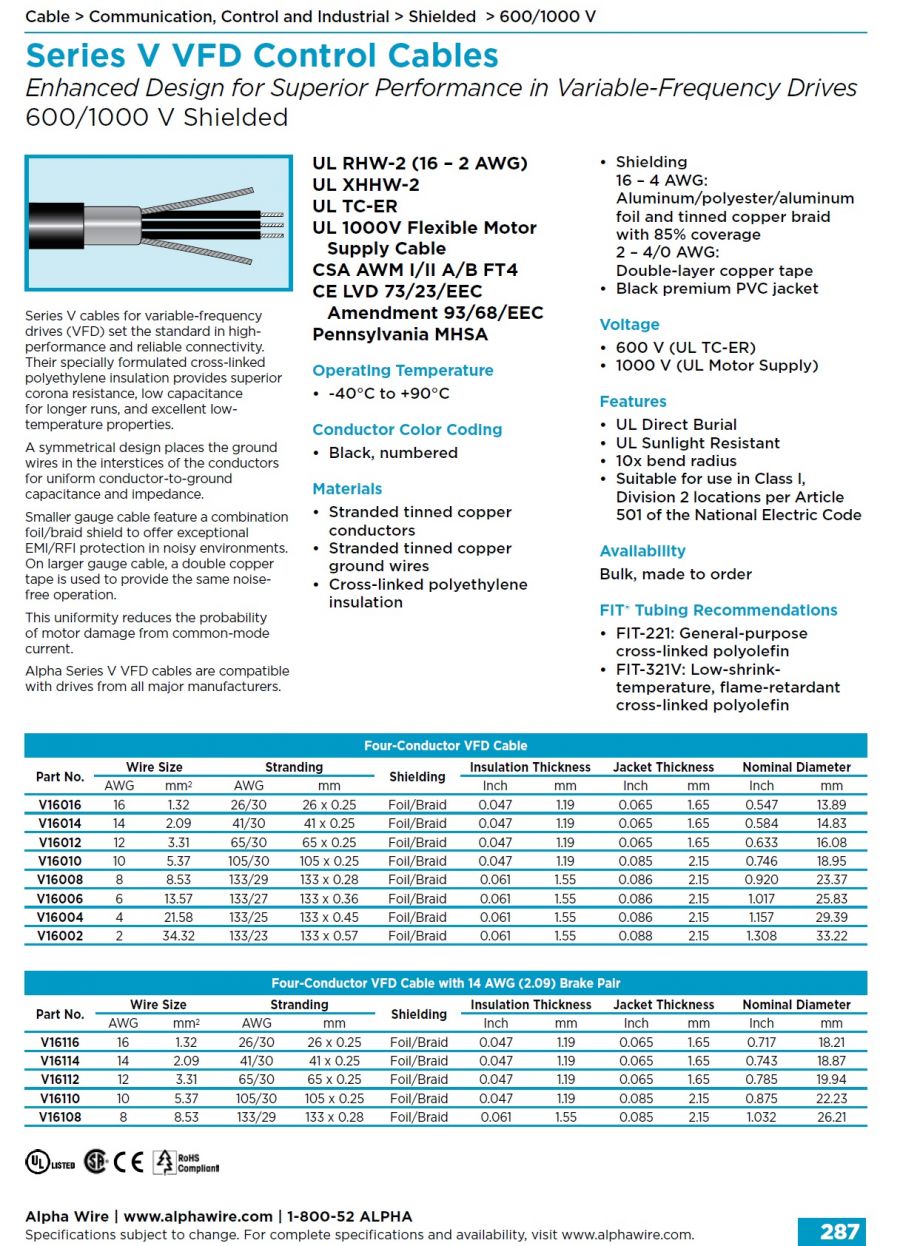

    Optimized specifically for variable-frequency drives, Alpha Wire's Series V VFD cable offers industry-leading mechanical and electrical performance.

    Series V Key features:
    　

    • 4-conductor (with and without brake pair) and 3-conductor (NEW!) available
    • 16 to 4/0 AWG
    • 14-AWG brake pair
    • Cross-linked polyethylene insulation
    • PVC jacket
    • Small diameter
    • Low capacitance for improved signal transmission
    • UL Type TC-ER (600 V)
    • CSA I/II A/B 1000V FT4
    • Direct burial
    • Sunlight resistant

    Alpha Wire 的 V 系列变频驱动器电缆专门针对变频驱动器进行了优化，提供行业领先的机械和电气性能。

    Series V Key features: V 系列电缆的主要特性 ：

    • 可提供 4 芯（带和不带制动线对）和 3 芯（新型！）两种版本

    • 线径为 16 到 4/0 AWG

    • 14 AWG 制动线对

    • 交联聚乙烯绝缘

    • 聚氯乙烯护套

    • 小直径

    • 低电容，更强的信号传输性能

    • UL 类型 TC-ER（600 伏）

    • CSA I/II A/B 1000V FT4

    • 直埋

    • 防紫外线

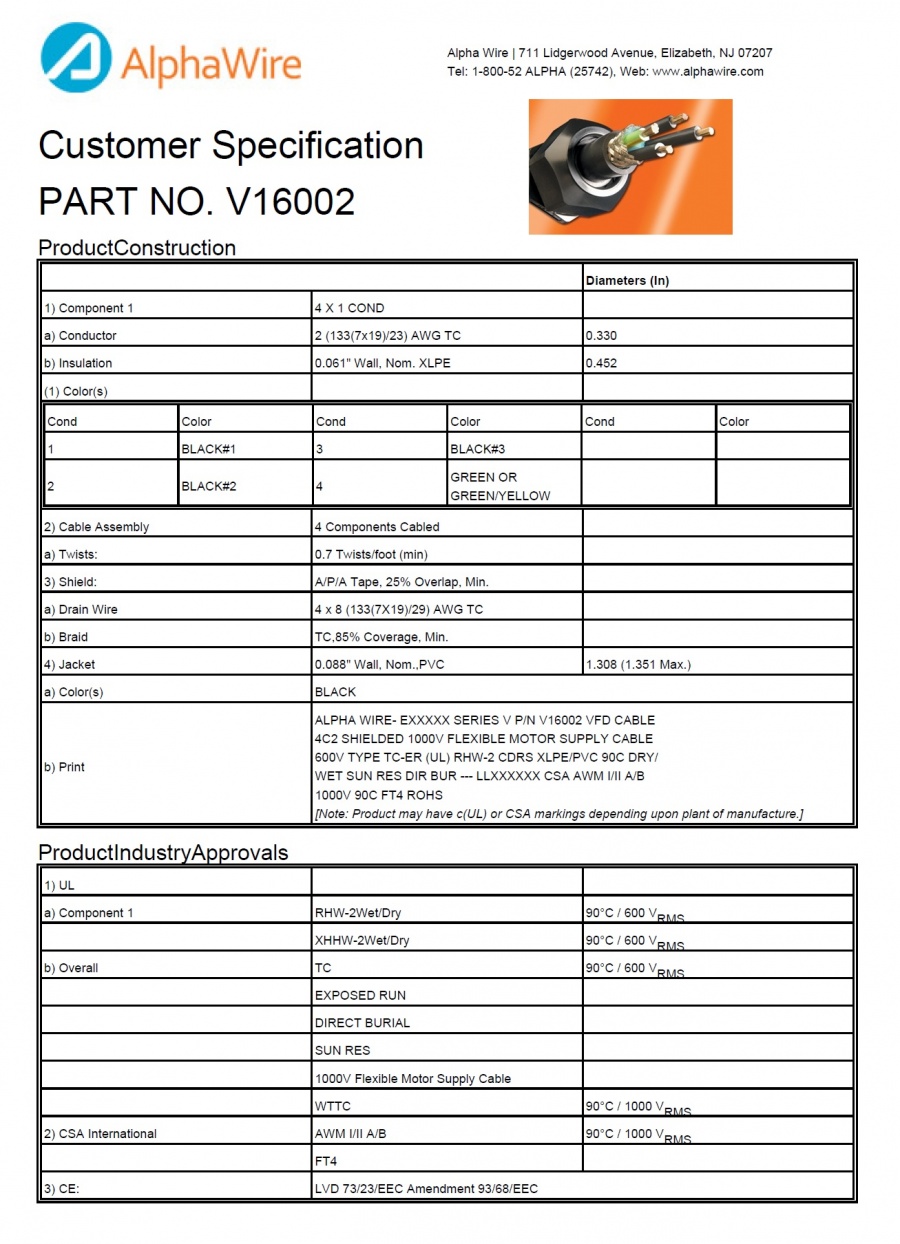

    Diameters (In)
    1) Component 1 4 X 1 COND 　
    a) Conductor 12 (65/30) AWG TC 　
    b) Insulation 0.047" Wall, Nom. XLPE 0.190
    (1) Separator Paper Tape, 10% Overlap, Min. 　
    (2) Color(s) 　 　
    Cond Color Cond Color Cond Color
    1 BLACK#1 3 BLACK#3 　 　
    2 BLACK#2 4 GREEN OR GREEN/YELLOW 　 　
    2) Cable Assembly 4 Components Cabled 　
    a) Twists: 1.8 Twists/foot (min) 　
    3) Shield: A/P/A Tape, 25% Overlap, Min. 　
    a) Drain Wire 12 (65/30) AWG TC 　
    b) Braid TC,85% Coverage, Min. 　
    4) Jacket 0.065" Wall, Nom.,PVC 0.633+/- 0.022
    a) Color(s) BLACK
    b) Jacket Separator Tissue Tape, 25% Overlap, Min. 　
    c) Print ALPHA WIRE- EXXXXX SERIES V P/N V16012 VFD CABLE
    4C12 SHIELDED 1000V FLEXIBLE MOTOR SUPPLY CABLE
    600V TYPE TC-ER (UL) RHW-2 CDRS XLPE/PVC 90C DRY/
    WET SUN RES DIR BUR --- LLXXXXXX CSA AWM I/II A/B
    1000V 90C FT4 CE ROHS
    [Note: Product may have c(UL) or CSA markings depending upon plant of manufacture.]

    ProductIndustryApprovals

    1) UL 　 　
    a) Component 1 RHW-2Wet/Dry 90°C / 600 VRMS
    　 XHHW-2Wet/Dry 90°C / 600 VRMS
    b) Overall TC 90°C / 600 VRMS
    　 EXPOSED RUN 　
    　 DIRECT BURIAL 　
    　 SUN RES 　
    　 1000V Flexible Motor Supply Cable 　
    2) CSA International AWM I/II A/B 90°C / 1000 VRMS
    　 FT4 　
    3) Other PMSHA Specification 　
    4) CE: LVD 73/23/EEC Amendment 93/68/EEC

    ProductEnvironmental

    1) EU Directive 2002/95/EC(RoHS):
    　 All materials used in the manufacture of this part are in compliance with EU Directive 2002/95/EU regarding the restriction of use of certain hazardous substances in electrical and electronic equipment. Consult Alpha Wire's web site for compliance Date of Manufacture.
    2) California Proposition 65: The outer surface materials used in the manufacture of this part meet the requirements of California Proposition 65.

    ProductProperties

    Physical & Mechanical Properties
    1) Temperature Range -40 to 90°C
    2) Bend Radius 10X Cable Diameter
    3) Pull Tension 269 Lbs, Maximum
    4) Sunlight Resistance Yes
    5) Direct Burial Yes
    6) Copper Weight 139 Lbs/1000Ft
    7) Cable Weight 285 Lbs/1000Ft
    Electrical Properties (For Engineering purposes only)
    1) Voltage Rating 600 VRMS
    2) Characteristic Impedance 71 Ω
    3) Inductance 0.197 µH/ft, Nominal
    4) Mutual Capacitance 26 pf/ft @1 kHz, Nominal
    5) Ground Capacitance 47 pf/ft @1 kHz, Nominal
    6) Conductor DCR 1.76 Ω/1000ft @20°C, Nominal
    7) OA Shield DCR 0.81 Ω/1000ft @20°C, Nominal
    8) Current 24 amps per conductor @30°C, Maximum
    9) Insulation Resistance 300 MΩ/MFt (Est.)

    ProductOther

    1) Packaging
    a) Bulk(Made-to-order) 　

    Alpha Wire 的 V 系列变频驱动器电缆专门针对变频驱动器进行了优化，提供行业领先的机械和电气性能。

    Series V Key features: V 系列电缆的主要特性 ：

    • 可提供 4 芯（带和不带制动线对）和 3 芯（新型！）两种版本

    • 线径为 16 到 4/0 AWG

    • 14 AWG 制动线对

    • 交联聚乙烯绝缘

    • 聚氯乙烯护套

    • 小直径

    • 低电容，更强的信号传输性能

    • UL 类型 TC-ER（600 伏）

    • CSA I/II A/B 1000V FT4

    • 直埋

    • 防紫外线

    符合性证明
    敬启者：
    Alpha Wire 部件号：V16012
    V16012 ，符合RoHS标准，以 2005/10/1 的生产为开始
    兹通过本文件证明上述 Alpha 部件号的产品系根据欧洲议会和欧洲理事会2003年1月27日第2002/95/EC号关于在电气电子设备中限制使用某些有害物质的指令（即RoHS指令）而制造。关于所述指令的具体定义和范围，请参见所述指令。对该产品的RoHS符合性不需任何豁免。
    危险物质 最大控制值
    铅 按重量计算不得超过0.1% (1000 ppm)
    汞 按重量计算不得超过0.1% (1000 ppm)
    镉 按重量计算不得超过0.01% (100 ppm)
    六价镉 按重量计算不得超过0.1% (1000 ppm)
    聚溴联苯 (PBB) 按重量计算不得超过0.1% (1000 ppm)
    聚溴二苯醚 (PBDE) 　
    台卡二苯醚 按重量计算不得超过0.1% (1000 ppm)
    Alpha Wire 公司已阅读本文件，并谨在此声明本文件所含信息及披露的数据在本文件发布时均准 确无误。本文件所含信息仅作为一般指南，适用于产品本身或产品组成部分的安全处理、贮存及其它操作。本文件不应被视为任何保证或质量规范。法规信息仅供参考。对于法律、法规的适用性，由产品用户根据各自的产品用途自行确定。
    Alpha Wire 公司授权代表签字：
    技术及质保部总监 Dave Watson
    Part # Type Shielding Voltage AWG # of Conductors # of Elements Jacket Diameter Applicable Specifications
      V16000 Conductor Double Foil 600 1/0 3 3 1.294 CA Prop 65, CE, CSA AWM I/II A/B, CSA FT4, Pennsylvania Burea of Mine Safety Approved, UL DIRECT BURIAL, UL EXPOSED RUN, UL SUN RES, UL TC, UL XHHW-2Wet/Dry
      V16001 Conductor Double Foil 600 1 3 3 1.197
      V16002 Conductor FOIL/BRAID 600 2 4 4 1.308
      V16004 Conductor FOIL/BRAID 600 4 4 4 1.157
      V16006 Conductor FOIL/BRAID 600 6 4 4 1.017
      V16008 Conductor FOIL/BRAID 600 8 4 4 0.92
      V16010 Conductor FOIL/BRAID 600 10 4 4 0.746
      V16012 Conductor FOIL/BRAID 600 12 4 4 0.633
      V16014 Conductor FOIL/BRAID 600 14 4 4 0.584
      V16016 Conductor FOIL/BRAID 600 16 4 4 0.547
      V16020 Conductor Double Foil 600 2/0 3 3 1.399
      V16030 Conductor Double Foil 600 3/0 3 3 1.517
      V16040 Conductor Double Foil 600 4/0 3 3 1.653
      V16108 Composite FOIL/BRAID 600 8+14 4 + 1 Pair 5 1.032
      V16110 Composite FOIL/BRAID 600 10+14 4 + 1 Pair 5 0.875
      V16112 Composite FOIL/BRAID 600 12+14 4 + 1 Pair 5 0.785
      V16114 Composite FOIL/BRAID 600 14+14 4 + 1 Pair 5 0.743
      V16116 Composite FOIL/BRAID 600 16+14 4 + 1 Pair 5 0.717
      V16302 Conductor Double Foil 600 2 3 3 1.157
      V16304 Conductor FOIL/BRAID 600 4 3 3 1.05
