    ALPHA-V16014 Awg 14 x 4C 600V FOIL/BRAID Shielding VFD WTTC, UL XHHW-RHW-2Wet/Dry V 系列變頻驅動器電纜
    看原圖
    		ALPHA-V16014

    商品編號: ALPHA-V16014

    ALPHA-V16014 Awg 14 x 4C 600V FOIL/BRAID Shielding VFD WTTC, UL XHHW-RHW-2Wet/Dry V 系列變頻驅動器電纜


    Part # Type Shielding Voltage AWG # of Conductors # of Elements Jacket Diameter Applicable Specifications
    V16014 Conductor FOIL/BRAID 600 14 4 4 0.584 CA Prop 65, CE, CSA AWM I/II A/B, CSA FT4, UL DIRECT BURIAL, UL EXPOSED RUN, UL RHW-2Wet/Dry, UL SUN RES, UL TC, UL XHHW-2Wet/Dry
    Optimized specifically for variable-frequency drives, Alpha Wire's Series V VFD cable offers industry-leading mechanical and electrical performance.

    Series V Key features:
    　

    • 4-conductor (with and without brake pair) and 3-conductor (NEW!) available
    • 16 to 4/0 AWG
    • 14-AWG brake pair
    • Cross-linked polyethylene insulation
    • PVC jacket
    • Small diameter
    • Low capacitance for improved signal transmission
    • UL Type TC-ER (600 V)
    • CSA I/II A/B 1000V FT4
    • Direct burial
    • Sunlight resistant

    Alpha Wire 的 V 系列变频驱动器电缆专门针对变频驱动器进行了优化，提供行业领先的机械和电气性能。

    Series V Key features: V 系列电缆的主要特性 ：

    • 可提供 4 芯（带和不带制动线对）和 3 芯（新型！）两种版本

    • 线径为 16 到 4/0 AWG

    • 14 AWG 制动线对

    • 交联聚乙烯绝缘

    • 聚氯乙烯护套

    • 小直径

    • 低电容，更强的信号传输性能

    • UL 类型 TC-ER（600 伏）

    • CSA I/II A/B 1000V FT4

    • 直埋

    • 防紫外线

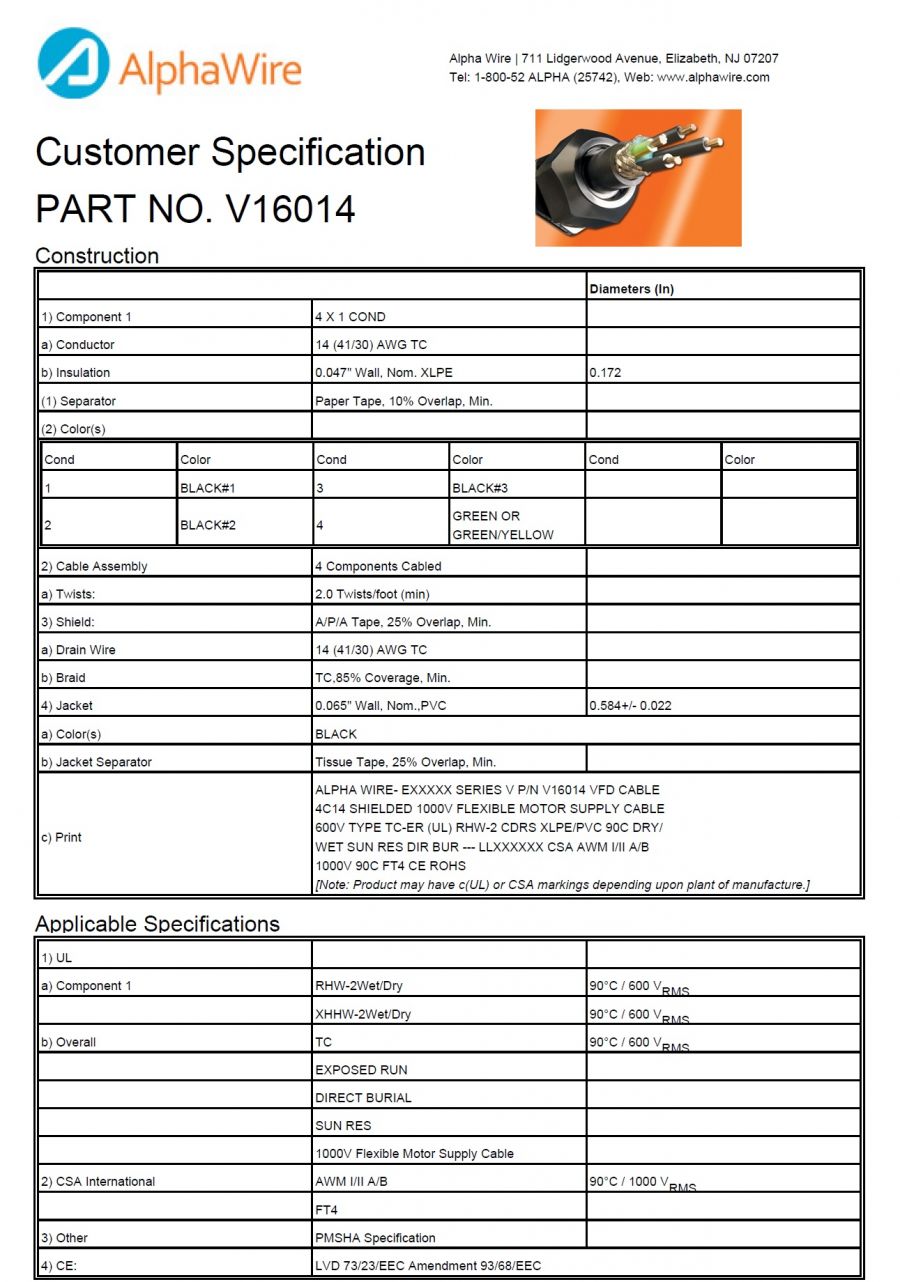

    Diameters (In)
    1) Component 1 4 X 1 COND
    a) Conductor 14 (41/30) AWG TC
    b) Insulation 0.047" Wall, Nom. XLPE 0.172
    (1) Separator Paper Tape, 10% Overlap, Min.
    (2) Color(s)
    Cond Color Cond Color Cond Color
    1 BLACK#1 3 BLACK#3
    2 BLACK#2 4 GREEN OR GREEN/YELLOW
    2) Cable Assembly 4 Components Cabled
    a) Twists: 2.0 Twists/foot (min)
    3) Shield: A/P/A Tape, 25% Overlap, Min.
    a) Drain Wire 14 (41/30) AWG TC
    b) Braid TC,85% Coverage, Min.
    4) Jacket 0.065" Wall, Nom.,PVC 0.584+/- 0.022
    a) Color(s) BLACK
    b) Jacket Separator Tissue Tape, 25% Overlap, Min.
    c) Print ALPHA WIRE- EXXXXX SERIES V P/N V16014 VFD CABLE
    4C14 SHIELDED 1000V FLEXIBLE MOTOR SUPPLY CABLE
    600V TYPE TC-ER (UL) RHW-2 CDRS XLPE/PVC 90C DRY/
    WET SUN RES DIR BUR --- LLXXXXXX CSA AWM I/II A/B
    1000V 90C FT4 CE ROHS
    [Note: Product may have c(UL) or CSA markings depending upon plant of manufacture.]

    Applicable Specifications

    1) UL
    a) Component 1 RHW-2Wet/Dry 90°C / 600 VRMS
      XHHW-2Wet/Dry 90°C / 600 VRMS
    b) Overall TC 90°C / 600 VRMS
      EXPOSED RUN
      DIRECT BURIAL
      SUN RES
      1000V Flexible Motor Supply Cable
    2) CSA International AWM I/II A/B 90°C / 1000 VRMS
      FT4
    3) Other PMSHA Specification
    4) CE: LVD 73/23/EEC Amendment 93/68/EEC

    Environmental

    1) EU Directive 2002/95/EC(RoHS):
      All materials used in the manufacture of this part are in compliance with EU Directive 2002/95/EU regarding the restriction of use of certain hazardous substances in electrical and electronic equipment. Consult Alpha Wire's web site for compliance Date of Manufacture.
    2) California Proposition 65: The outer surface materials used in the manufacture of this part meet the requirements of California Proposition 65.

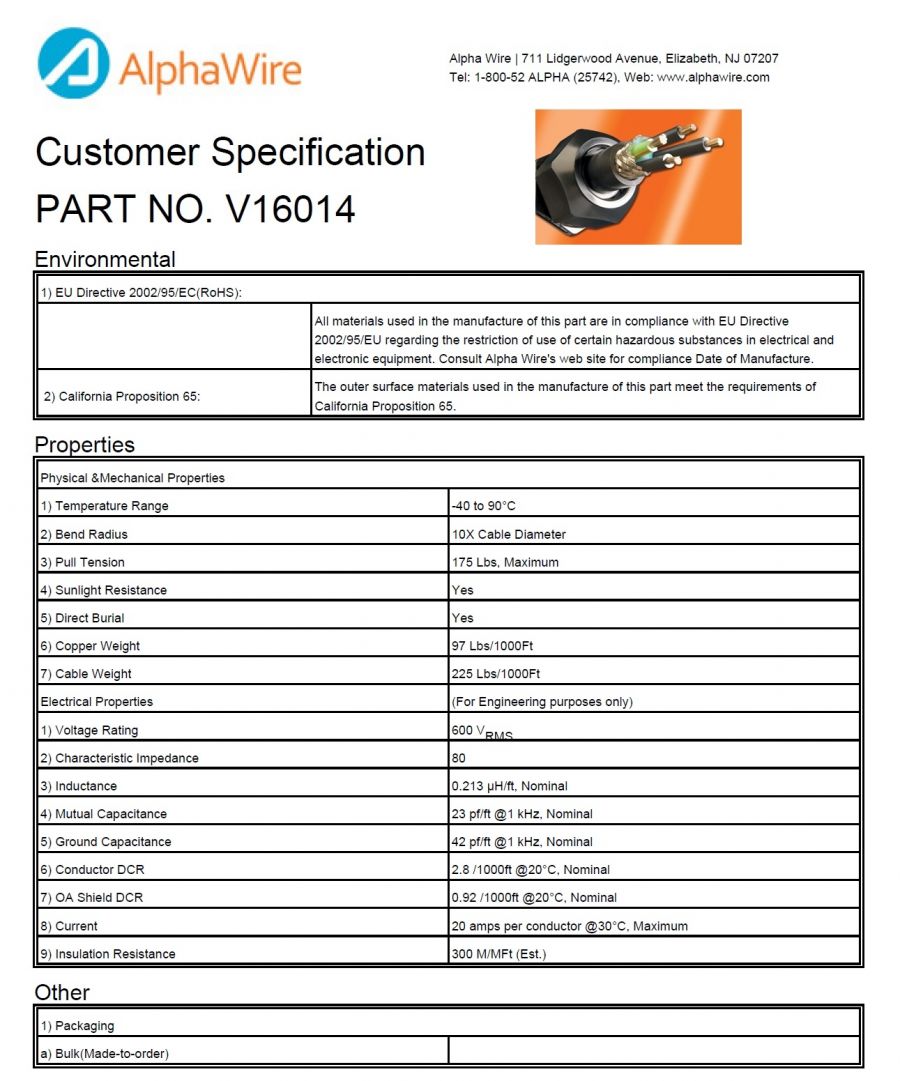

    Properties

    Physical & Mechanical Properties
    1) Temperature Range -40 to 90°C
    2) Bend Radius 10X Cable Diameter
    3) Pull Tension 175 Lbs, Maximum
    4) Sunlight Resistance Yes
    5) Direct Burial Yes
    6) Copper Weight 97 Lbs/1000Ft
    7) Cable Weight 225 Lbs/1000Ft
    Electrical Properties (For Engineering purposes only)
    1) Voltage Rating 600 VRMS
    2) Characteristic Impedance 80 Ω
    3) Inductance 0.213 µH/ft, Nominal
    4) Mutual Capacitance 23 pf/ft @1 kHz, Nominal
    5) Ground Capacitance 42 pf/ft @1 kHz, Nominal
    6) Conductor DCR 2.8 Ω/1000ft @20°C, Nominal
    7) OA Shield DCR 0.92 Ω/1000ft @20°C, Nominal
    8) Current 20 amps per conductor @30°C, Maximum
    9) Insulation Resistance 300 MΩ/MFt (Est.)

    Other

    1) Packaging
    a) Bulk(Made-to-order)
    EU/China ROHS CERTIFICATE OF COMPLIANCE
    To Whom It May Concern:
    Alpha Wire Part Number: V16014
    V16014 , RoHS-Compliant Commencing With 10/1/2005 Production
    This document certifies that the Alpha part number cited above are manufactured in accordance with Directive 2002/95/EC of the European Parliament and of the Council of 27 January 2003, better known as the RoHS Directives, with regards to restrictions of the use of certain hazardous substances used in the manufacture of electrical and electronic equipment. The reader is referred to these Directives for the specific definitions and extents of these Directives. No Exemptions are required for RoHS Compliance on this item. Additionally, Alpha certifies that the listed part number is in compliance with the European Union’s Restriction of Hazardous Substances (RoHS) Directive, 2002/95/EC and all subsequent revisions and China RoHS “Marking for Control of Pollution by Electronic Information Products” standard SJ/T 11364-2006.
    Substance Maximum Control Value
    Lead 0.1% by weight (1000 ppm)
    Mercury 0.1% by weight (1000 ppm)
    Cadmium 0.01% by weight (100 ppm)
    Hexavalent Chromium 0.1% by weight (1000 ppm )
    Polybrominated Biphenyls (PBB) 0.1% by weight (1000 ppm)
    Polybrominated Diphenyl Ethers (PBDE) ,
    Including Deca-BDE 0.1% by weight (1000 ppm)
    The information provided in this document and disclosure is correct to the best of Alpha Wire's knowledge, information and belief at the date of its release. The information provided is designed only as a general guide for the safe handling, storage, and any other operation of the product itself or the one that it will become part of. The intent of this document is not to be considered a warranty or quality specification. Regulatory information is for guidance purposes only. Product users are responsible for determining the applicability of legislation and regulations based on their individual usage of the product.
    Authorized Signatory for the Alpha Wire Company:
    Dave Watson, Director of Engineering & QA 1/26/2012
    Part # Type Shielding Voltage AWG # of Conductors # of Elements Jacket Diameter Applicable Specifications
      V16000 Conductor Double Foil 600 1/0 3 3 1.294 CA Prop 65, CE, CSA AWM I/II A/B, CSA FT4, Pennsylvania Burea of Mine Safety Approved, UL DIRECT BURIAL, UL EXPOSED RUN, UL SUN RES, UL TC, UL XHHW-2Wet/Dry
      V16001 Conductor Double Foil 600 1 3 3 1.197
      V16002 Conductor FOIL/BRAID 600 2 4 4 1.308
      V16004 Conductor FOIL/BRAID 600 4 4 4 1.157
      V16006 Conductor FOIL/BRAID 600 6 4 4 1.017
      V16008 Conductor FOIL/BRAID 600 8 4 4 0.92
      V16010 Conductor FOIL/BRAID 600 10 4 4 0.746
      V16012 Conductor FOIL/BRAID 600 12 4 4 0.633
      V16014 Conductor FOIL/BRAID 600 14 4 4 0.584
      V16016 Conductor FOIL/BRAID 600 16 4 4 0.547
      V16020 Conductor Double Foil 600 2/0 3 3 1.399
      V16030 Conductor Double Foil 600 3/0 3 3 1.517
      V16040 Conductor Double Foil 600 4/0 3 3 1.653
      V16108 Composite FOIL/BRAID 600 8+14 4 + 1 Pair 5 1.032
      V16110 Composite FOIL/BRAID 600 10+14 4 + 1 Pair 5 0.875
      V16112 Composite FOIL/BRAID 600 12+14 4 + 1 Pair 5 0.785
      V16114 Composite FOIL/BRAID 600 14+14 4 + 1 Pair 5 0.743
      V16116 Composite FOIL/BRAID 600 16+14 4 + 1 Pair 5 0.717
      V16302 Conductor Double Foil 600 2 3 3 1.157
      V16304 Conductor FOIL/BRAID 600 4 3 3 1.05
