商品編號: ALPHA-V16308
ALPHA-V16308 Awg 8 x 3C 600V FOIL/BRAID Shielding VFD SUN RES, UL TC, RHW-XHHW-2Wet/Dry V 系列變頻驅動器電纜
Series V VFD Control Cables

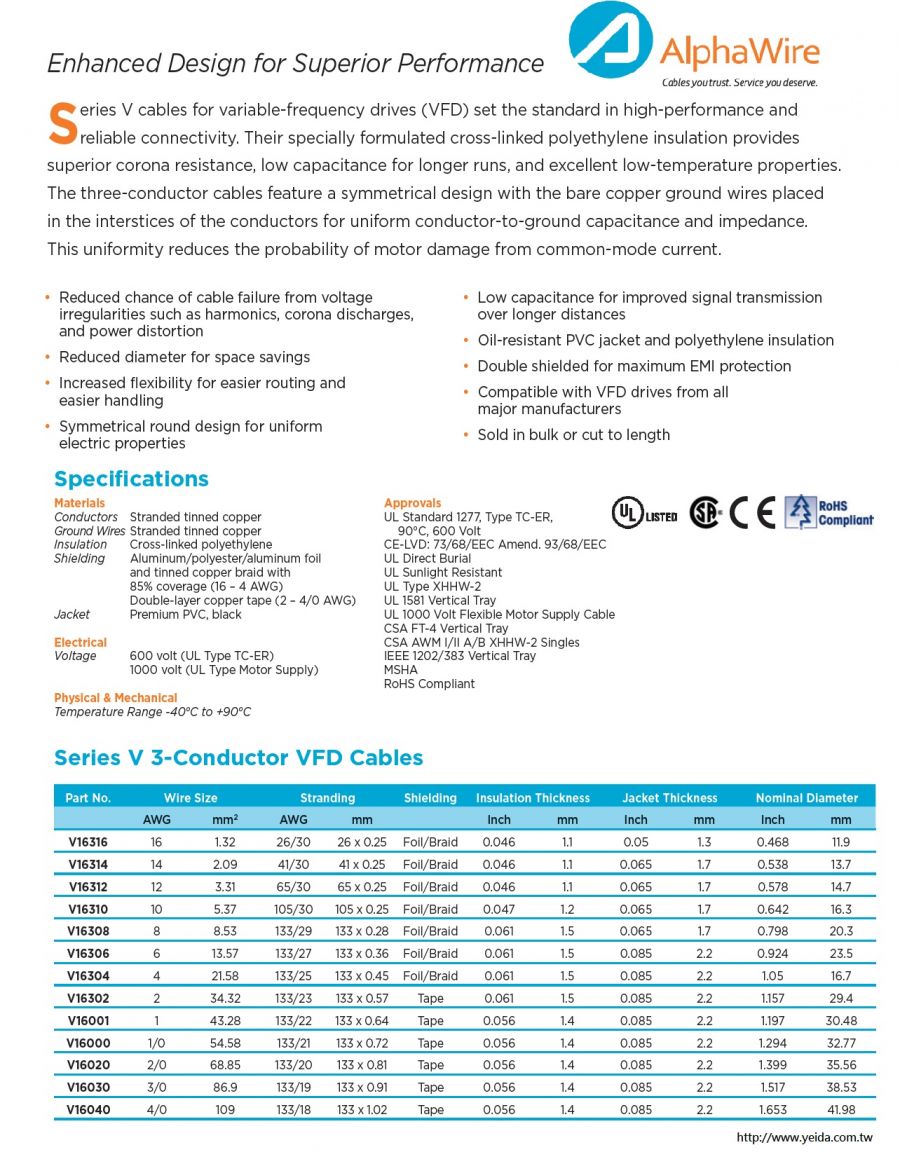

Enhanced Design for Superior Performance in Variable-Frequency Drives
600/1000 V Shielded
Series V cables for variable-frequency
drives (VFD) set the standard in highperformance
and reliable connectivity.
Their specially formulated cross-linked
polyethylene insulation provides superior
corona resistance, low capacitance
for longer runs, and excellent lowtemperature
properties.
A symmetrical design places the ground
wires in the interstices of the conductors
for uniform conductor-to-ground
capacitance and impedance.
Smaller gauge cable feature a combination
foil/braid shield to offer exceptional
EMI/RFI protection in noisy environments.
On larger gauge cable, a double copper
tape is used to provide the same noisefree
operation.
This uniformity reduces the probability
of motor damage from common-mode
current.
Alpha Series V VFD cables are compatible
with drives from all major manufacturers.
UL RHW-2 (16 – 2 AWG)
UL XHHW-2
UL TC-ER
UL 1000V Flexible Motor
Supply Cable
CSA AWM I/II A/B FT4
CE LVD 73/23/EEC
Amendment 93/68/EEC
Pennsylvania MHSA
Operating Temperature
• -40°C to +90°C
Conductor Color Coding
• Black, numbered
Materials
• Stranded tinned copper conductors
• Stranded tinned copper ground wires
• Cross-linked polyethylene insulation
• Shielding
16 – 4 AWG:
Aluminum/polyester/aluminum foil and tinned copper braid with 85% coverage
2 – 4/0 AWG: Double-layer copper tape
• Black premium PVC jacket
Voltage
• 600 V (UL TC-ER)
• 1000 V (UL Motor Supply)
Features
• UL Direct Burial
• UL Sunlight Resistant
• 10x bend radius
• Suitable for use in Class I, Division 2 locations per Article
501 of the National Electric Code
Availability
Bulk, made to order
FIT® Tubing Recommendations
• FIT-221: General-purpose cross-linked polyolefin
• FIT-321V: Low-shrinktemperature, flame-retardant cross-linked polyolefin

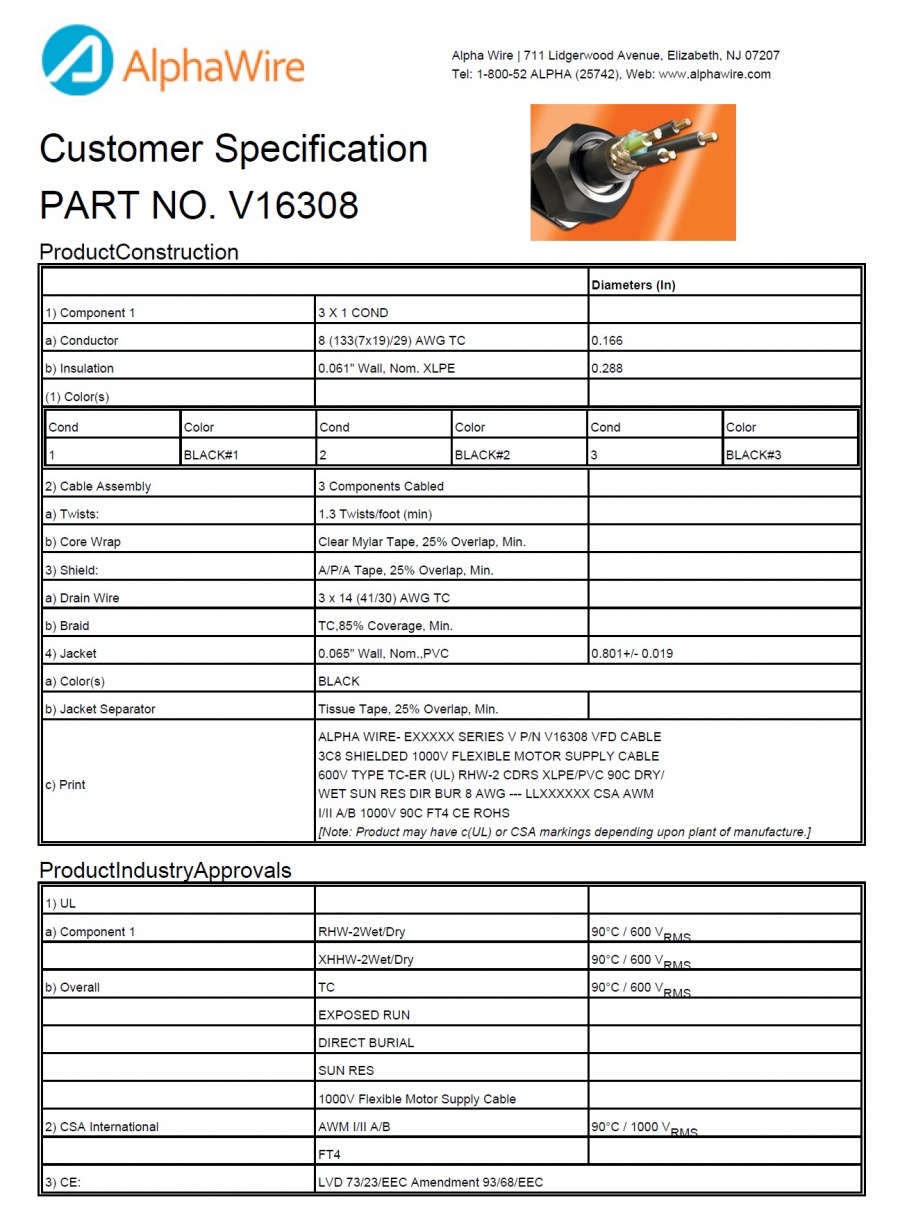

Diameters (In) |
1) Component 1 |
3 X 1 COND |
|
a) Conductor |
8 (133(7x19)/29) AWG TC |
0.166 |
b) Insulation |
0.061" Wall, Nom. XLPE |
0.288 |
(1) Color(s) |
|
|
Cond |
Color |
Cond |
Color |
Cond |
Color |
1 |
BLACK#1 |
2 |
BLACK#2 |
3 |
BLACK#3 |
|
2) Cable Assembly |
3 Components Cabled |
|
a) Twists: |
1.3 Twists/foot (min) |
|
b) Core Wrap |
Clear Mylar Tape, 25% Overlap, Min. |
|
3) Shield: |
A/P/A Tape, 25% Overlap, Min. |
|
a) Drain Wire |
3 x 14 (41/30) AWG TC |
|
b) Braid |
TC,85% Coverage, Min. |
|
4) Jacket |
0.065" Wall, Nom.,PVC |
0.801+/- 0.019 |
a) Color(s) |
BLACK |
b) Jacket Separator |
Tissue Tape, 25% Overlap, Min. |
|
c) Print |
ALPHA WIRE- EXXXXX SERIES V P/N V16308 VFD CABLE
3C8 SHIELDED 1000V FLEXIBLE MOTOR SUPPLY CABLE
600V TYPE TC-ER (UL) RHW-2 CDRS XLPE/PVC 90C DRY/
WET SUN RES DIR BUR 8 AWG --- LLXXXXXX CSA AWM
I/II A/B 1000V 90C FT4 CE ROHS
[Note: Product may have c(UL) or CSA markings depending upon plant of manufacture.] |
ProductIndustryApprovals
1) UL |
|
|
a) Component 1 |
RHW-2Wet/Dry |
90°C / 600 VRMS |
|
XHHW-2Wet/Dry |
90°C / 600 VRMS |
b) Overall |
TC |
90°C / 600 VRMS |
|
EXPOSED RUN |
|
|
DIRECT BURIAL |
|
|
SUN RES |
|
|
1000V Flexible Motor Supply Cable |
|
2) CSA International |
AWM I/II A/B |
90°C / 1000 VRMS |
|
FT4 |
|
3) CE: |
LVD 73/23/EEC Amendment 93/68/EEC |

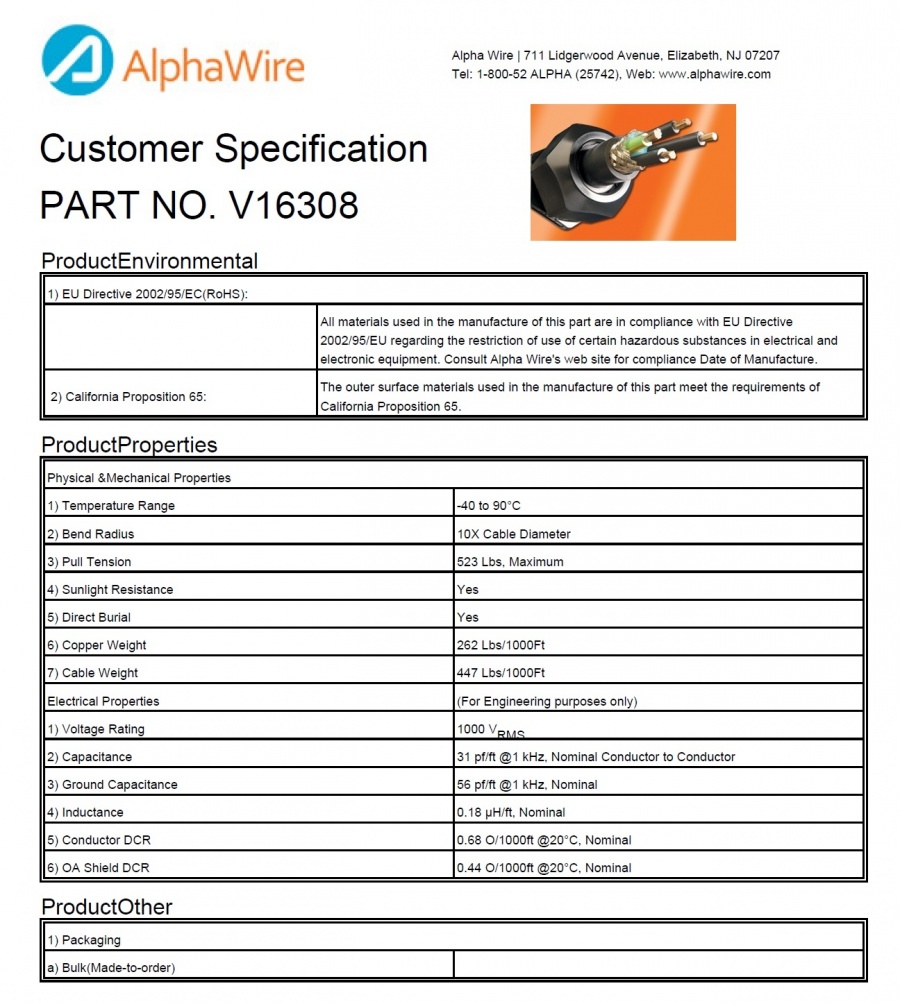

ProductEnvironmental
1) EU Directive 2002/95/EC(RoHS): |
|
All materials used in the manufacture of this part are in compliance with EU Directive 2002/95/EU regarding the restriction of use of certain hazardous substances in electrical and electronic equipment. Consult Alpha Wire's web site for compliance Date of Manufacture. |
2) California Proposition 65: |
The outer surface materials used in the manufacture of this part meet the requirements of California Proposition 65. |
ProductProperties
Physical & Mechanical Properties |
1) Temperature Range |
-40 to 90°C |
2) Bend Radius |
10X Cable Diameter |
3) Pull Tension |
523 Lbs, Maximum |
4) Sunlight Resistance |
Yes |
5) Direct Burial |
Yes |
6) Copper Weight |
262 Lbs/1000Ft |
7) Cable Weight |
447 Lbs/1000Ft |
Electrical Properties |
(For Engineering purposes only) |
1) Voltage Rating |
1000 VRMS |
2) Capacitance |
31 pf/ft @1 kHz, Nominal Conductor to Conductor |
3) Ground Capacitance |
56 pf/ft @1 kHz, Nominal |
4) Inductance |
0.18 µH/ft, Nominal |
5) Conductor DCR |
0.68 O/1000ft @20°C, Nominal |
6) OA Shield DCR |
0.44 O/1000ft @20°C, Nominal |
ProductOther
1) Packaging |
a) Bulk(Made-to-order) |
|
Alpha Wire 的 V 系列变频驱动器电缆专门针对变频驱动器进行了优化,提供行业领先的机械和电气性能。
Series V Key features: V 系列电缆的主要特性 :
符合性证明 |
敬启者: |
Alpha Wire 部件号:V16308 |
V16308 ,符合RoHS标准,以 2009/8/19 的生产为开始 |
兹通过本文件证明上述 Alpha 部件号的产品系根据欧洲议会和欧洲理事会2003年1月27日第2002/95/EC号关于在电气电子设备中限制使用某些有害物质的指令(即RoHS指令)而制造。关于所述指令的具体定义和范围,请参见所述指令。对该产品的RoHS符合性不需任何豁免。 |
危险物质 |
最大控制值 |
铅 |
按重量计算不得超过0.1% (1000 ppm) |
汞 |
按重量计算不得超过0.1% (1000 ppm) |
镉 |
按重量计算不得超过0.01% (100 ppm) |
六价镉 |
按重量计算不得超过0.1% (1000 ppm) |
聚溴联苯 (PBB) |
按重量计算不得超过0.1% (1000 ppm) |
聚溴二苯醚 (PBDE) |
|
台卡二苯醚 |
按重量计算不得超过0.1% (1000 ppm) |
|
Alpha Wire 公司已阅读本文件,并谨在此声明本文件所含信息及披露的数据在本文件发布时均准 确无误。本文件所含信息仅作为一般指南,适用于产品本身或产品组成部分的安全处理、贮存及其它操作。本文件不应被视为任何保证或质量规范。法规信息仅供参考。对于法律、法规的适用性,由产品用户根据各自的产品用途自行确定。 |
Alpha Wire 公司授权代表签字: |
|
Part # |
Type |
Shielding |
Voltage |
AWG |
# of Conductors |
# of Elements |
Jacket Diameter |
Applicable Specifications |
|
V16000 |
Conductor |
Double Foil |
600 |
1/0 |
3 |
3 |
1.294 |
CA Prop 65, CE, CSA AWM I/II A/B, CSA FT4, Pennsylvania Burea of Mine Safety Approved, UL DIRECT BURIAL, UL EXPOSED RUN, UL SUN RES, UL TC, UL XHHW-2Wet/Dry |
|
V16001 |
Conductor |
Double Foil |
600 |
1 |
3 |
3 |
1.197 |
|
V16020 |
Conductor |
Double Foil |
600 |
2/0 |
3 |
3 |
1.399 |
|
V16030 |
Conductor |
Double Foil |
600 |
3/0 |
3 |
3 |
1.517 |
|
V16040 |
Conductor |
Double Foil |
600 |
4/0 |
3 |
3 |
1.653 |
|
V16108 |
Composite |
FOIL/BRAID |
600 |
8+14 |
4 + 1 Pair |
5 |
1.032 |
|
V16110 |
Composite |
FOIL/BRAID |
600 |
10+14 |
4 + 1 Pair |
5 |
0.875 |
|
V16112 |
Composite |
FOIL/BRAID |
600 |
12+14 |
4 + 1 Pair |
5 |
0.785 |
|
V16114 |
Composite |
FOIL/BRAID |
600 |
14+14 |
4 + 1 Pair |
5 |
0.743 |
|
V16116 |
Composite |
FOIL/BRAID |
600 |
16+14 |
4 + 1 Pair |
5 |
0.717 |
|
V16302 |
Conductor |
Double Foil |
600 |
2 |
3 |
3 |
1.157 |
|
V16304 |
Conductor |
FOIL/BRAID |
600 |
4 |
3 |
3 |
1.05 |
Part # |
Type |
Shielding |
Voltage |
AWG |
# of Conductors |
# of Elements |
Jacket Diameter |
Applicable Specifications |
|
V16306 |
Conductor |
FOIL/BRAID |
600 |
6 |
3 |
3 |
0.924 |
CA Prop 65, CE, CSA - AWM I/II A/B, CSA FT4, ROHS - RoHS Compliance, UL DIRECT BURIAL, UL EXPOSED RUN, UL RHW-2Wet/Dry, UL SUN RES, UL TC, UL XHHW-2Wet/Dry |
|
V16308 |
Conductor |
FOIL/BRAID |
600 |
8 |
3 |
3 |
0.798 |
|
V16310 |
Conductor |
FOIL/BRAID |
600 |
10 |
3 |
3 |
0.642 |
|
V16312 |
Conductor |
FOIL/BRAID |
600 |
12 |
3 |
3 |
0.578 |
|
V16314 |
Conductor |
FOIL/BRAID |
600 |
14 |
3 |
3 |
0.538 |
|
V16316 |
Conductor |
FOIL/BRAID |
600 |
16 |
3 |
3 |
0.468 |
|
|
