商品編號: DTK-LVLP
DTK-LVLP Series, Voice, Data and Signaling Circuit Surge Protection 音響,數據和信號電路浪湧保護(避雷器)
DTK-4LVLPSCPD, DTK-8LVLAWGRUV, DTK-Z4LVLPLV,
功能敘述:
適合Off Premise 或At Risk 迴路的雷擊保護器 備有1-4 組機型(2 – 8線) 可供選擇 螺絲接線端 22 – 16 awg 或 14 – 10 awg (請註明) 提供過載電壓保護 (註明: 6,14,30,50,75,95 或 130 伏特)及保險絲組件(選購)
DTK-4LVLPSCPD, DTK-8LVLAWGRUV, DTK-Z4LVLPLV

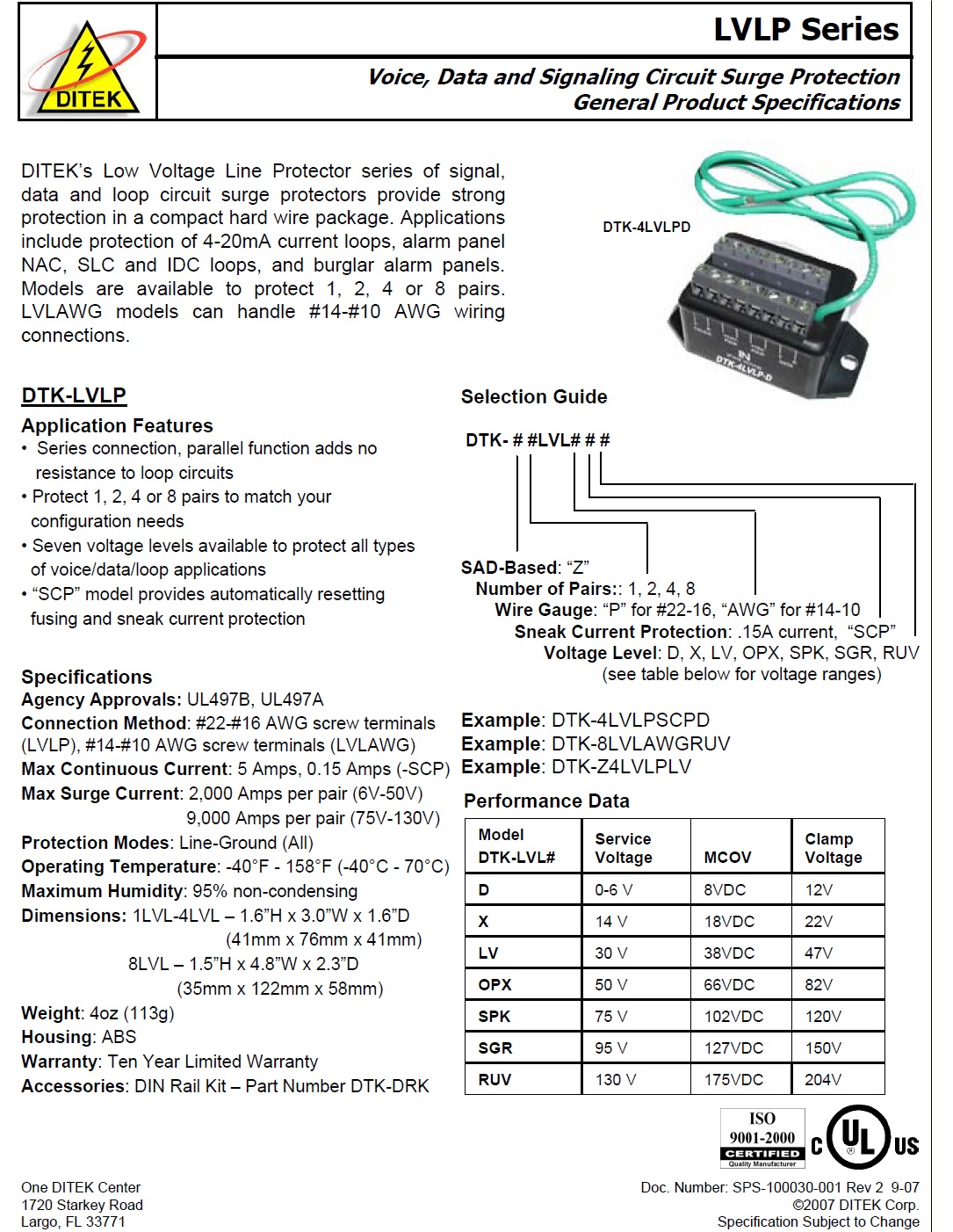

DITEK’s Low Voltage Line Protector series of signal, data and loop circuit surge protectors provide strong protection in a compact hard wire package. Applications include protection of 4-20mA current loops, alarm panel NAC, SLC and IDC loops, and burglar alarm panels. Models are available to protect 1, 2, 4 or 8 pairs. LVLAWG models can handle #14-#10 AWG wiring connections.
4LVLPDDTK-LVLP
Application Features
•Series connection
, parallel function adds no resistance to loop circuits
•Protect 1, 2, 4 or 8 pairs to match your configuration needs
•Seven voltage levels available to protect all types of voice/data/loop applications
•“SCP” model provides automatically resetting fusing and sneak current protection
SpecificationsPerformance Data
Agency Approvals: UL497B, UL497A
Connection Method: #22-#16 AWG screw terminals (LVLP), #14-#10 AWG screw terminals (LVLAWG)
Max Continuous Current: 5 Amps, 0.15 Amps (-SCP)Max Surge Current: 2,000 Amps per pair (6V-50V)9,000 Amps per pair (75V-130V)
Protection Modes: Line-Ground (All)Operating Temperature: -40°F -158°F (-40°C-70°C)
Maximum Humidity: 95% non-condensing
Dimensions: 1LVL-4LVL –1.6”H x 3.0”W x 1.6”D (41mm x 76mm x 41mm)8LVL –1.5”H x 4.8”W x 2.3”D(35mm x 122mm x 58mm)
Weight: 4oz (113g)
Housing: ABS
