    首頁 > ALPHA-Manhattan™ Audio/Video Unshielded Cable 影音儀表傳輸用線

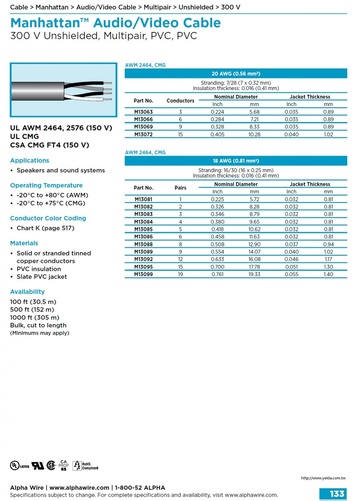

    ALPHA- Manhattan™ Audio/Video Cable (Awg 20, 18 ) 300 V Unshielded, Multipair, PVC, PVC 對型影像音響訊號傳輸控制电缆
    看原圖
    ALPHA-M13063

    商品編號: ALPHA-M13063

    ALPHA- Manhattan™ Audio/Video Cable (Awg 20, 18 ) 300 V Unshielded, Multipair, PVC, PVC 對型影像音響訊號傳輸控制电缆



    Manhattan™ Audio/Video Cable
    300 V Unshielded, Multipair, PVC, PVC
    UL AWM 2464, 2576 (150 V)
    UL CMG
    CSA CMG FT4 (150 V)


    Applications
    • Speakers and sound systems
    Operating Temperature
    • -20°C to +80°C (AWM)
    • -20°C to +75°C (CMG)
    Conductor Color Coding
    • Chart K (page 517)
    Materials
    • Solid or stranded tinned copper conductors
    • PVC insulation
    • Slate PVC jacket
    Availability
    100 ft (30.5 m)
    500 ft (152 m)
    1000 ft (305 m)
    Bulk, cut to length
    (Minimums may apply)



    可靠、持久耐用的电缆是任何电气系统的核心,Alpha Wire 的 Manhattan™ 品牌拥有 60 多年的历史,是深受信赖的可靠电缆。无论您需要的是一根电源线,还是在噪音环境中保持音视频信号完整性的电缆,您都能找到恰当的产品来确保构建适合您应用的最佳解决方案。

    From intercom systems to broadcast studios, our range of audio/video cable allows you to tackle the toughest needs easily and reliably.

    从对讲机系统到广播播音室,我们一系列的音频/视频电缆可以让您轻松、可靠地解决最苛刻的需求。

    Part # Type Shielding Voltage  AWG # of Elements  Insulation Material Jacket Material



    Jacket Diameter
      M13063 Multi-Pair UNSHIELDED 300 20 3 PVC PVC 0.299 CA Prop 65, CSA CMG, CSA FT4, NEC CMG, UL AWM 2464, UL CMG, UL VW-1
      M13066 Multi-Pair UNSHIELDED 300 20 6 PVC PVC 0.366
      M13069 Multi-Pair UNSHIELDED 300 20 9 PVC PVC 0.429
      M13072 Multi-Pair UNSHIELDED 300 20 15 PVC PVC 0.545
      M13081 Pair UNSHIELDED 300 18 1 PVC PVC 0.225
      M13082 Multi-Pair UNSHIELDED 300 18 2 PVC PVC 0.327
      M13083 Multi-Pair UNSHIELDED 300 18 3 PVC PVC 0.347
      M13084 Multi-Pair UNSHIELDED 300 18 4 PVC PVC 0.381
      M13085 Multi-Pair UNSHIELDED 300 18 5 PVC PVC 0.391
      M13086 Multi-Pair UNSHIELDED 300 18 6 PVC PVC 0.433
      M13088 Multi-Pair UNSHIELDED 300 18 8 PVC PVC 0.475
      M13089 Multi-Pair UNSHIELDED 300 18 9 PVC PVC 0.524
      M13092 Multi-Pair UNSHIELDED 300 18 12 PVC PVC 0.6
      M13095 Multi-Pair UNSHIELDED 300 18 15 PVC PVC 0.677
      M13099 Multi-Pair UNSHIELDED 300 18 19 PVC PVC 0.721
