    ALPHA- Manhattan™ Audio/Video Cable (Awg 24, 22, 20, 18 ) 300 V Foil Shield, Overall, Multiconductor, PE, PVC影像音響訊號傳輸控制电缆
    看原圖
    ALPHA-M3222

    商品編號: ALPHA-M3222

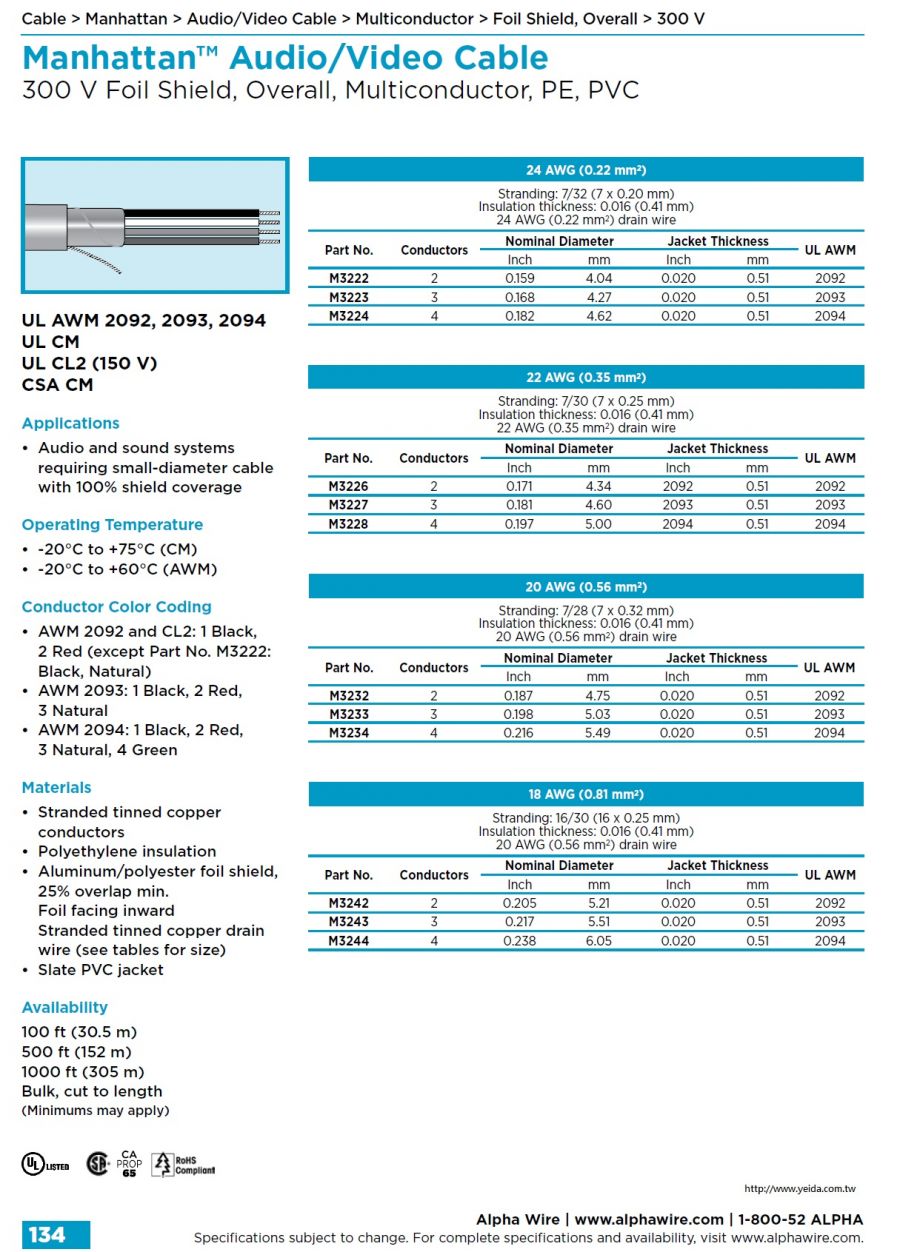

    ALPHA- Manhattan™ Audio/Video Cable (Awg 24, 22, 20, 18 ) 300 V Foil Shield, Overall, Multiconductor, PE, PVC影像音響訊號傳輸控制电缆



    Manhattan™ Audio/Video Cable
    300 V Foil Shield, Overall, Multiconductor, PE, PVC
    UL AWM 2092, 2093, 2094
    UL CM UL CL2 (150 V)
    CSA CM


    Applications
    • Audio and sound systems requiring small-diameter cable with 100% shield coverage
    Operating Temperature
    • -20°C to +75°C (CM)
    • -20°C to +60°C (AWM)
    Conductor Color Coding
    • AWM 2092 and CL2: 1 Black, 2 Red (except Part No. M3222: Black, Natural)
    • AWM 2093: 1 Black, 2 Red, 3 Natural
    • AWM 2094: 1 Black, 2 Red, 3 Natural, 4 Green
    Materials
    • Stranded tinned copper
    conductors
    • Polyethylene insulation
    • Aluminum/polyester foil shield, 25% overlap min. Foil facing inward
         Stranded tinned copper drain wire (see tables for size)
    • Slate PVC jacket
    Availability
    100 ft (30.5 m)
    500 ft (152 m)
    1000 ft (305 m)
    Bulk, cut to length
    (Minimums may apply)

    可靠、持久耐用的电缆是任何电气系统的核心,Alpha Wire 的 Manhattan™ 品牌拥有 60 多年的历史,是深受信赖的可靠电缆。无论您需要的是一根电源线,还是在噪音环境中保持音视频信号完整性的电缆,您都能找到恰当的产品来确保构建适合您应用的最佳解决方案。

    From intercom systems to broadcast studios, our range of audio/video cable allows you to tackle the toughest needs easily and reliably.

    从对讲机系统到广播播音室,我们一系列的音频/视频电缆可以让您轻松、可靠地解决最苛刻的需求。

    Part # Type Shielding Voltage  AWG # of Elements  Insulation Material Jacket Material



    Jacket Diameter
      M3222 Multi-Conductor FOIL 300 24 2 PE PVC 0.162 CSA - CMG, CSA - FT4, UL - CMG, UL AWM 2092
      M3223 Multi-Conductor FOIL 300 24 3 PE PVC 0.173
      M3224 Multi-Conductor FOIL 300 24 4 PE PVC 0.193
      M3226 Multi-Conductor FOIL 300 22 2 PE PVC 0.17
      M3227 Multi-Conductor FOIL 300 22 3 PE PVC 0.18
      M3228 Multi-Conductor FOIL 300 22 4 PE PVC 0.21
      M3232 Multi-Conductor FOIL 300 20 2 PE PVC 0.186
      M3233 Multi-Conductor FOIL 300 20 3 PE PVC 0.205
      M3234 Multi-Conductor FOIL 300 20 4 PE PVC 0.225
      M3242 Multi-Conductor FOIL 300 18 2 PE PVC 0.21
      M3244 Multi-Conductor FOIL 300 18 4 PE PVC 0.255
