    首頁 > ALPHA-Manhattan™ Control Cable控制電纜

    ALPHA- MWP Tray Cable • 2 Conductor • Unshielded Awg18, 16, 14, 12, 10 600V PVC/nylon insulation, PVC 2C屋內屋外無隔離控制電纜
    看原圖

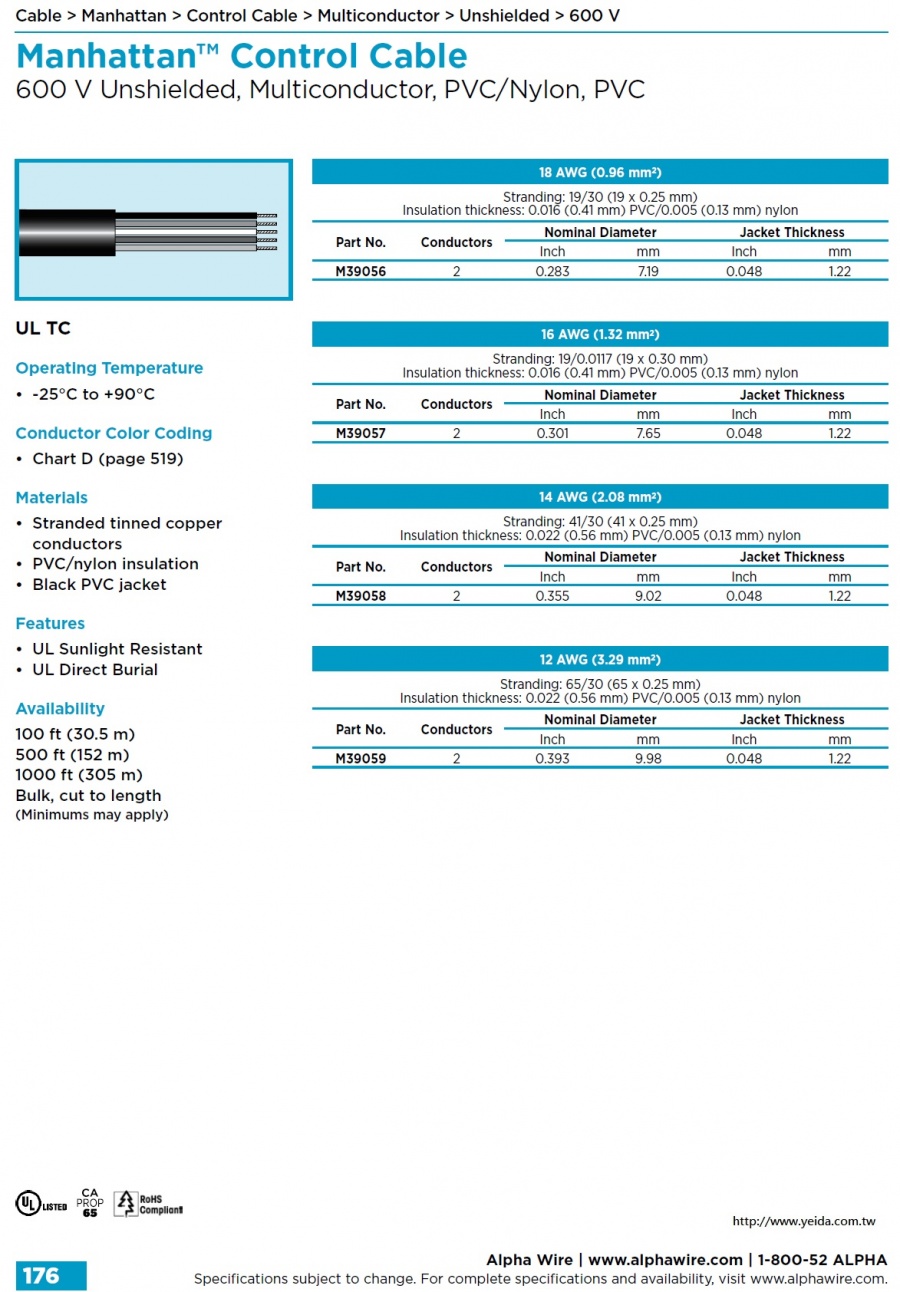

    ALPHA-M39056


    商品編號: ALPHA-M39056

    ALPHA- MWP Tray Cable • 2 Conductor • Unshielded Awg18, 16, 14, 12, 10 600V PVC/nylon insulation, PVC 2C屋內屋外無隔離控制電纜



    Manhattan™ Control Cable
    600 V Unshielded, Multiconductor, PVC/Nylon, PVC

    DESCRIPTION:
    For: Use as a tray cable -both indoor and outdoor.

    UL Listed Subject 83, 1277
    NEC Articles 310, 318, 340
    NEC Article 501:
    Class 1, Division 2
    IEEE 383 70,000 BTU
    UL 1581
    ICEA T-29-520 210,000 BTU
    ICEA S-61-402
    Sunlight Resistant
    Direct Burial


    Operating Temperature
    • -25°C to +90°C
    Conductor Color Coding
    • Chart J (page 521)
    Materials
    • Stranded bare copper
    conductors
    • PVC/nylon insulation
    • Black PVC jacket
    Color Code: Black, Red
    Availability
    100 ft (30.5 m)
    500 ft (152 m)
    1000 ft (305 m)
    Bulk, cut to length
    (Minimums may apply)

    Manhattan™ Electrical Cable

    Signal transmission made reliable

    Reliable, durable cable is the centerpiece of any electrical system and Alpha Wire’s Manhattan brand has been a trusted and reliable source of cable for over 60 years. Whether you need something as simple as a power cord or a cable which can maintain audio-video signal integrity in a noisy environment, you’ll find the breadth and depth of products to ensure an optimum solution to your application.

    Manhattan Electrical Cables Brochure

    Types of Manhattan™ Electrical Cable
    • Audio/Video

      From intercom systems to broadcast studios, our range of audio/video cable allows you to tackle the toughest needs easily and reliably.

    • Computer

      For precise signal transmission in computers and control applications, we offer the widest range of shielded and unshielded configurations.

    • Instrumentation

      With our broad product portfolio of single and multiple pair shielded and unshielded products, you’ll be able to satisfy any application in any environment.

    • Thermocouple

      You can find the perfect thermocouple cable based on conductor combinations JX, KX, EX, and SX, as well as insulations suited for applications up to 649°C.

    • Control

      We offer UL style TC in a variety of conductor counts, gauges, shielding options, all with durable PVC/nylon insulation and PVC jackets.

    • Plenum

      We offer a full range of cables for control, computer interconnections, security, alarms, and building energy management systems in a variety of plenum-rated insulations and jackets.

    • Coaxial

      For a complete range of 50, 75, 93, and 100 ohm coaxial, twinaxial, and triaxial cables, we offer a wide range of insulations and jackets meeting the requirements of military specifications and regulatory agencies such as UL and CSA.

    • Cords/Cordsets

      For consumer and industrial devices, business and communication machines, and medical and test equipment, our cords give you everything you need for reliable plugin power.

    • High Temperature

      Alpha Wire’s Manhattan brand of high-temperature cables are available for temperatures ranging from 150°C to 540°C.

    • Security & Data

      A complete product family of security and data cables, optimized for security video, data, and monitoring applications.




    Part #  Type Shielding Voltage AWG # of Elements



    Jacket Material



    Insulation Material



    Jacket Diameter
    M33800 Conductor FOIL 600 18 2 PVC PVC/NYLON 0.277 CA Prop 65, UL DIRECT BURIAL, UL SUN RES, UL TC
    M33826 Conductor FOIL 600 16 2 PVC PVC/NYLON 0.301
    M33845 Conductor FOIL 600 14 2 PVC PVC/NYLON 0.331
    M33865 Conductor FOIL 600 12 2 PVC PVC/NYLON 0.369
    M3800 Conductor UNSHIELDED 600 18 2 PVC PVC/NYLON 0.185
    M3826 Conductor UNSHIELDED 600 16 2 PVC PVC/NYLON 0.197
    M3845 Conductor UNSHIELDED 600 14 2 PVC PVC/NYLON 0.212
    M3865 Conductor UNSHIELDED 600 12 2 PVC PVC/NYLON 0.231
    M39056 Conductor UNSHIELDED 600 18 2 PVC PVC/NYLON 0.283
    M39057 Conductor UNSHIELDED 600 16 2 PVC PVC/NYLON 0.301
    M39058 Conductor UNSHIELDED 600 14 2 PVC PVC/NYLON 0.355
    M39059 Conductor UNSHIELDED 600 12 2 PVC PVC/NYLON 0.393
    M39109 Conductor FOIL 600 18 2 PVC PVC/NYLON 0.287
    M39110 Conductor FOIL 600 16 2 PVC PVC/NYLON 0.305
    M39111 Conductor FOIL 600 14 2 PVC PVC/NYLON 0.359
    M39112 Conductor FOIL 600 12 2 PVC PVC/NYLON 0.397
