    首頁 > > ALPHA-Manhattan™ Cordsets 电源线/成套电源线

    ALPHA- SJT 125 V Medical-Grade Power Supply Cordsets 3-Conductor醫療級電源插頭線
    看原圖
    		ALPHA-801


    商品編號: ALPHA-801

    ALPHA- SJT 125 V Medical-Grade Power Supply Cordsets 3-Conductor醫療級電源插頭線

    Part # Applicable Specifications Voltage Shielding AWG # of Elements Retractile End Types Length Jacket Diameter
    801 CSA C22.2 No. 21, CSA FT2, UL 817 125 UNSHIELDED 18 3 No Jacket Stripped 1.5" Insulation Stripped 5/8", NEMA 5-15P

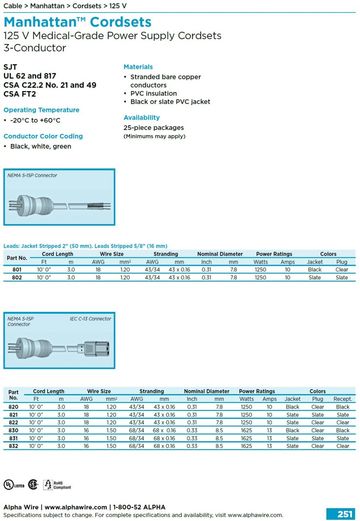

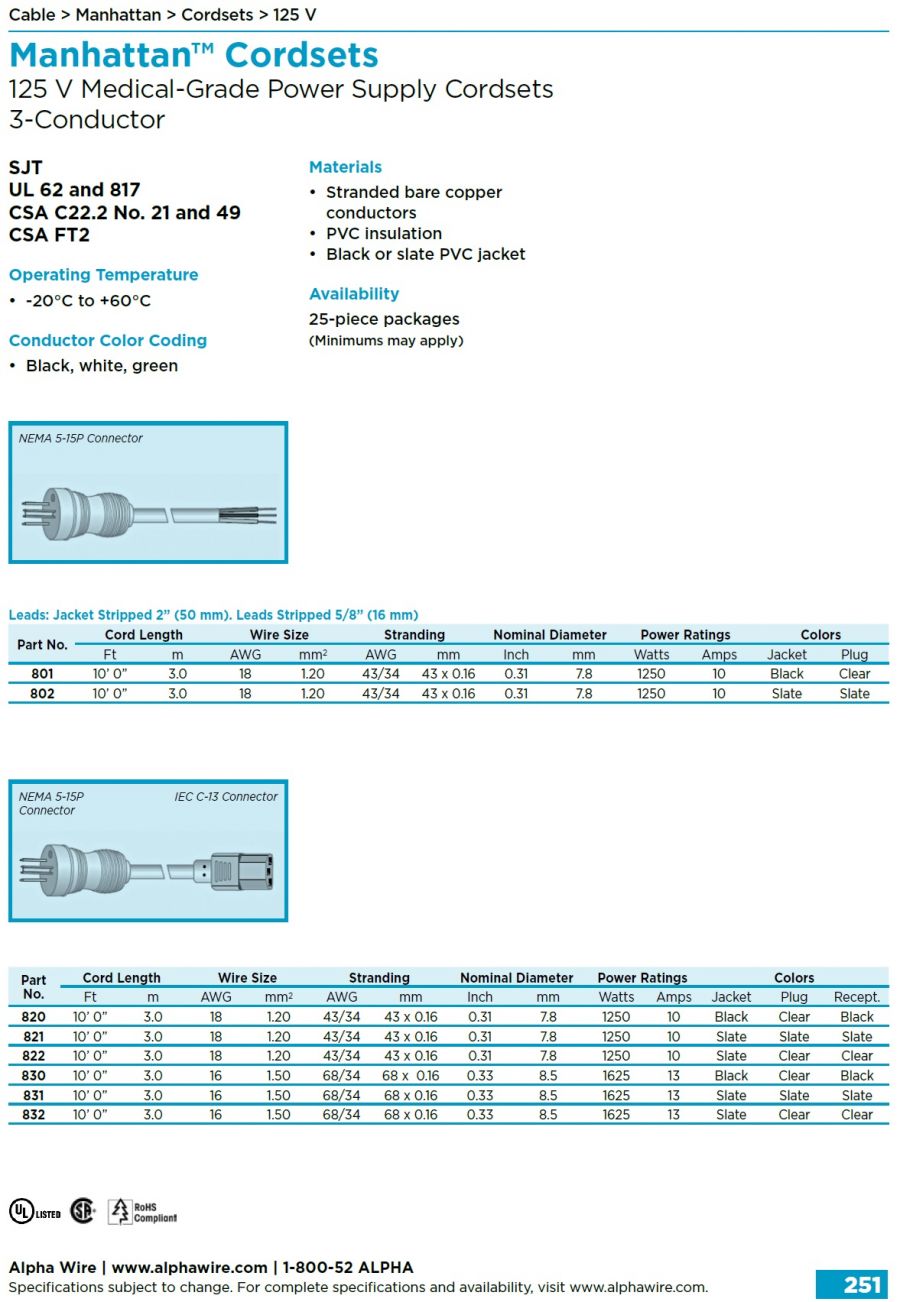

    Manhattan™ Cordsets
    125 V Medical-Grade Power Supply Cordsets
    3-Conductor


    SJT
    UL 62 and 817
    CSA C22.2 No. 21 and 49
    CSA FT2
    Operating Temperature
    • -20°C to +60°C
    Conductor Color Coding
    • Black, white, green
    Materials
    • Stranded bare copper
         conductors
    • PVC insulation
    • Black or slate PVC jacket
    Availability
    25-piece packages
    (Minimums may apply)
