    首頁 > ALPHA-Manhattan™ Cordsets 电源线/成套电源线

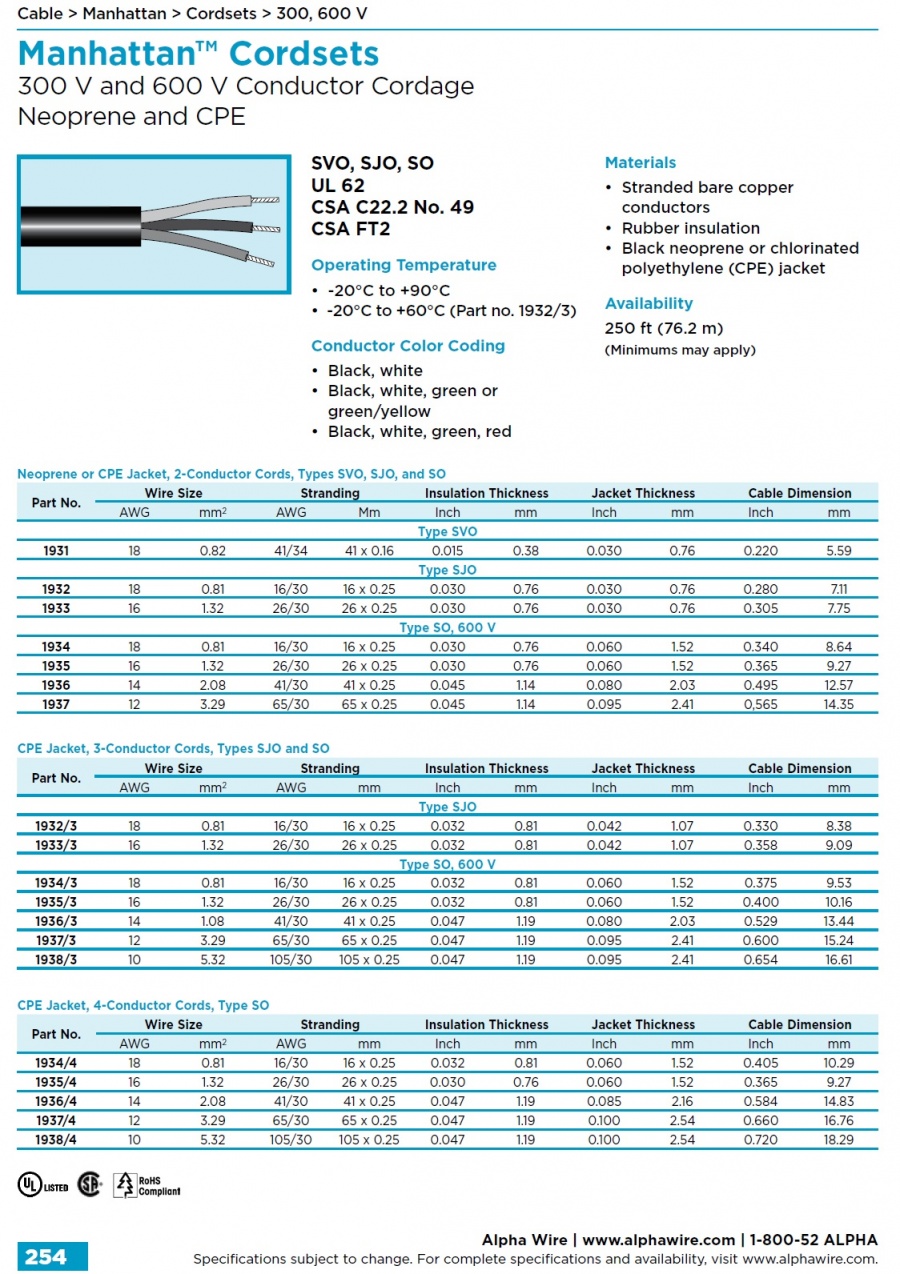

    ALPHA-SO

    商品編號: ALPHA-SO

    ALPHA-SVO, SJO, SO UL 62 CSA C22.2 No. 49 Neoprene -CPE電源線



    Manhattan™ Cordsets
    300 V and 600 V Conductor Cordage
    Neoprene and CPE
    SVO, SJO, SO
    UL 62 CSA C22.2 No. 49 CSA FT2



    Operating Temperature
    • -20°C to +90°C
    • -20°C to +60°C (Part no. 1932/3)
    Conductor Color Coding
    • Black, white
    • Black, white, green or green/yellow
    • Black, white, green, red
    Materials
    • Stranded bare copper conductors
    • Rubber insulation
    • Black neoprene or chlorinated polyethylene (CPE) jacket
    Availability
    250 ft (76.2 m)
    (Minimums may apply)

    1.  Neoprene or CPE Jacket, 2-Conductor Cords, Types SVO, SJO, and SO

    2.  CPE Jacket, 3-Conductor Cords, Types SJO and SO

    3.  CPE Jacket, 4-Conductor Cords, Type SO
