商品編號: ALPHA-24RC2S06
ALPHA-600 V, (Awg 24, 22, 20, 18) Multiconductor, Silver-plated copper PTFE, Braid Shield (-55°C to +200°C)鍍銀鐵氟龍高温电缆

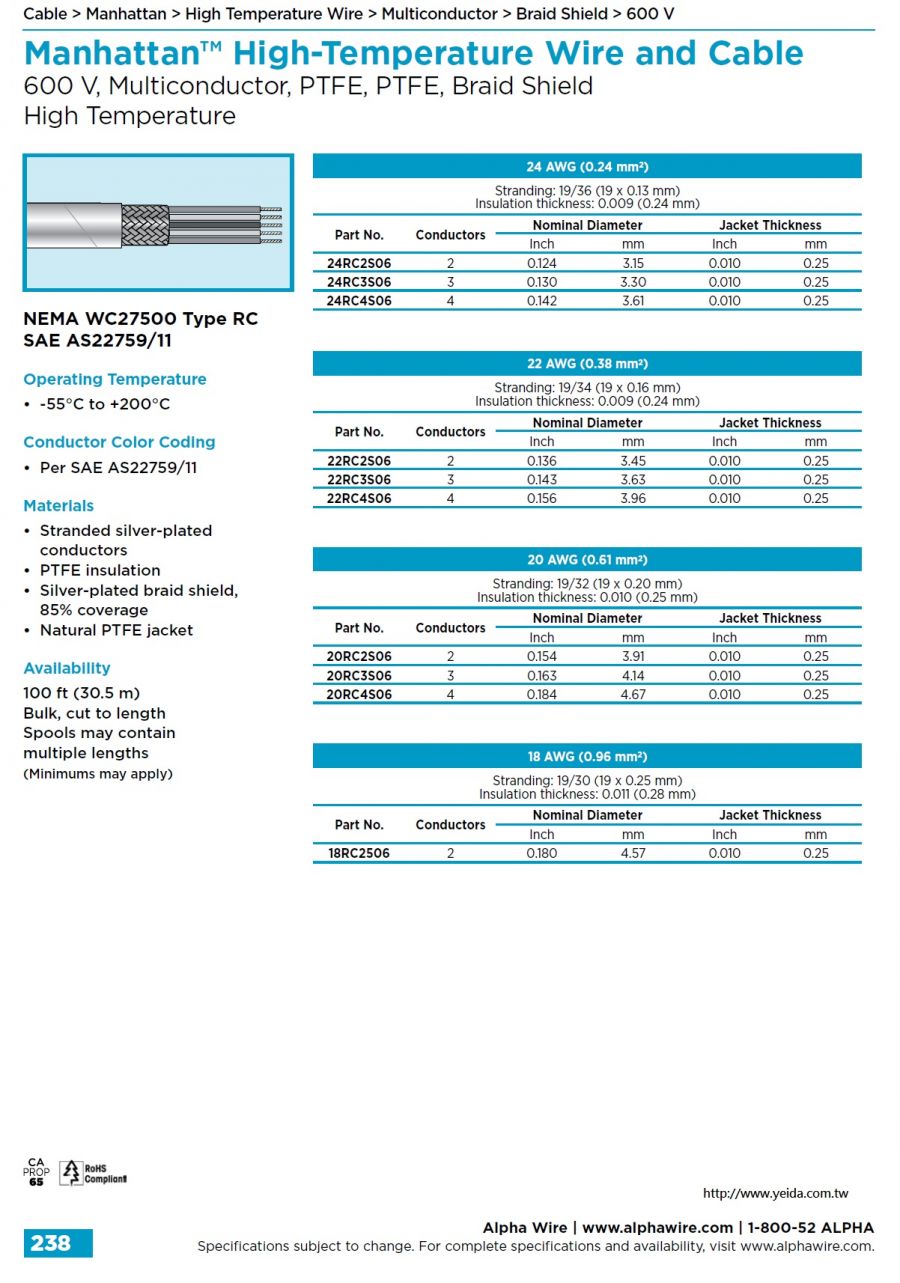

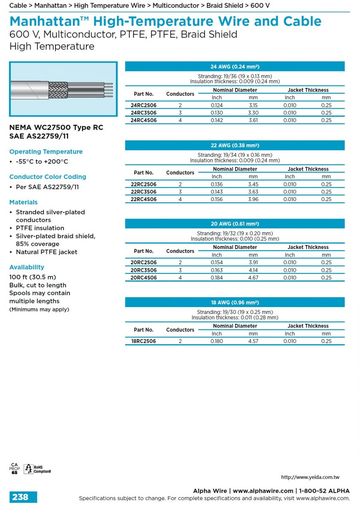

Manhattan™ High-Temperature Wire and Cable
600 V, Multiconductor, PTFE, PTFE, Braid Shield
High Temperature
NEMA WC27500 Type RC
SAE AS22759/11
Operating Temperature
• -55°C to +200°C
Conductor Color Coding
• Per SAE AS22759/11
Materials
• Stranded silver-plated conductors
• PTFE insulation
• Silver-plated braid shield, 85% coverage
• Natural PTFE jacket
Availability
100 ft (30.5 m)
Bulk, cut to length
Spools may contain
multiple lengths
(Minimums may apply)
Alpha Wire 的 Manhattan 高温电缆适用于 150°C 到 540°C 的温度范围。我们在耐高温材料方面的专业知识将帮助您选择正确的电缆,满足控制和动力应用的苛刻高温。
Alpha Wire’s Manhattan brand of high-temperature cables are available for temperatures ranging from 150°C to 200°C. Our expertise in high-temperature materials will help you select the right cable to meet the demanding high-temperature requirements for control and power applications.
Part #
Type
Shielding
Voltage
AWG
# of Elements
Jacket Diameter
18RC2S06
Multi-Conductor
BRAID
600
18
2
PTFE
PTFE
0.182
NEMA WC27500 Type RC, SAE-AS22759/11
20RC2S06
Multi-Conductor
BRAID
600
20
2
PTFE
PTFE
0.158
NEMA WC27500 Type RC, SAE-AS22759/11
20RC3S06
Multi-Conductor
BRAID
600
20
3
PTFE
PTFE
0.167
NEMA WC27500 Type RC, SAE-AS22759/11
20RC4S06
Multi-Conductor
BRAID
600
20
4
PTFE
PTFE
0.183
NEMA WC27500 Type RC, SAE-AS22759/11
22RC2S06
Multi-Conductor
BRAID
600
22
2
PTFE
PTFE
0.138
NEMA WC27500 Type RC, SAE-AS22759/11
22RC3S06
Multi-Conductor
BRAID
600
22
3
PTFE
PTFE
0.146
NEMA WC27500 Type RC, SAE-AS22759/11
22RC4S06
Multi-Conductor
BRAID
600
22
4
PTFE
PTFE
0.159
NEMA WC27500 Type RC, SAE-AS22759/11
24RC2S06
Multi-Conductor
BRAID
600
24
2
PTFE
PTFE
0.124
NEMA WC27500 Type RC, SAE-AS22759/11
24RC3S06
Multi-Conductor
BRAID
600
24
3
PTFE
PTFE
0.131
NEMA WC27500 Type RC, SAE-AS22759/11
24RC4S06
Multi-Conductor
BRAID
600
24
4
PTFE
PTFE
0.142
NEMA WC27500 Type RC, SAE-AS22759/11
M1201
Conductor
BRAID
600
26
1
PTFE
PTFE
0.081
CA Prop 65, MIL-W-16878/4 (Type E), NEMA HP3-EXBEE
M1202
Multi-Conductor
BRAID
600
26
2
PTFE
PTFE
0.124
CA Prop 65, MIL-W-16878/4 (Type E), NEMA HP3-EXBEE
M1203
Multi-Conductor
BRAID
600
26
3
PTFE
PTFE
0.13
CA Prop 65, MIL-W-16878/4 (Type E), NEMA HP3-EXBEE
M1204
Multi-Conductor
BRAID
600
26
4
PTFE
PTFE
0.14
CA Prop 65, MIL-W-16878/4 (Type E), NEMA HP3-EXBEE
M1211
Conductor
BRAID
600
24
1
PTFE
PTFE
0.087
CA Prop 65, MIL-W-16878/4 (Type E), NEMA HP3-EXBEE
M1212
Multi-Conductor
BRAID
600
24
2
PTFE
PTFE
0.136
CA Prop 65, MIL-W-16878/4 (Type E), NEMA HP3-EXBEE
M1213
Multi-Conductor
BRAID
600
24
3
PTFE
PTFE
0.143
CA Prop 65, MIL-W-16878/4 (Type E), NEMA HP3-EXBEE
M1214
Multi-Conductor
BRAID
600
24
4
PTFE
PTFE
0.155
CA Prop 65, MIL-W-16878/4 (Type E), NEMA HP3-EXBEE
M1221
Conductor
BRAID
600
22
1
PTFE
PTFE
0.092
CA Prop 65, MIL-W-16878/4 (Type E), NEMA HP3-EXBFE
M1222
Multi-Conductor
BRAID
600
22
2
PTFE
PTFE
0.146
CA Prop 65, MIL-W-16878/4 (Type E), NEMA HP3-EXBFE
