    首頁 > > ALPHA-Manhattan™ High-Temperature Wire and Cable高溫電纜線

    		ALPHA-72402

    商品編號: ALPHA-72402

    ALPHA- MIL-W-16878/14 (Type E) 600 V, (Awg 24, 22, 20, 18,16) Multiconductor, Silver-plated copper PTFE-FEP, Braid Shield (-55°C to +200°C)軍規鍍銀銅線,鍍銀銅網隔離鐵氟龍高温电缆

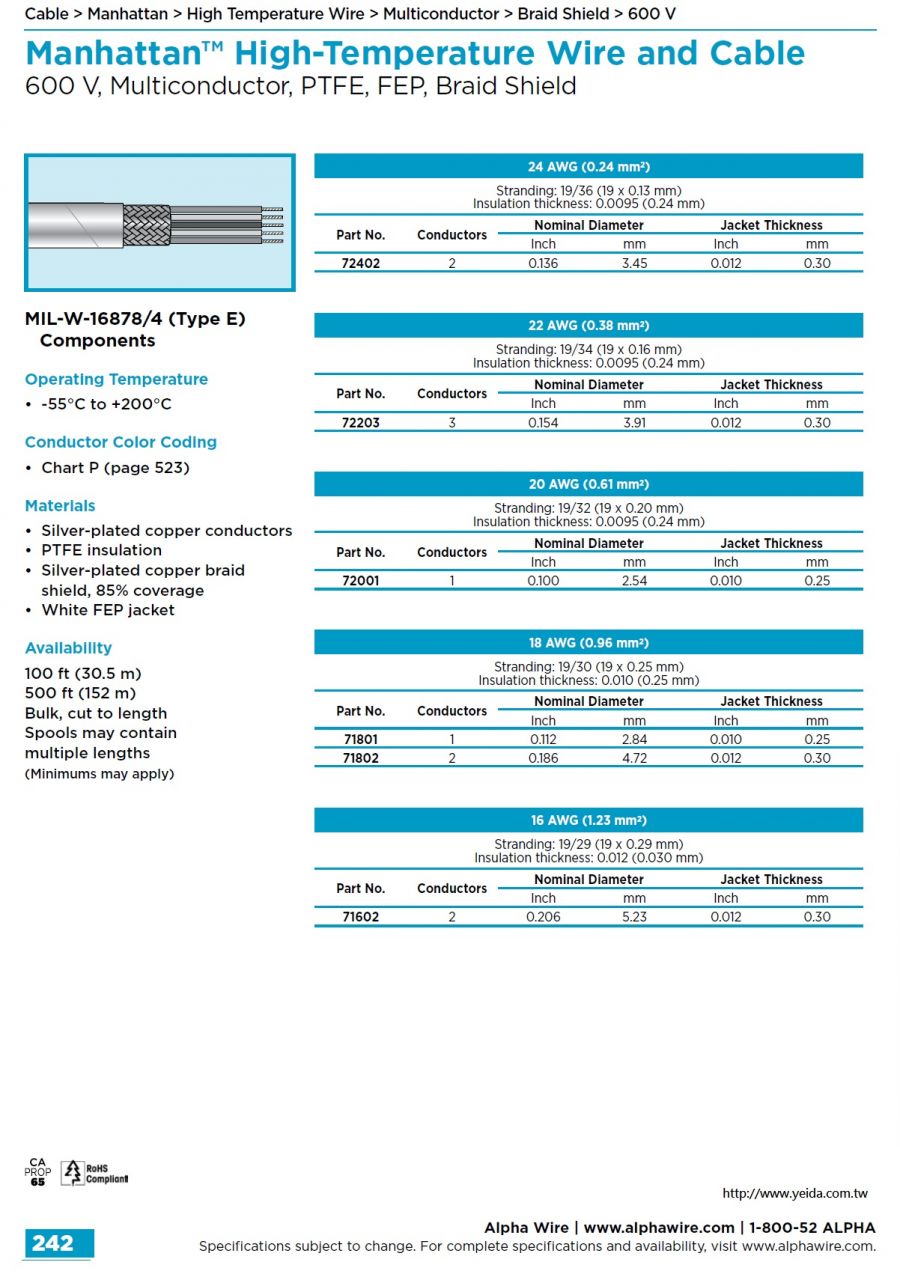

    Manhattan™ High-Temperature Wire and Cable
    600 V, Multiconductor, PTFE, FEP, Braid Shield
    MIL-W-16878/4 (Type E)
    Components


    Operating Temperature
    • -55°C to +200°C
    Conductor Color Coding
    • Chart P (page 523)
    Materials
    • Silver-plated copper conductors
    • PTFE insulation
    • Silver-plated copper braid shield, 85% coverage
    • White FEP jacket
    Availability
    100 ft (30.5 m)
    500 ft (152 m)
    Bulk, cut to length
    Spools may contain
    multiple lengths
    (Minimums may apply)




    Alpha Wire 的 Manhattan 高温电缆适用于 150°C 到 540°C 的温度范围。我们在耐高温材料方面的专业知识将帮助您选择正确的电缆，满足控制和动力应用的苛刻高温。

    Alpha Wire’s Manhattan brand of high-temperature cables are available for temperatures ranging from 150°C to 200°C. Our expertise in high-temperature materials will help you select the right cable to meet the demanding high-temperature requirements for control and power applications.


    Part # Type Shielding Voltage AWG # of Elements

    　

    		 Insulation Material Jacket Material

    　

    		 Jacket Diameter

    　
    275002402 Multi-Conductor BRAID 600 24 2 ETFE PTFE 0.128 MIL-C-27500, MIL-W-22759/16
    71602 Multi-Conductor BRAID 600 16 2 FEP PTFE 0.203 MIL-W-16878/4
    71801 Conductor BRAID 600 18 1 FEP PTFE 0.11 MIL-W-16878/4
    71802 Multi-Conductor BRAID 600 18 2 FEP PTFE 0.183 MIL-W-16878/4
    72001 Conductor BRAID 600 20 1 FEP PTFE 0.1 MIL-W-16878/4
    72203 Multi-Conductor BRAID 600 22 3 FEP PTFE 0.149 MIL-W-16878/4
    72402 Multi-Conductor BRAID 600 24 2 FEP PTFE 0.129 MIL-W-16878/4
    M1201 Conductor BRAID 600 26 1 PTFE PTFE 0.081 CA Prop 65, MIL-W-16878/4 (Type E), NEMA HP3-EXBEE
    M1202 Multi-Conductor BRAID 600 26 2 PTFE PTFE 0.124 CA Prop 65, MIL-W-16878/4 (Type E), NEMA HP3-EXBEE
    M1203 Multi-Conductor BRAID 600 26 3 PTFE PTFE 0.13 CA Prop 65, MIL-W-16878/4 (Type E), NEMA HP3-EXBEE
    M1204 Multi-Conductor BRAID 600 26 4 PTFE PTFE 0.14 CA Prop 65, MIL-W-16878/4 (Type E), NEMA HP3-EXBEE
    M1211 Conductor BRAID 600 24 1 PTFE PTFE 0.087 CA Prop 65, MIL-W-16878/4 (Type E), NEMA HP3-EXBEE
    M1212 Multi-Conductor BRAID 600 24 2 PTFE PTFE 0.136 CA Prop 65, MIL-W-16878/4 (Type E), NEMA HP3-EXBEE
    M1213 Multi-Conductor BRAID 600 24 3 PTFE PTFE 0.143 CA Prop 65, MIL-W-16878/4 (Type E), NEMA HP3-EXBEE
    M1214 Multi-Conductor BRAID 600 24 4 PTFE PTFE 0.155 CA Prop 65, MIL-W-16878/4 (Type E), NEMA HP3-EXBEE
    M1221 Conductor BRAID 600 22 1 PTFE PTFE 0.092 CA Prop 65, MIL-W-16878/4 (Type E), NEMA HP3-EXBFE
    M1222 Multi-Conductor BRAID 600 22 2 PTFE PTFE 0.146 CA Prop 65, MIL-W-16878/4 (Type E), NEMA HP3-EXBFE
    M1223 Multi-Conductor BRAID 600 22 3 PTFE PTFE 0.154 CA Prop 65, MIL-W-16878/4 (Type E), NEMA HP3-EXBFE
    M1224 Multi-Conductor BRAID 600 22 4 PTFE PTFE 0.167 CA Prop 65, MIL-W-16878/4 (Type E), NEMA HP3-EXBFE
    M1231 Conductor BRAID 600 20 1 PTFE PTFE 0.1 CA Prop 65, MIL-W-16878/4 (Type E), NEMA HP3-EXBGE
