    首頁 > ALPHA-Manhattan™ Plenum Cable天花板隔層电缆

    ALPHA-MIL-DTL-16878/1 600 V (Awg 28, ) Braid Shield, Multiconductor, (-55°C to +105°C) PVC-PVC, Plenum Rated 軍規天花板隔層銅網隔離芯型訊號傳輸电缆

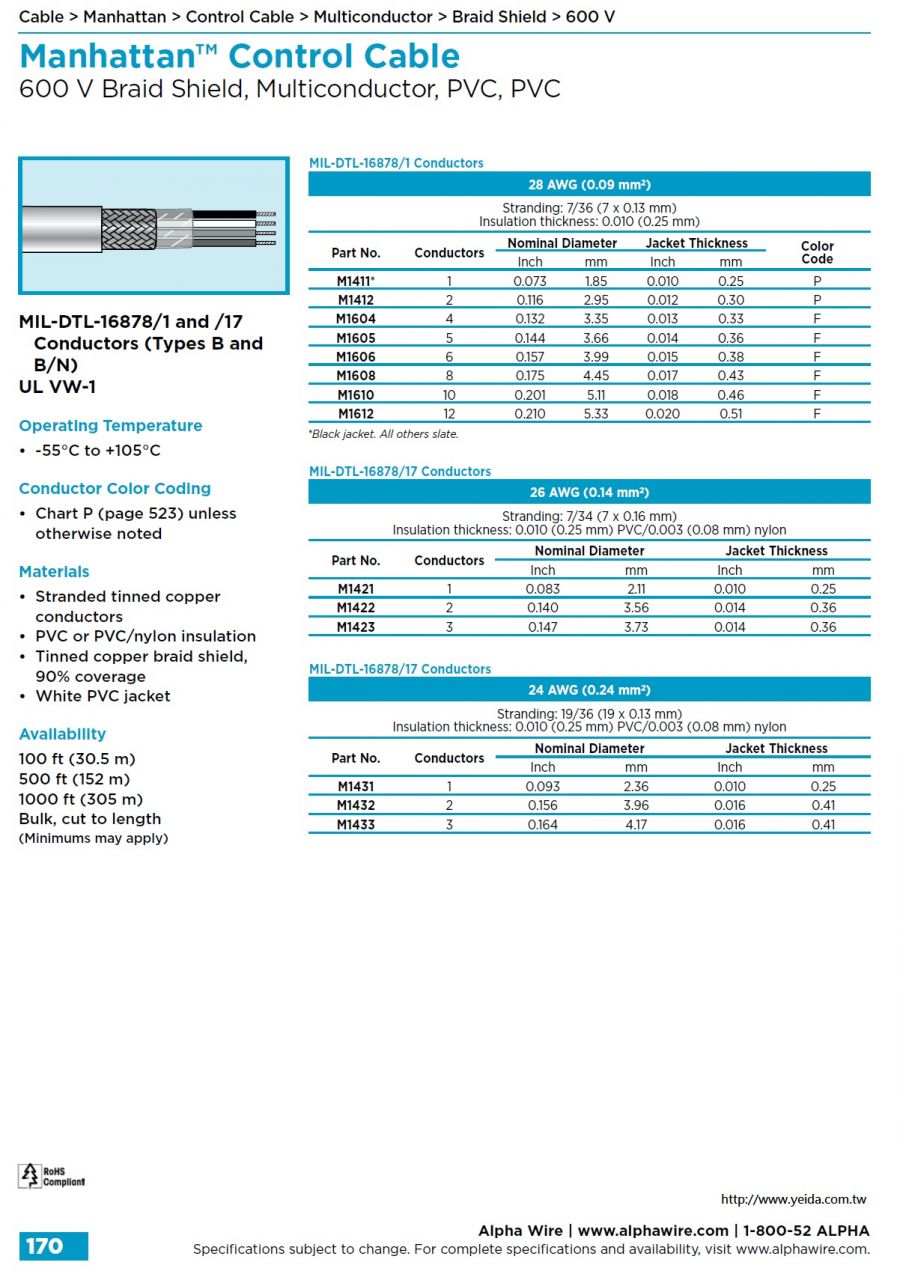

    看原圖

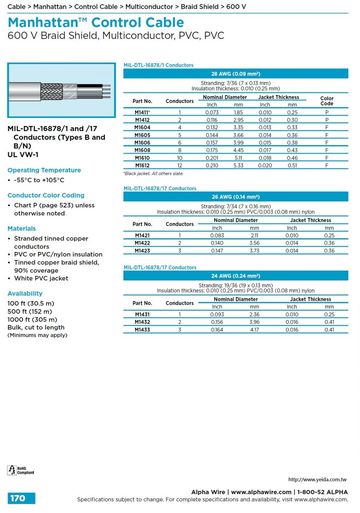

    ALPHA-M1412

    商品編號: ALPHA-M1412

    ALPHA-MIL-DTL-16878/1 600 V (Awg 28, ) Braid Shield, Multiconductor, (-55°C to +105°C) PVC-PVC, Plenum Rated 軍規天花板隔層銅網隔離芯型訊號傳輸电缆



    Manhattan™ Control Cable
    600 V Braid Shield, Multiconductor, PVC, PVC
    MIL-DTL-16878/1 and /17
    Conductors (Types B and
    B/N)
    UL VW-1


    Operating Temperature
    • -55°C to +105°C
    Conductor Color Coding
    • Chart P (page 523) unless otherwise noted
    Materials
    • Stranded tinned copper conductors
    • PVC or PVC/nylon insulation
    • Tinned copper braid shield, 90% coverage
    • White PVC jacket
    Availability
    100 ft (30.5 m)
    500 ft (152 m)
    1000 ft (305 m)
    Bulk, cut to length
    (Minimums may apply)





    整套适用于控制、计算机互连、保安、警报器和建筑能源管理系统的电缆,它们拥有不同的防火级绝缘和护套。

    a full range of cables for control, computer interconnections, security, alarms, and building energy management systems in a variety of plenum-rated insulations and jackets.


    art # Type Shielding Voltage AWG # of Elements



    Jacket Material  Insulation  Material



    Jacket Diameter



    7614/6 Multi-Conductor FOIL 600 14 6 PVC PVC/NYLON 0.447 CA Prop 65, UL DIRECT BURIAL, UL SUN RES, UL TC
    7616/6 Multi-Conductor FOIL 600 16 6 PVC PVC/NYLON 0.401 CA Prop 65, UL DIRECT BURIAL, UL SUN RES, UL TC
    M1411 Conductor BRAID 600 28 1 PVC PVC 0.073 MIL-W-16878/Type B, UL VW/1
    M1412 Multi-Conductor BRAID 600 28 2 PVC PVC 0.116 MIL-W-16878/Type B, UL VW/1
    M1421 Conductor BRAID 600 26 1 PVC PVC/NYLON 0.083 MIL-W-16878/Type B/N, UL VW/1
    M1422 Multi-Conductor BRAID 600 26 2 PVC PVC/NYLON 0.14 MIL-W-16878/Type B/N, UL VW/1
    M1423 Multi-Conductor BRAID 600 26 3 PVC PVC/NYLON 0.147 MIL-W-16878/Type B/N, UL VW/1
    M1431 Conductor BRAID 600 24 1 PVC PVC/NYLON 0.093 MIL-W-16878/Type B/N, UL VW/1
    M1432 Multi-Conductor BRAID 600 24 2 PVC PVC/NYLON 0.156 MIL-W-16878/Type B/N, UL VW/1
    M1433 Multi-Conductor BRAID 600 24 3 PVC PVC/NYLON 0.164 MIL-W-16878/Type B/N, UL VW/1
    M1441 Conductor BRAID 600 22 1 PVC PVC/NYLON 0.1 MIL-W-16878/Type B/N, UL VW/1
    M1442 Multi-Conductor BRAID 600 22 2 PVC PVC/NYLON 0.178 MIL-W-16878/Type B/N, UL VW/1
    M1443 Multi-Conductor BRAID 600 22 3 PVC PVC/NYLON 0.187 MIL-W-16878/Type B/N, UL VW/1
    M1444 Multi-Conductor BRAID 600 22 4 PVC PVC/NYLON 0.202 MIL-W-16878/Type B/N, UL VW/1
    M1451 Conductor BRAID 600 20 1 PVC PVC/NYLON 0.108 MIL-W-16878/Type B/N, UL VW/1
    M1452 Multi-Conductor BRAID 600 20 2 PVC PVC/NYLON 0.194 MIL-W-16878/Type B/N, UL VW/1
    M1453 Multi-Conductor BRAID 600 20 3 PVC PVC/NYLON 0.214 MIL-W-16878/Type B/N, UL VW/1
    M1454 Multi-Conductor BRAID 600 20 4 PVC PVC/NYLON 0.232 MIL-W-16878/Type B/N, UL VW/1
    M1461 Conductor BRAID 600 18 1 PVC PVC/NYLON 0.122 MIL-W-16878/Type B/N, UL VW/1
    M1462 Multi-Conductor BRAID 600 18 2 PVC PVC/NYLON 0.216 MIL-W-16878/Type B/N, UL VW/1
      Part # Type Shielding Voltage AWG # of Elements



    Jacket Material Insulation Material



    Jacket Diameter



    M1604 Multi-Conductor BRAID 600 28 4 PVC PVC 0.136 MIL-W-16878/Type B, UL VW/1
    M1605 Multi-Conductor BRAID 600 28 5 PVC PVC 0.148 MIL-W-16878/Type B, UL VW/1
    M1606 Multi-Conductor BRAID 600 28 6 PVC PVC 0.161 MIL-W-16878/Type B, UL VW/1
    M1608 Multi-Conductor BRAID 600 28 8 PVC PVC 0.175 MIL-W-16878/Type B, UL VW/1
    M1610 Multi-Conductor BRAID 600 28 10 PVC PVC 0.201 MIL-W-16878/Type B, UL VW/1
    M1612 Multi-Conductor BRAID 600 28 12 PVC PVC 0.21 MIL-W-16878/Type B, UL VW/1
