    首頁 > ALPHA-Manhattan™ Plenum Cable天花板隔層电缆

    ALPHA-300 V (Awg 24) Individually Foil Shield, Multipair, (-20°C to +150°C) FEP-PVDF, Plenum Rated 天花板隔層個別隔離對型訊號傳輸电缆
    看原圖

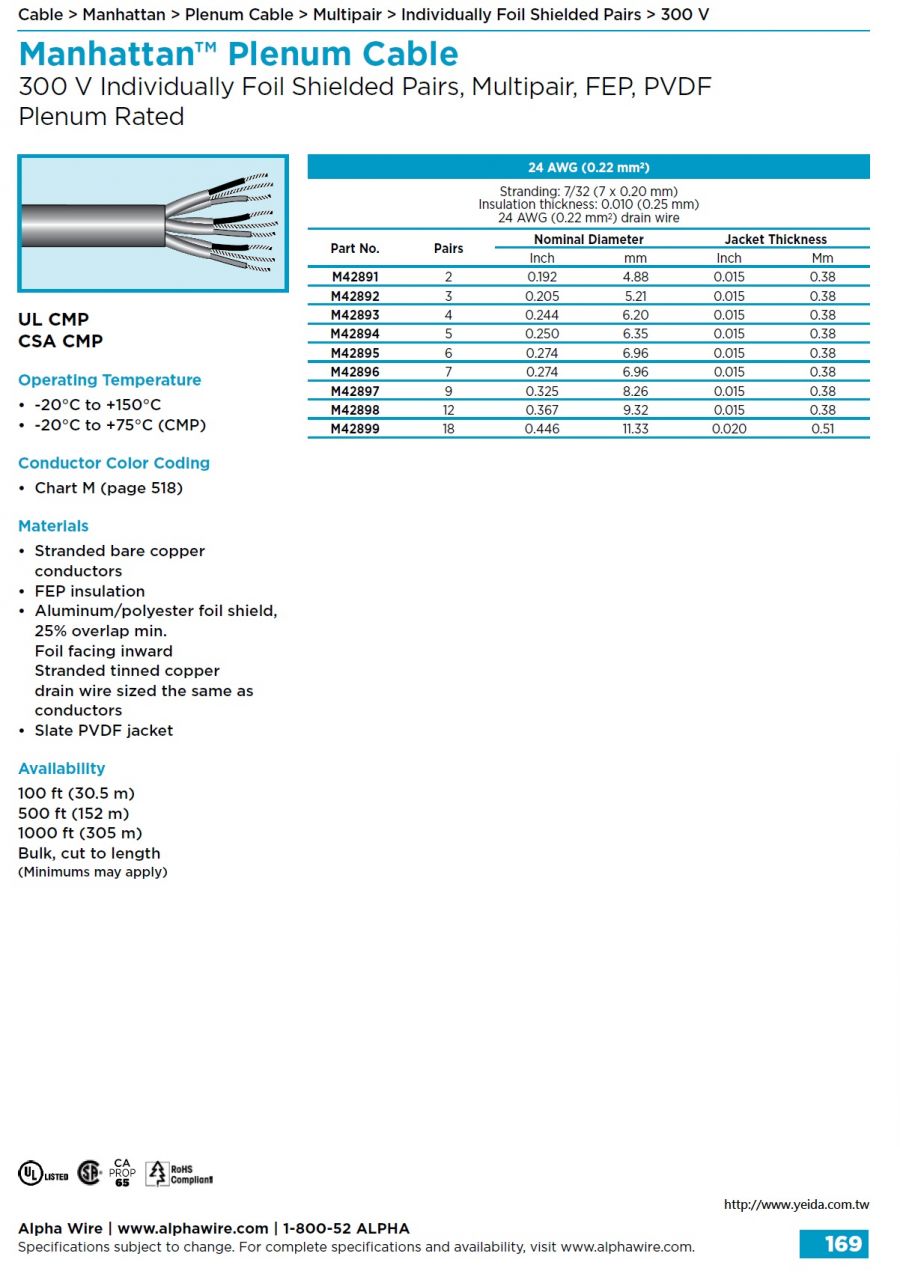

    ALPHA-M42891




    整套适用于控制、计算机互连、保安、警报器和建筑能源管理系统的电缆,它们拥有不同的防火级绝缘和护套。

    a full range of cables for control, computer interconnections, security, alarms, and building energy management systems in a variety of plenum-rated insulations and jackets.

    Part # Type Shielding Voltage AWG # of Elements



    Jacket Material  Insulation  Material



    Jacket Diameter



    M244834 Multi-Conductor FOIL 300 16 2 PPVC PPVC 0.192 CSA CMP, CSA FT6, UL CMP
    M244835 Multi-Conductor FOIL 300 16 3 PPVC PPVC 0.204 CSA CMP, CSA FT6, UL CMP
    M244836 Multi-Conductor FOIL 300 16 4 PPVC PPVC 0.225 CSA CMP, CSA FT6, UL CMP
    M244837 Multi-Conductor FOIL 300 24 2 PPVC PPVC 0.122 CSA CMP, CSA FT6, UL CMP
    M244838 Multi-Conductor FOIL 300 24 3 PPVC PPVC 0.129 CSA CMP, CSA FT6, UL CMP
    M244839 Multi-Conductor FOIL 300 24 4 PPVC PPVC 0.14 CSA CMP, CSA FT6, UL CMP
    M413226 Multi-Conductor FOIL 300 22 2 PVDF FEP 0.118 CSA CMP, CSA FT6, UL CMP
    M413242 Multi-Conductor FOIL 300 18 2 PVDF FEP 0.162 CSA CMP, CSA FT6, UL CMP
    M42891 Multi-Pair FOIL 300 24 2 PVDF FFEP 0.192 CA Prop 65, CSA CMP, UL CMP
    M42892 Multi-Pair FOIL 300 24 3 PVDF FFEP 0.205 CA Prop 65, CSA CMP, UL CMP
    M42893 Multi-Pair FOIL 300 24 4 PVDF FFEP 0.244 CA Prop 65, CSA CMP, UL CMP
    M42894 Multi-Pair FOIL 300 24 5 PVDF FFEP 0.25 CA Prop 65, CSA CMP, UL CMP
    M42895 Multi-Pair FOIL 300 24 6 PVDF FFEP 0.274 CA Prop 65, CSA CMP, UL CMP
    M42896 Multi-Pair FOIL 300 24 7 PVDF FFEP 0.274 CA Prop 65, CSA CMP, UL CMP
    M42897 Multi-Pair FOIL 300 24 9 PVDF FFEP 0.325 CA Prop 65, CSA CMP, UL CMP
    M42898 Multi-Pair FOIL 300 24 12 PVDF FFEP 0.367 CA Prop 65, CSA CMP, UL CMP
    M42899 Multi-Pair FOIL 300 24 18 PVDF FFEP 0.446 CA Prop 65, CSA CMP, UL CMP
    M43103 Multi-Pair FOIL 300 22 3 PPVC FEP 0.211 CSA CMP, UL CMP
    M43106 Multi-Pair FOIL 300 22 6 PPVC FEP 0.301 CA Prop 65, CSA CMP, UL CMP
    M44473 Multi-Pair FOIL 300 22 2 PPVC FEP 0.192 CSA CMP, UL CMP
