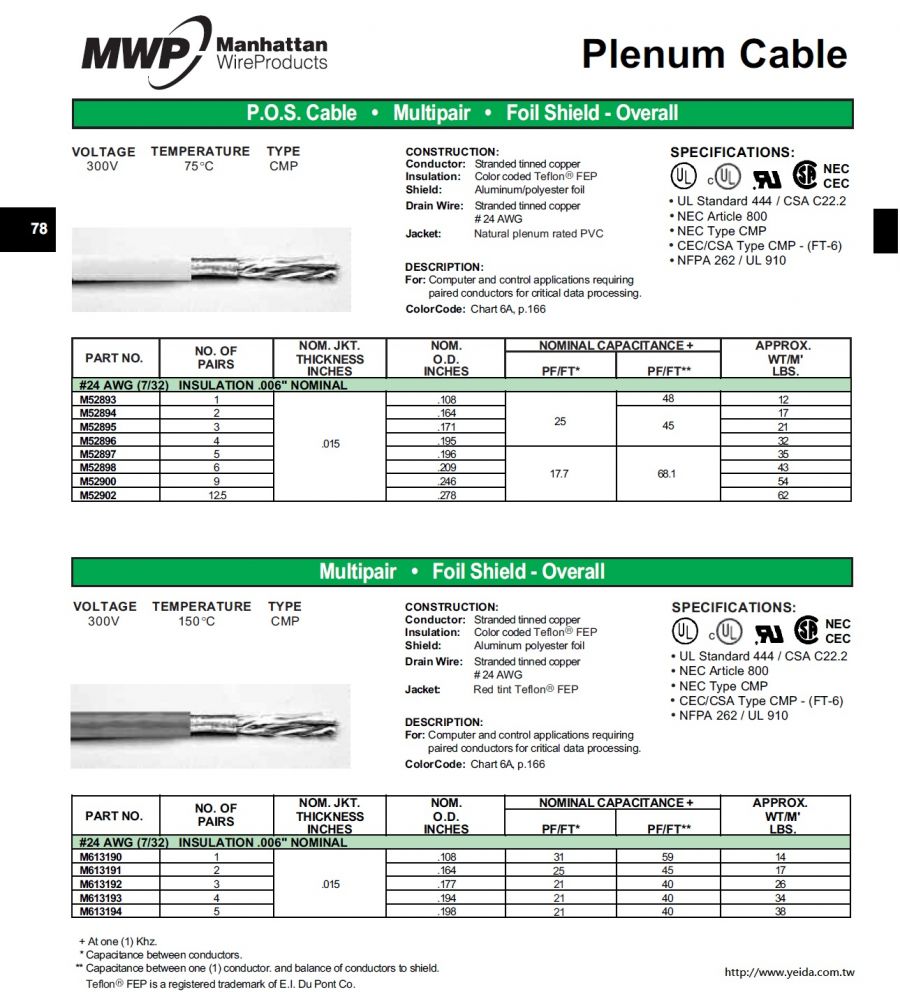

    ALPHA- MWP Plenum P.O.S Cable • Awg24 Multipair •300V 75°C Foil Shield - Overall Data POS Cables 整體鋁箔隔離 收銀機儀表訊號傳輸控制電纜
    看原圖
    ALPHA-M52894

    商品編號: ALPHA-M52894

    ALPHA- MWP Plenum P.O.S Cable • Awg24 Multipair •300V 75°C Foil Shield - Overall Data POS Cables 整體鋁箔隔離 收銀機儀表訊號傳輸控制電纜



    Manhattan™ Electrical Cable

     Multipair • Foil Shield - Overall
    300V  75°C  CMP

    CONSTRUCTION:
    Conductor: Stranded tinned copper
    Insulation: Color coded foamed Teflon FEP
    Shield: Aluminum/polyester foil
    Drain Wire: Stranded tinned copper # 24 AWG
    Jacket: Gray fluorocopolymer

    SPECIFICATIONS:
    UL NEC CEC
    UL Standard 444 / CSA C22.2
    NEC Article 800
    NEC Type CMP
    CEC/CSA Type CMP - (FT-6)
    NFPA 262 / UL 910

    DESCRIPTION:
    For:
     Computer and control applications requiring
             paired conductors for critical data processing.





    Manhattan™ Electrical Cable

    Signal transmission made reliable

    Reliable, durable cable is the centerpiece of any electrical system and Alpha Wire’s Manhattan brand has been a trusted and reliable source of cable for over 60 years. Whether you need something as simple as a power cord or a cable which can maintain audio-video signal integrity in a noisy environment, you’ll find the breadth and depth of products to ensure an optimum solution to your application.

    Manhattan Electrical Cables Brochure





    Types of Manhattan™ Electrical Cable
    • Audio/Video

      From intercom systems to broadcast studios, our range of audio/video cable allows you to tackle the toughest needs easily and reliably.

    • Computer

      For precise signal transmission in computers and control applications, we offer the widest range of shielded and unshielded configurations.

    • Instrumentation

      With our broad product portfolio of single and multiple pair shielded and unshielded products, you’ll be able to satisfy any application in any environment.

    • Thermocouple

      You can find the perfect thermocouple cable based on conductor combinations JX, KX, EX, and SX, as well as insulations suited for applications up to 649°C.

    • Control

      We offer UL style TC in a variety of conductor counts, gauges, shielding options, all with durable PVC/nylon insulation and PVC jackets.

    • Plenum

      We offer a full range of cables for control, computer interconnections, security, alarms, and building energy management systems in a variety of plenum-rated insulations and jackets.

    • Coaxial

      For a complete range of 50, 75, 93, and 100 ohm coaxial, twinaxial, and triaxial cables, we offer a wide range of insulations and jackets meeting the requirements of military specifications and regulatory agencies such as UL and CSA.

    • Cords/Cordsets

      For consumer and industrial devices, business and communication machines, and medical and test equipment, our cords give you everything you need for reliable plugin power.

    • High Temperature

      Alpha Wire’s Manhattan brand of high-temperature cables are available for temperatures ranging from 150°C to 540°C.

    • Security & Data

      A complete product family of security and data cables, optimized for security video, data, and monitoring applications.


    Part #



    Type  Shielding Voltage AWG # of Elements



    Jacket Material



    Insulation Material



    Jacket Diameter
    M52893 Pair FOIL 300 24 1 PPVC FEP 0.155 CA Prop 65, CSA CMP, CSA FT6, UL CMP
    M52894 Pair FOIL 300 24 2 PPVC FEP 0.155
    M52895 Pair FOIL 300 24 3 PPVC FEP 0.164
    M52896 Pair FOIL 300 24 4 PPVC FEP 0.18
    M52897 Pair FOIL 300 24 5 PPVC FEP 0.197
    M52898 Pair FOIL 300 24 6 PPVC FEP 0.215
    M52900 Pair FOIL 300 24 9 PPVC FEP 0.252
    M52902 Composite FOIL 300 24+24 13 PPVC FEP 0.282
    M613190 Pair FOIL 300 24 1 FEP FEP 0.155
    M613191 Pair FOIL 300 24 2 FEP FEP 0.155
    M613192 Pair FOIL 300 24 3 FEP FEP 0.164
    M613193 Pair FOIL 300 24 4 FEP FEP 0.18
    M613194 Pair FOIL 300 24 5 FEP FEP 0.197
    M613226 Conductor FOIL 300 22 2 FEP FEP 0.118 CSA CMP, CSA FT6, UL CMP
    M613242 Conductor FOIL 300 18 2 FEP FEP 0.162
    M64800 Conductor FOIL 300 22 2 FEP FEP 0.108
    M64801 Conductor FOIL 300 22 3 FEP FEP 0.115
    M64802 Conductor FOIL 300 22 4 FEP FEP 0.125
    M64803 Conductor FOIL 300 22 5 FEP FEP 0.138
    M64804 Conductor FOIL 300 22 6 FEP FEP 0.151
