    首頁 > ALPHA-Manhattan™ Plenum Cable天花板隔層电缆

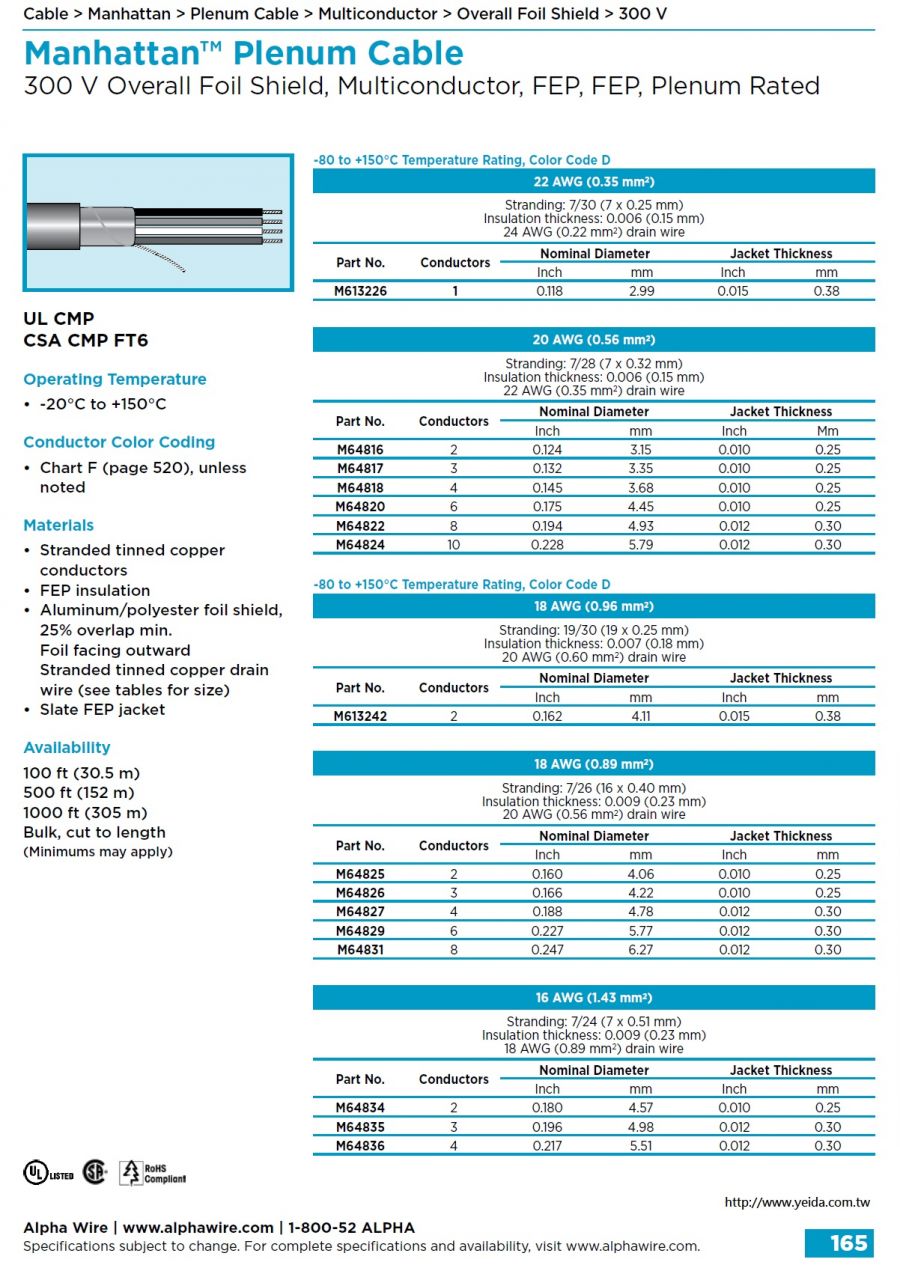

    ALPHA- Manhattan™ Plenum Cable 300 V Overall Foil Shield, (Awg 22 to 16) Multiconductor, FEP, FEP, Plenum Rated 天花板隔層整體鋁箔隔離芯型訊號傳輸控制电缆
    看原圖
    ALPHA-M613226

    商品編號: ALPHA-M613226

    ALPHA- Manhattan™ Plenum Cable 300 V Overall Foil Shield, (Awg 22 to 16) Multiconductor, FEP, FEP, Plenum Rated 天花板隔層整體鋁箔隔離芯型訊號傳輸控制电缆



    Manhattan™ Plenum Cable
    300 V Overall Foil Shield, Multiconductor, FEP, FEP, Plenum Rated
    UL CMP CSA CMP FT6


    Operating Temperature
    • -20°C to +150°C
    Conductor Color Coding
    • Chart F (page 520), unless noted
    Materials
    • Stranded tinned copper conductors
    • FEP insulation
    • Aluminum/polyester foil shield, 25% overlap min. Foil facing outward
         Stranded tinned copper drain wire (see tables for size)
    • Slate FEP jacket
    Availability
    100 ft (30.5 m)
    500 ft (152 m)
    1000 ft (305 m)
    Bulk, cut to length
    (Minimums may apply)



      Part #



    Type  Shielding Voltage AWG # of Elements



    Jacket Material



    Insulation Material



    Jacket Diameter
    M613226 Conductor FOIL 300 22 2 FEP FEP 0.118 CSA CMP, CSA FT6, UL CMP
    M613242 Conductor FOIL 300 18 2 FEP FEP 0.162
    M64800 Conductor FOIL 300 22 2 FEP FEP 0.108
    M64801 Conductor FOIL 300 22 3 FEP FEP 0.115
    M64802 Conductor FOIL 300 22 4 FEP FEP 0.125
    M64803 Conductor FOIL 300 22 5 FEP FEP 0.138
    M64804 Conductor FOIL 300 22 6 FEP FEP 0.151
    M64805 Conductor FOIL 300 22 7 FEP FEP 0.151
    M64806 Conductor FOIL 300 22 8 FEP FEP 0.168
    M64807 Conductor FOIL 300 22 9 FEP FEP 0.181
    M64808 Conductor FOIL 300 22 10 FEP FEP 0.196
    M64809 Conductor FOIL 300 22 12 FEP FEP 0.203
    M64812 Conductor FOIL 300 22 15 FEP FEP 0.221
    M64816 Conductor FOIL 300 20 2 FEP FEP 0.124
    M64817 Conductor FOIL 300 20 3 FEP FEP 0.132
    M64818 Conductor FOIL 300 20 4 FEP FEP 0.145
    M64820 Conductor FOIL 300 20 6 FEP FEP 0.175
    M64822 Conductor FOIL 300 20 8 FEP FEP 0.194
    M64824 Conductor FOIL 300 20 10 FEP FEP 0.228
    M64825 Conductor FOIL 300 18 2 FEP FEP 0.16
    M64826 Conductor FOIL 300 18 3 FEP FEP 0.166
    M64827 Conductor FOIL 300 18 4 FEP FEP 0.188
    M64829 Conductor FOIL 300 18 6 FEP FEP 0.227
    M64831 Conductor FOIL 300 18 8 FEP FEP 0.247
    M64834 Conductor FOIL 300 16 2 FEP FEP 0.18
    M64835 Conductor FOIL 300 16 3 FEP FEP 0.196
    M64836 Conductor FOIL 300 16 4 FEP FEP 0.217
