    首頁 > ALPHA-Manhattan™ Security and Data Cable安全監控資訊傳輸電線

    ALPHA-Manhattan™ Security and Data Cable (Awg 16, 18, 20, 22, 24) 300V Foil Shielded, Multiconductor, PVC, PVC 鋁箔隔離安全監控儀表資訊傳輸控制电缆
    看原圖
    ALPHA-M239023

    商品編號: ALPHA-M239023

    ALPHA-Manhattan™ Security and Data Cable (Awg 16, 18, 20, 22, 24) 300V Foil Shielded, Multiconductor, PVC, PVC 鋁箔隔離安全監控儀表資訊傳輸控制电缆

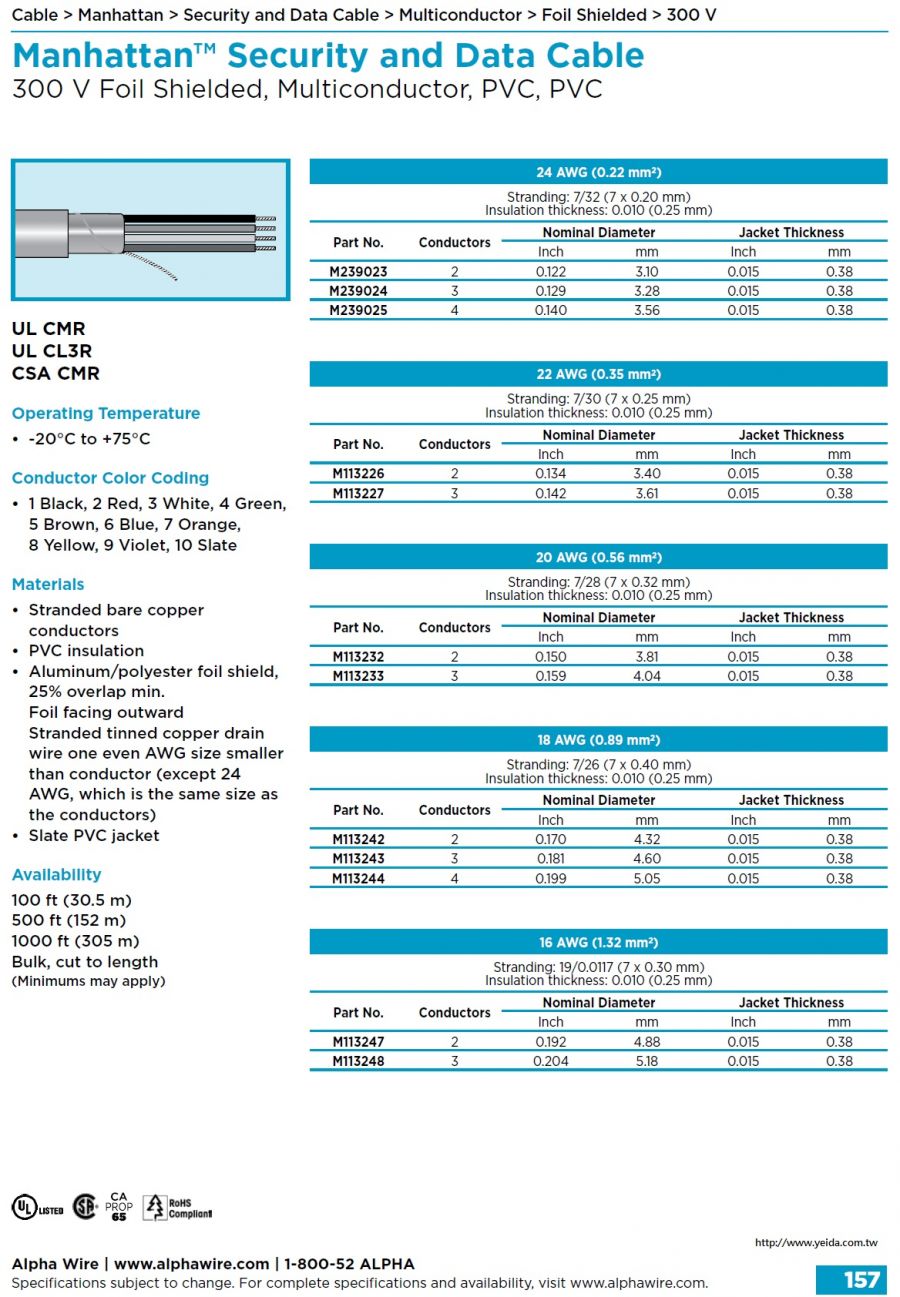

    Manhattan™ Security and Data Cable
    300 V Foil Shielded, Multiconductor, PVC, PVC
    UL CMR UL CL3R
    CSA CMR


    Operating Temperature
    • -20°C to +75°C
    Conductor Color Coding
    • 1 Black, 2 Red, 3 White, 4 Green, 5 Brown, 6 Blue, 7 Orange,
         8 Yellow, 9 Violet, 10 Slate
    Materials
    • Stranded bare copper conductors
    • PVC insulation
    • Aluminum/polyester foil shield, 25% overlap min. Foil facing outward
         Stranded tinned copper drain wire one even AWG size smaller than conductor (except 24
         AWG, which is the same size as the conductors)
    • Slate PVC jacket
    Availability
    100 ft (30.5 m)
    500 ft (152 m)
    1000 ft (305 m)
    Bulk, cut to length
    (Minimums may apply)





    可靠、持久耐用的电缆是任何电气系统的核心,Alpha Wire 的 Manhattan™ 品牌拥有 60 多年的历史,是深受信赖的可靠电缆。无论您需要的是一根电源线,还是在噪音环境中保持音视频信号完整性的电缆,您都能找到恰当的产品来确保构建适合您应用的最佳解决方案。

    From intercom systems to broadcast studios, our range of audio/video cable allows you to tackle the toughest needs easily and reliably.

    从对讲机系统到广播播音室,我们一系列的音频/视频电缆可以让您轻松、可靠地解决最苛刻的需求。




    Part # Cable Type  Shielding Voltage AWG No Of Elements



    Jacket Material  Insulation Material Jacket Diameter
    M113226 Conductor FOIL 300 22 2 PVC PVC 0.134 CA Prop 65, CSA CMR, REACH Regulation (EC 1907/2006), UL CMR
    M113227 Conductor FOIL 300 22 3 PVC PVC 0.142
    M113232 Conductor FOIL 300 20 2 PVC PVC 0.15
    M113233 Conductor FOIL 300 20 3 PVC PVC 0.159
    M113242 Conductor FOIL 300 18 2 PVC PVC 0.17
    M113243 Conductor FOIL 300 18 3 PVC PVC 0.181
    M113244 Conductor FOIL 300 18 4 PVC PVC 0.199
    M113247 Conductor FOIL 300 16 2 PVC PVC 0.192
    M113248 Conductor FOIL 300 16 3 PVC PVC 0.204
    M239023 Conductor FOIL 300 24 2 PVC PVC 0.122
    M239024 Conductor FOIL 300 24 3 PVC PVC 0.129
    M239025 Conductor FOIL 300 24 4 PVC PVC 0.14
