首頁 > ALPHA- 電線電纜專區> ALPHA-Manhattan™ 電器電纜 > ALPHA-Thermocouple Wire 熱電偶補償導線

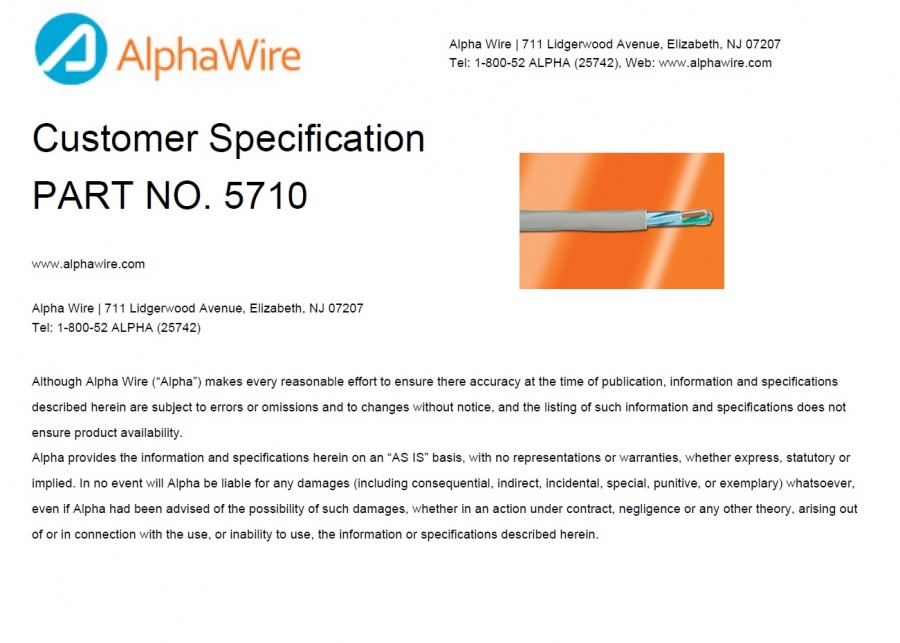

ALPHA-5710
Part # Type Shielding Voltage Thermocouple Type AWG Stranding # of Elements Insulation Material Jacket Material Jacket Diameter 5710 Duplex UNSHIELDED JX 14 Solid 2 PVC PVC 5711/2004 Multi-Pair FOIL 300 JX 20 Solid 4 PVC PVC 0.366 5711/2008 Multi-Pair FOIL 300 JX 20 Solid 8 PVC PVC 0.46 5711/2012 Multi-Pair FOIL 300 JX 20 Solid 12 PVC PVC 0.533 5712/2002 Multi-Pair FOIL 300 KX 20 Solid 2 PVC PVC 0.296 5712/2004 Multi-Pair FOIL 300 KX 20 Solid 4 PVC PVC 0.366 5712/2008 Multi-Pair FOIL 300 KX 20 Solid 8 PVC PVC 0.46 5712/2024 Multi-Pair FOIL 300 KX 20 Solid 24 PVC PVC 0.712 5712/2036 Multi-Pair FOIL 300 KX 20 Solid 36 PVC PVC 0.837 5713/2004 Multi-Pair FOIL 300 TX 20 Solid 4 PVC PVC 0.366 5713/2012 Multi-Pair FOIL 300 TX 20 Solid 12 PVC PVC 0.533 5713/2024 Multi-Pair FOIL 300 TX 20 Solid 24 PVC PVC 0.712 5714 Duplex UNSHIELDED JX 16 Solid 2 Glass Braid Glass Braid 5714/1601 Pair FOIL 300 RSX 16 Solid 1 PVC PVC 0.252 5715 Duplex UNSHIELDED JX 16 Solid 2 FEP FEP 5716 Duplex UNSHIELDED JX 20 Solid 2 PVC PVC 5717/1601 Multi-Pair FOIL 300 JX 16 Solid 2 FEP FEP 0.181 5717/2001 Multi-Pair FOIL 300 JX 20 Solid 2 FEP FEP 0.144 5718/1601 Multi-Pair FOIL 300 KX 16 Solid 2 FEP FEP 0.181 5718/2001 Multi-Pair FOIL 300 KX 20 Solid 2 FEP FEP 0.144
Part # Type Shielding Voltage Thermocouple Type AWG Stranding # of Elements Jacket Material Jacket Material Jacket Diameter M9006011 Multi-Pair UNSHIELDED 300 EX 16 Solid 2 PVC PVC 0.235 M9006012 Multi-Pair UNSHIELDED 300 JX 16 Solid 2 PVC PVC 0.235 M9006013 Multi-Pair UNSHIELDED 300 KX 16 Solid 2 PVC PVC 0.235 M9006014 Multi-Pair UNSHIELDED 300 TX 16 Solid 2 PVC PVC 0.235 M9020011 Multi-Pair FOIL 300 EX 20 Solid 2 PVC PVC 0.235 M9020012 Multi-Pair FOIL 300 JX 20 Solid 2 PVC PVC 0.205 M9020013 Multi-Pair FOIL 300 KX 20 Solid 2 PVC PVC 0.205 M9020014 Multi-Pair FOIL 300 TX 20 Solid 2 PVC PVC 0.205 M9026011 Multi-Pair FOIL 300 EX 16 Solid 2 PVC PVC 0.235 M9026012 Multi-Pair FOIL 300 JX 16 Solid 2 PVC PVC 0.235 M9026013 Multi-Pair FOIL 300 KX 16 Solid 2 PVC PVC 0.235 M9026014 Multi-Pair FOIL 300 TX 16 Solid 2 PVC PVC 0.235 M9000011 Pair UNSHIELDED 300 EX 20 Solid 2 PVC PVC 0.205 M9000012 Multi-Pair UNSHIELDED 300 JX 20 Solid 2 PVC PVC 0.205 M9000013 Multi-Pair UNSHIELDED 300 KX 20 Solid 2 PVC PVC 0.205 M9000014 Multi-Pair UNSHIELDED 300 TX 20 Solid 2 PVC PVC 0.205 M9240043 Multi-Pair FOIL 300 KX 20 Solid 4 PVC PVC 0.44 M9240044 Multi-Pair FOIL 300 TX 20 Solid 4 PVC PVC 0.44 M9240081 Multi-Pair FOIL 300 EX 20 Solid 8 PVC PVC 0.55 M9240082 Multi-Pair FOIL 300 JX 20 Solid 8 PVC PVC 0.55 M9240083 Multi-Pair FOIL 300 KX 20 Solid 8 PVC PVC 0.55 M9240084 Multi-Pair FOIL 300 TX 20 Solid 8 PVC PVC 0.55 M9240121 Multi-Pair FOIL 300 EX 20 Solid 12 PVC PVC 0.665 M9240122 Multi-Pair FOIL 300 JX 20 Solid 12 PVC PVC 0.665 M9240123 Multi-Pair FOIL 300 KX 20 Solid 12 PVC PVC 0.665 M9240124 Multi-Pair FOIL 300 TX 20 Solid 12 PVC PVC 0.665 M9240162 Multi-Pair FOIL 300 JX 20 Solid 16 PVC PVC 0.74 M9240241 Multi-Pair FOIL 300 EX 20 Solid 24 PVC PVC 0.875 M9240242 Multi-Pair FOIL 300 JX 20 Solid 24 PVC PVC 0.875 M9240243 Multi-Pair FOIL 300 KX 20 Solid 24 PVC PVC 0.875 M9240244 Multi-Pair FOIL 300 TX 20 Solid 24 PVC PVC 0.875 M9240362 Multi-Pair FOIL 300 JX 20 Solid 36 PVC PVC 1.01 Applicable Specifications
ANSI MC 96-1-1982, IEEE 383, NEC Art. 501 Class 1 Div. 2, NEC Art. 725, NEC Art. 727, NEC PTLC/ITC, UL 1581, UL 2250
★★★★商品規格描述★★★★ Part # Type Shielding Voltage Thermocouple Type AWG Stranding # of Elements Insulation Material Jacket Material Jacket Diameter Applicable Specifications 5721 Duplex UNSHIELDED KX 16 Solid 2 PVC PVC 5724 Duplex UNSHIELDED KX 20 Solid 2 PVC PVC 5724S Duplex UNSHIELDED KX 20 7/28 2 PVC PVC 5730 Duplex UNSHIELDED TX 16 Solid 2 PVC PVC 5731 Duplex UNSHIELDED TX 20 Solid 2 PVC PVC 5731S Duplex UNSHIELDED TX 20 7/28 2 PVC PVC 5740 Duplex UNSHIELDED RSX 16 Solid 2 PVC PVC 5741H Duplex UNSHIELDED SX 16 Solid 2 Glass Braid Glass Braid 5762S Duplex UNSHIELDED JX 20 7/28 2 Glass Braid Glass Braid ANSI MC 96-1 5763H Duplex UNSHIELDED J 20 Solid 2 Glass Braid Glass Braid ANSI MC 96-1, ASTM E 230, CA Prop 65 5766 Duplex UNSHIELDED J 24 Solid 2 Glass Braid Glass Braid 5767H Duplex UNSHIELDED J 24 Solid 2 Glass Braid Glass Braid ANSI MC 96-1, ASTM E 230 5769/1 Duplex UNSHIELDED J 30 Solid 2 Glass Braid Glass Braid ANSI MC 96-1, ASTM E 230 5772S Duplex UNSHIELDED K 20 7/28 2 Glass Braid Glass Braid ANSI MC 96-1, ASTM E 230 5773H Duplex UNSHIELDED K 20 Solid 2 Glass Braid Glass Braid ANSI MC 96-1, ASTM E 230 5776 Duplex UNSHIELDED K 24 Solid 2 Glass Wrap Glass Braid M9160012 Duplex UNSHIELDED J 20 Solid 2 FEP FEP .072 x .124 ANSI MC 96-1-1975 M9160013 Duplex UNSHIELDED K 20 Solid 2 FEP FEP .072 x .124 ANSI MC 96-1-1975 M9160014 Duplex UNSHIELDED T 20 Solid 2 FEP FEP .072 x .124 ANSI MC 96-1-1975 M9180012 Duplex UNSHIELDED J 20 Solid 2 Glass Braid Glass Braid .164 x .109 ANSI MC 96-1-195 M9180013 Duplex UNSHIELDED K 20 Solid 2 Glass Braid Glass Braid .164 x .109 ANSI MC 96-1-195 M9180014 Duplex UNSHIELDED T 20 Solid 2 Glass Braid Glass Braid .164 x .109 ANSI MC 96-1-195
