    TVS/ESD Arrays - RLSD52AxxxV Series 二極管 TVS/ESD 陣列
    看原圖
    YRUILON-RLSD52Q

    商品編號: YRUILON-RLSD52Q

    TVS/ESD Arrays - RLSD52AxxxV Series 二極管 TVS/ESD 陣列



    TVS/ESD Arrays - RLSD52QxxxV Series TVS/ESD 陣列

    Features
    • 200 Watts peak pulse power (tp = 8/20μs)
    • Transient protection for data lines to
    IEC 61000-4-2 (ESD) ±30kV (air), ±15kV (contact)
    IEC 61000-4-4 (EFT) 40A (tp = 5/50ns)
    Cable Discharge Event (CDE)

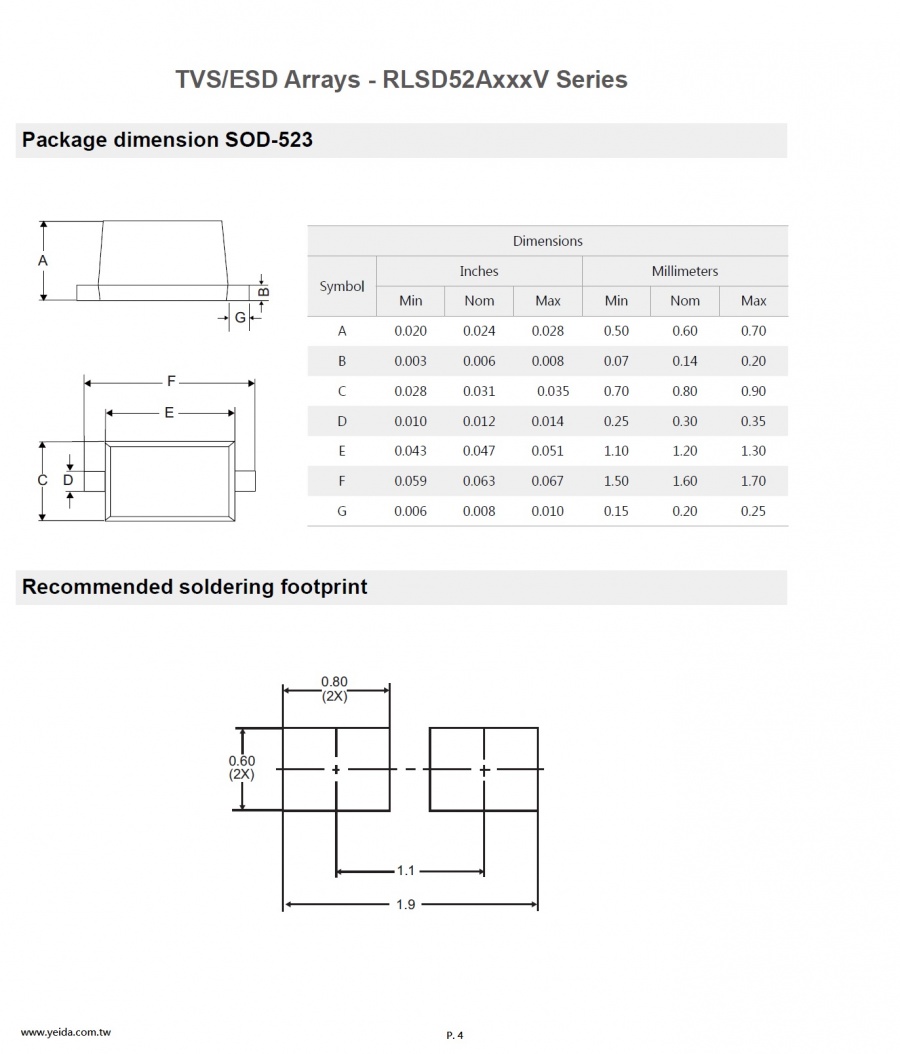

    • Ultra-small SOD-523 package (1.7 x 0.9 x 0.7mm)
    • Protects one I/O or power line
    • Low clamping voltage
    • Working voltage
    • Low leakage current
    • Solid-state silicon-avalanche technology

    Mechanical Characteristics
    • SOD-523 package
    • Molding compound flammability rating: UL 94V-0
    • Packaging: Tape and Reel per EIA 481
    • Lead Finish: Matte tin
    • RoHS Compliant

    Applications
    • Switches / Buttons
    • Test Equipment /Instrumentation
    • Point-of-Sale Terminals
    • Medical Equipment
    • Notebooks / Desktops /Servers• Computer Peripherals

    Life Support Note

    • Not Intended for Use in Life Support or Life
    Saving Applications
    • The products shown herein are not designed
    for use in life sustaining or life saving
    applications unless otherwise expressly indicated

    Warehouse Storage Conditions of Products

    Storage Conditions:
    1. Storage Temperature: -10°C~+40°C
    2. Relative Humidity:≤75%RH
    3. Keep away from corrosive atmosphere and sunlight.
    4. Period of Storage: 1 year

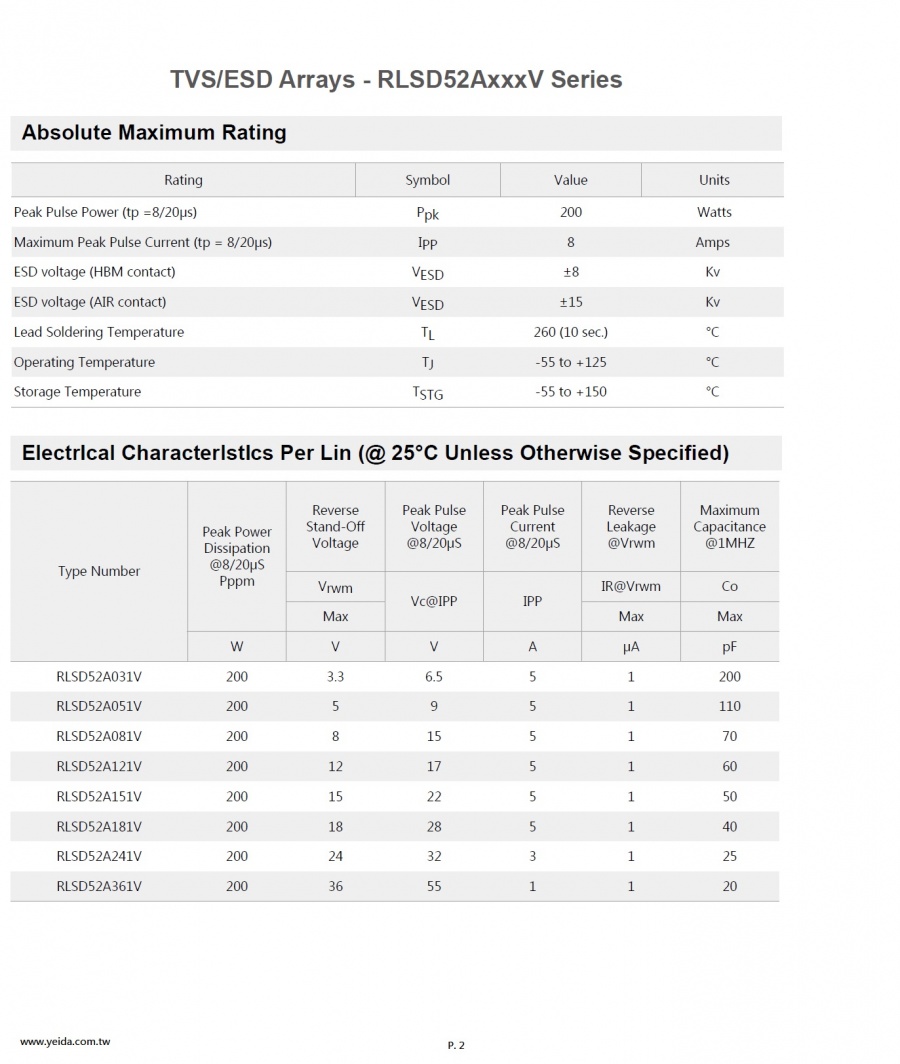

    型號/PDF Ppk(W) Rrwm(V) Vc(V) ESD Contact(kV) ESD Air(kV) 8x20μs(A) Cj(pF) IR(μA) Package
    RLSD52A031V 200 3.3 6.5 15KV 8KV 5 1 200 SOD-523
    RLSD52A051V 200 5 9 15KV 8KV 5 1 110 SOD-523
    RLSD52A121V 200 12 17 15KV 8KV 5 1 60 SOD-523
    RLSD52A151V 200 15 22 15KV 8KV 5 1 50 SOD-523
    RLSD52A241V 200 24 32 15KV 8KV 3 1 25 SOD-523
    RLSD52A361V 200 36 55 15KV 8KV 1 1 20 SOD-523
    RLSD52A051C 200 5 11/14 15KV 8KV 5/15 1 160 SOD-523
    RLSD32A031C 350 3.3 7.5/16 15KV 8KV 5/30 125 300 SOD-323
    RLSD32A051C 350 5 9.8/14.5 15KV 8KV 5/24 5 200 SOD-323
    RLSD32A121C 350 12 19/24 15KV 8KV 5/15 1 100 SOD-323
    RLSD32A151C 350 15 24/29 15KV 8KV 5/10 1 75 SOD-323
    RLSD32A241C 350 24 36/42 15KV 8KV 1/4 1 50 SOD-323
    RLSD32A361C 350 36 58/71 15KV 8KV 1/3 1 45 SOD-323
