    冷媒線 / 冷媒ライン UL 5048
    看原圖
    YEIDA-Refrigerant


    商品編號:
    YEIDA-Refrigerant

    冷媒線 / 冷媒ライン UL 5048



    適用於密閉型冷凍壓縮機用馬達之出口線, 耐冷媒用PETP之絕緣電線。

    • 技術資料
    • 溫度範圍:-40oC ~ +105 oC
    • 額定電壓:600V

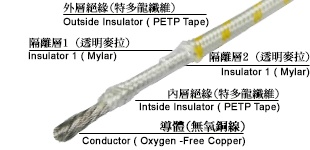

    • 導體:無氧銅線/ Oxygen-Free Copper
    • 絕緣體:特多龍纖維/ PETP Tape
    • 顏色: 訂製色/ Customized

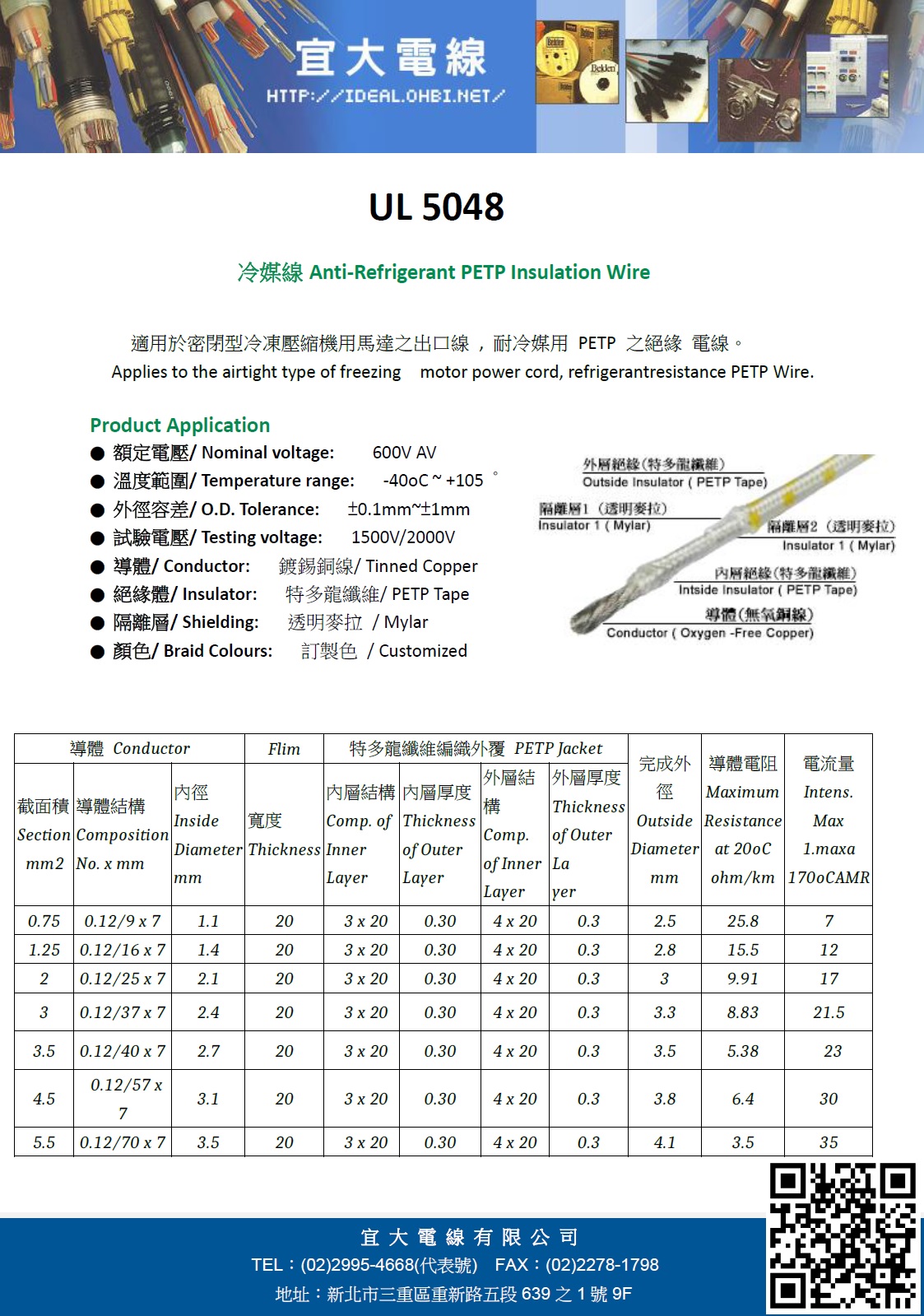

    UL5048 冷媒線 產品規格表


    導體
    Conductor
    特多龍纖維編織外覆
    PETP Jacket
    電氣特性
    Electrical Characteristic
    截面積
    mm2
    導體結構
    Composition
    No. x mm
    內徑

    Inside
    Diameter mm

    內層結購
    Comp. of Inner Layer
    內層厚度
    Thickness of Outer Layer
    外層結構
    Comp. of Inner Layer
    外層結構
    Comp. of Inner Layer
    完成外徑
    Outside Diameter
    mm
    導體電阻
    Maximum Resistance at 20℃ ohm/km
    電流量
    Intens. Max 1.maxa 170℃-AMR
    0.75 0.12/9 x 7 1.1 3 x 20 0.30 4 x 20 0.30 2.50 25.8 7
    1.25 0.12/16 x 7 1.4 3 x 20 0.30 4 x 20 0.30 2.80 15.5 12
    2.0 0.12/25 x 7 2.1 3 x 20 0.30 4 x 20 0.30 3.00 9.91 17
    3.0 0.12/37 x 7 2.4 3 x 20 0.30 4 x 20 0.30 3.30 8.83 21.5
    3.5 0.12/40 x 7 2.7 3 x 20 0.30 4 x 20 0.30 3.50 5.38 23
    4.5 0.12/57 x 7 3.1 3 x 20 0.30 4 x 20 0.30 3.80 6.40 6.4
    5.5 0.12/70 x 7 3.5 3 x 20 0.30 4 x 20 0.30 4.10 3.50 3.5
