    ALPHA PV1030 Awg-10 2,000V XLPE UL4703 CSA RW 90, REACH Regulation (EC 1907/2006), ROHS , UL PV WIRE, SUN RES, VW-1 XLPE太陽能光伏電線
    看原圖
    		ALPHA-PV1030

    商品編號: ALPHA-PV1030

    ALPHA PV1030 Awg-10 2,000V XLPE UL4703 CSA RW 90, REACH Regulation (EC 1907/2006), ROHS , UL PV WIRE, SUN RES, VW-1 XLPE太陽能光伏電線
    Part # Voltage AWG Stranding Insulation Thickness Insulation Diameter Insulation Material Applicable Specifications
    PV1030 2000 10 105/30 0.063 0.311 XLPE CSA RW 90, REACH Regulation (EC 1907/2006), ROHS - RoHS Compliance, UL PV WIRE, UL SUN RES, UL VW-1

    特点 ：

    • 防日晒、臭氧和紫外线
    • 防潮
    • 符合 RoHS （《电气、电子设备中限制使用某些有害物质指令》）
    • 遵守 REACH
    • 温度范围：-40°C 到 +90°C



    Diameters (In)
    1) Component 1 1 X 1 HOOKUP
    a) Conductor 10 (105/30) AWG TC 0.118
    b) Insulation 0.063" Wall, Nom. XLPE 0.247+/- 0.006
    (1) Separator Polyester Tape, 10% Overlap, Min.
    (2) Color(s) BLACK
    2) Jacket 0.032" Wall, Nom.,PVC 0.311 (0.324 Max.)
    a) Color(s) BLACK
    b) Print ALPHA WIRE-* P/N PV1030
    10 AWG (UL) PV WIRE 90C WET/DRY 2000V SUN RES
    -40C VW-1 CSA LL7874 10 AWG RW90 1000V
    ROHS
    * = Factory Code
    [Note: Product may have c(UL) or CSA markings depending upon plant of manufacture.]
    Applicable Specifications
    1) UL VW-1
      SUN RES
      -40C
      PV WIRE 90°C Dry / 90°C Wet / 2000 VRMS
    2) CSA International RW90 90°C Dry / 90°C Wet / 1000 VRMS
    Environmental
    1) EU Directive 2002/95/EC(RoHS):
      All materials used in the manufacture of this part are in compliance with EU Directive 2002/95/EU regarding the restriction of use of certain hazardous substances in electrical and electronic equipment. Consult Alpha Wire's web site for compliance Date of Manufacture.
    2) REACH Regulation (EC 1907/2006):
      This product does not contain any of the substances listed on the European Union REACH Substance of Very High Concern (SVHC) candidate list, dated 30 March 2010, in excess of a concentration of 0.1% weight/weight.
    Properties
    Physical & Mechanical Properties
    1) Temperature Range -40 to 90°C
    2) Bend Radius 10X Cable Diameter
    3) Pull Tension 82 Lbs, Maximum
    4) Sunlight Resistance Yes
    Electrical Properties (For Engineering purposes only)
    1) Voltage Rating 2000 VRMS
    2) Inductance 0.05 µH/ft, Nominal
    3) Conductor DCR 1.08 Ω/1000ft @20°C, Nominal
    4) Current 55 amps per conductor @30°C, Maximum
    Other
    Packaging Flange x Traverse x Barrel (inches)
    a) 1000 FT 18 x 12 x 8 Continuous length
    b) 100 FT 10 x 4 x 3.5 Continuous length
      [Spool dimensions may vary slightly]

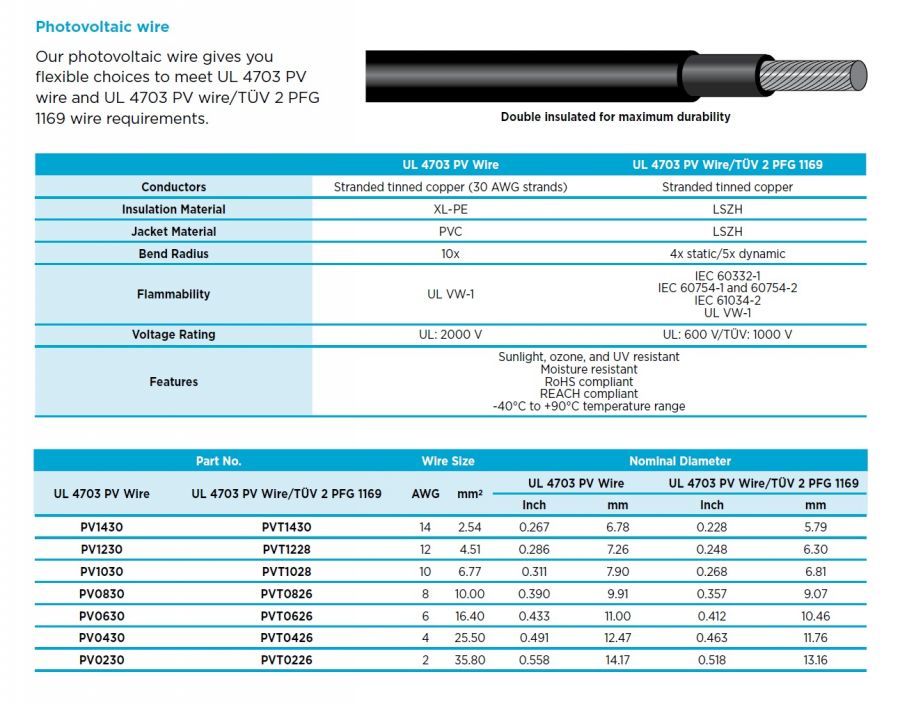

    Our photovoltaic wire gives you flexible choices to meet UL 4703 PV wire and UL 4703 PV wire/TÜV 2 PFG 1169 wire requirements.

      Part # Voltage AWG Stranding Insulation Thickness Nominal Diameter Insulation Material Applicable Specifications
    AlphaPV0230 2000 2 665/30 0.078 0.558 XLPE REACH Regulation (EC 1907/2006), ROHS - RoHS Compliance, UL -40C, UL PV WIRE, UL SUN RES, UL VW-1
    Alpha PV0430 2000 4 420/30 0.078 0.491 XLPE REACH Regulation (EC 1907/2006), ROHS - RoHS Compliance, UL -40C, UL PV WIRE, UL SUN RES, UL VW-1
    AlphaPV0630 2000 6 266/30 0.078 0.433 XLPE REACH Regulation (EC 1907/2006), ROHS - RoHS Compliance, UL -40C, UL PV WIRE, UL SUN RES, UL VW-1
    AlphaPV0830 2000 8 168/30 0.078 0_390 XLPE REACH Regulation (EC 1907/2006), ROHS - RoHS Compliance, UL -40C, UL PV WIRE, UL SUN RES, UL VW-1
    AlphaPV1030 2000 10 105/30 0.063 0.311 XLPE CSA RW 90, REACH Regulation (EC 1907/2006), ROHS - RoHS Compliance, UL PV WIRE, UL SUN RES, UL VW-1
    AlphaPV1230 2000 12 65/30 0.063 0.286 XLPE CSA RW 90, REACH Regulation (EC 1907/2006), ROHS - RoHS Compliance, UL PV WIRE, UL SUN RES, UL VW-1
    Alpha PV1430 2000 14 41/30 0.063 0.267 XLPE CSA RW 90, REACH Regulation (EC 1907/2006), ROHS - RoHS Compliance, UL PV WIRE, UL SUN RES, UL VW-1

    AlphaPV0230, Alpha PV0430, AlphaPV0630, AlphaPV0830, AlphaPV1030, AlphaPV1230, Alpha PV1430
