    ALPHA PVT0826 AWG-8 1,000V LSZH TUV 2PfG 1169/08.2007, REACH (EC 1907/2006), ROHS, UL -40C, UL 4703, PV WIRE, SUN RES, VW-1 低煙無毒太陽能光伏電線
    看原圖
    		ALPHA-PVT0826

    商品編號: ALPHA-PVT0826

    ALPHA PVT0826 AWG-8 1,000V LSZH TUV 2PfG 1169/08.2007, REACH (EC 1907/2006), ROHS, UL -40C, UL 4703, PV WIRE, SUN RES, VW-1 低煙無毒美歐雙認證太陽能光伏電線

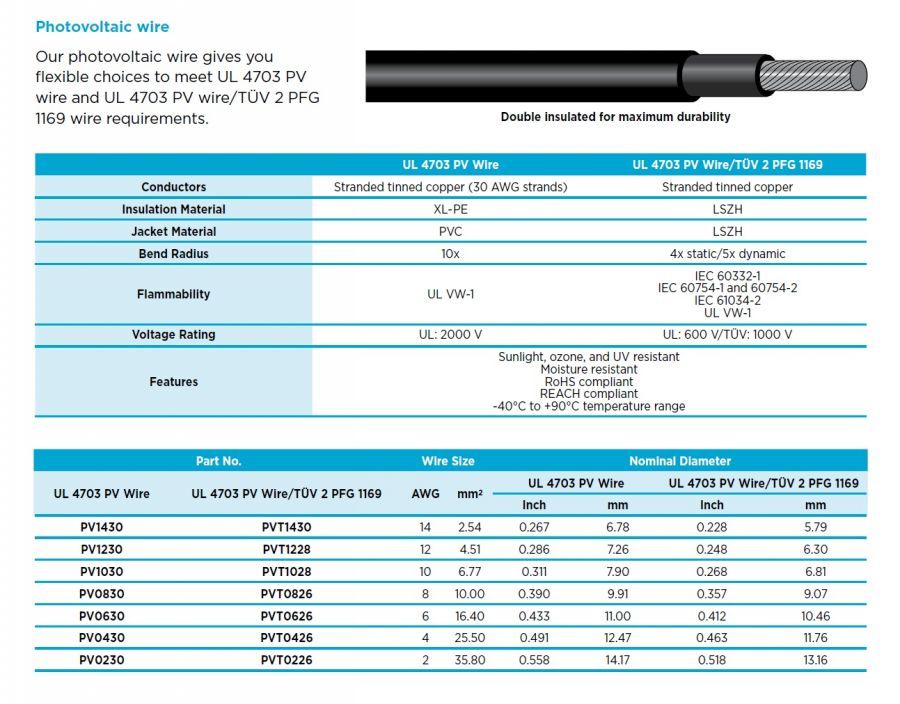

    部件号 Voltage AWG Stranding Insulation Thickness Insulation Diameter Insulation Material Applicable Specifications
    PVT0826 1000 8 78/26 0.06 0.340 LSZH OTHER - TUV 2PfG 1169/08.2007, REACH Regulation (EC 1907/2006), ROHS - RoHS Compliance, UL -40C, UL 4703, UL PV WIRE, UL SUN RES, UL VW-1
    • Sunlight, ozone, and UV resistant
    • Moisture resistant
    • RoHS compliant
    • REACH compliant
    • -40°C to +90°C temperature range
    　 Part # Voltage AWG Stranding Insulation Thickness Insulation Diameter

    　

    		 Insulation Material
    PV0230 2000 2 665/30 0.078 0.558 XLPE REACH Regulation (EC 1907/2006), ROHS - RoHS Compliance, UL -40C, UL PV WIRE, UL SUN RES, UL VW-1
    PV0430 2000 4 420/30 0.078 0.491 XLPE REACH Regulation (EC 1907/2006), ROHS - RoHS Compliance, UL -40C, UL PV WIRE, UL SUN RES, UL VW-1
    PV0630 2000 6 266/30 0.078 0.433 XLPE REACH Regulation (EC 1907/2006), ROHS - RoHS Compliance, UL -40C, UL PV WIRE, UL SUN RES, UL VW-1
    PV0830 2000 8 168/30 0.078 0_390 XLPE REACH Regulation (EC 1907/2006), ROHS - RoHS Compliance, UL -40C, UL PV WIRE, UL SUN RES, UL VW-1
    PV1030 2000 10 105/30 0.063 0.311 XLPE CSA RW 90, REACH Regulation (EC 1907/2006), ROHS - RoHS Compliance, UL PV WIRE, UL SUN RES, UL VW-1
    PV1230 2000 12 65/30 0.063 0.286 XLPE CSA RW 90, REACH Regulation (EC 1907/2006), ROHS - RoHS Compliance, UL PV WIRE, UL SUN RES, UL VW-1
    PV1430 2000 14 41/30 0.063 0.267 XLPE CSA RW 90, REACH Regulation (EC 1907/2006), ROHS - RoHS Compliance, UL PV WIRE, UL SUN RES, UL VW-1
    PVT0226 1000 2 279/26 0.06 0.484 LSZH OTHER - TUV 2PfG 1169/08.2007, REACH Regulation (EC 1907/2006), ROHS - RoHS Compliance, UL -40C, UL 4703, UL PV WIRE, UL SUN RES, UL VW-1
    PVT0426 1000 4 199/26 0.06 0.436 LSZH OTHER - TUV 2PfG 1169/08.2007, REACH Regulation (EC 1907/2006), ROHS - RoHS Compliance, UL -40C, UL 4703, UL PV WIRE, UL SUN RES, UL VW-1
    PVT0626 1000 6 128/26 0.06 0.386 LSZH OTHER - TUV 2PfG 1169/08.2007, REACH Regulation (EC 1907/2006), ROHS - RoHS Compliance, UL -40C, UL 4703, UL PV WIRE, UL SUN RES, UL VW-1
    PVT0826 1000 8 78/26 0.06 0.340 LSZH OTHER - TUV 2PfG 1169/08.2007, REACH Regulation (EC 1907/2006), ROHS - RoHS Compliance, UL -40C, UL 4703, UL PV WIRE, UL SUN RES, UL VW-1
    PVT1028 1000 10 84/28 0.045 0.275 LSZH OTHER - TUV 2PfG 1169/08.2007, REACH Regulation (EC 1907/2006), ROHS - RoHS Compliance, UL -40C, UL 4703, UL PV WIRE, UL SUN RES, UL VW-1
    PVT1228 1000 12 56/28 0.045 0.252 LSZH OTHER - TUV 2PfG 1169/08.2007, REACH Regulation (EC 1907/2006), ROHS - RoHS Compliance, UL -40C, UL 4703, UL PV WIRE, UL SUN RES, UL VW-1
    PVT1430 1000 14 50/30 0.045 0.230 LSZH OTHER - TUV 2PfG 1169/08.2007, REACH Regulation (EC 1907/2006), ROHS - RoHS Compliance, UL -40C, UL 4703, UL PV WIRE, UL SUN RES, UL VW-1

    Alpha PVT0226, Alpha PVT0426, Alpha PVT0626, Alpha PVT0826, Alpha PVT1028, Alpha PVT1228,
