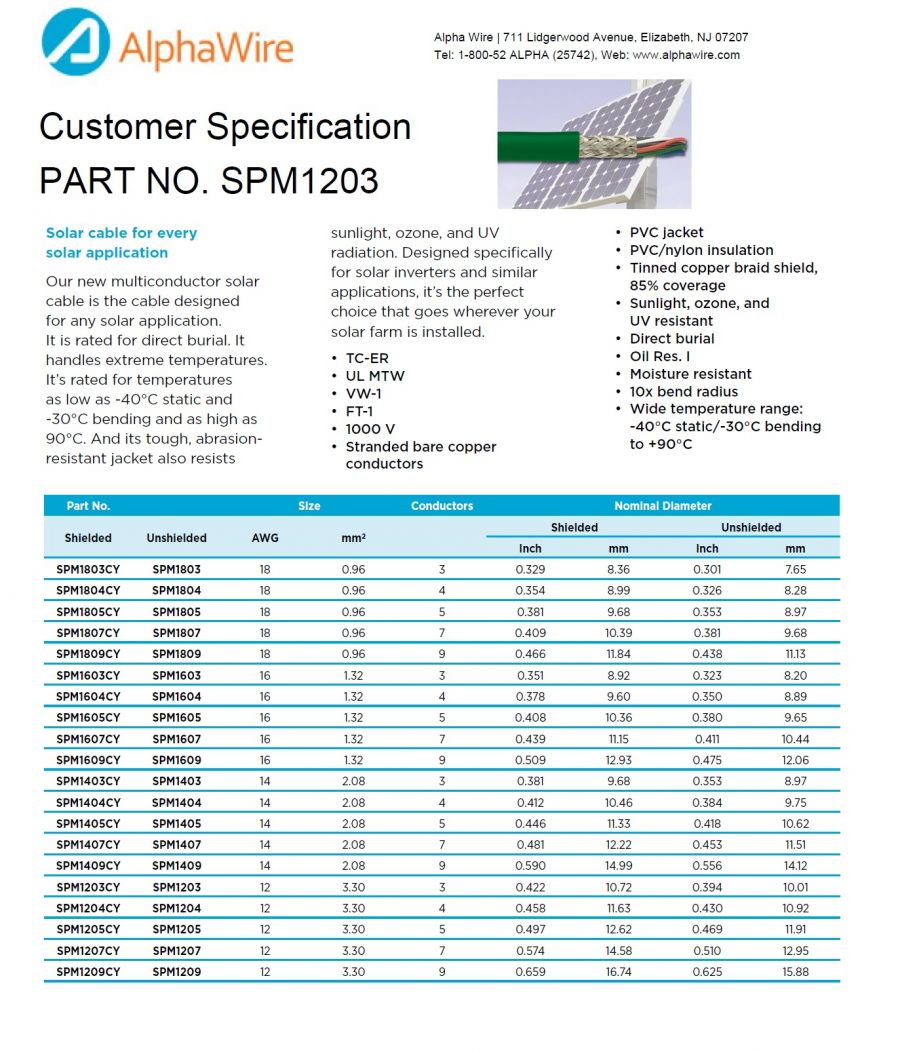

    ALPHA-SPM1203 Awg12 x 3C PVC/NYLON 1000V ROHS - RoHS Compliance, UL 1277 Type TC-ER, UL MTW, UL VW/1 Solar Cable PV 耐油抗日照可直埋太陽能光伏電纜
    看原圖
    		ALPHA-SPM1203


    商品編號: ALPHA-SPM1203

    ALPHA-SPM1203 Awg12 x 3C PVC/NYLON 1000V ROHS - RoHS Compliance, UL 1277 Type TC-ER, UL MTW, UL VW/1 Solar Cable PV 耐油抗日照可直埋太陽能光伏電纜

    Part # Type Shielding Voltage AWG # of Elements Jacket Diameter Applicable Specifications
    SPM1203 Conductor UNSHIELDED 1000 12 3 0.394 ROHS - RoHS Compliance, UL 1277 Type TC-ER, UL MTW, UL VW/1
    • TC-ER
    • UL MTW
    • VW-1
    • 1000 V
    • Stranded bare copper conductors
    • PVC jacket
    • PVC/nylon insulation
    • Tinned copper braid shield, 85% coverage
    • Sunlight, ozone, and UV resistant
    • Direct burial
    • Oil Res. I
    • Moisture resistant
    • 10x bend radius
    • Wide temperature range: -40°C static/-30°C bending to +90°C


    1) Component 1 3 X 1 COND 　
    a) Conductor 12 (65/30) AWG BC 0.093
    b) Insulation 0.016" Wall, Nom. PVC/ 0.005" Wall NYLON 0.135
    (1) Color Code Alpha Wire Color Code F
    Cond Color Cond Color Cond Color
    1 BLACK 2 WHITE 3 RED
    2) Cable Assembly 3 Components Cabled 　
    a) Twists: 3.0 Twists/foot (min) 　
    b) Core Wrap Clear Mylar Tape, 25% Overlap, Min. 　
    3) Jacket 0.050" Wall, Nom.,PVC 0.394+/- 0.019
    a) Color(s) GREEN
    b) Print ALPHA WIRE-* P/N SPM1203 3C 12 AWG (3.29mm2)
    SERIES SPM (UL) WTTC 90C DRY/WET 1000V OR
    (UL) TC-ER THWN-2 CDRS 90C DRY/WET 600V DIR BUR
    SUN RES OR MTW 12 AWG FLEXING --- C(RU) AWM
    I/II A/B 105C 600V FT1 CE ROHS
    (DATE CODE) (SEQ FOOTAGE)
    * = Factory Code
    　
    Applicable Specifications
    1) UL 　 　
    a) Component 1 THWN-2 90°C Dry / 90°C Wet / 600 VRMS
    b) Overall UL 1277 TC 90°C Dry / 90°C Wet / 600 VRMS
    　 UL 2277 WTTC 90°C Dry / 90°C Wet / 1000 VRMS
    　 SUN RES 　
    　 UL 1685 Vertical Tray Flame Test 　
    　 UL 1063 MTW 90°C Dry / 60°C Wet / 600 VRMS
    　 DIRECT BURIAL 　
    　 EXPOSED RUN 　
    　 OIL RES I 　
    2) CSA International C(RU) AWM I/II A/B FT1 105°C / 600 VRMS
    3) Other 　 　
    a) Component 1 ASTM-B174 Class K 　
    4) CE: LVD 73/23/EEC Amendment 93/68/EEC
    Environmental
    1) EU Directive 2002/95/EC(RoHS):
    　 All materials used in the manufacture of this part are in compliance with EU Directive 2002/95/EU regarding the restriction of use of certain hazardous substances in electrical and electronic equipment. Consult Alpha Wire's web site for compliance Date of Manufacture.
    2) REACH Regulation (EC 1907/2006):
    　 This product does not contain any of the substances listed on the European Union REACH Substance of Very High Concern (SVHC) candidate list, dated 30 March 2010, in excess of a concentration of 0.1% weight/weight.
    Properties
    Physical & Mechanical Properties
    1) Temperature Range -40 to 90°C(static), -30 to 90°C (dynamic)
    2) Bend Radius 10X Cable Diameter
    3) Pull Tension 153 Lbs, Maximum
    4) Sunlight Resistance Yes
    5) Direct Burial Yes
    Electrical Properties (For Engineering purposes only)
    1) Voltage Rating 600/1000 VRMS
    2) Capacitance 36 pf/ft @1 kHz, Nominal Conductor to Conductor
    3) Inductance 0.16 µH/ft, Nominal
    4) Conductor DCR 1.64 Ω/1000ft @20°C, Nominal
    Other
    Packaging Flange x Traverse x Barrel (inches)
    a) Bulk(Made-to-order) 　

    Our multiconductor solar cable is the cable designed for any solar application. It is rated for direct burial. It handles extreme temperatures. It’s rated for temperatures as low as -40°C static and -30°C bending and as high as 90°C. And its tough, abrasion-resistant jacket also resists sunlight, ozone, and UV radiation. Designed specifically for solar inverters and similar applications, it’s the perfect choice that goes wherever your solar farm is installed.

    Part #

    　

    		 Type　 Shielding Voltage AWG # of Elements

    　

    		 Jacket Diameter
    SPM1203 Conductor UNSHIELDED 1000 12 3 0.394 ROHS - RoHS Compliance, UL 1277 Type TC-ER, UL MTW, UL VW/1
    SPM1203CY Conductor BRAID 1000 12 3 0.422 ROHS - RoHS Compliance, UL 1277 Type TC-ER, UL MTW, UL VW/1
    SPM1204 Conductor UNSHIELDED 1000 12 4 0.43 ROHS - RoHS Compliance, UL 1277 Type TC-ER, UL MTW, UL VW/1
    SPM1204CY Conductor BRAID 1000 12 4 0.458 ROHS - RoHS Compliance, UL 1277 Type TC-ER, UL MTW, UL VW/1
    SPM1205 Conductor UNSHIELDED 1000 12 5 0.469 ROHS - RoHS Compliance, UL 1277 Type TC-ER, UL MTW, UL VW/1
    SPM1205CY Conductor BRAID 1000 12 5 0.497 ROHS - RoHS Compliance, UL 1277 Type TC-ER, UL MTW, UL VW/1
    SPM1207 Conductor UNSHIELDED 1000 12 7 0.51 ROHS - RoHS Compliance, UL 1277 Type TC-ER, UL MTW, UL VW/1
    SPM1207CY Conductor BRAID 1000 12 7 0.574 ROHS - RoHS Compliance, UL 1277 Type TC-ER, UL MTW, UL VW/1
    SPM1209 Conductor UNSHIELDED 1000 12 9 0.625 ROHS - RoHS Compliance, UL 1277 Type TC-ER, UL MTW, UL VW/1
    SPM1209CY Conductor BRAID 1000 12 9 0.659 ROHS - RoHS Compliance, UL 1277 Type TC-ER, UL MTW, UL VW/1
    SPM1403 Conductor UNSHIELDED 1000 14 3 0.353 ROHS - RoHS Compliance, UL 1277 Type TC-ER, UL MTW, UL VW/1
    SPM1403CY Conductor BRAID 1000 14 3 0.381 ROHS - RoHS Compliance, UL 1277 Type TC-ER, UL MTW, UL VW/1
    SPM1404 Conductor UNSHIELDED 1000 14 4 0.384 ROHS - RoHS Compliance, UL 1277 Type TC-ER, UL MTW, UL VW/1
    SPM1404CY Conductor BRAID 1000 14 4 0.412 ROHS - RoHS Compliance, UL 1277 Type TC-ER, UL MTW, UL VW/1
    SPM1405 Conductor UNSHIELDED 1000 14 5 0.418 ROHS - RoHS Compliance, UL 1277 Type TC-ER, UL MTW, UL VW/1
    SPM1405CY Conductor BRAID 1000 14 5 0.446 ROHS - RoHS Compliance, UL 1277 Type TC-ER, UL MTW, UL VW/1
    SPM1407 Conductor UNSHIELDED 1000 14 7 0.453 ROHS - RoHS Compliance, UL 1277 Type TC-ER, UL MTW, UL VW/1
    SPM1407CY Conductor BRAID 1000 14 7 0.481 ROHS - RoHS Compliance, UL 1277 Type TC-ER, UL MTW, UL VW/1
    SPM1409 Conductor UNSHIELDED 1000 14 9 0.556 ROHS - RoHS Compliance, UL 1277 Type TC-ER, UL MTW, UL VW/1
    SPM1409CY Conductor BRAID 1000 14 9 0.59 ROHS - RoHS Compliance, UL 1277 Type TC-ER, UL MTW, UL VW/1
