    ALPHA- Xtra-Guard® 1, Awg18 to 16 Foil Shielded, Multiconductor 300V UL CM, 2464 VW-1, CSA CMG FT4 多芯高性能鋁箔隔離控制电缆
    看原圖

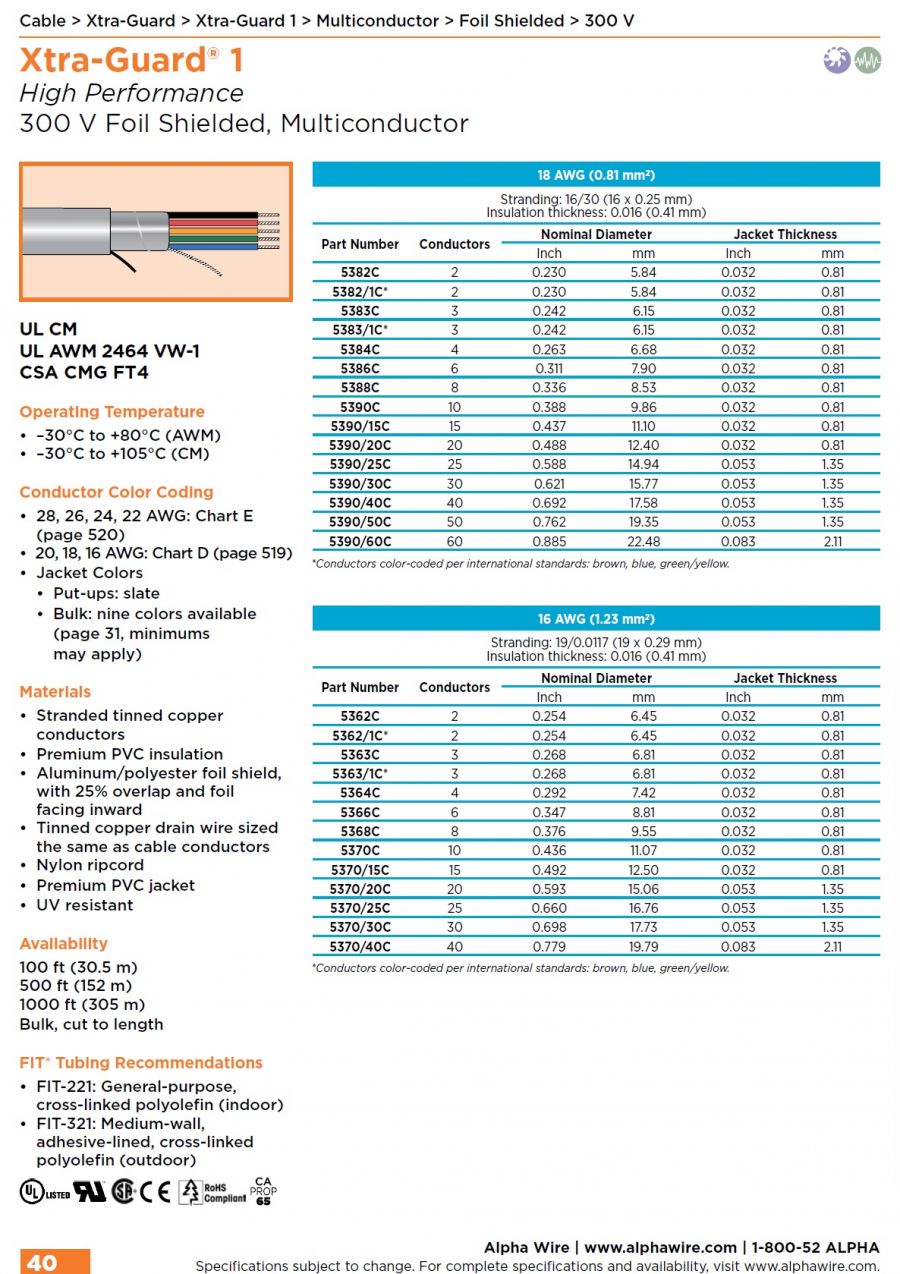

    		ALPHA-5382C

    商品編號: ALPHA-5382C , google, yahoo, asus, abb, rs232

    ALPHA5370 Xtra-Guard® 1, Awg18 to 16 Foil Shielded, Multiconductor 300V UL CM, 2464 VW-1, CSA CMG FT4 多芯高性能鋁箔隔離控制电缆

    Alpha5362C, Alpha5362/1C , Alpha5363/1C , Alpha5364C , Alpha5366C , Alpha5368C, Alpha5370/15C,

    Alpha5370/20C, Alpha5370/25C, Alpha5370/30C, Alpha5373C, Alpha5376C, Alpha5382C, Alpha5383C,

    Alpha5384C, Alpha5386C, Alpha5388C, Alpha5390/15C, Alpha5390/15C, Alpha5390/25C, Alpha5390/30C,

    Alpha5390/50C, Alpha5390/60C



    Xtra-Guard® 1 High Performance

    300 V Foil Shielded, Multiconductor
    UL CM UL AWM 2464 VW-1
    CSA CMG FT4


    Operating Temperature
    • –30°C to +80°C (AWM)
    • –30°C to +105°C (CM)
    Conductor Color Coding
    • 28, 26, 24, 22 AWG: Chart E (page 520)
    • 20, 18, 16 AWG: Chart D (page 519)
    • Jacket Colors
    • Put-ups: slate
    • Bulk: nine colors available
    (page 31, minimums may apply)
    Materials
    • Stranded tinned copper conductors
    • Premium PVC insulation
    • Aluminum/polyester foil shield,
    with 25% overlap and foil facing inward
    • Tinned copper drain wire sized
    the same as cable conductors
    • Nylon ripcord
    • Premium PVC jacket
    • UV resistant
    Availability
    100 ft (30.5 m)
    500 ft (152 m)
    1000 ft (305 m)
    Bulk, cut to length
    　

    FIT® Tubing Recommendations
    • FIT-221: General-purpose, cross-linked polyolefin (indoor)
    • FIT-321: Medium-wall,
    adhesive-lined, cross-linked polyolefin (outdoor)

    Xtra-Guard ® 1 – 坚韧的高性能聚氯乙烯电缆 Ultraviolet LightEMI Noise

    • 高性能电缆，适用于一般用途
    • 独特的优质聚氯乙烯绝缘层和护套，便于在狭窄空间布线
    • 耐油，符合 UL 耐油级别 I 和第 43 类
    • 可抵抗高达 105 摄氏度的环境温度
    • 与 Alpha高性能屏蔽系统 Supra-Shield® 结合使用时，具有优异的抗电磁干扰/射频干扰性能
    类型Xtra-Guard® 高性能电缆
      Part # Type Shielding Voltage AWG # of Elements Jacket Diameter Applicable Specifications
      Alpha5363C Conductor  FOIL  300  16  3  0.268  CA Prop 65, CE, CSA CMG, CSA FT4, IEC 60332-1, IEC 60332-2, UL 60C OIL, UL AWM 1569, UL AWM 2464, UL CM, UL SUN RES, UL VW-1
    Alpha5362/1C Conductor  FOIL  300  16  2  0.254  CA Prop 65, CE, CSA CMG, CSA FT4, IEC 60332-1, IEC 60332-2, UL 60C OIL, UL AWM 1569, UL AWM 2464, UL CM, UL SUN RES, UL VW-1
    Alpha5362C Conductor  FOIL  300  16  2  0.254  CA Prop 65, CE, CSA CMG, CSA FT4, IEC 60332-1, IEC 60332-2, UL 60C OIL, UL AWM 1569, UL AWM 2464, UL CM, UL SUN RES, UL VW-1
    Alpha5363/1C Conductor  FOIL  300  16  3  0.268  CA Prop 65, CE, CSA CMG, CSA FT4, IEC 60332-1, IEC 60332-2, UL 60C OIL, UL AWM 1569, UL AWM 2464, UL CM, UL SUN RES, UL VW-1
    Alpha5364C Conductor  FOIL  300  16  4  0.292  CA Prop 65, CE, CSA CMG, CSA FT4, IEC 60332-1, IEC 60332-2, UL 60C OIL, UL AWM 1569, UL AWM 2464, UL CM, UL SUN RES, UL VW-1
    Alpha5366C Conductor  FOIL  300  16  6  0.347  CA Prop 65, CE, CSA CMG, CSA FT4, IEC 60332-1, IEC 60332-2, UL 60C OIL, UL AWM 1569, UL AWM 2464, UL CM, UL SUN RES, UL VW-1
    Alpha5368C Conductor  FOIL  300  16  8  0.376  CA Prop 65, CE, CSA CMG, CSA FT4, IEC 60332-1, IEC 60332-2, UL 60C OIL, UL AWM 1569, UL AWM 2464, UL CM, UL SUN RES, UL VW-1
    Alpha5370/15C Conductor  FOIL  300  16  15  0.492  CA Prop 65, CE, CSA CMG, CSA FT4, IEC 60332-1, IEC 60332-2, UL 60C OIL, UL AWM 1569, UL AWM 2464, UL CM, UL SUN RES, UL VW-1
    Alpha5370/20C Conductor  FOIL  300  16  20  0.593  CA Prop 65, CE, CSA CMG, CSA FT4, IEC 60332-1, IEC 60332-2, UL 60C OIL, UL AWM 1569, UL AWM 2464, UL CM, UL SUN RES, UL VW-1
    Alpha5370/25C Conductor  FOIL  300  16  25  0.66  CA Prop 65, CE, CSA CMG, CSA FT4, IEC 60332-1, IEC 60332-2, UL 60C OIL, UL AWM 1569, UL AWM 2464, UL CM, UL SUN RES, UL VW-1
    Alpha5370/30C Conductor  FOIL  300  16  30  0.698  CA Prop 65, CE, CSA CMG, CSA FT4, IEC 60332-1, IEC 60332-2, UL 60C OIL, UL AWM 1569, UL AWM 2464, UL CM, UL SUN RES, UL VW-1
    Alpha5370/40C Conductor  FOIL  300  16  40  0.779  CA Prop 65, CE, CSA CMG, CSA FT4, IEC 60332-1, IEC 60332-2, UL 60C OIL, UL AWM 1569, UL AWM 2464, UL CM, UL SUN RES, UL VW-1
    Alpha5370C Conductor  FOIL  300  16  10  0.436  CA Prop 65, CE, CSA CMG, CSA FT4, IEC 60332-1, IEC 60332-2, UL 60C OIL, UL AWM 1569, UL AWM 2464, UL CM, UL SUN RES, UL VW-1
    Alpha5373C Pair  FOIL  300  18  3  0.352  CA Prop 65, CE, CSA CMG, CSA FT4, IEC 60332-1, IEC 60332-2, UL 60C OIL, UL AWM 1569, UL AWM 2464, UL CM, UL SUN RES, UL VW-1
    Alpha5376C Pair  FOIL  300  18  6  0.464  CA Prop 65, CE, CSA CMG, CSA FT4, IEC 60332-1, IEC 60332-2, UL 60C OIL, UL AWM 1569, UL AWM 2464, UL CM, UL SUN RES, UL VW-1
    Alpha5382/1C Conductor  FOIL  300  18  2  0.23  CA Prop 65, CE, CSA CMG, CSA FT4, IEC 60332-1, IEC 60332-2, UL 60C OIL, UL AWM 1569, UL AWM 2464, UL CM, UL SUN RES, UL VW-1
    Alpha5382C Conductor  FOIL  300  18  2  0.23  CA Prop 65, CE, CSA CMG, CSA FT4, IEC 60332-1, IEC 60332-2, UL 60C OIL, UL AWM 1569, UL AWM 2464, UL CM, UL SUN RES, UL VW-1
    Alpha5383/1C Conductor  FOIL  300  18  3  0.242  CA Prop 65, CE, CSA CMG, CSA FT4, IEC 60332-1, IEC 60332-2, UL 60C OIL, UL AWM 1569, UL AWM 2464, UL CM, UL SUN RES, UL VW-1
    Alpha5383C Conductor  FOIL  300  18  3  0.242  CA Prop 65, CE, CSA CMG, CSA FT4, IEC 60332-1, IEC 60332-2, UL 60C OIL, UL AWM 1569, UL AWM 2464, UL CM, UL SUN RES, UL VW-1
    Alpha5384C Conductor  FOIL  300  18  4  0.263  CA Prop 65, CE, CSA CMG, CSA FT4, IEC 60332-1, IEC 60332-2, UL 60C OIL, UL AWM 1569, UL AWM 2464, UL CM, UL SUN RES, UL VW-1
      Part # Type Shielding Voltage AWG # of Elements Jacket Diameter Applicable Specifications
    Alpha5386C Conductor  FOIL  300  18  6  0.311  CA Prop 65, CE, CSA CMG, CSA FT4, IEC 60332-1, IEC 60332-2, UL 60C OIL, UL AWM 1569, UL AWM 2464, UL CM, UL SUN RES, UL VW-1
    Alpha5388C Conductor  FOIL  300  18  8  0.336  CA Prop 65, CE, CSA CMG, CSA FT4, IEC 60332-1, IEC 60332-2, UL 60C OIL, UL AWM 1569, UL AWM 2464, UL CM, UL SUN RES, UL VW-1
    Alpha5390/15C Conductor  FOIL  300  18  15  0.437  CA Prop 65, CE, CSA CMG, CSA FT4, IEC 60332-1, IEC 60332-2, UL 60C OIL, UL AWM 1569, UL AWM 2464, UL CM, UL SUN RES, UL VW-1
    Alpha5390/20C Conductor  FOIL  300  18  20  0.488  CA Prop 65, CE, CSA CMG, CSA FT4, IEC 60332-1, IEC 60332-2, UL 60C OIL, UL AWM 1569, UL AWM 2464, UL CM, UL SUN RES, UL VW-1
    Alpha5390/25C Conductor  FOIL  300  18  25  0.588  CA Prop 65, CE, CSA CMG, CSA FT4, IEC 60332-1, IEC 60332-2, UL 60C OIL, UL AWM 1569, UL AWM 2464, UL CM, UL SUN RES, UL VW-1
    Alpha5390/30C Conductor  FOIL  300  18  30  0.621  CA Prop 65, CE, CSA CMG, CSA FT4, IEC 60332-1, IEC 60332-2, UL 60C OIL, UL AWM 1569, UL AWM 2464, UL CM, UL SUN RES, UL VW-1
    Alpha5390/40C Conductor  FOIL  300  18  40  0.692  CA Prop 65, CE, CSA CMG, CSA FT4, IEC 60332-1, IEC 60332-2, UL 60C OIL, UL AWM 1569, UL AWM 2464, UL CM, UL SUN RES, UL VW-1
    Alpha5390/50C Conductor  FOIL  300  18  50  0.762  CA Prop 65, CE, CSA CMG, CSA FT4, IEC 60332-1, IEC 60332-2, UL 60C OIL, UL AWM 1569, UL AWM 2464, UL CM, UL SUN RES, UL VW-1
    Alpha5390/60C Conductor  FOIL  300  18  60  0.885  CA Prop 65, CE, CSA CMG, CSA FT4, IEC 60332-1, IEC 60332-2, UL 60C OIL, UL AWM 1569, UL AWM 2464, UL CM, UL SUN RES, UL VW-1
    Alpha5390C Conductor  FOIL  300  18  10  0.388  CA Prop 65, CE, CSA CMG, CSA FT4, IEC 60332-1, IEC 60332-2, UL 60C OIL, UL AWM 1569, UL AWM 2464, UL CM, UL SUN RES, UL VW-1
