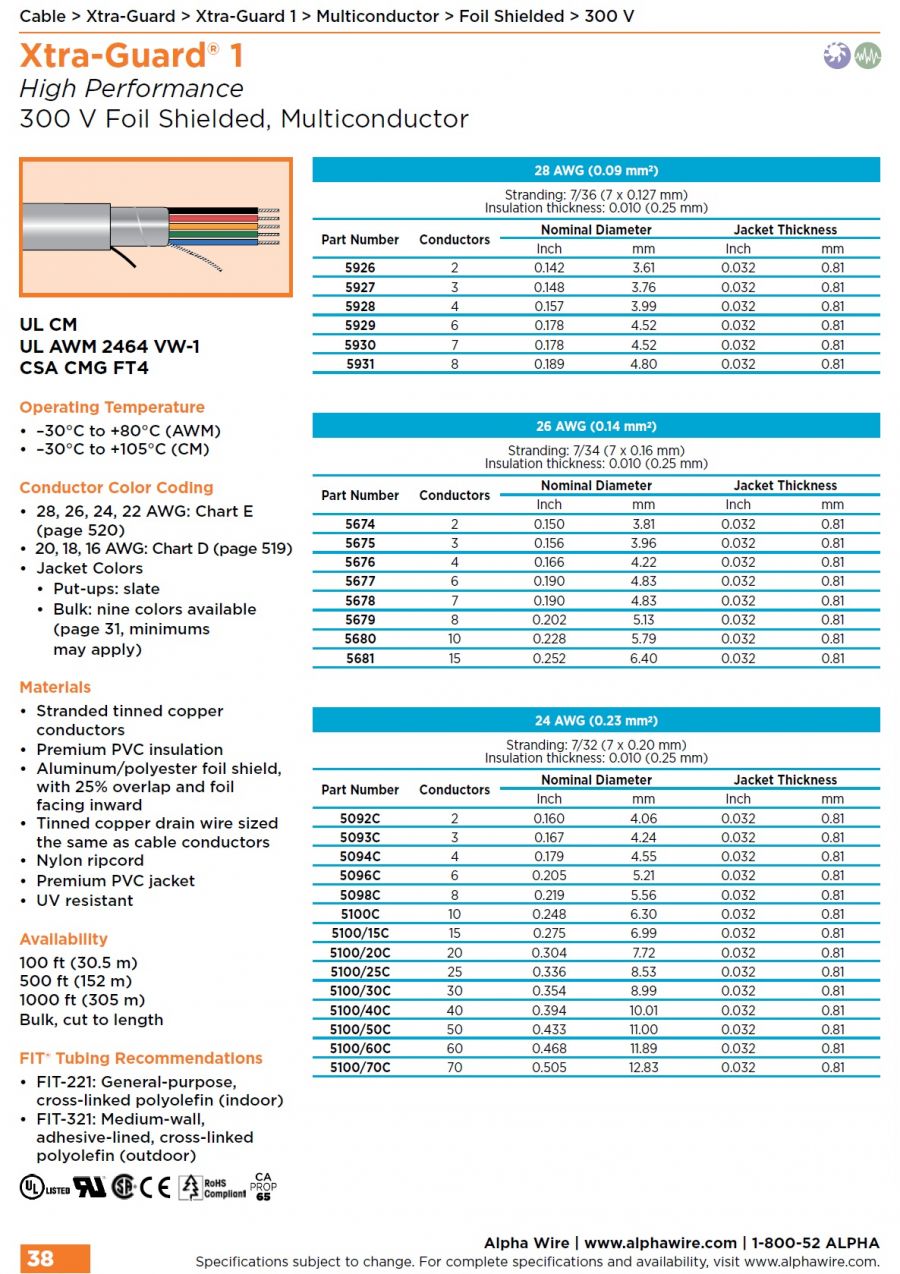

Xtra-Guard® 1 High Performance
300 V Foil Shielded, Multiconductor
UL CM UL AWM 2464 VW-1
CSA CMG FT4

Operating Temperature
• –30°C to +80°C (AWM)
• –30°C to +105°C (CM) Conductor Color Coding
• 28, 26, 24, 22 AWG: Chart E (page 520)
• 20, 18, 16 AWG: Chart D (page 519)
• Jacket Colors
• Put-ups: slate
• Bulk: nine colors available
(page 31, minimums may apply)
Materials
• Stranded tinned copper conductors
• Premium PVC insulation
• Aluminum/polyester foil shield,
with 25% overlap and foil facing inward
• Tinned copper drain wire sized
the same as cable conductors
• Nylon ripcord
• Premium PVC jacket
• UV resistant
Availability
100 ft (30.5 m)
500 ft (152 m)
1000 ft (305 m)
Bulk, cut to length
　

FIT® Tubing Recommendations
• FIT-221: General-purpose, cross-linked polyolefin (indoor)
• FIT-321: Medium-wall,
adhesive-lined, cross-linked polyolefin (outdoor)

Xtra-Guard ® 1 – 坚韧的高性能聚氯乙烯电缆

• 高性能电缆，适用于一般用途
• 独特的优质聚氯乙烯绝缘层和护套，便于在狭窄空间布线
• 耐油，符合 UL 耐油级别 I 和第 43 类
• 可抵抗高达 105 摄氏度的环境温度
• 与 Alpha高性能屏蔽系统 Supra-Shield® 结合使用时，具有优异的抗电磁干扰/射频干扰性能

Awg28: Alpha5926, Alpha5927, Alpha5928, Alpha5929, Alpha5930, Alpha5931,

Awg26: Alpha5674, Alpha5675, Alpha5676, Alpha5677, Alpha5678, Alpha5679, Alpha5680, Alpha5681,

Awg28: Alpha5092C, Alpha5093C, Alpha5094C, Alpha5096C, Alpha5098C, Alpha5100C, Alpha5100/15C,

Alpha5100/25C, Alpha5100/20C, Alpha5100/30C, Alpha5100/40C, Alpha5100/50C, Alpha5100/60C, Alpha5100/70C,
