    首頁 > > ALPHA-Xtra-Guard® 1 Multiconductor (UNSHIELDED) 多芯高性能無隔離控制电缆

    ALPHA-5013C Awg24 x 3C 300V CA Prop 65, CE, CSA CMG, FT4, UL 10002, UL 2464, CM, VW/1 Xtra-Guard® 1 高性能电缆
    看原圖
    		ALPHA-5013C

    商品編號: ALPHA-5013C

    ALPHA-5013C Awg24 x 3C 300V CA Prop 65, CE, CSA CMG, FT4, UL 10002, UL 2464, CM, VW/1 Xtra-Guard® 1 高性能电缆

    部件号 Type Shielding Voltage AWG # of Elements Jacket Diameter Applicable Specifications
    5013C Conductor UNSHIELDED 300 24 3 0.163 CA Prop 65, CE, CSA CMG, CSA FT4, UL AWM 10002, UL AWM 2464, UL CM, UL VW/1

    Xtra-Guard® 1 - High performance in a tough PVC cable Ultraviolet LightEMI Noise

    • High-performance cable for general-purpose applications
    • Features a unique, premium-grade PVC insulation and jacket for easier routing of cable in small spaces
    • Provides resistance to oils per UL Oil Res I and Class 43
    • Designed for use in ambient temperatures up to 105°C
    • Provides exceptional protection against EMI interference when Supra-Shield is specified



    Diameters (In)
    1) Component 1 3 X 1 COND 　
    a) Conductor 24 (7/32) AWG TC 0.024
    b) Insulation 0.010" Wall, Nom. PVC, Semi Rigid 0.044
    (1) Color Code Alpha Wire Color Code E
    Cond Color Cond Color Cond Color
    1 BLACK 2 BROWN 3 RED
    2) Cable Assembly 3 Components Cabled 　
    a) Twists: 12.0 Twists/foot (min) 　
    b) Core Wrap Nonwoven Polyester Tape, 25% Overlap, Min. 　
    3) Jacket 0.032" Wall, Nom.,PVC 0.163 (0.173 Max.)
    a) Color(s) Slate, Black, Yellow, Orange, Blue, Green, Red, Sand Beige, White
    b) Ripcord 1 End 810 Denier Nylon 　
    c) Print ALPHA WIRE-* P/N 5013C 3C 24 AWG
    XTRAGUARD(R) 1 (UL) TYPE CM 105C OR AWM 2464 VW-1
    --- LLXXXXXX CSA 105C TYPE CMG FT4 CE
    ROHS (SEQ FOOTAGE)
    * = Factory Code
    [Note: Product may have c(UL) or CSA markings depending upon plant of manufacture.]
    ProductIndustryApprovals
    1) UL 　 　
    a) Component 1 AWM/STYLE 10002 105°C / 300 VRMS
    b) Overall AWM/STYLE 2464 80°C / 300 VRMS
    　 CM 105°C
    　 VW-1 　
    2) CSA International CMG 105°C
    　 FT4 　
    3) CE: LVD 73/23/EEC Amendment 93/68/EEC
    ProductEnvironmental
    1) EU Directive 2002/95/EC(RoHS):
    　 All materials used in the manufacture of this part are in compliance with EU Directive 2002/95/EU regarding the restriction of use of certain hazardous substances in electrical and electronic equipment. Consult Alpha Wire's web site for compliance Date of Manufacture.
    2) REACH Regulation (EC 1907/2006):
    　 This product does not contain any of the substances listed on the 13 January 2010 European Union's REACH Substance of Very High Concern (SVHC) candidate list in excess of 0.1% mass of the item.
    3) California Proposition 65: The outer surface materials used in the manufacture of this part meet the requirements of California Proposition 65.
    ProductProperties

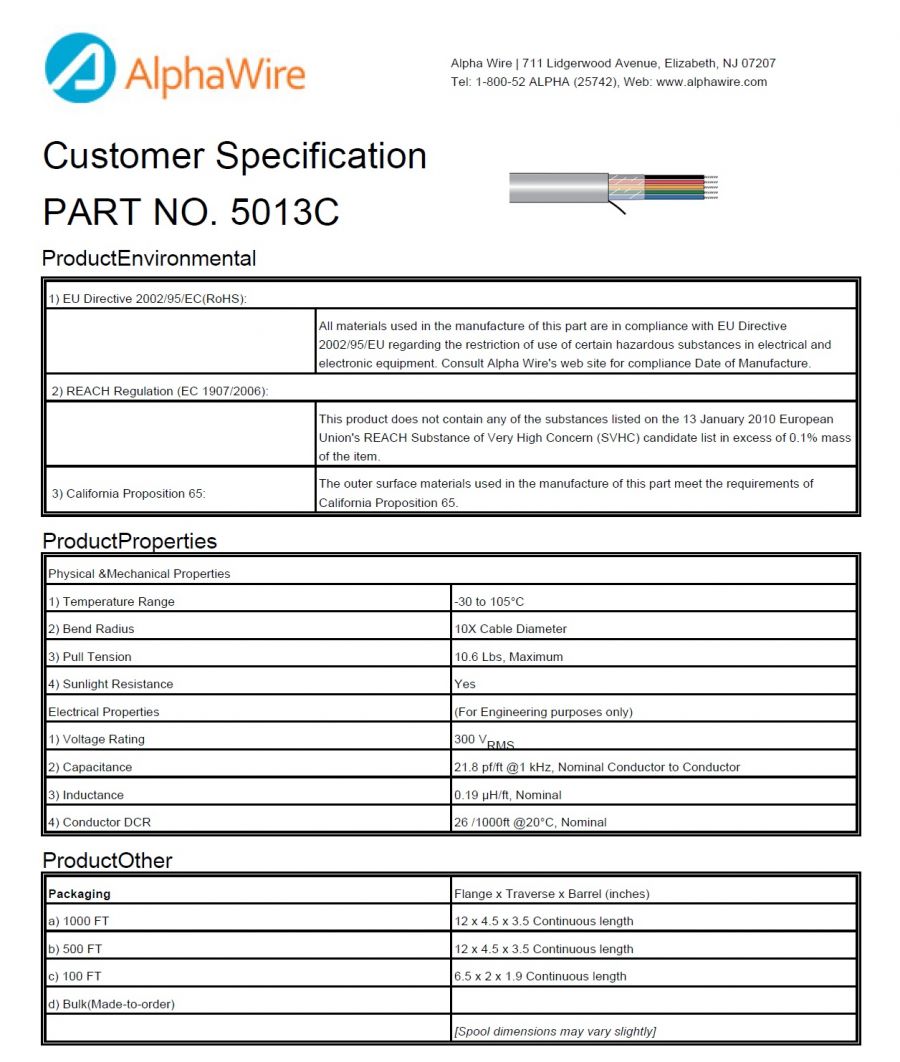

    Physical & Mechanical Properties
    1) Temperature Range -30 to 105°C
    2) Bend Radius 10X Cable Diameter
    3) Pull Tension 10.6 Lbs, Maximum
    4) Sunlight Resistance Yes
    Electrical Properties (For Engineering purposes only)
    1) Voltage Rating 300 VRMS
    2) Capacitance 21.8 pf/ft @1 kHz, Nominal Conductor to Conductor
    3) Inductance 0.19 µH/ft, Nominal
    4) Conductor DCR 26 Ω/1000ft @20°C, Nominal
    ProductOther
    Packaging Flange x Traverse x Barrel (inches)
    a) 1000 FT 12 x 4.5 x 3.5 Continuous length
    b) 500 FT 12 x 4.5 x 3.5 Continuous length
    c) 100 FT 6.5 x 2 x 1.9 Continuous length
    d) Bulk(Made-to-order) 　
    　 [Spool dimensions may vary slightly]

    Xtra-Guard ® 1 – 坚韧的高性能聚氯乙烯电缆 Ultraviolet LightEMI Noise

    • 高性能电缆，适用于一般用途
    • 独特的优质聚氯乙烯绝缘层和护套，便于在狭窄空间布线
    • 耐油，符合 UL 耐油级别 I 和第 43 类
    • 可抵抗高达 105 摄氏度的环境温度
    • 与 Alpha高性能屏蔽系统 Supra-Shield® 结合使用时，具有优异的抗电磁干扰/射频干扰性能
    符合性证明
    敬启者：
    Alpha Wire 部件号：5013C
    5013C ，符合RoHS标准，以 2005/8/1 的生产为开始
    兹通过本文件证明上述 Alpha 部件号的产品系根据欧洲议会和欧洲理事会2003年1月27日第2002/95/EC号关于在电气电子设备中限制使用某些有害物质的指令（即RoHS指令）而制造。关于所述指令的具体定义和范围，请参见所述指令。对该产品的RoHS符合性不需任何豁免。
    危险物质 最大控制值
    铅 按重量计算不得超过0.1% (1000 ppm)
    汞 按重量计算不得超过0.1% (1000 ppm)
    镉 按重量计算不得超过0.01% (100 ppm)
    六价镉 按重量计算不得超过0.1% (1000 ppm)
    聚溴联苯 (PBB) 按重量计算不得超过0.1% (1000 ppm)
    聚溴二苯醚 (PBDE) 　
    台卡二苯醚 按重量计算不得超过0.1% (1000 ppm)
    Alpha Wire 公司已阅读本文件，并谨在此声明本文件所含信息及披露的数据在本文件发布时均准 确无误。本文件所含信息仅作为一般指南，适用于产品本身或产品组成部分的安全处理、贮存及其它操作。本文件不应被视为任何保证或质量规范。法规信息仅供参考。对于法律、法规的适用性，由产品用户根据各自的产品用途自行确定。
    Alpha Wire 公司授权代表签字：
    技术及质保部总监 Dave Watson

    Part #

    　

    		 Type　 Shielding Voltage　 AWG # of Elements

    　

    		 Jacket Diameter
    5002C Conductor UNSHIELDED 300 22 2 0.168 CA Prop 65, CE, CSA CMG, CSA FT4, UL AWM 10002, UL AWM 2464, UL CM, UL VW/1
    5003C Conductor UNSHIELDED 300 22 3 0.176 CA Prop 65, CE, CSA CMG, CSA FT4, UL AWM 10002, UL AWM 2464, UL CM, UL VW/1
    5004C Conductor UNSHIELDED 300 22 4 0.189 CA Prop 65, CE, CSA CMG, CSA FT4, UL AWM 10002, UL AWM 2464, UL CM, UL VW/1
    5006C Conductor UNSHIELDED 300 22 6 0.219 CA Prop 65, CE, CSA CMG, CSA FT4, UL AWM 10002, UL AWM 2464, UL CM, UL VW/1
    5008C Conductor UNSHIELDED 300 22 8 0.235 CA Prop 65, CE, CSA CMG, CSA FT4, UL AWM 10002, UL AWM 2464, UL CM, UL VW/1
    5010/15C Conductor UNSHIELDED 300 22 15 0.299 CA Prop 65, CE, CSA CMG, CSA FT4, UL AWM 10002, UL AWM 2464, UL CM, UL VW/1
    5010/20C Conductor UNSHIELDED 300 22 20 0.331 CA Prop 65, CE, CSA CMG, CSA FT4, UL AWM 10002, UL AWM 2464, UL CM, UL VW/1
    5010/25C Conductor UNSHIELDED 300 22 25 0.368 CA Prop 65, CE, CSA CMG, CSA FT4, UL AWM 10002, UL AWM 2464, UL CM, UL VW/1
    5010/30C Conductor UNSHIELDED 300 22 30 0.389 CA Prop 65, CE, CSA CMG, CSA FT4, UL AWM 10002, UL AWM 2464, UL CM, UL VW/1
    5010/40C Conductor UNSHIELDED 300 22 40 0.434 CA Prop 65, CE, CSA CMG, CSA FT4, UL AWM 10002, UL AWM 2464, UL CM, UL VW/1
    5010/50C Conductor UNSHIELDED 300 22 50 0.478 CA Prop 65, CE, CSA CMG, CSA FT4, UL AWM 10002, UL AWM 2464, UL CM, UL VW/1
    5010/60C Conductor UNSHIELDED 300 22 60 0.518 CA Prop 65, CE, CSA CMG, CSA FT4, UL AWM 10002, UL AWM 2464, UL CM, UL VW/1
    5010C Conductor UNSHIELDED 300 22 10 0.268 CA Prop 65, CSA CMG, CSA FT4, UL AWM 10002, UL AWM 2464, UL CM, UL VW/1
    5012C Conductor UNSHIELDED 300 24 2 0.156 CA Prop 65, CE, CSA CMG, CSA FT4, UL AWM 10002, UL AWM 2464, UL CM, UL VW/1
    5013C Conductor UNSHIELDED 300 24 3 0.163 CA Prop 65, CE, CSA CMG, CSA FT4, UL AWM 10002, UL AWM 2464, UL CM, UL VW/1
    5014C Conductor UNSHIELDED 300 24 4 0.175 CA Prop 65, CE, CSA CMG, CSA FT4, UL AWM 10002, UL AWM 2464, UL CM, UL VW/1
    5016C Conductor UNSHIELDED 300 24 6 0.201 CA Prop 65, CE, CSA CMG, CSA FT4, UL AWM 10002, UL AWM 2464, UL CM, UL VW/1
    5018C Conductor UNSHIELDED 300 24 8 0.215 CA Prop 65, CE, CSA CMG, CSA FT4, UL AWM 10002, UL AWM 2464, UL CM, UL VW/1
    5020/15C Conductor UNSHIELDED 300 24 15 0.271 CA Prop 65, CE, CSA CMG, CSA FT4, UL AWM 10002, UL AWM 2464, UL CM, UL VW/1
    5020/20C Conductor UNSHIELDED 300 24 20 0.3 CA Prop 65, CE, CSA CMG, CSA FT4, UL AWM 10002, UL AWM 2464, UL CM, UL VW/1
