    首頁 > > ALPHA-Xtra-Guard® 1 Supra-Shield® Foil/Braid Multiconductor 多芯高性能鋁箔 銅網隔離控制电缆

    ALPHA-65003CY Awg20 x 3C 600V BRAID Shielding Light-to-Moderate Flex Control 超柔軟高性能电缆
    看原圖

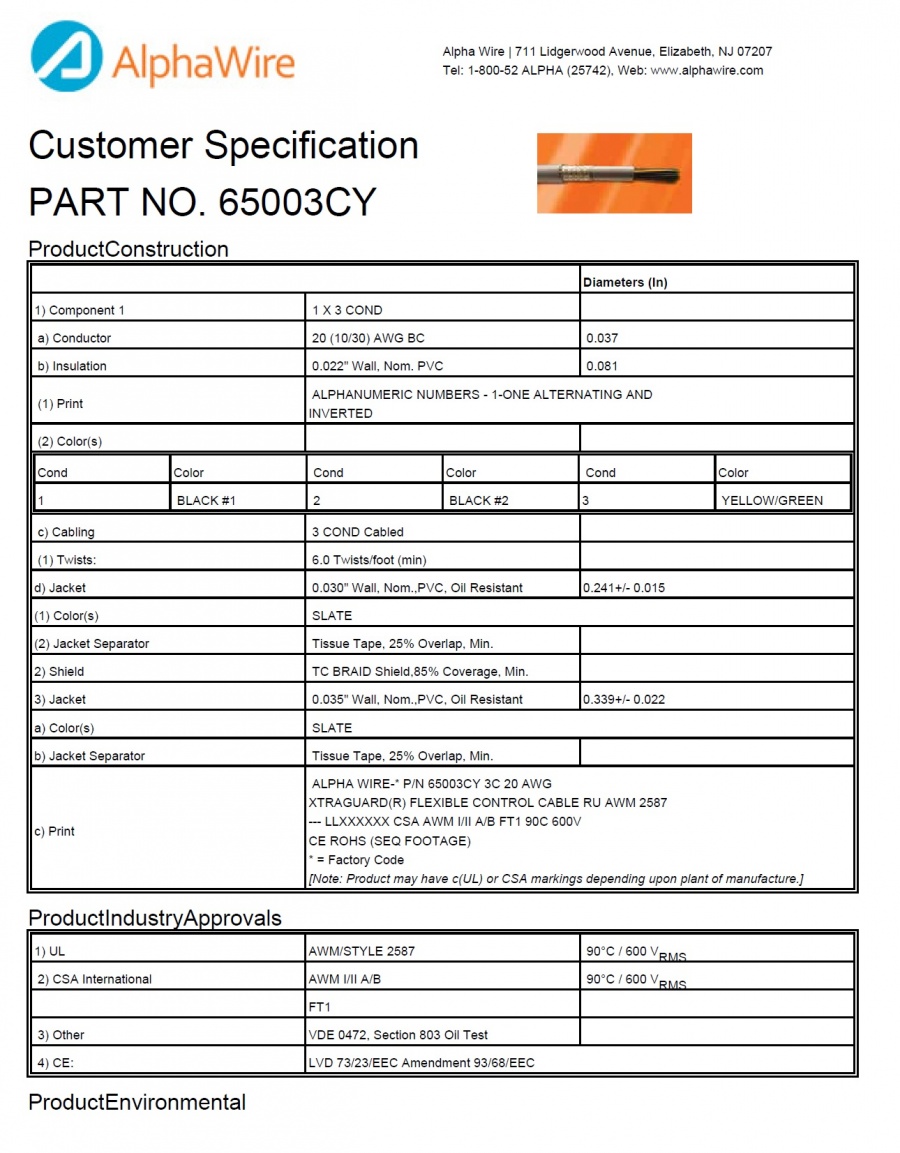

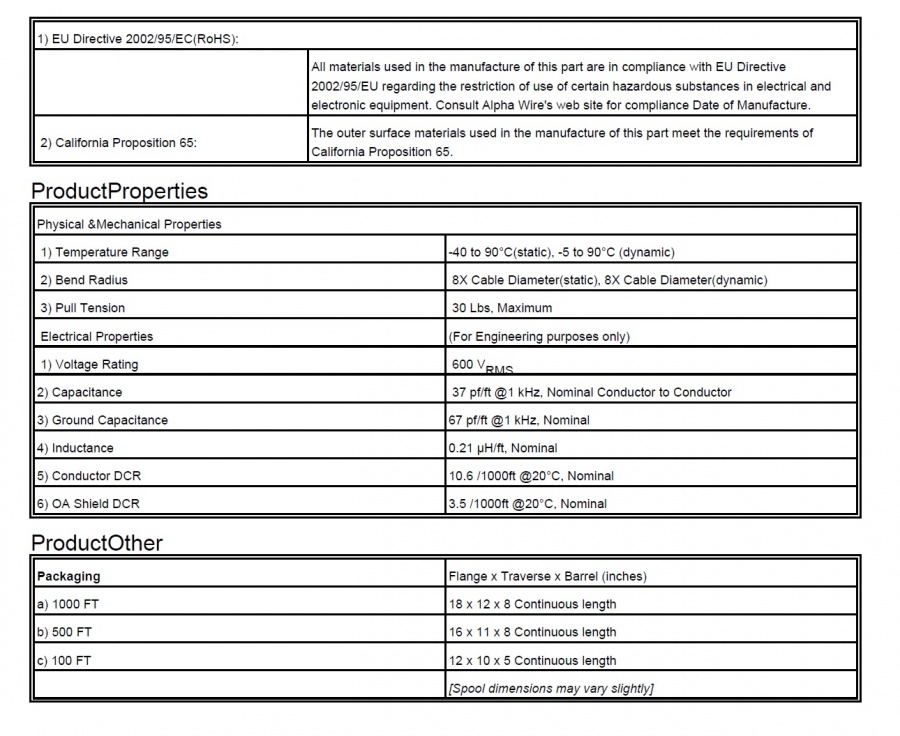

    		ALPHA-65003CY



    商品編號: ALPHA-65003CY

    ALPHA-65003CY Awg20 x 3C 600V BRAID Shielding Light-to-Moderate Flex Control 超柔軟高性能电缆

    部件号 Shielding Voltage AWG # of Elements Jacket Diameter Flex Type Applicable Specifications
    65003CY BRAID 600 20 3 0.339 Light-to-Moderate Flex Control CA Prop 65, CE, CSA AWM I/II A/B, CSA FT1, UL AWM 2587, VDE 0472 Section 803 Oil Test

    适 用于 各种类型的挠曲应用 Oil, Chemicals, Solvents, FuelsAbrasionEMI NoiseFlexing

    • 持久耐用的柔性电缆设计，在高柔性、高扭曲和连续弯曲应用（例如运动控制和机器人系统）中表现出优异的性能
    • 最多1400 万次挠曲循环运动
    • 可提供系列配置，并为应用选择完全适用的电缆
    • 圆形构造，有助于确保按 IP-67 或 NEMA 6进行紧凑安装
    • 在标准挠曲、扭转挠曲和连续挠曲应用中， Supra-Shield 可为您的特定应用轻松实现精准的电磁干扰保护
    ProductConstruction
    　 Diameters (In)
    1) Component 1 1 X 3 COND 　
    a) Conductor 20 (10/30) AWG BC 0.037
    b) Insulation 0.022" Wall, Nom. PVC 0.081
    (1) Print ALPHANUMERIC NUMBERS - 1-ONE ALTERNATING AND
    INVERTED
    　
    (2) Color(s) 　 　
    Cond Color Cond Color Cond Color
    1 BLACK #1 2 BLACK #2 3 YELLOW/GREEN
    c) Cabling 3 COND Cabled 　
    (1) Twists: 6.0 Twists/foot (min) 　
    d) Jacket 0.030" Wall, Nom.,PVC, Oil Resistant 0.241+/- 0.015
    (1) Color(s) SLATE
    (2) Jacket Separator Tissue Tape, 25% Overlap, Min. 　
    2) Shield TC BRAID Shield,85% Coverage, Min. 　
    3) Jacket 0.035" Wall, Nom.,PVC, Oil Resistant 0.339+/- 0.022
    a) Color(s) SLATE
    b) Jacket Separator Tissue Tape, 25% Overlap, Min. 　
    c) Print ALPHA WIRE-* P/N 65003CY 3C 20 AWG
    XTRAGUARD(R) FLEXIBLE CONTROL CABLE RU AWM 2587
    --- LLXXXXXX CSA AWM I/II A/B FT1 90C 600V
    CE ROHS (SEQ FOOTAGE)
    * = Factory Code
    [Note: Product may have c(UL) or CSA markings depending upon plant of manufacture.]
    ProductIndustryApprovals
    1) UL AWM/STYLE 2587 90°C / 600 VRMS
    2) CSA International AWM I/II A/B 90°C / 600 VRMS
    　 FT1 　
    3) Other VDE 0472, Section 803 Oil Test 　
    4) CE: LVD 73/23/EEC Amendment 93/68/EEC
    ProductEnvironmental
    1) EU Directive 2002/95/EC(RoHS):
    　 All materials used in the manufacture of this part are in compliance with EU Directive 2002/95/EU regarding the restriction of use of certain hazardous substances in electrical and electronic equipment. Consult Alpha Wire's web site for compliance Date of Manufacture.
    2) California Proposition 65: The outer surface materials used in the manufacture of this part meet the requirements of California Proposition 65.
    ProductProperties
    Physical & Mechanical Properties
    1) Temperature Range -40 to 90°C(static), -5 to 90°C (dynamic)
    2) Bend Radius 8X Cable Diameter(static), 8X Cable Diameter(dynamic)
    3) Pull Tension 30 Lbs, Maximum
    Electrical Properties (For Engineering purposes only)
    1) Voltage Rating 600 VRMS
    2) Capacitance 37 pf/ft @1 kHz, Nominal Conductor to Conductor
    3) Ground Capacitance 67 pf/ft @1 kHz, Nominal
    4) Inductance 0.21 µH/ft, Nominal
    5) Conductor DCR 10.6 Ω/1000ft @20°C, Nominal
    6) OA Shield DCR 3.5 Ω/1000ft @20°C, Nominal
    ProductOther
    Packaging Flange x Traverse x Barrel (inches)
    a) 1000 FT 18 x 12 x 8 Continuous length
    b) 500 FT 16 x 11 x 8 Continuous length
    c) 100 FT 12 x 10 x 5 Continuous length
    　 [Spool dimensions may vary slightly]
    符合性证明
    敬启者：
    Alpha Wire 部件号：65003CY
    65003CY ，符合RoHS标准，以 2005/3/1 的生产为开始
    兹通过本文件证明上述 Alpha 部件号的产品系根据欧洲议会和欧洲理事会2003年1月27日第2002/95/EC号关于在电气电子设备中限制使用某些有害物质的指令（即RoHS指令）而制造。关于所述指令的具体定义和范围，请参见所述指令。对该产品的RoHS符合性不需任何豁免。
    危险物质 最大控制值
    铅 按重量计算不得超过0.1% (1000 ppm)
    汞 按重量计算不得超过0.1% (1000 ppm)
    镉 按重量计算不得超过0.01% (100 ppm)
    六价镉 按重量计算不得超过0.1% (1000 ppm)
    聚溴联苯 (PBB) 按重量计算不得超过0.1% (1000 ppm)
    聚溴二苯醚 (PBDE) 　
    台卡二苯醚 按重量计算不得超过0.1% (1000 ppm)
    Alpha Wire 公司已阅读本文件，并谨在此声明本文件所含信息及披露的数据在本文件发布时均准 确无误。本文件所含信息仅作为一般指南，适用于产品本身或产品组成部分的安全处理、贮存及其它操作。本文件不应被视为任何保证或质量规范。法规信息仅供参考。对于法律、法规的适用性，由产品用户根据各自的产品用途自行确定。
    Alpha Wire 公司授权代表签字：
    技术及质保部总监 Dave Watson 2012/1/19



    Part # Shielding Voltage AWG # of Elements Jacket Diameter Flex Type Applicable Specifications
    65002 UNSHIELDED 600 20 2 0.238 Light-to-Moderate Flex Control CA Prop 65, CE, CSA AWM I/II A/B, CSA FT1, UL AWM 2587, VDE 0472 Section 803 Oil Test
    65003 UNSHIELDED 600 20 3 0.251 Light-to-Moderate Flex Control CA Prop 65, CE, CSA AWM I/II A/B, CSA FT1, UL AWM 2587, VDE 0472 Section 803 Oil Test
    65003CY BRAID 600 20 3 0.339 Light-to-Moderate Flex Control CA Prop 65, CE, CSA AWM I/II A/B, CSA FT1, UL AWM 2587, VDE 0472 Section 803 Oil Test
    65004 UNSHIELDED 600 20 4 0.272 Light-to-Moderate Flex Control CA Prop 65, CE, CSA AWM I/II A/B, CSA FT1, UL AWM 2587, VDE 0472 Section 803 Oil Test
    65005 UNSHIELDED 600 20 5 0.305 Light-to-Moderate Flex Control CA Prop 65, CE, CSA AWM I/II A/B, CSA FT1, UL AWM 2587, VDE 0472 Section 803 Oil Test
    65007 UNSHIELDED 600 20 7 0.327 Light-to-Moderate Flex Control CA Prop 65, CE, CSA AWM I/II A/B, CSA FT1, UL AWM 2587, VDE 0472 Section 803 Oil Test
    65007CY BRAID 600 20 7 0.409 Light-to-Moderate Flex Control CA Prop 65, CE, CSA AWM I/II A/B, CSA FT1, UL AWM 2587, VDE 0472 Section 803 Oil Test
    65009 UNSHIELDED 600 20 9 0.416 Light-to-Moderate Flex Control CA Prop 65, CE, CSA AWM I/II A/B, CSA FT1, UL AWM 2587, VDE 0472 Section 803 Oil Test
    65012 UNSHIELDED 600 20 12 0.433 Light-to-Moderate Flex Control CA Prop 65, CE, CSA AWM I/II A/B, CSA FT1, UL AWM 2587, VDE 0472 Section 803 Oil Test
    65012CY BRAID 600 20 12 0.521 Light-to-Moderate Flex Control CA Prop 65, CE, CSA AWM I/II A/B, CSA FT1, UL AWM 2587, VDE 0472 Section 803 Oil Test
    65018 UNSHIELDED 600 20 18 0.527 Light-to-Moderate Flex Control CA Prop 65, CE, CSA AWM I/II A/B, CSA FT1, UL AWM 2587, VDE 0472 Section 803 Oil Test
    65025 UNSHIELDED 600 20 25 0.615 Light-to-Moderate Flex Control CA Prop 65, CE, CSA AWM I/II A/B, CSA FT1, UL AWM 2587, VDE 0472 Section 803 Oil Test
    65025CY BRAID 600 20 25 0.712 Light-to-Moderate Flex Control CA Prop 65, CE, CSA AWM I/II A/B, CSA FT1, UL AWM 2587, VDE 0472 Section 803 Oil Test
    65103 UNSHIELDED 600 10 3 0.516 Light-to-Moderate Flex Control CA Prop 65, CE, CSA AWM I/II A/B, CSA FT1, UL AWM 2587, VDE 0472 Section 803 Oil Test
    65103CY BRAID 600 10 3 0.63 Light-to-Moderate Flex Control CA Prop 65, CE, CSA AWM I/II A/B, CSA FT1, UL AWM 2587, VDE 0472 Section 803 Oil Test
    65104 UNSHIELDED 600 10 4 0.568 Light-to-Moderate Flex Control CA Prop 65, CE, CSA AWM I/II A/B, CSA FT1, UL AWM 2587, VDE 0472 Section 803 Oil Test
    65104CY BRAID 600 10 4 0.684 Light-to-Moderate Flex Control CA Prop 65, CE, CSA AWM I/II A/B, CSA FT1, UL AWM 2587, VDE 0472 Section 803 Oil Test
    65105 UNSHIELDED 600 10 5 0.629 Light-to-Moderate Flex Control CA Prop 65, CE, CSA AWM I/II A/B, CSA FT1, UL AWM 2587, VDE 0472 Section 803 Oil Test
    65105CY BRAID 600 10 5 0.757 Light-to-Moderate Flex Control CA Prop 65, CE, CSA AWM I/II A/B, CSA FT1, UL AWM 2587, VDE 0472 Section 803 Oil Test
    65107CY BRAID 600 10 7 0.823 Light-to-Moderate Flex Control CA Prop 65, CE, CSA AWM I/II A/B, CSA FT1, UL AWM 2587, VDE 0472 Section 803 Oil Test
