    ALPHA-65404CY Awg14x4C BRAID Light-to-Moderate Flex Control UL 2587, VDE 0472 Section 803 Oil Test 銅網隔離柔性移動式電纜
    看原圖
    		ALPHA-65404CY


    商品編號: ALPHA-65404CY

    ALPHA-65404CY Awg14x4C BRAID Light-to-Moderate Flex Control UL 2587, VDE 0472 Section 803 Oil Test 銅網隔離柔性移動式電纜

    部件号 Shielding Voltage AWG # of Elements Jacket Diameter Flex Type Applicable Specifications
    65404CY BRAID 600 14 4 0.486 Light-to-Moderate Flex Control CA Prop 65, CE, CSA AWM I/II A/B, CSA FT1, UL AWM 2587, VDE 0472 Section 803 Oil Test

    适 用于 各种类型的挠曲应用 Oil, Chemicals, Solvents, FuelsAbrasionEMI NoiseFlexing

    • 持久耐用的柔性电缆设计，在高柔性、高扭曲和连续弯曲应用（例如运动控制和机器人系统）中表现出优异的性能
    • 最多1400 万次挠曲循环运动
    • 可提供系列配置，并为应用选择完全适用的电缆
    • 圆形构造，有助于确保按 IP-67 或 NEMA 6进行紧凑安装
    • 在标准挠曲、扭转挠曲和连续挠曲应用中， Supra-Shield 可为您的特定应用轻松实现精准的电磁干扰保护

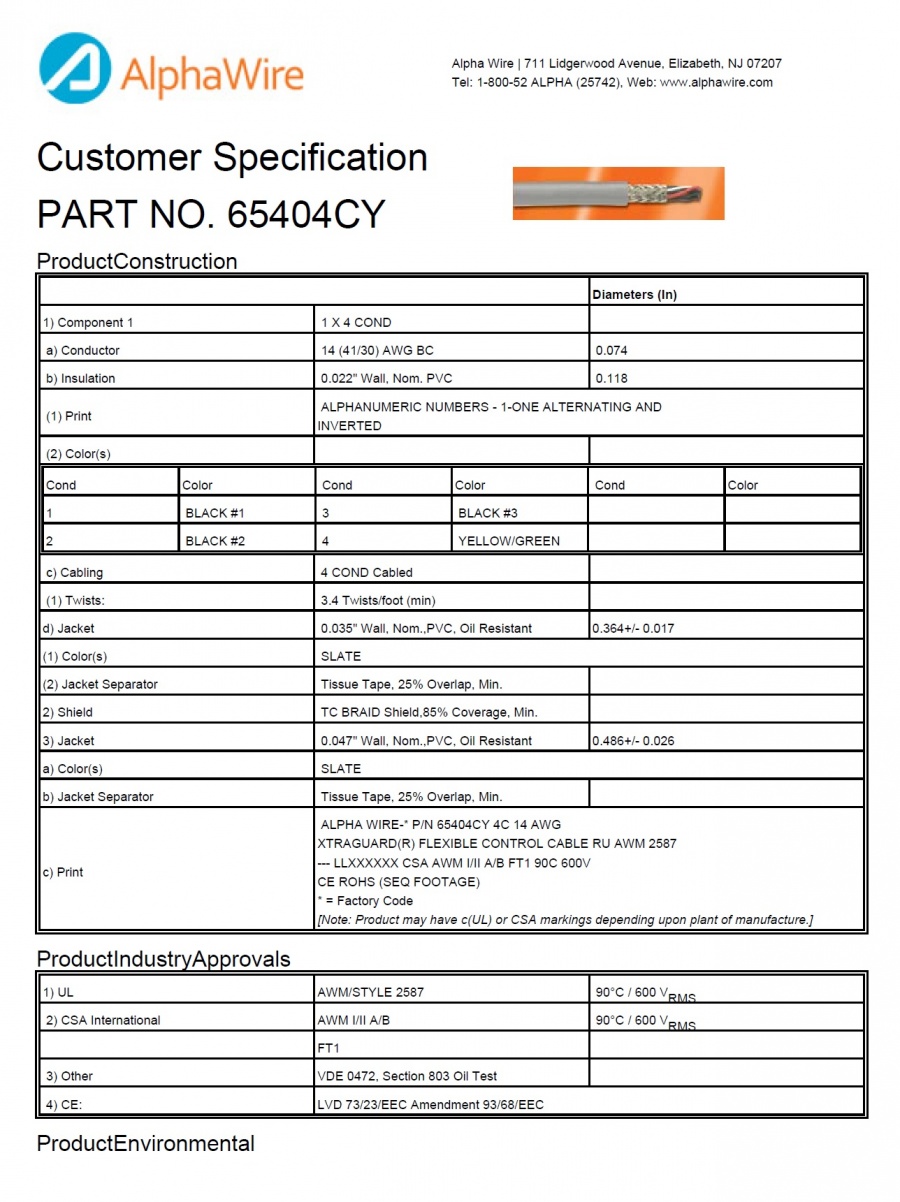

    ProductConstruction
    　 Diameters (In)
    1) Component 1 1 X 4 COND 　
    a) Conductor 14 (41/30) AWG BC 0.074
    b) Insulation 0.022" Wall, Nom. PVC 0.118
    (1) Print ALPHANUMERIC NUMBERS - 1-ONE ALTERNATING AND
    INVERTED
    　
    (2) Color(s) 　 　
    Cond Color Cond Color Cond Color
    1 BLACK #1 3 BLACK #3 　 　
    2 BLACK #2 4 YELLOW/GREEN 　 　
    c) Cabling 4 COND Cabled 　
    (1) Twists: 3.4 Twists/foot (min) 　
    d) Jacket 0.035" Wall, Nom.,PVC, Oil Resistant 0.364+/- 0.017
    (1) Color(s) SLATE
    (2) Jacket Separator Tissue Tape, 25% Overlap, Min. 　
    2) Shield TC BRAID Shield,85% Coverage, Min. 　
    3) Jacket 0.047" Wall, Nom.,PVC, Oil Resistant 0.486+/- 0.026
    a) Color(s) SLATE
    b) Jacket Separator Tissue Tape, 25% Overlap, Min. 　
    c) Print ALPHA WIRE-* P/N 65404CY 4C 14 AWG
    XTRAGUARD(R) FLEXIBLE CONTROL CABLE RU AWM 2587
    --- LLXXXXXX CSA AWM I/II A/B FT1 90C 600V
    CE ROHS (SEQ FOOTAGE)
    * = Factory Code
    [Note: Product may have c(UL) or CSA markings depending upon plant of manufacture.]
    ProductIndustryApprovals
    1) UL AWM/STYLE 2587 90°C / 600 VRMS
    2) CSA International AWM I/II A/B 90°C / 600 VRMS
    　 FT1 　
    3) Other VDE 0472, Section 803 Oil Test 　
    4) CE: LVD 73/23/EEC Amendment 93/68/EEC
    ProductEnvironmental
    1) EU Directive 2002/95/EC(RoHS):
    　 All materials used in the manufacture of this part are in compliance with EU Directive 2002/95/EU regarding the restriction of use of certain hazardous substances in electrical and electronic equipment. Consult Alpha Wire's web site for compliance Date of Manufacture.
    2) California Proposition 65: The outer surface materials used in the manufacture of this part meet the requirements of California Proposition 65.

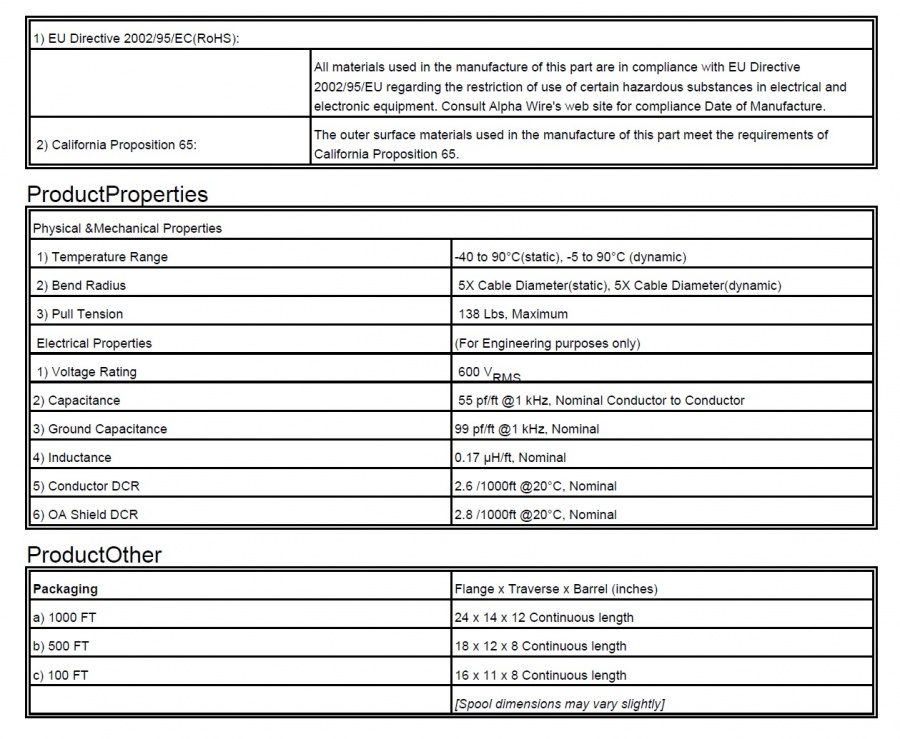

    ProductProperties
    Physical & Mechanical Properties
    1) Temperature Range -40 to 90°C(static), -5 to 90°C (dynamic)
    2) Bend Radius 5X Cable Diameter(static), 5X Cable Diameter(dynamic)
    3) Pull Tension 138 Lbs, Maximum
    Electrical Properties (For Engineering purposes only)
    1) Voltage Rating 600 VRMS
    2) Capacitance 55 pf/ft @1 kHz, Nominal Conductor to Conductor
    3) Ground Capacitance 99 pf/ft @1 kHz, Nominal
    4) Inductance 0.17 µH/ft, Nominal
    5) Conductor DCR 2.6 Ω/1000ft @20°C, Nominal
    6) OA Shield DCR 2.8 Ω/1000ft @20°C, Nominal
    ProductOther
    Packaging Flange x Traverse x Barrel (inches)
    a) 1000 FT 24 x 14 x 12 Continuous length
    b) 500 FT 18 x 12 x 8 Continuous length
    c) 100 FT 16 x 11 x 8 Continuous length
    　 [Spool dimensions may vary slightly]

    适 用于 各种类型的挠曲应用 Oil, Chemicals, Solvents, FuelsAbrasionEMI NoiseFlexing

    • 持久耐用的柔性电缆设计，在高柔性、高扭曲和连续弯曲应用（例如运动控制和机器人系统）中表现出优异的性能
    • 最多1400 万次挠曲循环运动
    • 可提供系列配置，并为应用选择完全适用的电缆
    • 圆形构造，有助于确保按 IP-67 或 NEMA 6进行紧凑安装
    • 在标准挠曲、扭转挠曲和连续挠曲应用中， Supra-Shield 可为您的特定应用轻松实现精准的电磁干扰保护
    符合性证明
    敬启者：
    Alpha Wire 部件号：65404CY
    65404CY ，符合RoHS标准，以 2005/3/1 的生产为开始
    兹通过本文件证明上述 Alpha 部件号的产品系根据欧洲议会和欧洲理事会2003年1月27日第2002/95/EC号关于在电气电子设备中限制使用某些有害物质的指令（即RoHS指令）而制造。关于所述指令的具体定义和范围，请参见所述指令。对该产品的RoHS符合性不需任何豁免。
    危险物质 最大控制值
    铅 按重量计算不得超过0.1% (1000 ppm)
    汞 按重量计算不得超过0.1% (1000 ppm)
    镉 按重量计算不得超过0.01% (100 ppm)
    六价镉 按重量计算不得超过0.1% (1000 ppm)
    聚溴联苯 (PBB) 按重量计算不得超过0.1% (1000 ppm)
    聚溴二苯醚 (PBDE) 　
    台卡二苯醚 按重量计算不得超过0.1% (1000 ppm)
    Alpha Wire 公司已阅读本文件，并谨在此声明本文件所含信息及披露的数据在本文件发布时均准 确无误。本文件所含信息仅作为一般指南，适用于产品本身或产品组成部分的安全处理、贮存及其它操作。本文件不应被视为任何保证或质量规范。法规信息仅供参考。对于法律、法规的适用性，由产品用户根据各自的产品用途自行确定。
    Alpha Wire 公司授权代表签字：
    技术及质保部总监 Dave Watson 2012/1/19
    Part # Shielding Voltage AWG # of Elements Jacket Diameter Flex Type Applicable Specifications
    65203 UNSHIELDED 600 12 3 0.436 Light-to-Moderate Flex Control CA Prop 65, CE, CSA AWM I/II A/B, CSA FT1, UL AWM 2587, VDE 0472 Section 803 Oil Test
    65203CY BRAID 600 12 3 0.53 Light-to-Moderate Flex Control CA Prop 65, CE, CSA AWM I/II A/B, CSA FT1, UL AWM 2587, VDE 0472 Section 803 Oil Test
    65204 UNSHIELDED 600 12 4 0.5 Light-to-Moderate Flex Control CA Prop 65, CE, CSA AWM I/II A/B, CSA FT1, UL AWM 2587, VDE 0472 Section 803 Oil Test
    65204CY BRAID 600 12 4 0.616 Light-to-Moderate Flex Control CA Prop 65, CE, CSA AWM I/II A/B, CSA FT1, UL AWM 2587, VDE 0472 Section 803 Oil Test
    65205 UNSHIELDED 600 12 5 0.553 Light-to-Moderate Flex Control CA Prop 65, CE, CSA AWM I/II A/B, CSA FT1, UL AWM 2587, VDE 0472 Section 803 Oil Test
    65205CY BRAID 600 12 5 0.671 Light-to-Moderate Flex Control CA Prop 65, CE, CSA AWM I/II A/B, CSA FT1, UL AWM 2587, VDE 0472 Section 803 Oil Test
    65207 UNSHIELDED 600 12 7 0.592 Light-to-Moderate Flex Control CA Prop 65, CE, CSA AWM I/II A/B, CSA FT1, UL AWM 2587, VDE 0472 Section 803 Oil Test
    65304 UNSHIELDED 600 2 4 1.273 Light-to-Moderate Flex Control CA Prop 65, CE, CSA AWM I/II A/B, CSA FT1, UL AWM 2587, VDE 0472 Section 803 Oil Test
    65304CY BRAID 600 2 4 1.453 Light-to-Moderate Flex Control CA Prop 65, CE, CSA AWM I/II A/B, CSA FT1, UL AWM 2587, VDE 0472 Section 803 Oil Test
    65305 UNSHIELDED 600 2 5 1.428 Light-to-Moderate Flex Control CA Prop 65, CE, CSA AWM I/II A/B, CSA FT1, UL AWM 2587, VDE 0472 Section 803 Oil Test
    65402 UNSHIELDED 600 14 2 0.33 Light-to-Moderate Flex Control CA Prop 65, CE, CSA AWM I/II A/B, CSA FT1, UL AWM 2587, VDE 0472 Section 803 Oil Test
    65403 UNSHIELDED 600 14 3 0.351 Light-to-Moderate Flex Control CA Prop 65, CE, CSA AWM I/II A/B, CSA FT1, UL AWM 2587, VDE 0472 Section 803 Oil Test
    65403CY BRAID 600 14 3 0.443 Light-to-Moderate Flex Control CA Prop 65, CE, CSA AWM I/II A/B, CSA FT1, UL AWM 2587, VDE 0472 Section 803 Oil Test
    65404 UNSHIELDED 600 14 4 0.404 Light-to-Moderate Flex Control CA Prop 65, CE, CSA AWM I/II A/B, CSA FT1, UL AWM 2587, VDE 0472 Section 803 Oil Test
    65404CY BRAID 600 14 4 0.486 Light-to-Moderate Flex Control CA Prop 65, CE, CSA AWM I/II A/B, CSA FT1, UL AWM 2587, VDE 0472 Section 803 Oil Test
    65405 UNSHIELDED 600 14 5 0.439 Light-to-Moderate Flex Control CA Prop 65, CE, CSA AWM I/II A/B, CSA FT1, UL AWM 2587, VDE 0472 Section 803 Oil Test
    65405CY BRAID 600 14 5 0.537 Light-to-Moderate Flex Control CA Prop 65, CE, CSA AWM I/II A/B, CSA FT1, UL AWM 2587, VDE 0472 Section 803 Oil Test
    65407 UNSHIELDED 600 14 7 0.479 Light-to-Moderate Flex Control CA Prop 65, CE, CSA AWM I/II A/B, CSA FT1, UL AWM 2587, VDE 0472 Section 803 Oil Test
    65407CY BRAID 600 14 7 0.581 Light-to-Moderate Flex Control CA Prop 65, CE, CSA AWM I/II A/B, CSA FT1, UL AWM 2587, VDE 0472 Section 803 Oil Test
    65409 UNSHIELDED 600 14 9 0.609 Light-to-Moderate Flex Control CA Prop 65, CE, CSA AWM I/II A/B, CSA FT1, UL AWM 2587, VDE 0472 Section 803 Oil Test
