    首頁 > > ALPHA-Xtra-Guard® 1 Unshielded Multipair 多對型高性能無隔離控制电缆

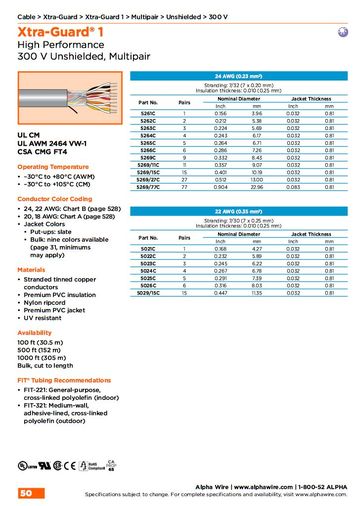

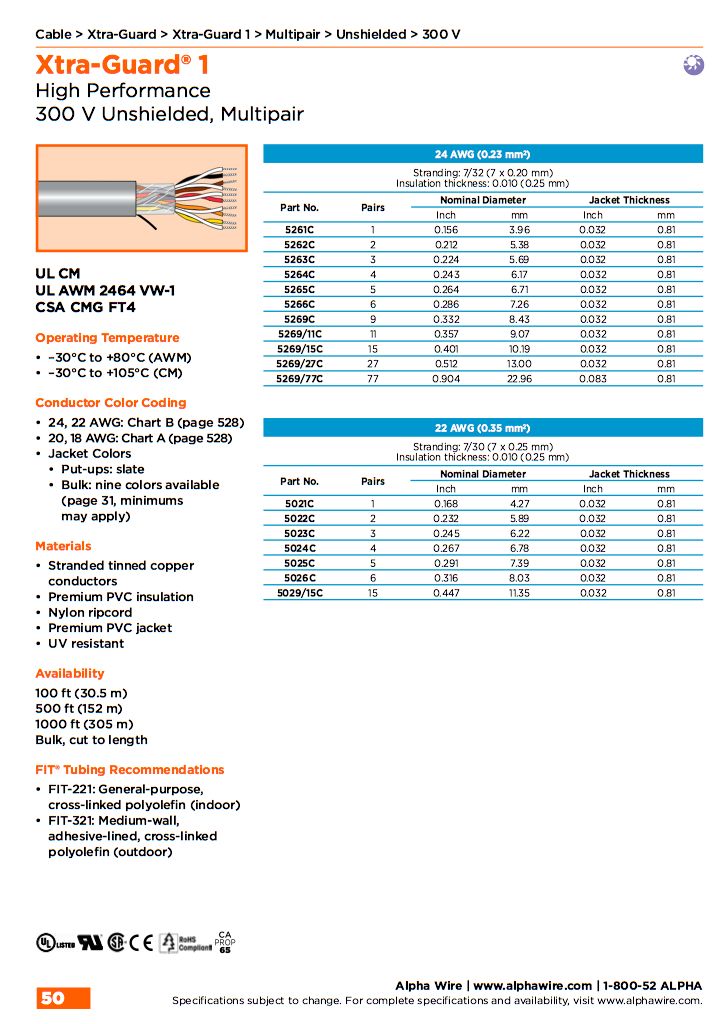

    ALPHA Xtra-Guard 1, AWG24 to 22 Unshielded, Multipair 300V UL CM, 2464 VW-1, CSA CMG FT4 多對型高性能無隔離控制电缆
    看原圖
    		ALPHA-5261C

    商品編號: ALPHA-5261C

    ALPHA Xtra-Guard1, AWG24 to 22 Unshielded, Multipair 300V UL CM, 2464 VW-1, CSA CMG FT4 多對型高性能無隔離控制电缆
    Alpha5261C, Alpha5262C, Alpha5263C, Alpha5264C, Alpha5265C, Alpha5266C, Alpha5269/11C, Alpha5269/15C,

    Alpha5269/27C, Alpha5269/77C, Alpha5269C, Alpha5282C, Alpha5283C,Alpha5286C, Alpha5289C,

    Alpha5282/12C, Alpha5402C, Alpha5404C, Alpha5405C, Alpha5409C,


    Xtra-Guard® 1 High Performance
    300 V Unshielded Multipair
    UL CM
    UL AWM 2464 VW-1
    CSA CMG FT4


    Operating Temperature
    • –30°C to +80°C (AWM)
    • –30°C to +105°C (CM)
    Conductor Color Coding
    • 24, 22 AWG: Chart B (page 528)
    • 20, 18, AWG: Chart A (page 528)
    •Jacket Colors
    • Put-ups: slate
    • Bulk: nine colors available
    (page 31, minimums may apply)
    Materials
    • Stranded tinned copper conductors
    • Premium PVC insulation
    • Nylon ripcord
    • Premium PVC jacket
    • UV resistant
    Availability
    100 ft (30.5 m)
    500 ft (152 m)
    1000 ft (305 m)
    Bulk, cut to length
    　

    FIT® Tubing Recommendations
    • FIT-221: General-purpose,
    cross-linked polyolefin (indoor)
    • FIT-321: Medium-wall,
    adhesive-lined, cross-linked polyolefin (outdoor)

    Xtra-Guard ® 1 – 坚韧的高性能聚氯乙烯电缆 Ultraviolet LightEMI Noise

    • 高性能电缆，适用于一般用途
    • 独特的优质聚氯乙烯绝缘层和护套，便于在狭窄空间布线
    • 耐油，符合 UL 耐油级别 I 和第 43 类
    • 可抵抗高达 105 摄氏度的环境温度
    • 与 Alpha高性能屏蔽系统 Supra-Shield® 结合使用时，具有优异的抗电磁干扰/射频干扰性能

    Xtra-Guard® 高性能电缆

    卓越性能，适用于各种极端环境

    Alpha Wire 的 Xtra-Guard® 电缆拥有卓越可靠的性能，可接受最恶劣环境下的最大挑战。无论面对何种极端条件，您都可以找到超越要求的Xtra-Guard 电缆。毕竟停工代价昂贵，不管是因为电缆故障，还是因为电缆不能满足应用需求而导致

    Xtra-Guard 让您高枕无忧。

    Xtra-Guard 电缆能在多数极端环境下正常运作，是市场上最持久耐用、性能最高的电缆。Xtra-Guard 经多年实践验证，已成为工程师们三十多年来的首选。

      Part #



    		 Type　 Shielding Voltage　 AWG # of Elements



    		 Jacket Diameter
    Alpha5261C Pair UNSHIELDED 300 24 1 0.156 CA Prop 65, CE, CSA CMG, CSA FT4, UL AWM 10002, UL AWM 2464, UL CM, UL VW/1
    5262C Pair UNSHIELDED 300 24 2 0.212 CA Prop 65, CE, CSA CMG, CSA FT4, UL AWM 10002, UL AWM 2464, UL CM, UL VW/1
    5263C Pair UNSHIELDED 300 24 3 0.224 CA Prop 65, CE, CSA CMG, CSA FT4, UL AWM 10002, UL AWM 2464, UL CM, UL VW/1
    5264C Pair UNSHIELDED 300 24 4 0.243 CA Prop 65, CE, CSA CMG, CSA FT4, UL AWM 10002, UL AWM 2464, UL CM, UL VW/1
    5265C Pair UNSHIELDED 300 24 5 0.264 CA Prop 65, CE, CSA CMG, CSA FT4, UL AWM 10002, UL AWM 2464, UL CM, UL VW/1
    5266C Pair UNSHIELDED 300 24 6 0.286 CA Prop 65, CE, CSA CMG, CSA FT4, UL AWM 10002, UL AWM 2464, UL CM, UL VW/1
    5269/11C Pair UNSHIELDED 300 24 11 0.357 CA Prop 65, CE, CSA CMG, CSA FT4, UL AWM 10002, UL AWM 2464, UL CM, UL VW/1
    5269/15C Pair UNSHIELDED 300 24 15 0.401 CA Prop 65, CE, CSA CMG, CSA FT4, UL AWM 10002, UL AWM 2464, UL CM, UL VW/1
    5269/27C Pair UNSHIELDED 300 24 27 0.512 CA Prop 65, CE, CSA CMG, CSA FT4, UL AWM 10002, UL AWM 2464, UL CM, UL VW/1
    5269/77C Pair UNSHIELDED 300 24 77 0.904 CA Prop 65, CE, CSA CMG, CSA FT4, UL AWM 10002, UL AWM 2464, UL CM, UL VW/1
    5269C Pair UNSHIELDED 300 24 9 0.332 CA Prop 65, CE, CSA CMG, CSA FT4, UL AWM 10002, UL AWM 2464, UL CM, UL VW/1
    5282C Pair UNSHIELDED 300 20 2 0.298 CA Prop 65, CE, CSA CMG, CSA FT4, UL AWM 1569, UL AWM 2464, UL CM, UL VW/1
    5283C Pair UNSHIELDED 300 20 3 0.316 CA Prop 65, CE, CSA CMG, CSA FT4, UL AWM 1569, UL AWM 2464, UL CM, UL VW/1
    5286C Pair UNSHIELDED 300 20 6 0.415 CA Prop 65, CE, CSA CMG, CSA FT4, UL AWM 1569, UL AWM 2464, UL CM, UL VW/1
    5289/12C Pair UNSHIELDED 300 20 12 0.545 CA Prop 65, CE, CSA CMG, CSA FT4, UL AWM 1569, UL AWM 2464, UL CM, UL VW/1
    5289C Pair UNSHIELDED 300 20 9 0.487 CA Prop 65, CE, CSA CMG, CSA FT4, UL AWM 1569, UL AWM 2464, UL CM, UL VW/1
    5402 Conductor UNSHIELDED 600 22 2 0.318 CA Prop 65, CE, CSA AWM I/II A/B, CSA FT4, CSA TEW, UL AWM 1015, UL AWM 2501, UL MTW, UL VW/1
    5404 Conductor UNSHIELDED 600 22 4 0.358 CA Prop 65, CE, CSA AWM I/II A/B, CSA FT4, CSA TEW, UL AWM 1015, UL AWM 2501, UL MTW, UL VW/1
    5405 Conductor UNSHIELDED 600 22 5 0.385 CA Prop 65, CE, CSA AWM I/II A/B, CSA FT4, CSA TEW, UL AWM 1015, UL AWM 2501, UL MTW, UL VW/1
    5409 Conductor UNSHIELDED 600 22 9 0.473 CA Prop 65, CE, CSA AWM I/II A/B, CSA FT4, CSA TEW, UL AWM 1015, UL AWM 2501, UL MTW, UL VW/1
