Awg24: Alpha25271, Alpha25272, Alpha25273, Alpha25274, Alpha25275, Alpha25276, Alpha25279,

Alpha25279/11, Alpha25279/15, Alpha25279/19,

Awg22: Alpha25121, Alpha25122, Alpha25123, Alpha25124, Alpha25125, Alpha25126, Alpha25129,

Alpha25129/11, Alpha25129/15,

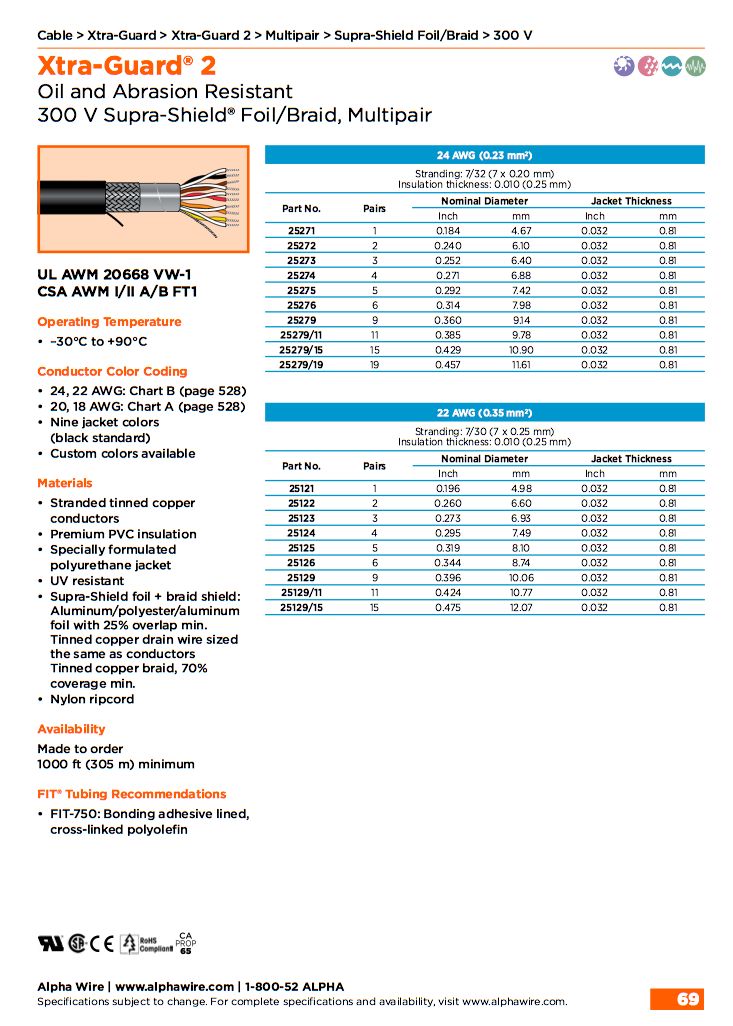

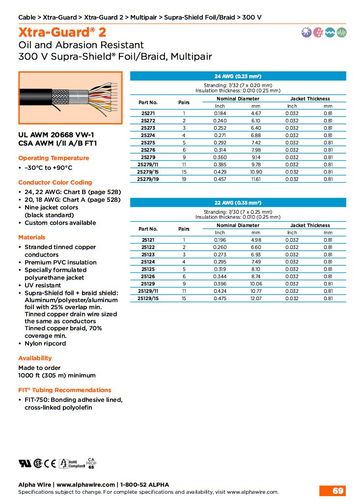

Xtra-Guard® 2 Oil and Abrasion Resistant
300 V Supra-Shield Foil/Braid, Multipair
UL AWM 20668 VW-1
CSA AWM I/II A/B FT1

Operating Temperature
• –30°C to +90°C
Conductor Color Coding
• 24, 22 AWG: Chart B (page 528)
• 20, 18 AWG: Chart A (page 528)
• Nine jacket colors
(black standard)
• Custom colors available
Materials
• Stranded tinned copper conductors
• Premium PVC insulation
• Specially formulated
polyurethane jacket
• Specially formulated
polyurethane jacket
• UV resistant
• Supra-Shield foil + braid shield:
Aluminum/plyester/aluminum
foil shield, with 25% overlap min.
Tinned copper drain wire sized
the same as cable conductors
Tinned copper braid, 70%
coverage min.
• Nylon ripcord
Availability
Made to order
1000 ft (305 m) minimum
　

Awg24: Alpha25271, Alpha25272, Alpha25273, Alpha25274, Alpha25275, Alpha25276, Alpha25279,

Alpha25279/11, Alpha25279/15, Alpha25279/19,

Awg22: Alpha25121, Alpha25122, Alpha25123, Alpha25124, Alpha25125, Alpha25126, Alpha25129,

Alpha25129/11, Alpha25129/15,
