    首頁 > > ALPHA-Xtra-Guard® 3 Unshielded Multiconductor 高性能多芯無隔離(可直埋式)电缆

    ALPHA35052 Xtra-Guard® 3 Direct burial—no conduit needed (Awg 22, 20, 18, 16) 300 V (–30°C to +80°C )Unshielded, Multiconductor直埋式電纜，無需導線管電纜
    看原圖
    		ALPHA-35002

    商品編號: ALPHA-35002

    ALPHA-35052 Xtra-Guard® 3 Direct burial—no conduit needed (Awg 22, 20, 18, 16) 300 V (–30°C to +80°C )Unshielded, Multiconductor直埋式電纜，無需導線管電纜

    Awg22: Alpha35002, Alpha35003, Alpha35004, Alpha35006, Alpha35008, Alpha35010, Alpha35010/15,

    Awg20: Alpha35052, Alpha35053, Alpha35054, Alpha35056, Alpha35058, Alpha35060, Alpha35060/15,

    Awg18: Alpha35062, Alpha35063, Alpha35064, Alpha35066, Alpha35068, Alpha35070, Alpha35070/15,

    Awg16: Alpha35072, Alpha35073, Alpha35074, Alpha35076, Alpha35078, Alpha35080, Alpha35080/15,

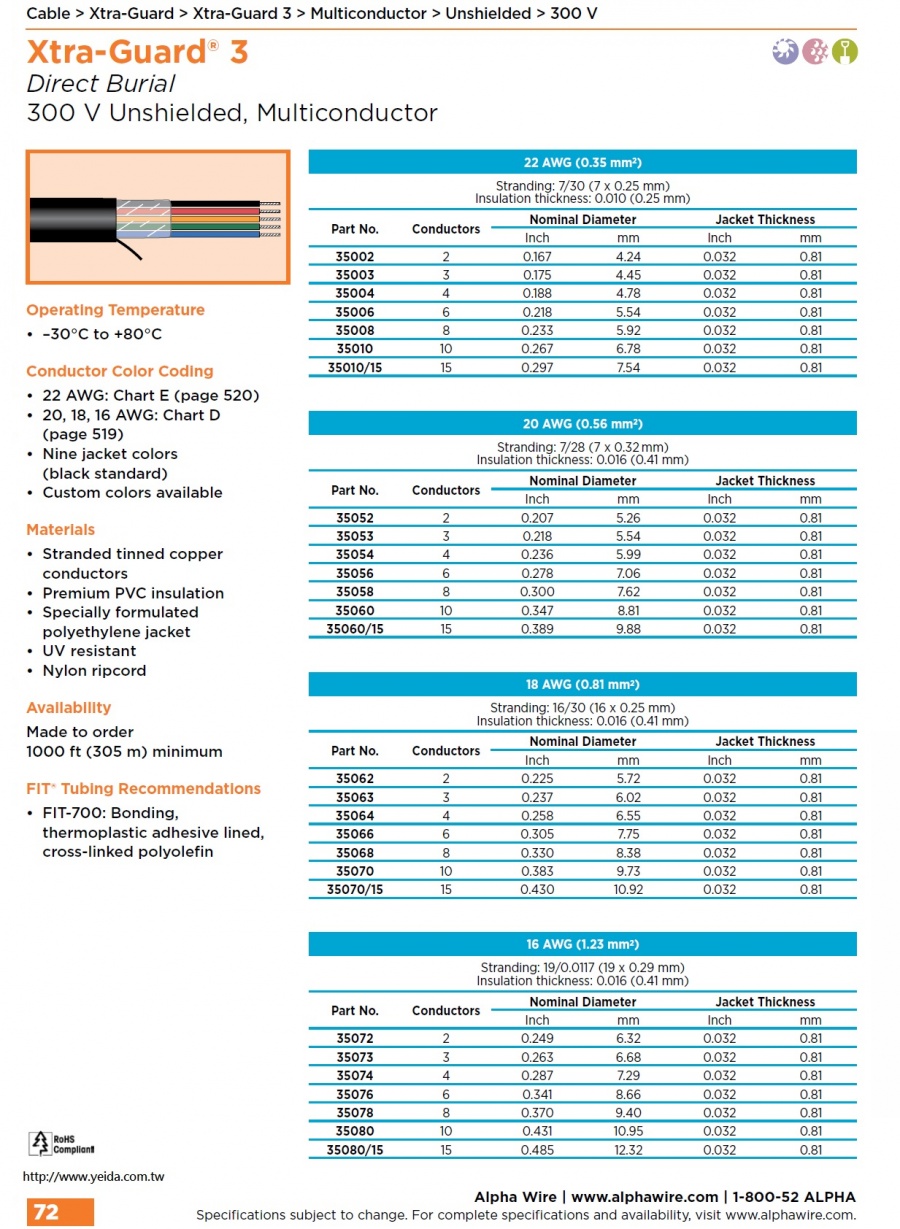

    Xtra-Guard® 3
    Direct Burial
    300 V Unshielded, Multiconductor


    Operating Temperature
    • –30°C to +80°C
    Conductor Color Coding
    • 22 AWG: Chart E (page 520)
    • 20, 18, 16 AWG: Chart D (page 519)
    • Nine jacket colors (black standard)
    • Custom colors available
    Materials
    • Stranded tinned copper conductors
    • Premium PVC insulation
    • Specially formulated polyethylene jacket
    • UV resistant
    • Nylon ripcord
    Availability
    Made to order
    1000 ft (305 m) minimum


    FIT® Tubing Recommendations
    • FIT-700: Bonding, thermoplastic adhesive lined, cross-linked polyolefin

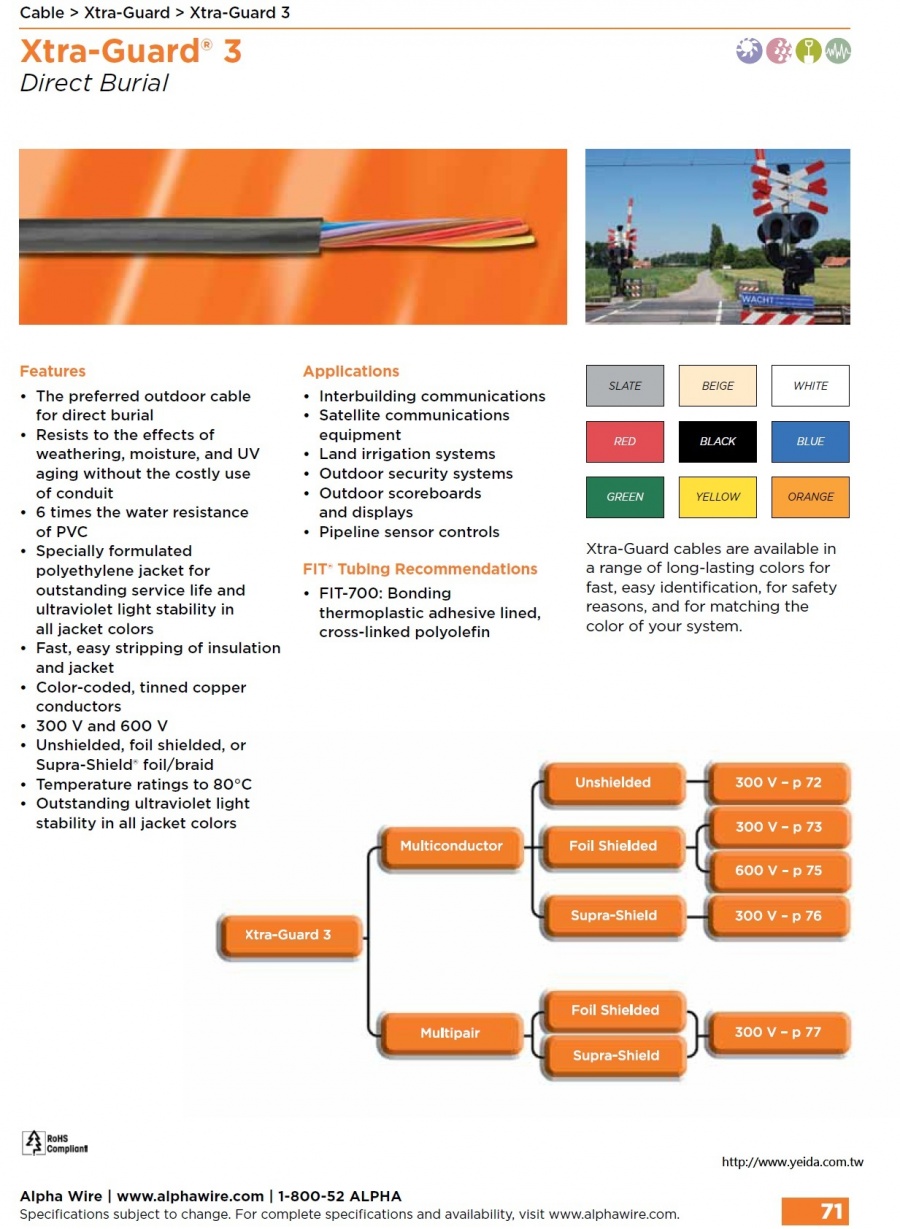

    Xtra-Guard® 3 - Direct burial—no conduit needed Ultraviolet LightOil, Chemicals, Solvents, FuelsDirect BurialEMI Noise
    • The preferred outdoor cable for direct burial
    • 6 times the water resistance of PVC
    • Features a specially formulated polyethylene jacket for outstanding service life and ultraviolet light stability in all jacket colors
    • Resistant to the effects of weathering, moisture, and UV aging without the costly use of conduit
    • Supra-Shield® provides exceptional protection against conducted or electrical noise in high- and low- frequency environments where EMI interference is pervasive

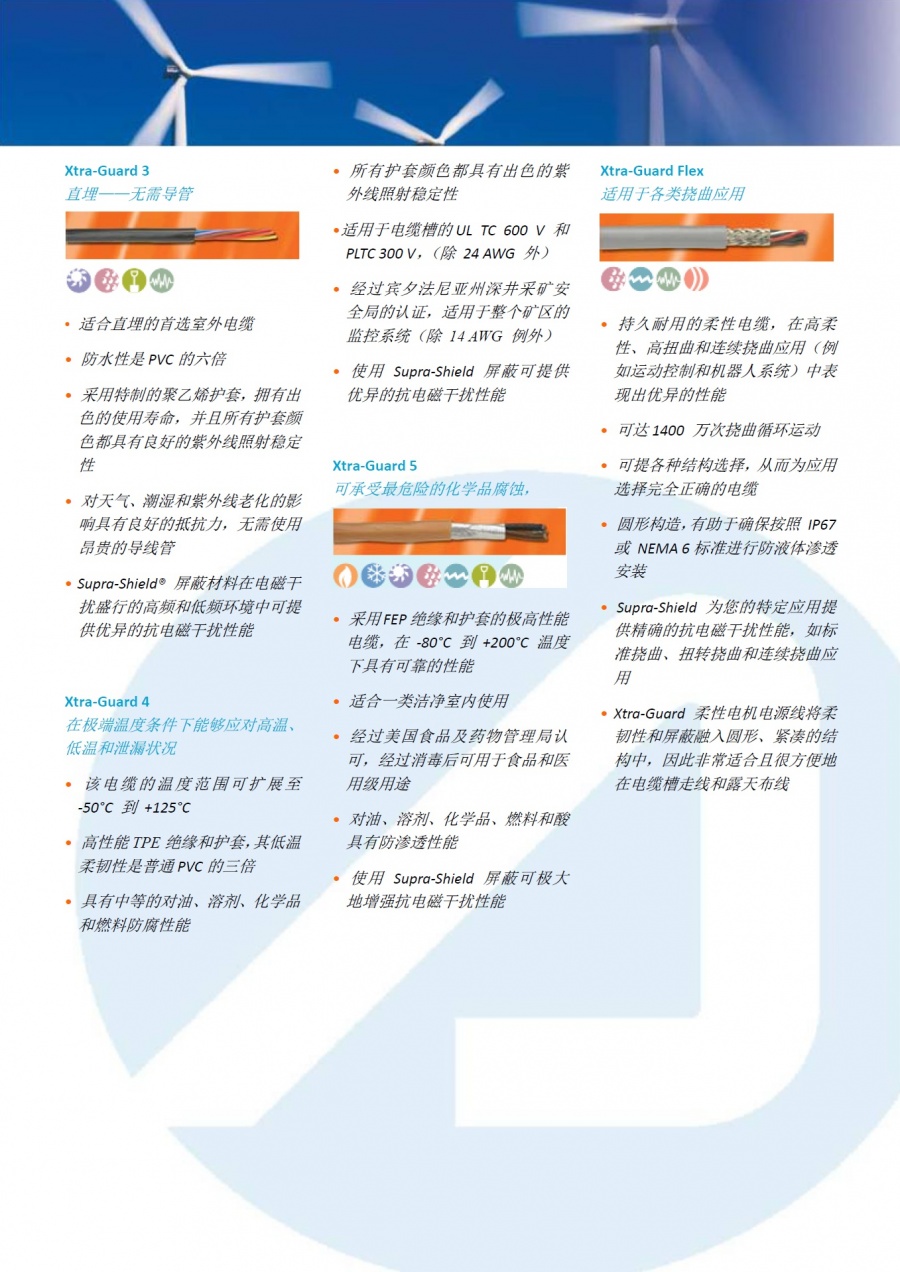

    Xtra-Guard ® 3 – 直埋式電纜，無需導線管

    1. 首選的室外電纜，適合直接敷埋
    2. 防水性是普通聚氯乙烯的5倍
    3. 採用特製的聚乙烯護套，擁有出色的使用壽命，所有護套顏色都具有良好的紫外線照射穩定性
    4. 可抵抗天氣、潮濕和紫外線老化的影響，無需使用昂貴的導線管
    5. Supra-Shield® 可在電磁/射頻干擾強烈的高頻和低頻環境中，提供優異的抗傳導或電氣噪音的保護

    •

    Awg22: Alpha35002, Alpha35003, Alpha35004, Alpha35006, Alpha35008, Alpha35010, Alpha35010/15,

    Awg20: Alpha35052, Alpha35053, Alpha35054, Alpha35056, Alpha35058, Alpha35060, Alpha35060/15,

    Awg18: Alpha35062, Alpha35063, Alpha35064, Alpha35066, Alpha35068, Alpha35070, Alpha35070/15,

    Awg16: Alpha35072, Alpha35073, Alpha35074, Alpha35076, Alpha35078, Alpha35080, Alpha35080/15,
