IPC 600P Long range PoE over Coax IPC-600P長距離同軸訊號傳輸器
型號: IPC-600P
產品: 網路端x 1, 攝影機端x1 (可1 對4 接)
品名: 長距離同軸訊號傳輸器

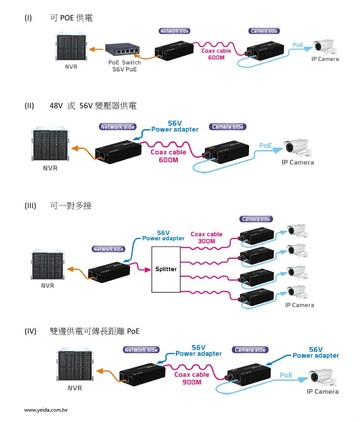

特色 1. Data 可透過同軸傳達900m
2. PoE + Data 可透過同軸傳達600m
3. 高效能、極佳線材適應性、不挑線材
4. 可一對多,分接多台子機
5. 尺吋小巧,可放置在攝影機盒
6. 專用機架設計: 1u 可架16 台
7. 彈性取電:可使用PoE 交換機或電源供應器
8. 符合IEEE802.3af / at
9. CE, FCC, RoHS認證
IPC-600P network side / IPC-600P camera side
Description
The IPC-600P enables Ethernet data and PoE power to go over coaxial cables. It gets power either from a PoE switch or through a power adapter. By adopting innovative technology, the range of the IPC-600P extends Ethernet and PoE power up to 600m over coaxial cable. The solution provides an easier, faster, and more cost-effective way for migration of analog to IP camera transmission.
Specification
|
IPC-600P
Network side |
IPC-600P
Camera side |
Electrical |
Cable type |
Almost all coaxial cables |
Standard |
IEEE 802.3af/at |
Speed |
100 Mbps throughput |
Transmission distance |
500m over RG59 |
600m over RG6 |
Power |
Suitable power adapter (optional) |
48~56V |
48~56V |
Remote powering ability |
--- |
Max 30W |
Power consumption |
3.2W |
3W |
Physical |
Enclosure material |
Aluminum Alloy |
Mounting |
Wall Mountable |
Dimension |
90 * 42 * 22mm |
79 * 42 * 22mm |
Operating temperature |
-10 ~ 60 degree C |
Accessories |
L Bracket |
56V Power Supply |
Rack-Mount Tray |
4-way Splitter |
|
