Awg24: Alpha45271, Alpha45272, Alpha45273, Alpha45274, Alpha45275, Alpha45276, Alpha45279, Alpha45279/11, Alpha45279/15, Alpha45279/19,

Awg22: Alpha45121, Alpha45122, Alpha45123, Alpha45124, Alpha45125, Alpha45126, Alpha45129, Alpha45129/11, Alpha45129/15, Alpha45129/19,

Awg20: Alpha45291, Alpha45292, Alpha45293, Alpha45294, Alpha45295, Alpha45296, Alpha45299, Alpha45299/11,  Alpha45299/15,

Awg18: Alpha45131, Alpha45132, Alpha45133, Alpha45134, Alpha45135, Alpha45136, Alpha45139, Alpha45139/11,  Alpha45139/15,

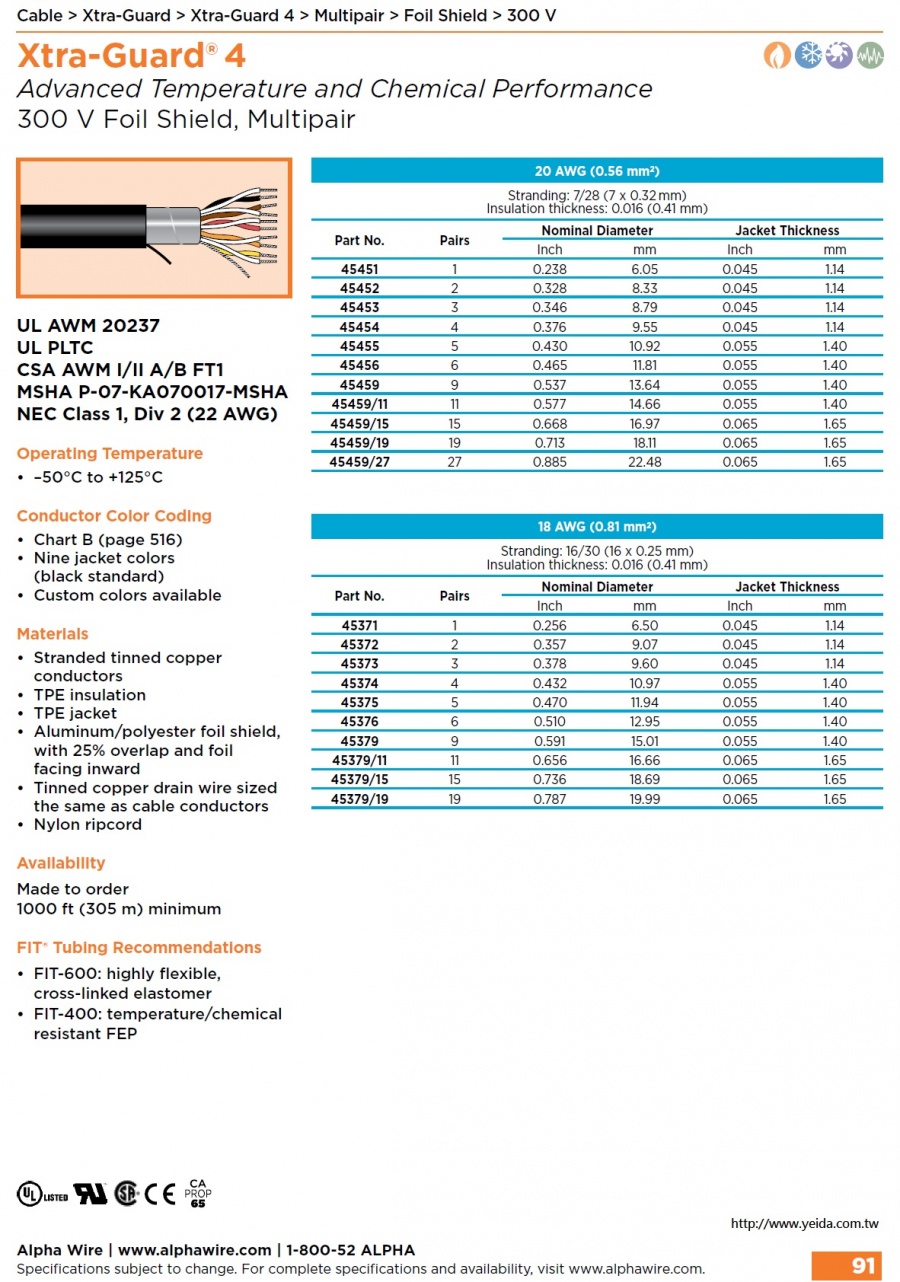

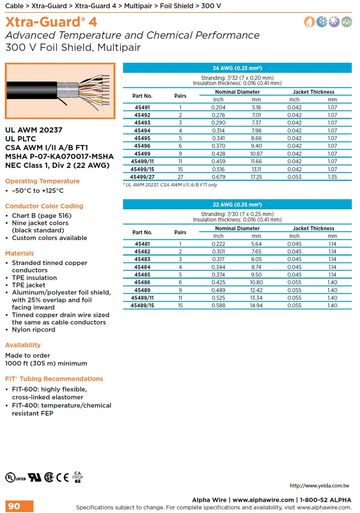

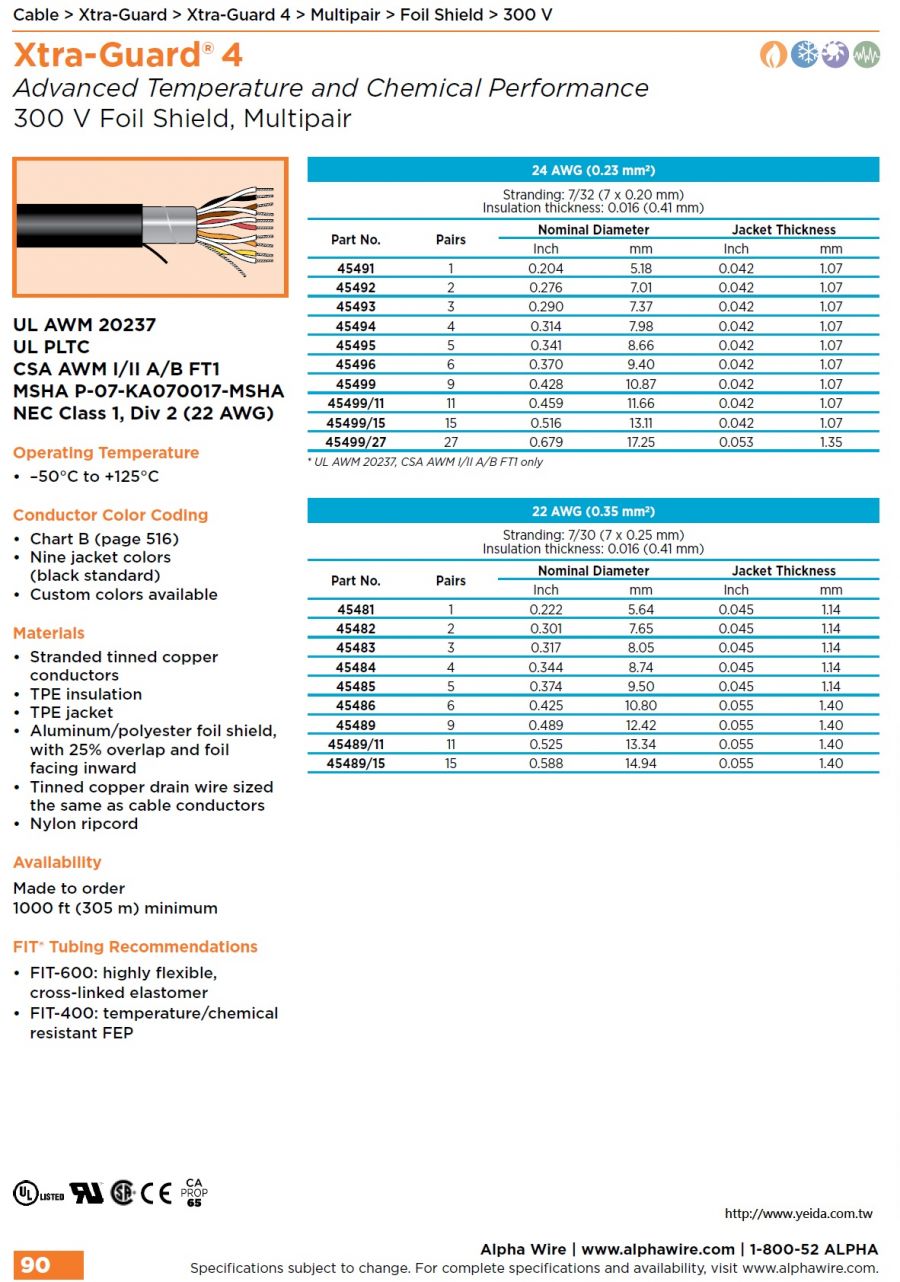

Xtra-Guard® 4
Advanced Temperature and Chemical Performance
300 V Foil Shield, Multipair
UL AWM 20237
UL PLTC
CSA AWM I/II A/B FT1
MSHA P-07-KA070017-MSHA
NEC Class 1, Div 2 (22 AWG)

Operating Temperature
• –50°C to +125°C
Conductor Color Coding
• Chart B (page 516)
• Nine jacket colors (black standard)
• Custom colors available
Materials
• Stranded tinned copper conductors
• TPE insulation
• TPE jacket
• Aluminum/polyester foil shield, with 25% overlap and foil facing inward
• Tinned copper drain wire sized the same as cable conductors
• Nylon ripcord
Availability
Made to order
1000 ft (305 m) minimum
　

FIT® Tubing Recommendations
• FIT-600: highly flexible, cross-linked elastomer
• FIT-400: temperature/chemical resistant FEP

Xtra-Guard ® 4 – 抵抗极端温度，适用于高温、低温和泄漏环境  温度耐受性极高，适用于 -50°C 到 +125°C 的工作环境 高性能热塑性橡胶绝缘和护套，低温柔韧性是普通聚氯乙烯的三倍 具有中等的耐油、耐溶剂、耐腐蚀和耐燃料性能 所有护套颜色都具有出色的紫外线照射稳定性 UL TC 600 V 和 PLTC 300 V，适合电缆槽应用（24 AWG 除外） 经宾夕法尼亚州深井采矿安全局的认证，适用于整个矿区的监控系统（14 AWG 除外） 与 Alpha 高性能屏蔽系统 Supra-Shield® 结合使用时，具有优异的抗电磁干扰/射频干扰性 Xtra-Guard® 4 - Extreme temperature capability handles hot, cold, spills  Extended-temperature cable with a temperature range from -50°C to +125°C Features a high-performance TPE insulation and jacket offering three times the low-temperature flexibility of ordinary PVC Moderate resistance to oils, solvents, chemicals, and fuels Outstanding ultraviolet light stability in all jacket colors UL Rated TC 600 V and PLTC 300 V for cable tray applications (except 24 AWG) Pennsylvania Bureau Deep Mining Safety approved for mine-wide monitoring systems Provides exceptional protection against EMI interference when Supra-Shield is specified

Awg24: Alpha45271, Alpha45272, Alpha45273, Alpha45274, Alpha45275, Alpha45276, Alpha45279, Alpha45279/11, Alpha45279/15, Alpha45279/19,

Awg22: Alpha45121, Alpha45122, Alpha45123, Alpha45124, Alpha45125, Alpha45126, Alpha45129, Alpha45129/11, Alpha45129/15, Alpha45129/19,

Awg20: Alpha45291, Alpha45292, Alpha45293, Alpha45294, Alpha45295, Alpha45296, Alpha45299, Alpha45299/11, Alpha45299/15,

Awg18: Alpha45131, Alpha45132, Alpha45133, Alpha45134, Alpha45135, Alpha45136, Alpha45139, Alpha45139/11, Alpha45139/15,
