Awg18: Alpha45422, Alpha45423, Alpha45424, Alpha45425, Alpha45427, Alpha45429,

Awg16: Alpha45432, Alpha45433, Alpha45434, Alpha45435, Alpha45437, Alpha45439,

Awg14: Alpha45442, Alpha45443, Alpha45444, Alpha45445, Alpha45447,

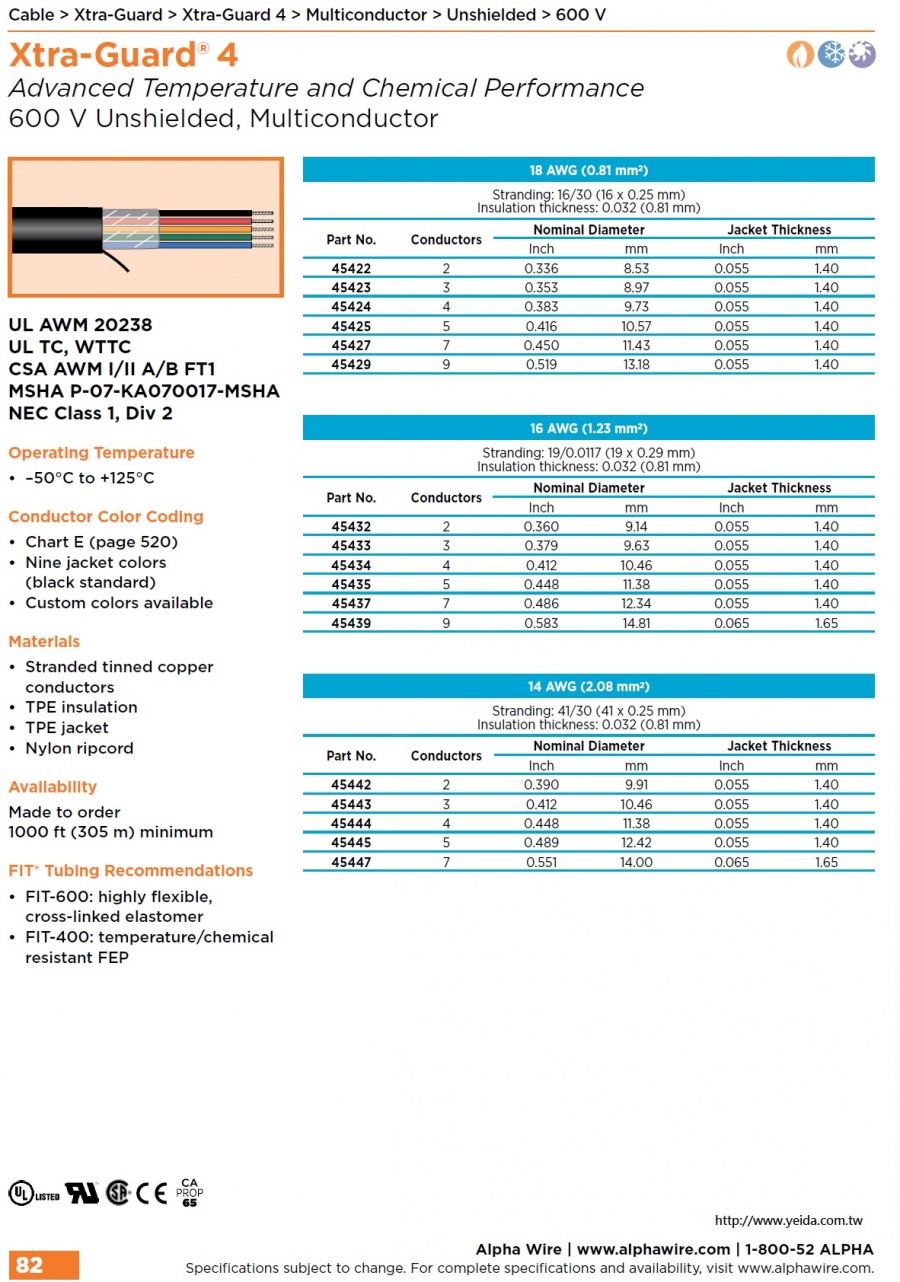

Xtra-Guard® 4
Advanced Temperature and Chemical Performance
600 V Unshielded, Multiconductor
UL AWM 20238
UL TC, WTTC
CSA AWM I/II A/B FT1
MSHA P-07-KA070017-MSHA
NEC Class 1, Div 2

Operating Temperature
• –50°C to +125°C
Conductor Color Coding
• Chart E (page 520)
• Nine jacket colors (black standard)
• Custom colors available
Materials
• Stranded tinned copper conductors
• TPE insulation
• TPE jacket
• Nylon ripcord
Availability
Made to order
1000 ft (305 m) minimum
　

FIT® Tubing Recommendations
• FIT-600: highly flexible, cross-linked elastomer
• FIT-400: temperature/chemical resistant FEP

Xtra-Guard ® 4 – 抵抗极端温度，适用于高温、低温和泄漏环境

• 温度耐受性极高，适用于 -50°C 到 +125°C 的工作环境
• 高性能热塑性橡胶绝缘和护套，低温柔韧性是普通聚氯乙烯的三倍
• 具有中等的耐油、耐溶剂、耐腐蚀和耐燃料性能
• 所有护套颜色都具有出色的紫外线照射稳定性
• UL TC 600 V 和 PLTC 300 V，适合电缆槽应用（24 AWG 除外）
• 经宾夕法尼亚州深井采矿安全局的认证，适用于整个矿区的监控系统（14 AWG 除外）
• 与 Alpha 高性能屏蔽系统 Supra-Shield® 结合使用时，具有优异的抗电磁干扰/射频干扰性

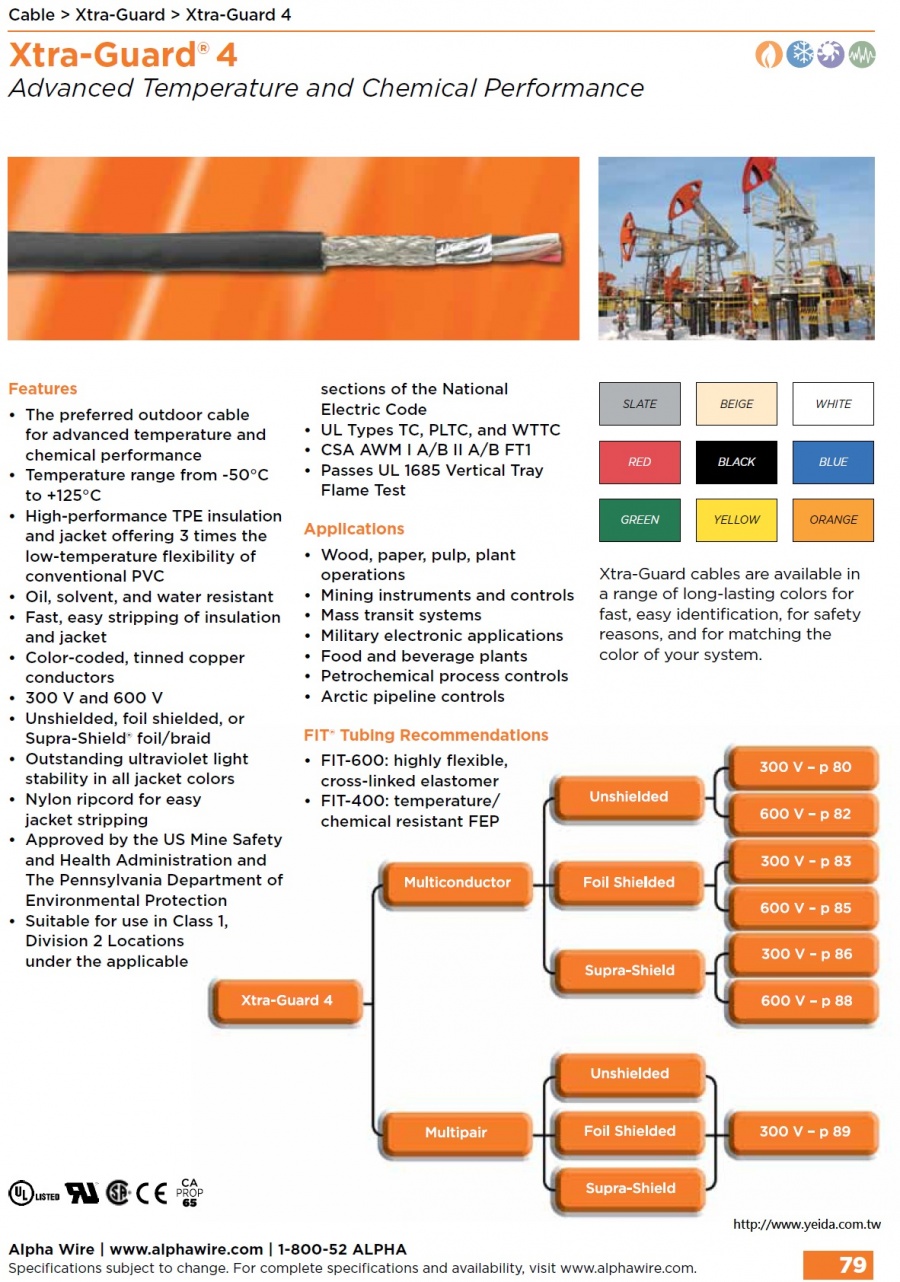

Xtra-Guard® 4 - Extreme temperature capability handles hot, cold, spills

• Extended-temperature cable with a temperature range from -50°C to +125°C
• Features a high-performance TPE insulation and jacket offering three times the low-temperature flexibility of ordinary PVC
• Moderate resistance to oils, solvents, chemicals, and fuels
• Outstanding ultraviolet light stability in all jacket colors
• UL Rated TC 600 V and PLTC 300 V for cable tray applications (except 24 AWG)
• Pennsylvania Bureau Deep Mining Safety approved for mine-wide monitoring systems
• Provides exceptional protection against EMI interference when Supra-Shield is specified

---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Awg18: Alpha45422, Alpha45423, Alpha45424, Alpha45425, Alpha45427, Alpha45429,

Awg16: Alpha45432, Alpha45433, Alpha45434, Alpha45435, Alpha45437, Alpha45439,

Awg14: Alpha45442, Alpha45443, Alpha45444, Alpha45445, Alpha45447,
